Mini Concrete Core Drilling Machine

Mini Concrete Core Drilling Machine
Price: US $ 800-2000/Set
Min Order: 1/Set
Pay Type: T/T,Western Union
Mini Concrete Core Drilling Machine

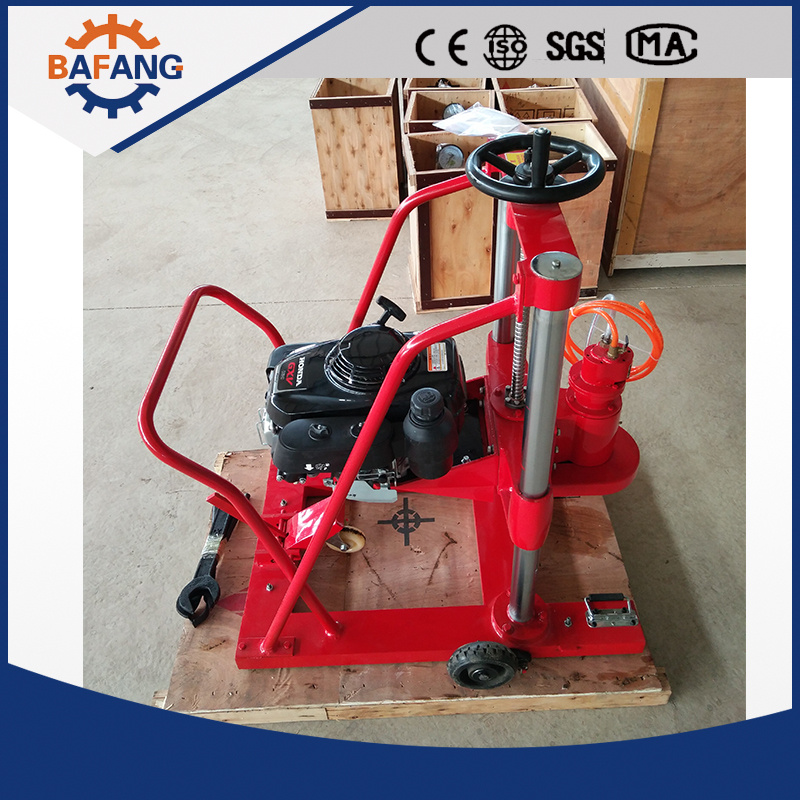

HZ Series Pavement core drill machine is used to drill engineering sampling and hole of fixed protective rail for the highway and municipal foundation.It uses gasoline engine as the power for easy start up, reliable running and simple operation, it is also equipped with synthetic diamond thin wall bit. The machine's drill bit is compatible with imported ones, the machine can achieve automatic core drilling.The max drilling depth is 700mm(with additional rod can reach max 1500mm) .For high-grade highway concrete, asphalt, limestone based on compressive strength, bending experiment research core is very ideal.

Techincal parameter
Largest drilling core diameter200mm
Max drilling core depth700mm-1500mm
Drilling directionVertical down
Spindle speed800-1200rpm
Support powerElectric; Gasoline engine
Power5.5HP; 9HP; 13HP; 3.3kw-6.5kw
Weight150kg/ 110kg

Main Features
1). Use imported gasoline engine, drive conveniently, run reliably, operate simply
2). No need electric power
3). equipped with man-made PCD thin drilling bit
4). Boring and sampling size accurately
5). The surface is smooth after boring, don't damage the drill material

Product pictures

Company information

For more detailed specifications please feel free to contact with us
Jining Bafang Mining Machinery Co.,Ltd
Name:Mavis Zhang
Telphone:86-537-2228876    +13012657265
Prod Model: HZ-20
Jining Bafang Mining Machinery Group Co., Ltd. is a professional manufacturing base of mining support equipment, drilling equipment, transport equipment, Guniting equipment, Explosion proof instrument and other products, as well as research and development new product and mine construction products with advanced high technology

The products have been exported to more than 20 countries and regions, such as Africa, South America, Middle East, EU, with our outstanding quality, competitive price and on-time considerate service. We have won a high reputation from our esteemed customers.

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of"quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

We always believe in your requirements are our value.

Come on! Let's create a beautiful tomorrow together!
