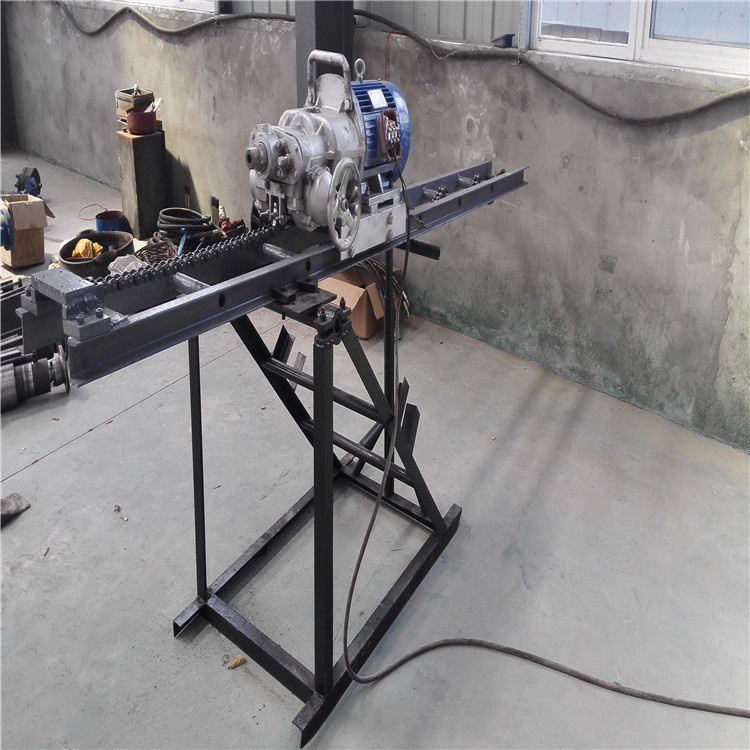

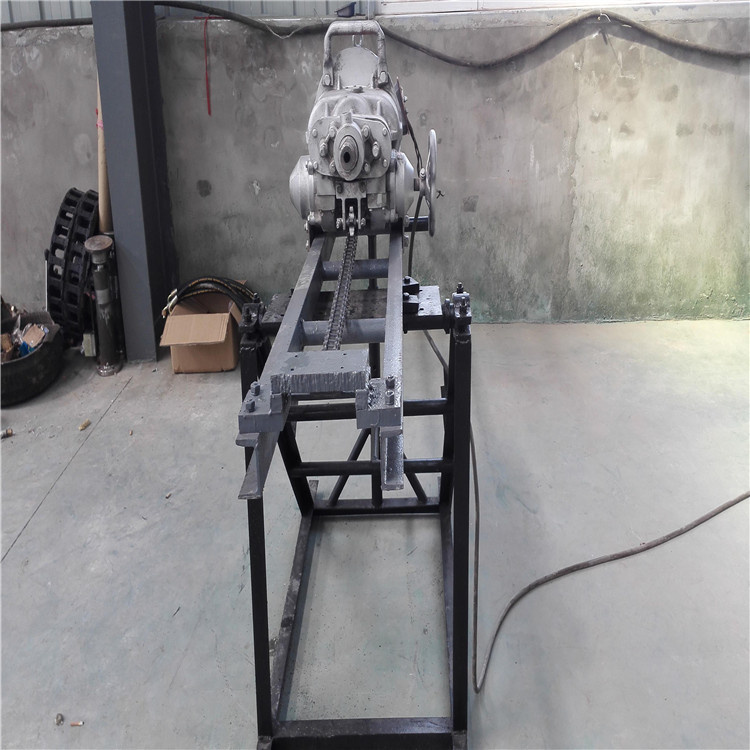

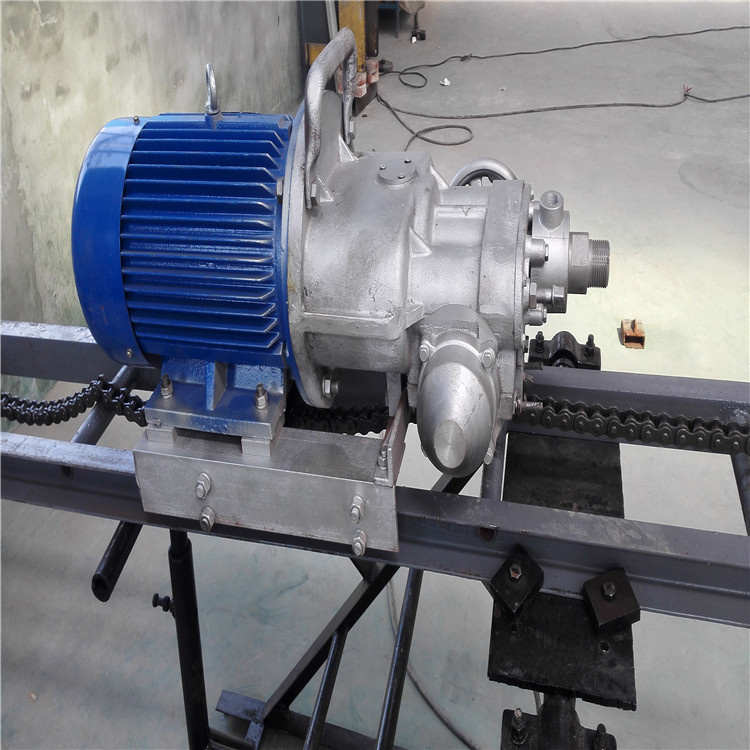

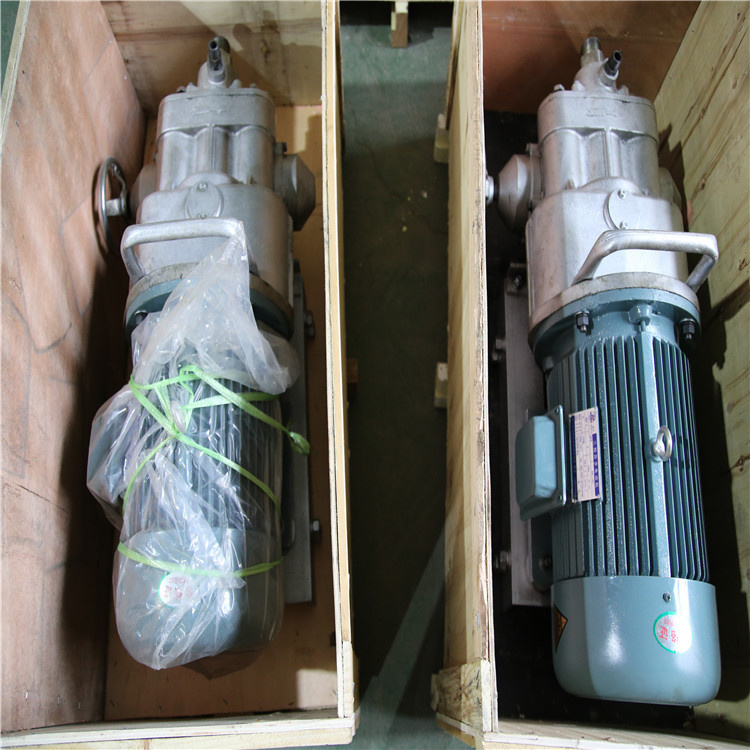

Explosion Proof Electric Handheld KHYD Mining Rock Drill
Product DescriptionApplication:
1.Be used for drilling burst mine hole in rock
2.Be able to do wet type and dry type work
3.Be easy to move, easy to operate
Feature:
1.Electric rock drill is used for drilling burst mine hole in rock.
2. It is widely used in the mine shaft excavation, road construction, water conservancy construction, metallurgy mining, rock engineering, quarry operation, basic engineering drilling reinforcement construction process.
3.The explosion-proof electric rock drill is used for drilling water injection hole, on coal seam, exploring water holes and discharging gas, also can be used for soft rock tunnel excavation.
4.they can do wet type and dry type work (equipped with twist drill rod). Drills holes horizontally forward or tilt up, only need to control the handwheel, the drill will track forward and backward automatically on the railway.
Main Parameter:
Model | Drilling dia. for rock | Drilling dia. for mine | Drilling depth for rock | Drilling depth for mine | Spindle speed | Power | weight |
KHYD40 | 42mm | 45-60mm | 5m | 20-60m | 2814 r/min | 2kw | 40kg |
KHYD75 | 42mm | 45-80mm | 10m | 30-80m | 1420 r/min | 3kw | 75kg |
KHYD140 | 42-80mm | 80-100mm | 20m | 30-80m | 1440 r/min | 5.5kw | 140kg |
KHYD150 | 42-80mm | 80-120mm | 25m | 40-100m | 1440 r/min | 7.5kw | 150kg |
