Hydraulic submersible hole drilling machine
Main features:
1. DTH drilling system and screw air compression system integration;
2. Good performance, easy to move;
3. Energy saving, efficient, environment protection and safety
Technical parameter
Model | KY420 | KY421 |
Working pressure | Low pressure 0.7-1.2 Medium pressure 1.3-2.0 | 14.5bar |
Gas consumption | Low pressure 10-20 Medium pressure 10-20 | 10m^3/min |
Drilling diameter | 80-138mm | 80-100mm |
Supporting the impactor | 930 340A | |
Drilling depth | 30m | 25m |
Drill pipe length | 300m | |
Drill pipe diameter | A:60 B:76 | 68mm |
Stand-alone grade ability | 25 | 30 |
Walking speed | 2-3.2km/h | 2-3.2km/h |
Rotary engine speed | 0-76r/min | 0-75r/min |
Rotary torque | 1970N.m | 1450N.m |
Host weight | 3930kg | 7000kg |
Size | 5300*2000*1860mm | 5950*2450*2830mm |

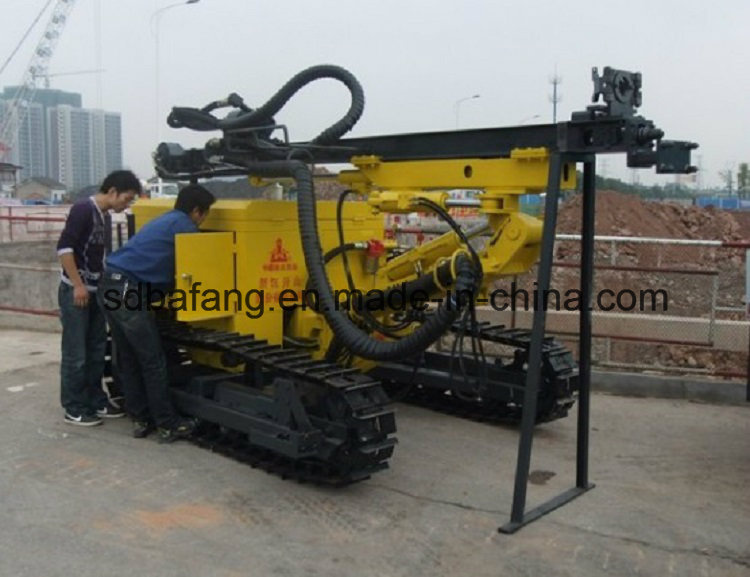

Product pictures
Company information
For more detailed specifications please feel free to contact with us
