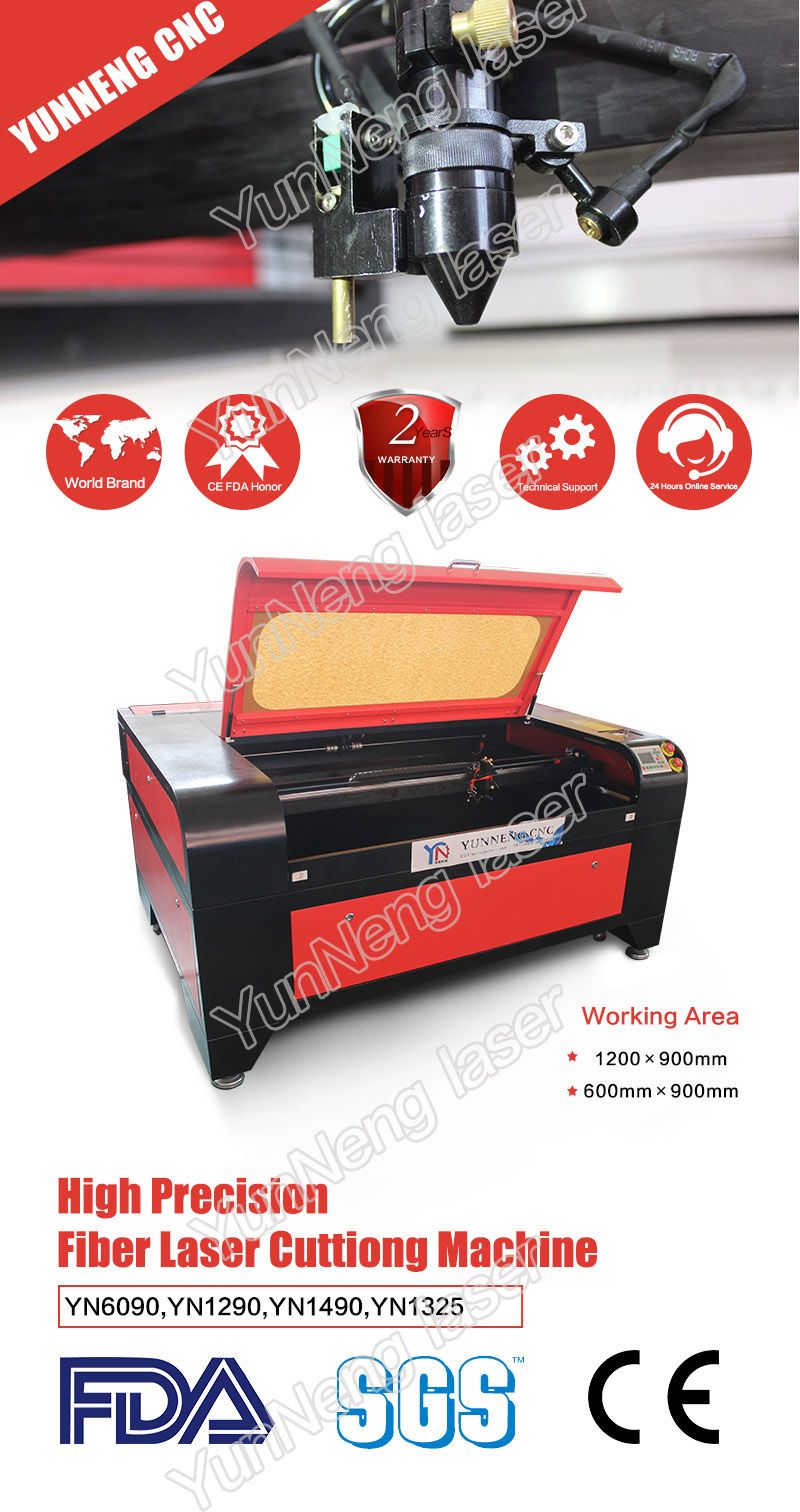

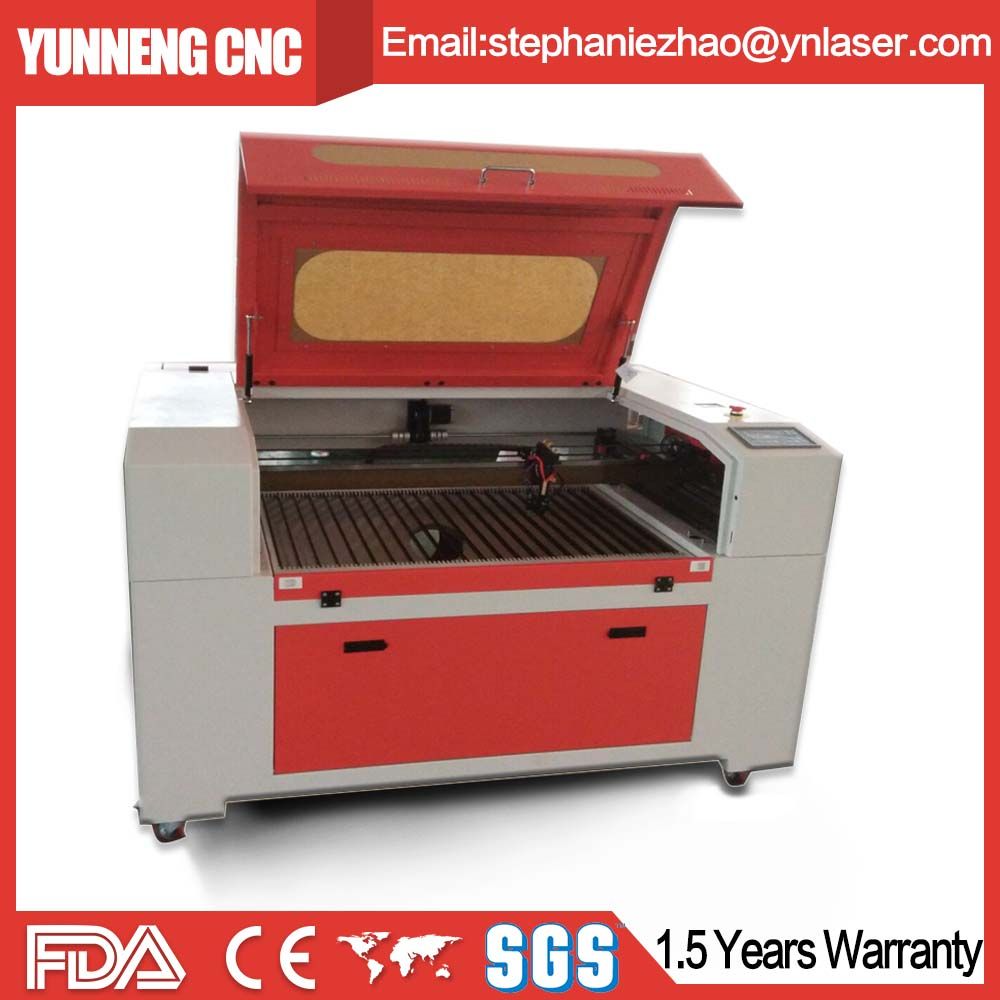

USB Port 100W Laser Engraving Cutting Machine Engraver Cutter Fabric
Price: |
US $ 3800-4900/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union |
Prod Model: |
YN-1390 |
Tube Type: |
CO2 Sealed Glass Tube |
Tube Power: |
100W |
Applicalble Materials: |
Acrylic, Wood, Crytal, Leather, Fabric etc |
Control Software: |
Laser V 8.0 |
After-Sales Service Provide: |
Engineers Available to Service |
Software: |
Coreldraw, Autocad |
Guide Line: |
Taiwan PMI Guide Line |
Cutting Thickness: |
0-35mm |
Cooling Mode: |
Water Cooling |
Place Of Origin: |
Shandong, China (Mainland) |
Product Description
Working video on youtubehttps://www.youtube.com/watch?v=c8CHh3k-PDo&t=10s
100W cheap co2 laser machine Includes:- 100W sealed CO2 glass laser tube with optional upgrades from 100 to 150 watts
- Expanded 36x55" engraving area with 4 over sized material pass thrus
- LaserWORKS 8 stand alone software / driver with direct output capability from graphics programs
- New! Five (5) material Tru-Pass-Thru options for virtually unlimited material flexibility
- NEW! Auto Focus assembly automatically regulates the start-up distance between the laser head and the material
- NEW! Inline Beam Combiner accurately illuminates red dot over your material for improved accuracy and alignment
- New! U.S. manufactured optics by American Photonics. Proven 14% improved beam transmission vs. imported lenses.
- Illuminated LCD panel for automated laser head control
- Motorized Z-Table lowers Z-axis 7" for tall materials.
- Both Honey Comb and Knife Blade Platforms included for securing maximum material capacity
- Vacuum table under the Z-table captures finished product into sliding tray.
- Quality CNC machined parts in stock for long term service and reliability
- Upgraded ball bearing Y axis guide rails promotes quiet, smooth & precise laser movement
- Optional Rotary Roller or Chuck attachment for cylindrical objects
- Windows 10, 8, 7 (64 or 32 bit), XP, 2000 compatible
- Dedicated USA technical support Mon - Saturday
- We can serve you via. phone, email, chat, or remote computer access!
- 2 years Warranty covers CO2 Laser machine parts and laser tube.
laser engraving equipment Technicial parameterModel Number | YN-1390 |
Laser power | 100W |
Laser type | CO2 |
Wavelength | 10.6 um |
Laser format | Sealed laser glass tube |
Cooling type | Water (purified) |
Chassis Details |
Machine size | 2480 x 1660 x 1050mm |
Weight (nett) | 380kg |
Bed size (process area) | 1300 x 900 mm |
Z motion | 280 mm |
Motion Control |
X-Y stage drives | Leadshine Nema drive motors |
X-Y stage movement | 1300 x 900 mm |
Z stage drive | Standard stepper motor drive |
Z stage movement | 280mm |
Targeting laser | CO2 sealed glass laser tube |
Autofocus | Included |
Process Details |
Positional accuracy | < 0.01mm |
Highest scanning resolution | 4000 dpi |
Recommended smallest character size | 1mm height (this is material dependant) |
Scanning speed (engraving). | Up to 1.2 metre/sec. (ultimate speed is material dependant) |
Scanning speed (Cutting). | Up to .75 metres/sec. (ultimate speed is material dependant) |
Environmental Conditions |
Operating power | 220- 240v 50 Hz |
Operating temperature | Ambient temperature: 10 - 30 degrees Celsius |
General environment | Dust free, clean area with reasonable ventilation |
Humidity | (relative) less than 70% |
Water cooling supply | Closed loop chiller supplied |
Air assist | Air Pump supplied |
Operating Details |
Operating software | Graphical interface package supplied with machine |
Communications interface | USB |
Compatible software | CorelDraw, Photoshop, AutoCAD |
Supported file formats | PLT, DXF, BMP, DST, Ai |
Applicable Material of laser cut plastic:
laser tube | | | | | | | |
size | 80w | 100w | 130w | 150w | 180w | 200w |
acrylic | | | | | | | |
3mm | 25mm/s | 30mm/s | 35mm/s | 40mm/s | 45mm/s | 50mm/s |
5mm | 12mm/s | 20mm/s | 25mm/s | 35mm/s | 40mm/s | 45mm/s |
8mm | 10mm/s | 12mm/s | 15mm/s | 18mm/s | 20mm/s | 23mm/s |
10mm | 5mm/s | 7mm/s | 8mm/s | 10mm/s | 12mm/s | 14mm/s |
15mm | 1.5mm/s | 2.5mm/s | 3.5mm/s | 4mm/s | 4.5mm/s | 5mm/s |
20mm | | 1.5mm/s | 2mm/s | 3mm/s | 3.5mm/s | 4mm/s |
MDF | | | | | | | |
3mm | 15mm/s | 20mm/s | 25mm/s | 30mm/s | 35mm/s | 40mm/s |
10mm | 6mm/s | 10mm/s | 12mm/s | 15mm/s | 17mm/s | 20 mm/s |
Plywood | | | | | | | |
5-7mm | 15m/s | 18mm/s | 20mm/s | 23mm/s | 25mm/s | 30mm/s |
10mm | 20mm/s | 25mm/s | 28mm/s | 30mm/s | 33mm/s | 35mm/s |
15mm | 15mm/s | 20mm/s | 25mm/s | 28mm/s | 30mm/s | 33mm/s |
20mm | 7mm/s | 9mm/s | 11mm/s | 14mm/s | 16mm/s | 18mm/s |
solidwood | only can engrave ,can not cut ,engrave2-3mm | | | |
Feature Of laser cut plastic- 2 years free warranty
- Provides excellent after-sales service - Safety certificate for machine
- FDA compliant, CE certification certification - The manual up/down table
- It is suitable for different sizes of carving items - A red dot pointer
- Provides visibility and shows the engraving location. - Control panel
- Easy to use, the speed, power and other settings can adjust. - With 60W CO2 laser tube
- The engraving will be smooth and precise. - The Raster/Vector color mapping
- Allows you to change the engraving speed and power through color coding. - The Cylinder Rotary Attachment
- Allows you to engrave any cylindrical object such as cups, pots, musical instruments. - The reinforced and thickened machine body
- Makes transportation absolutely to be safer and longer life time. - USB connectivity and U-Flash disk supported
- USB connectivity for easy observation from your computer
- U-Flash disk for the machine will read files from memory stick,you can work even without a PC. - Water cooling and protection system
- Can reduce the laser tube's temperature and help it work for a longer time - Air assist function and exhaust fan system
- Helps the cutting surface always to clean the debris, gases and heat and makes the engraving and cutting projects a breeze - Mainboard and chip & bearing & high accuracy stepping belt
- Mainboard and chip adopt Japan imported which can control the engraving more precise
- Bearing & high accuracy stepping belt adopt Germany imported, which not only make the engraving more precise, also make the machine life time twice to three times than ordinary CO2 laser engraver - Supports multiple graphic formats

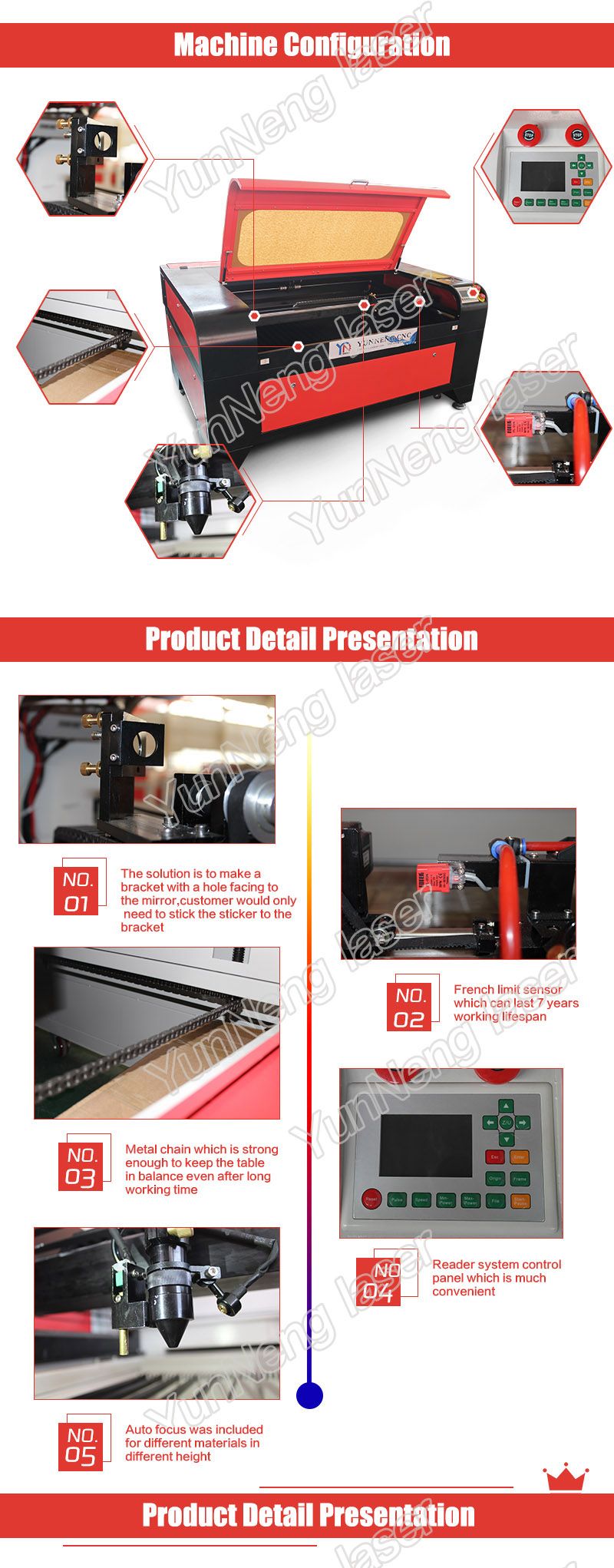

- PLT / DXF / BMP / JPG / GIF / PGN / TIF and others. Equipped with a DSP control system for CorelDraw/AutoCAD and other advance software, this machine is compatible with Win 7, Win 8, win 10,Vista, XP and Win 2000. - Details show on the laser cutting machine
- Note:
- This item is very heavy and cannot ship out through Fedex or UPS. This item requires special truck delivery and we will need your correct phone number in order to schedule delivery . The included service is delivery to your address. It does not include lift gate service, installation or delivery inside the house. If you need the lift gate service, please contact us before making the purchase!
- Please provide us with the valid commercial address. If your delivery address is private residence address, contact us before you place an order.
