laser cutters for home use is a technology that uses a laser beam to cut materials, and is typically used for industrial manufacturing applications, but is also starting to be used by schools, small businesses, and hobbyists. Laser cutting works by directing the output of a high-power laser most commonly through optics.
laser cutters for home useSpecification:
Packing: plywood case
Voltage : 220V/ 60Hz
Net Weight: 465KG
Laser tube power: 50W
Working size: 1300x900mm
Resolution ratio: ≤4500dpi
Laser type: hermetic CO2 glass tube
Worktable: DC -up&down table
Compatible software: CorelDraw, AutoCAD(not included in this item)
Machine Dimension:3210×1950×1350 mm
laser head to the lifting platform distance: 22.5cm
laser cutters for home useApplicable Material:
Material
Engrave
Cut
Wood
Yes
Yes
Jade
Yes
Acrylic
Yes
Yes
Glass
Yes
Ceramic
Yes
Delrin
Yes
Yes
Cloth
Yes
Yes
Leather
Yes
Yes
Marble
Yes
Matte Board
Yes
Yes
Melamine
Yes
Yes
Paper
Yes
Yes
Mylar
Yes
Yes
Press Board
Yes
Yes
Rubber
Yes
Yes
Wood Veneer
Yes
Yes
Fiberglass
Yes
Yes
Tile
Yes
Plastic
Yes
Yes
Cork
Yes
Yes
Corian
Yes
Yes
Ceramics
Yes
laser cutters for home usePackage Included
1x Main Body
1x Air Pump
1x Exhaust Fan
1x Smoke Pipe
1x Laser Tube
1x USB Cable
1x Power Line
1xSet Wrench
1x Water Pump
1x Accessory Bag
1x English Manual
1x CD
laser cutters for home usetechnical parameters

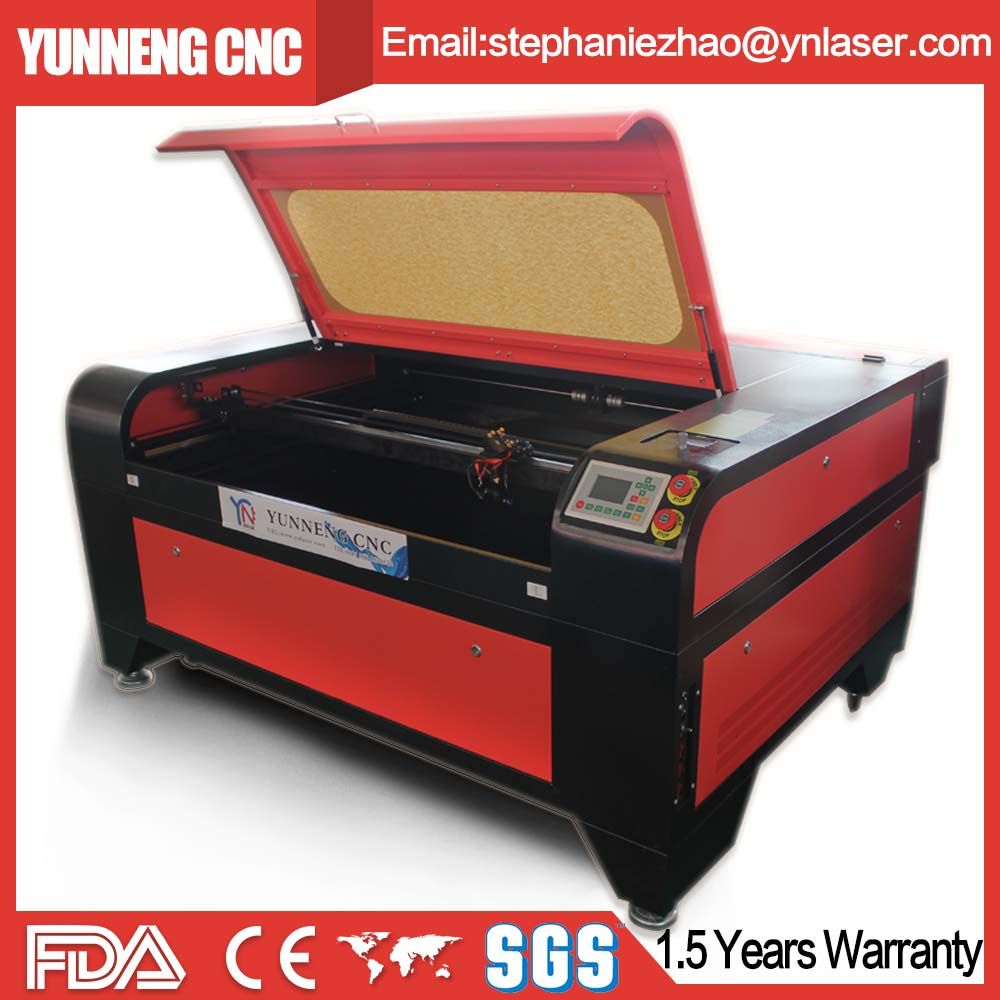

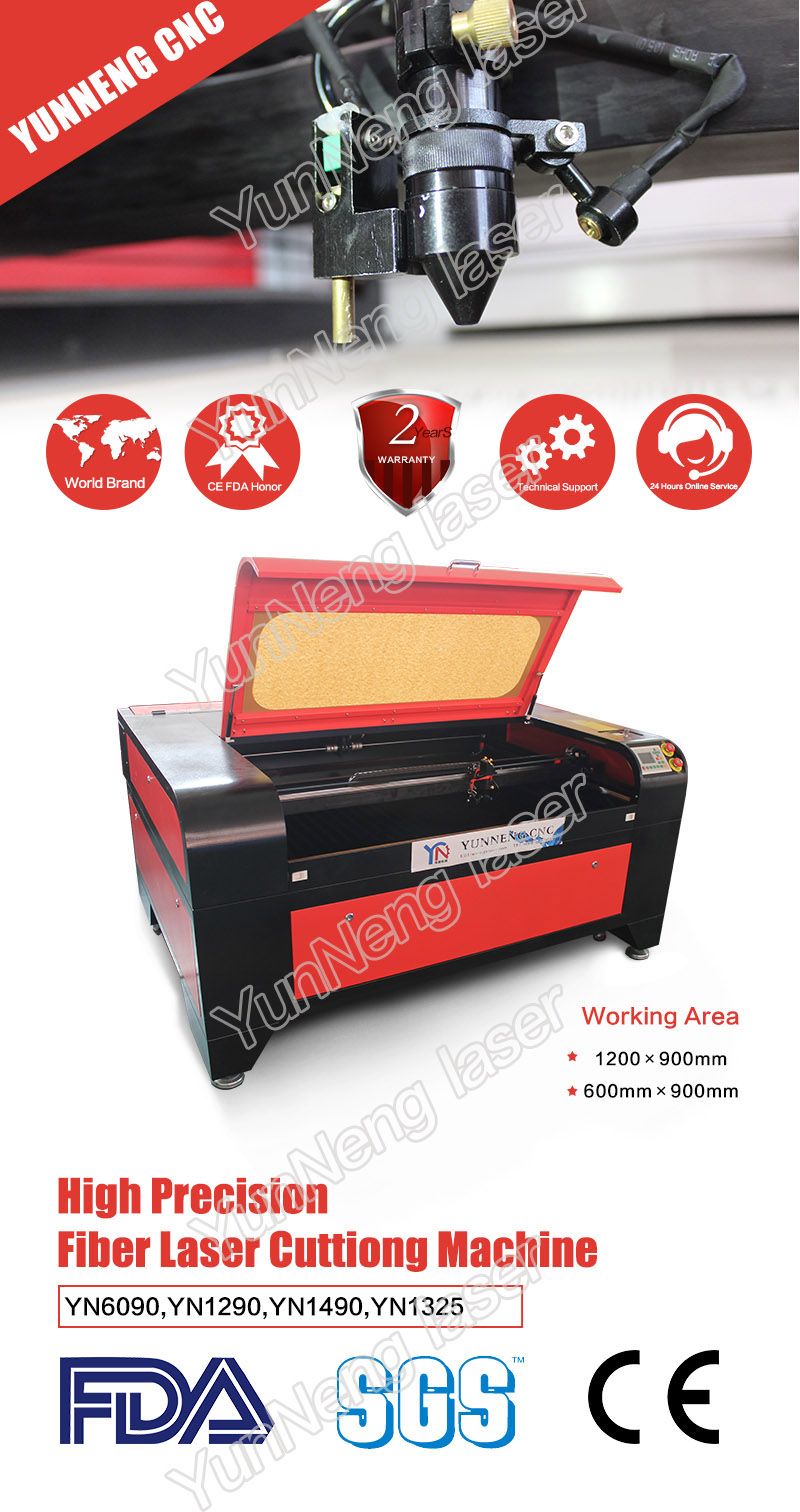

laser cutters for home use
Product Type
laser cutters for home use
Model
YN-6090
Effective area
600*900mm
Laser power
130w
Laser type
Beijing EFR,RECI
Cooling mode
Water cooling
Engraving scanning speed
0-60000mm/min
Cutting speed
0-30000mm/min
Laser energy control
1-100% software setting
Mini-shaping character
Chinese character2.0*2.0mm,English1.0*1.0mm
Max-scanning precision
4500DPI
Positioning precision
0.01mm
Supported graphic format
DSP PLT BMP DXF AI
Operating system
Windows98/ME/2000/XP/VISTA/2007
power
AC110V-220V+10%,50-60HZ
Driving system
Stepper motor
Material thickness as a reference
Solid wood 5mm,acrylic 25mm,PVC 25mm,leather 4mm
Note:
This item is very heavy and cannot ship out through Fedex or UPS. This item requires special truck delivery and we will need your correct phone number in order to schedule delivery . The included service is delivery to your address. It does not include lift gate service, installation or delivery inside the house. If you need the lift gate service, please contact us before making the purchase!
Please provide us with the valid commercial address. If your delivery address is private residence address, contact us before you place an order.
Warranty and other details with laser cutters for home use
1.5 years free warranty - Provides excellent after-sales service
Safety certificate for machine - FDA compliant, CE certification, ISO9001 quality certification

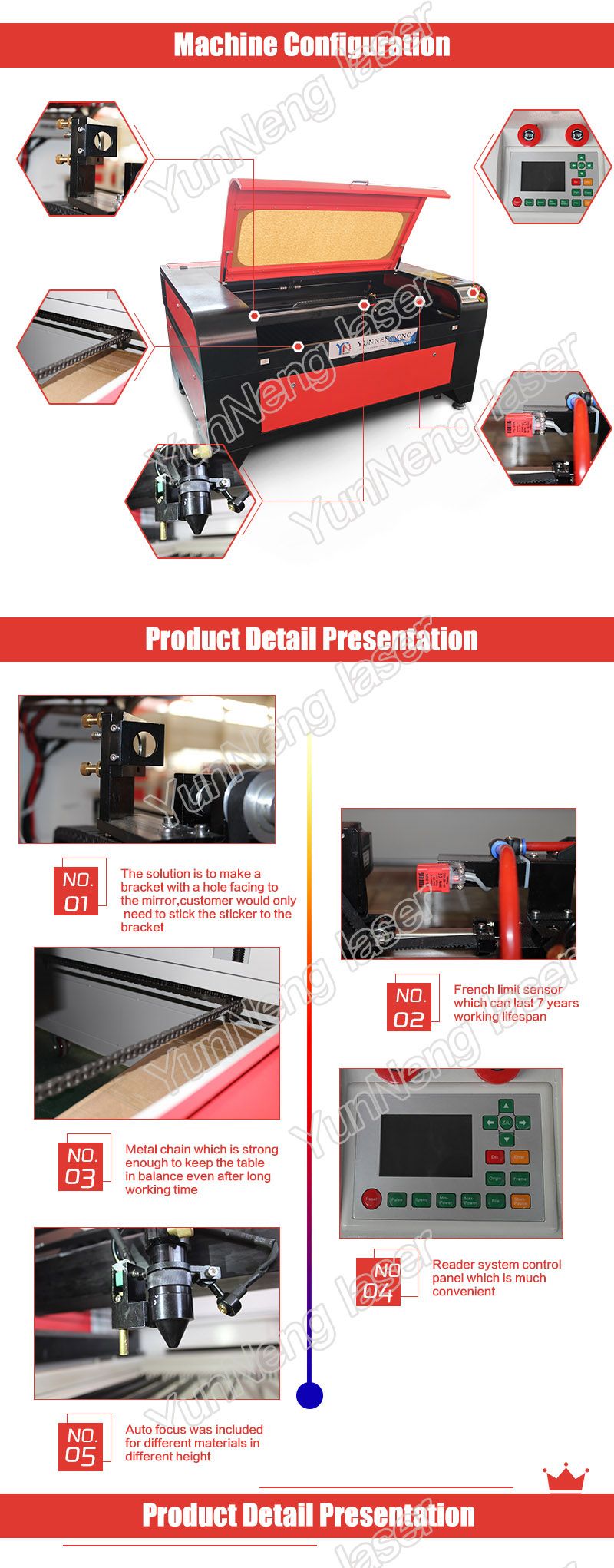

The manual up/down table - It is suitable for different sizes of carving items
A red dot pointer - Provides visibility and shows the engraving location.
Control panel - Easy to use, the speed, power and other settings can adjust.
With 100W CO2 laser tube - The engraving will be smooth and precise.
The Raster/Vector color mapping - Allows you to change the engraving speed and power through color coding.
The reinforced and thickened machine body - Makes transportation absolutely to be safer and longer life time.
USB connectivity and U-Flash disk supported - USB connectivity for easy observation from your computer - U-Flash disk for the machine will read files from memory stick,you can work even without a PC.
Water cooling and protection system - Can reduce the laser tube's temperature and help it work for a longer time
Air assist function and exhaust fan system - Helps the cutting surface always to clean the debris, gases and heat and makes the engraving and cutting projects a breeze
Mainboard and chip & bearing & high accuracy stepping belt - Mainboard and chip adopt Japan imported which can control the engraving more precise - Bearing & high accuracy stepping belt adopt Germany imported, which not only make the engraving more precise, also make the machine life time twice to three times than ordinary CO2 laser engraver
Supports multiple graphic formats - PLT / DXF / BMP / JPG / GIF / PGN / TIF and others. Equipped with a DSP control system for CorelDraw/AutoCAD and other advance software, this machine is compatible with Win 7, Win 8, Vista, XP and Win 2000.
Weifang Yunneng CNC Equipments Co., Ltd is a new and high technology enterprise in China. Our company is specialized in computer software development and technology transfer, laser equipment. Undertake precise laser processing business.
Relying on the China from universities and research institutions, we are the main business agent of the optical equipment such as: Metal laser marking machine, laser engraving machine, laser metal cutting machine, laser welding machine, laser die board making machine, CNC router channel letter bending machine and vacuum forming machine. Our products can be applied to the fields of hardware auto parts, clothing, leathers, toys, electronic appliance, models, process advertising, stones, decorations, plastics, glass industry and others.
Yunneng insists on "quality wins the market and the quality service wins the customers". Complying with European CE certification, our products sell well in over 30 countries and regions, such as Brazil, Mexico, Belgium, Iran, Thailand, Korea, Vietnam, the USA, Germany, Italy, Australia, Pakistan, Egypt, Spain, South Africa and Lithuania.
Our success depends entirely on the satisfaction of our customers. Ensuring that you are completely happy and comfortable with your machine is always our first priority. We work tirelessly to make sure that your experience with our laser is always both professional.
