We believe there is value in standing out from the crowd and that thinking outside the box is not always a bad thing; this is something we pride ourselves on doing, to create the best product for you.

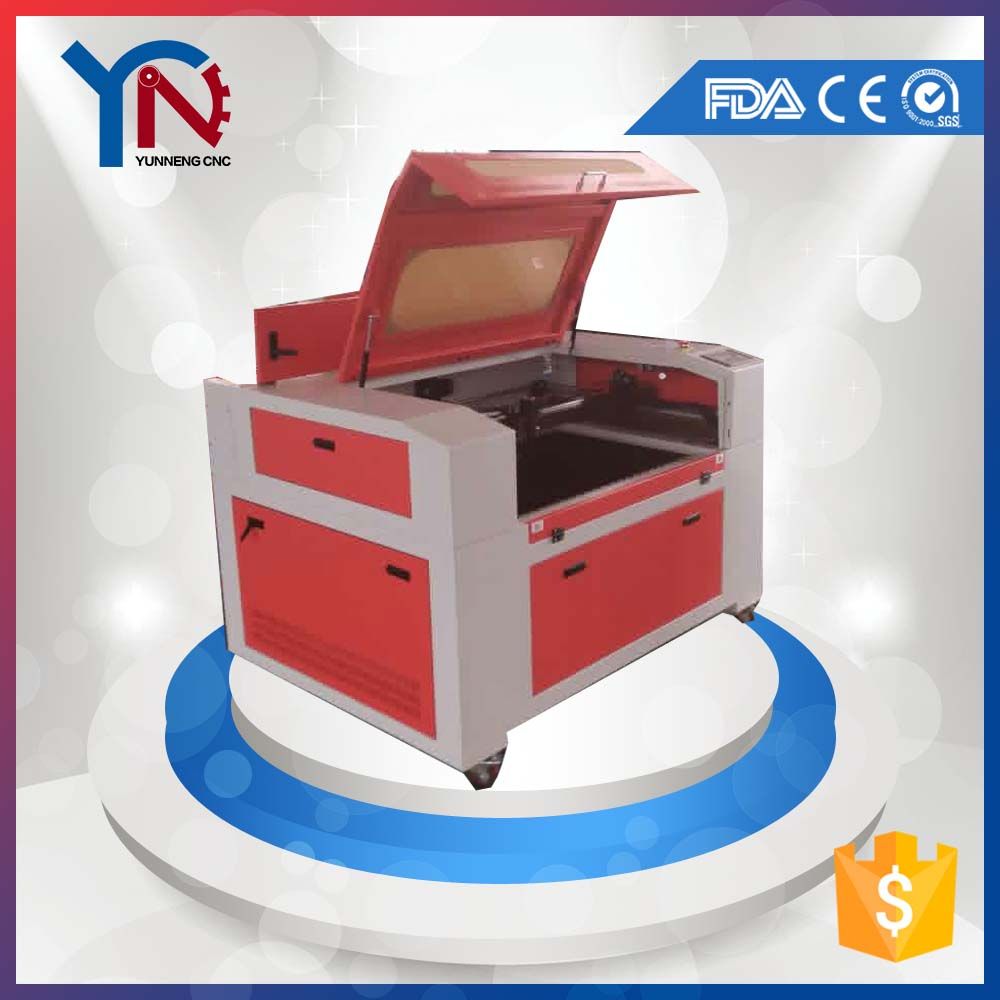

Our Yunneng machines combine laser cutting and laser engraving systems in an affordable package, ensuring you will obtain the optimum efficiency within your production environment. Aimed mainly at non-metallic applications, these large area processing machines continue to find new and exciting applications in higher education, fashion, model making, cottage industries and much, much more.
laser cut plasticTechnicial parameter
Model Number
YN-6090
Laser power
60W
Laser type
CO2
Wavelength
10.6 um
Laser format
Sealed laser glass tube
Cooling type
Water (purified)
Chassis Details
Machine size
1980 x 1460 x 1050mm
Weight (nett)
280kg
Bed size (process area)
600 x 900 mm
Z motion
100 mm
Motion Control
X-Y stage drives
Leadshine Nema drive motors
X-Y stage movement
600 x 900 mm
Z stage drive
Standard stepper motor drive
Z stage movement
280mm
Targeting laser
CO2 sealed glass laser tube
Autofocus
Included
Process Details
Positional accuracy
< 0.01mm
Highest scanning resolution
4000 dpi
Recommended smallest character size
1mm height (this is material dependant)
Scanning speed (engraving).
Up to 1.2 metre/sec. (ultimate speed is material dependant)
Scanning speed (Cutting).
Up to .75 metres/sec. (ultimate speed is material dependant)
Environmental Conditions
Operating power
220- 240v 50 Hz
Operating temperature
Ambient temperature: 10 - 30 degrees Celsius
General environment
Dust free, clean area with reasonable ventilation
Humidity
(relative) less than 70%
Water cooling supply
Closed loop chiller supplied
Air assist
Air Pump supplied
Operating Details
Operating software
Graphical interface package supplied with machine
Communications interface
USB
Compatible software
CorelDraw, Photoshop, AutoCAD
Supported file formats
PLT, DXF, BMP, DST, Ai
Applicable Material of laser cut plastic:
Material
Engrave
Cut
Wood
Yes
Yes
Jade
Yes
Acrylic
Yes
Yes
Glass
Yes
Ceramic
Yes
Delrin
Yes
Yes
Cloth
Yes
Yes
Leather
Yes
Yes
Marble
Yes
Matte Board
Yes
Yes
Melamine
Yes
Yes
Paper
Yes
Yes
Mylar
Yes
Yes
Press Board
Yes
Yes
Rubber
Yes
Yes
Wood Veneer
Yes
Yes
Fiberglass
Yes
Yes
Tile
Yes
Plastic
Yes
Yes
Cork
Yes
Yes
Corian
Yes
Yes
Ceramics
Yes
Feature Of laser cut plastic
2 years free warranty - Provides excellent after-sales service
Safety certificate for machine - FDA compliant, CE certification certification
The manual up/down table - It is suitable for different sizes of carving items
A red dot pointer - Provides visibility and shows the engraving location.
Control panel - Easy to use, the speed, power and other settings can adjust.
With 60W CO2 laser tube - The engraving will be smooth and precise.
The Raster/Vector color mapping - Allows you to change the engraving speed and power through color coding.
The Cylinder Rotary Attachment - Allows you to engrave any cylindrical object such as cups, pots, musical instruments.
The reinforced and thickened machine body - Makes transportation absolutely to be safer and longer life time.
USB connectivity and U-Flash disk supported - USB connectivity for easy observation from your computer - U-Flash disk for the machine will read files from memory stick,you can work even without a PC.
Water cooling and protection system - Can reduce the laser tube's temperature and help it work for a longer time
Air assist function and exhaust fan system - Helps the cutting surface always to clean the debris, gases and heat and makes the engraving and cutting projects a breeze
Mainboard and chip & bearing & high accuracy stepping belt - Mainboard and chip adopt Japan imported which can control the engraving more precise - Bearing & high accuracy stepping belt adopt Germany imported, which not only make the engraving more precise, also make the machine life time twice to three times than ordinary CO2 laser engraver
Supports multiple graphic formats - PLT / DXF / BMP / JPG / GIF / PGN / TIF and others. Equipped with a DSP control system for CorelDraw/AutoCAD and other advance software, this machine is compatible with Win 7, Win 8, win 10,Vista, XP and Win 2000.
Note:
This item is very heavy and cannot ship out through Fedex or UPS. This item requires special truck delivery and we will need your correct phone number in order to schedule delivery . The included service is delivery to your address. It does not include lift gate service, installation or delivery inside the house. If you need the lift gate service, please contact us before making the purchase!
Please provide us with the valid commercial address. If your delivery address is private residence address, contact us before you place an order.
Weifang Yunneng CNC Equipments Co., Ltd is a new and high technology enterprise in China. Our company is specialized in computer software development and technology transfer, laser equipment. Undertake precise laser processing business.
Relying on the China from universities and research institutions, we are the main business agent of the optical equipment such as: Metal laser marking machine, laser engraving machine, laser metal cutting machine, laser welding machine, laser die board making machine, CNC router channel letter bending machine and vacuum forming machine. Our products can be applied to the fields of hardware auto parts, clothing, leathers, toys, electronic appliance, models, process advertising, stones, decorations, plastics, glass industry and others.
Yunneng insists on "quality wins the market and the quality service wins the customers". Complying with European CE certification, our products sell well in over 30 countries and regions, such as Brazil, Mexico, Belgium, Iran, Thailand, Korea, Vietnam, the USA, Germany, Italy, Australia, Pakistan, Egypt, Spain, South Africa and Lithuania.
Our success depends entirely on the satisfaction of our customers. Ensuring that you are completely happy and comfortable with your machine is always our first priority. We work tirelessly to make sure that your experience with our laser is always both professional.
