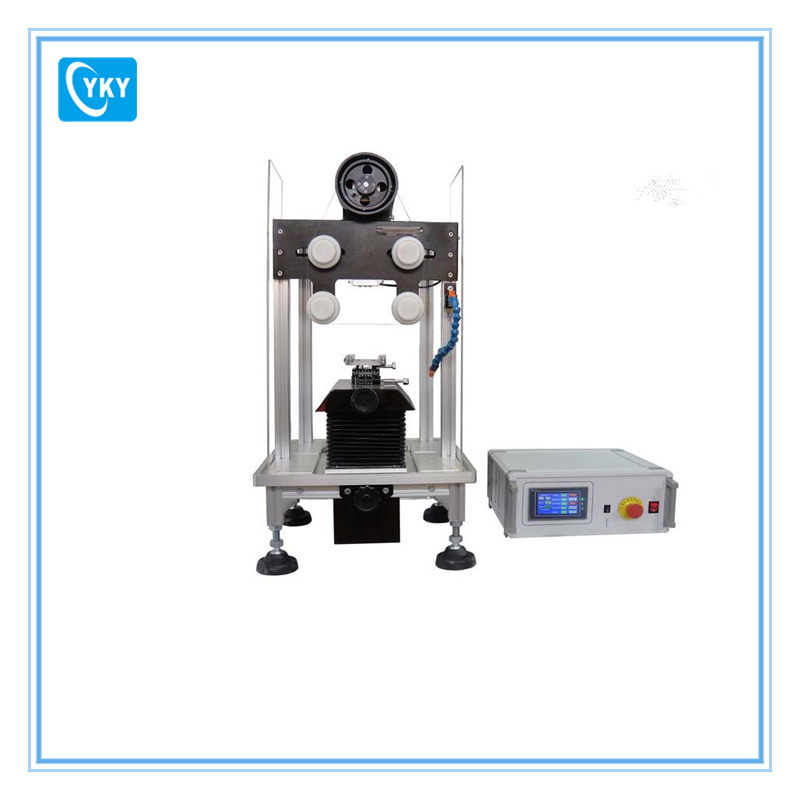

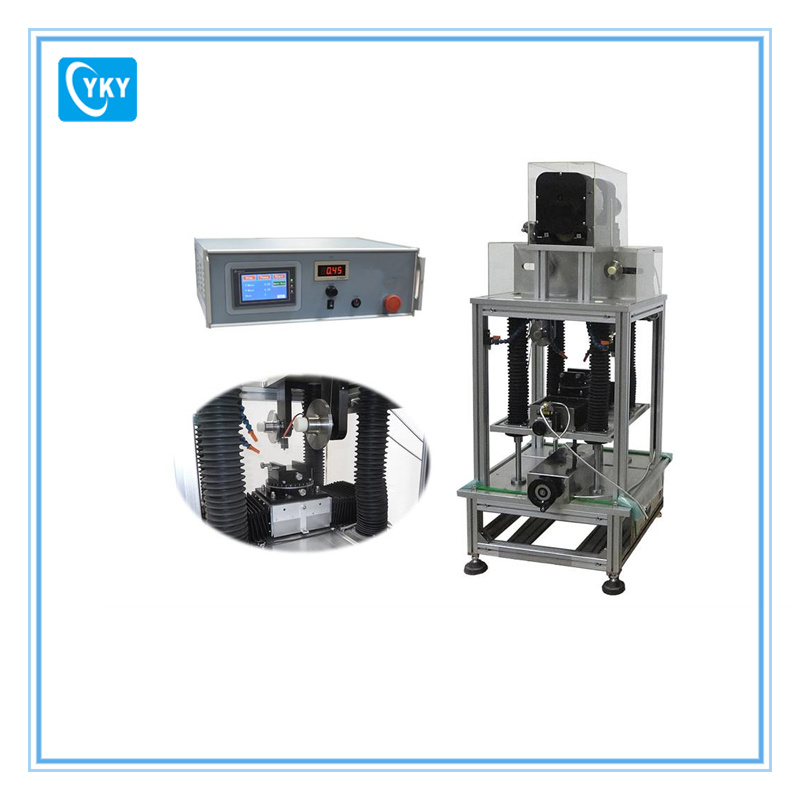

Precision Wire Saw with Sample Stage and Diamond Wire - 6" Dia Cutting Capability Introduction STX-603 is a CE certified precision diamond wire saw is designed to provide smooth cutting or slicing for all kinds of materials, especially for larger size crystals, such as Si, Ge and GaAs, etc., up to 6" (155 mm) diameter. Itcuts the crystal bya diamond impregnated wire (0.28 mm diameter) which moves repeatedly backwards and forwards with the help of a digital controller. STX-603 is equipped with an adjustable sample holder with three angles. Specification
Power Input
AC 220V, 50/60Hz
Structure
Heavy duty Aluminum alloy
Cutting Speed
Feed Speed: 0.01 mm/min to 40 mm/min adjustable Back Speed: 1 mm/min to 40 mm/min adjustable
Wire Moving Speed
0 ~2m/S

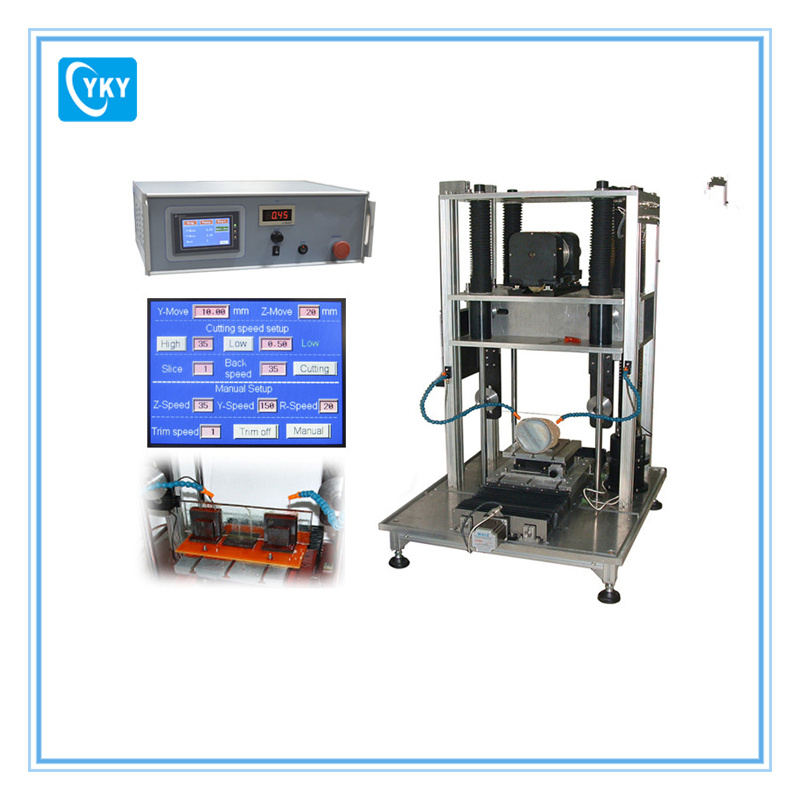

Controller
Digital 6" color touch screen
Diamond wire
Ø 0.30mm x 65m Length
Z and Y Axis Max. Traveling distance
160mm (±0.01mm accuracy)
Sample Stage
Moves in the X-axis and rotate towards two directions (clockwise and counter-clockwise) for precision orientation.
Sample size
Max. 160mm x 160mm
Wire Tension System
Built in pneumatic valves can easily adjust the tension of cutting wire. (air pump is not included)
Dimensions
Saw: 700mm x 620mm x 1500mm (L x W x H) Controller: 490mm x 400mm x 170mm (L x W x H)
Shipping weight
200Kg
Warranty
Two years limited, not includingdiamond wireand rusted parts
Certification
CE Certified
