CY-40 desktop diamond wire saw cutting machine for cutting steel/marble cutting Description of the low speed diamond saw: CY-40 is a 4" Manual Cut-off Saw and is the perfect tool for cutting valuable materials quickly, such as rough crystal, ceramic, metal rod and almost any material before lapping and polishing. Specification of the low speed diamond saw:
Voltage: 110V AC 50/60hz
in order to use at 208-240V, you need a transformer 240V-110V, please click here to order separately.
Motor & Spindle
The 1/4 HP equivalent variable speed ball bearing direct drive motor allows the saw to
run fast enough to use ultra-thin diamond blades.
Speed varies from 400 to 3250 RPM.

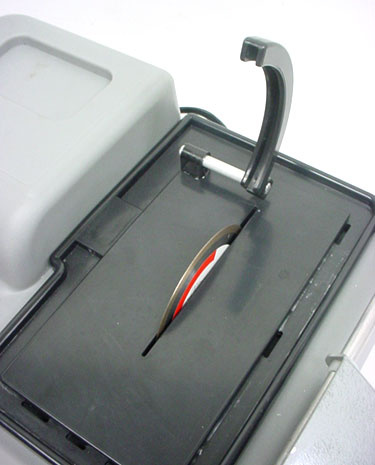

Saw Table & Housing
The saw table is flat so it is easy to trim oversized slabs and removable so clean up is easy.
Max. sample loading length: 6"
The sturdy table measures 6" X 10", easy to operate.
The saw housing is made of unbreakable cross-linked polyethylene - no rusting,
no messy oil, uses water only.
Max. cutting depth: 1" (25.4 mm)
Max. cutting width: 40mm (limited by the max. opening of the sample holder)
Cutting Blade

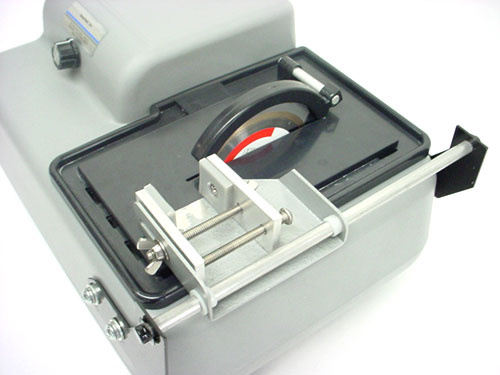

Comes with 5 pcs of impregnated diamond blade of 4" Dia x 0.014"
(0.35 mm) thickness x 1/2" arbor, as well as a mini-vise which allows
you to handle the sample smoothly.
To cut soft material, such as stainless steel, Ni, Cu or plastic,
please choose the 4" SiC blade, please click the
picture below right-2 to order at extra cost.
For longer cutting life, please use sintered
diamond blade and Lube-150
( please click the picture below right to order at extra cost.
Shipping Dimensions
16" x 13" x 11"
Shipping Weigh
16lbs
Compliance

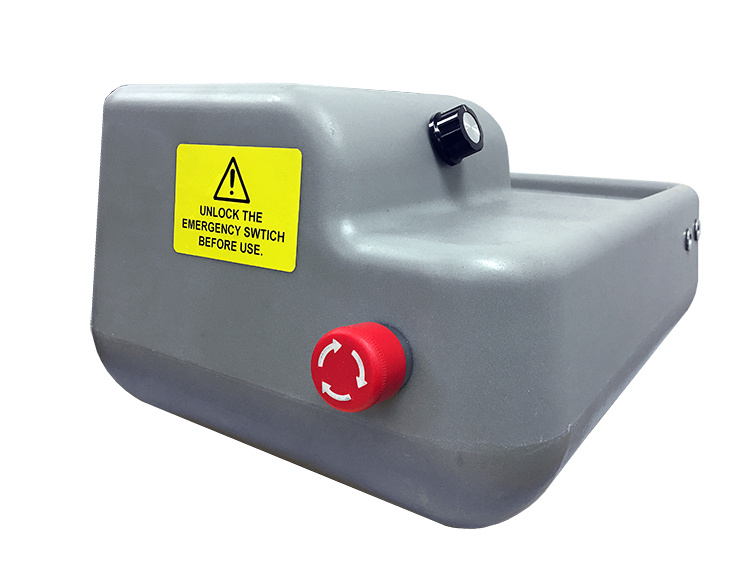

To pass the CE and MET certification,
we will add a fuse and an emergency switch at $250 extra cost
Warranty & Compliance
Two Years limited warranty With additional certification fee, MTI can arrange NRTL to perform UL/CSA inspection and label the machine per customer's request.
Application Notes
Please note that this manual cut-off saw is mainly for fast cutting materials. For more precise cutting, please select our precision low-speed diamond cutting saws such as SYJ-150 or SYJ-160

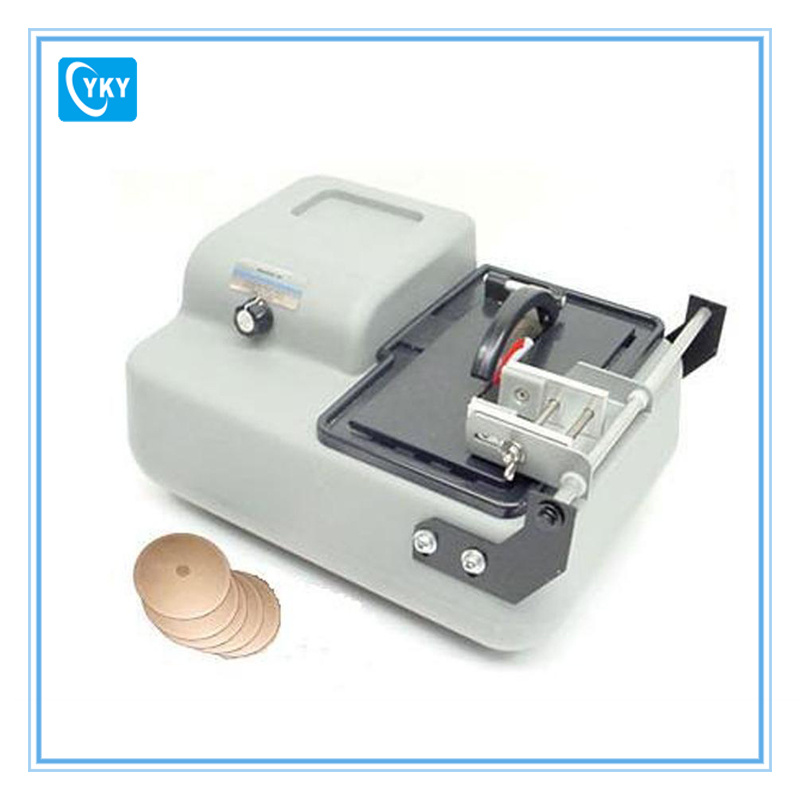

reference picture of the low speed diamond saw:
