Precision Diamond Wire Cutting Machine with Sample Stage

Name: Precision Diamond Wire Cutting Machine with Sample Stage
Brand: tool-buy.com
SKU: 734504102
Availability: InStock
Rating: 4.6 (125 reviews)

Price:	US $ 23000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Zhengzhou CY Scientific Instrument Co., Ltd.

Showroom Product Company Profile

Prod Model:	STX-1202
Structure:	Heavy Duty Aluminum Alloy
Controller:	LCD Touch Screen
Back Speed:	1~30mm/Min
Moving Speed:	0 - 5 Meter/Second
Max. Traveling Distance:	300mm
Sample Stage Rotation:	360 Degree
Name:	Diamond Wire Cutting Machine
Warranty:	One Year
Certificate:	Ce/TUV

Product Description

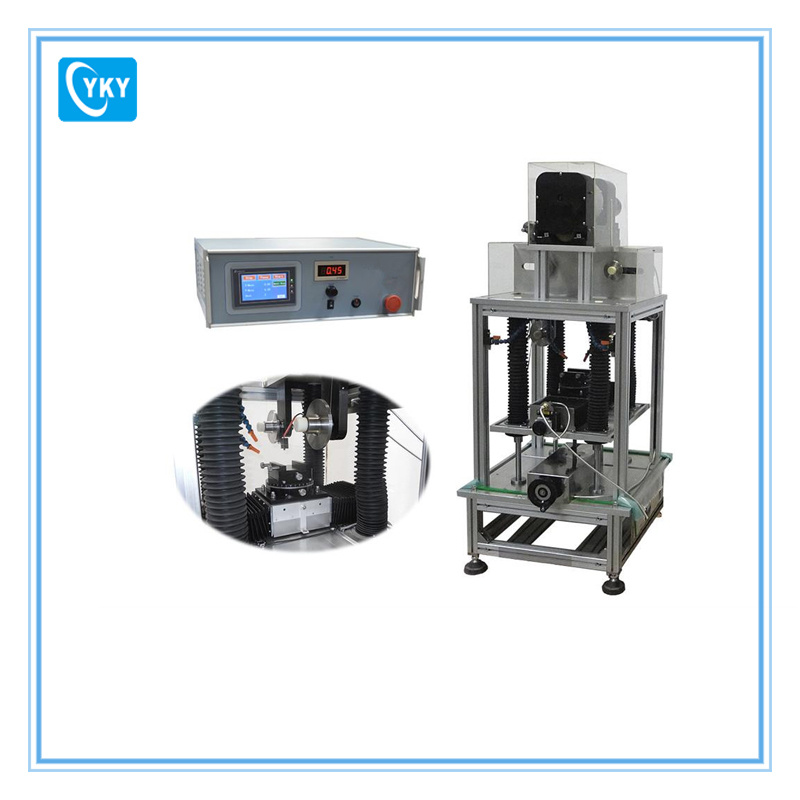

Precision Wire Saw with Sample Stage and Diamond Wire - 12" Dia Cutting Capability - STX-1202
STX-1202 is a CE certified precision diamond wire saw. It is designed to provide smooth cutting or slicing for all kinds of materials (especially for larger size crystals, such as Si, Ge and GaAs, etc.) with boule diameter up to 12" (300 mm). It cuts the crystal by a diamond impregnated wire (0.28 mm diameter) which moves back and forth repeatedly with the help of a digital controller. STX-1202 is equipped with an angle-adjustable sample holder.

Technical Parameters

Power Supply	AC 220 V, 50/60 Hz, 300W (110V available upon request)
Structure	Heavy duty Aluminum alloy

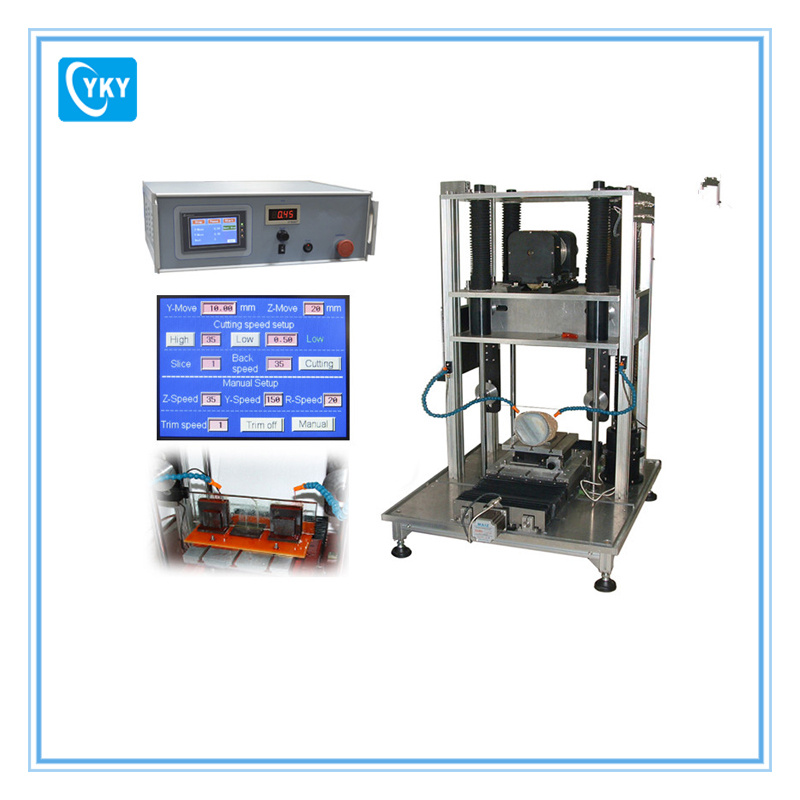

Controller	6" color LCD touch screen control panel program to control the Moving Speed of the diamond wire, feeding speed of the sample stage, the slicing thickness and coolant pump operation.
Z-axis Feed Speed	High cutting speed :1~30mm/min, Low cutting speed :0.01~1mm/min
Back Speed	1~30mm/min
Diamond wire moving speed	0 - 5 meter/second
Diamond wire	Ø 0.3mm x 150m Length (accuracy +/- 0.03mm)
Z and Y Axis Max. Traveling Distance	300mm (±0.01mm accuracy)
Sample stage rotation	360 degree (min adjustment 0.01 degree; accuracy = +/-0.032 degree)
Cutting Area	Max. cutting dimensions: Ø300mm×300mm
Wire Tension System	Built in pneumatic valves can easily adjust the tension of cutting wire.
Sample Stage	The sample stage can move in the X-axis and rotate towards two directions (clockwise and counter-clockwise) for precision orientation.
Cooling System	One Coolant tank and two small immersion pumps are included for cooling and lubricating diamond wire ( only use anti-rust liquid and oil as coolant, never use water )
Overall Dimension(L×W×H)	Wire saw: 1100mm×892mm×1700mm Controller: 520mm x 400mm x 250mm
Certificate	CE certified
