Waste Tyre Recycling Machine Tire Cutting Machine Tire Sidewall Cutter

Waste Tyre Recycling Machine Tire Cutting Machine Tire Sidewall Cutter
Price: US $ 1100-1450/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
         Higher efficiency tire cutter / strip cutter / steel wire  separator  with durable knife


waste tire→cutting diameter of hub→cutting strips→cutting blocks→separate steel wire→crush rubber blocks→making powder→magnetic separation→final products(rubber powder)

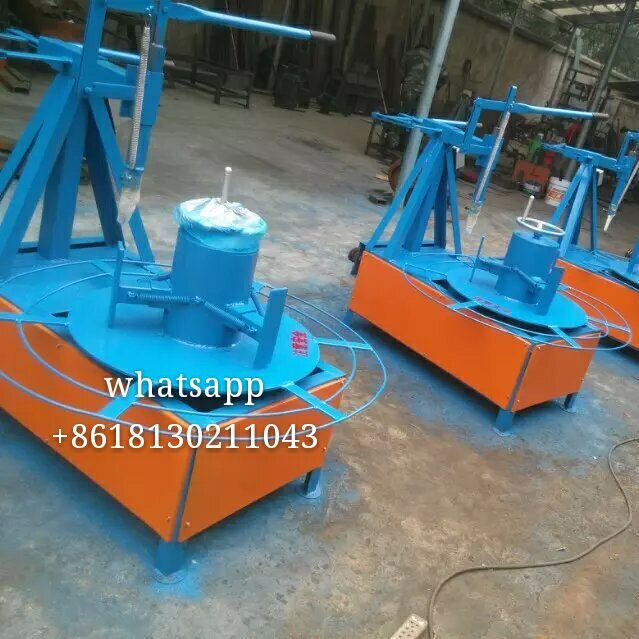

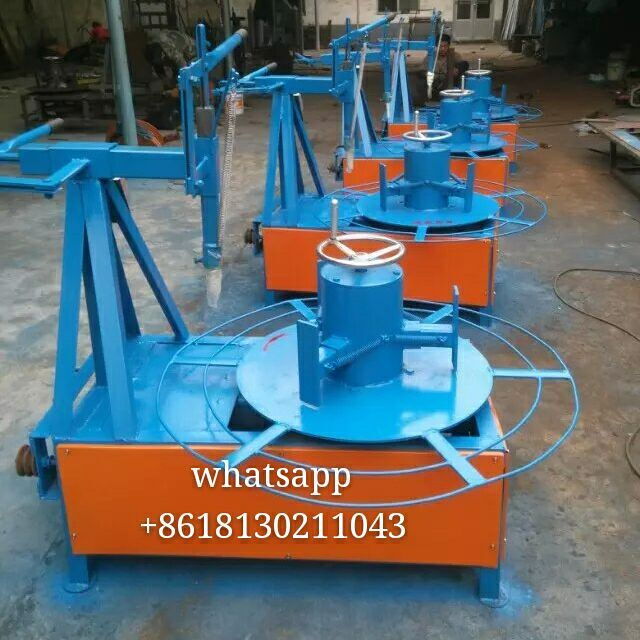

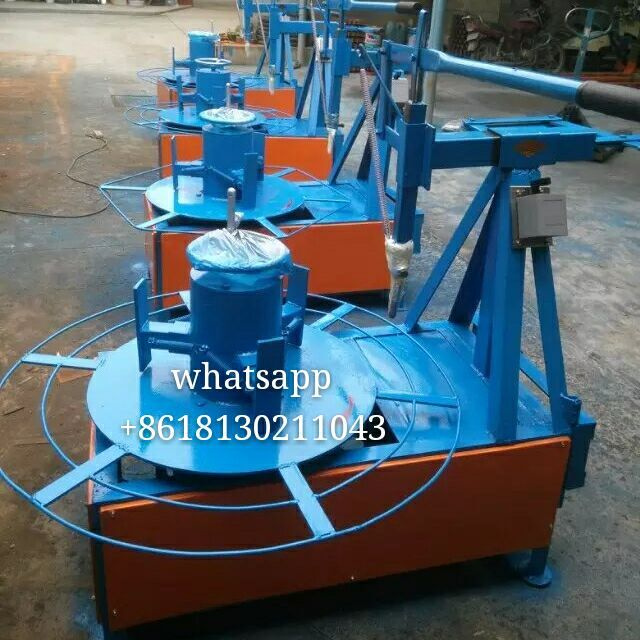

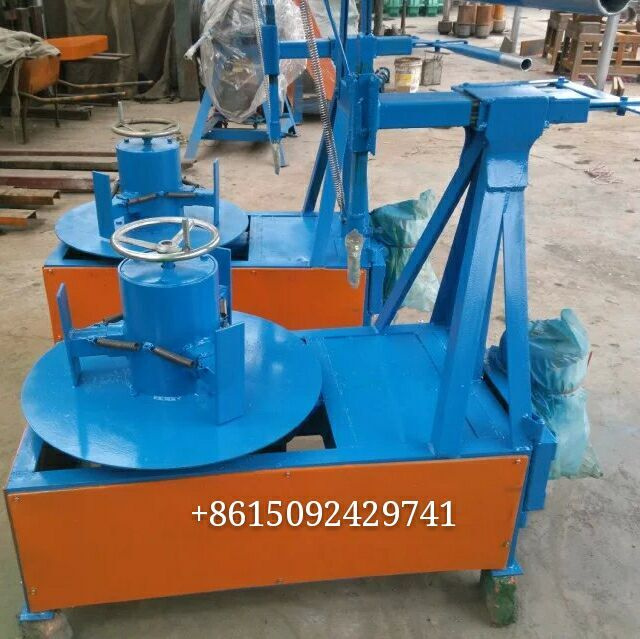

1.Ring cutter

Function:Be utilized in separation among the tire crown,tire side-wall and bead of wsate tire ,which is the first process of reclaiming waste tire.



Power

Blades rotating speed

Adapt tire

Productivity

      Dimensions

Weight

3kw

15R/MIN

650-1200

40tires/hour

1300*900*1200mm

300kg



2. Strip cutter
Function: It is utilized in cutting the crown and side-wall of waste tire into a certain sized of long rubber strip.

Power

Productivity

diameter

Output size

     Dimensions

weight

4kw

1000kg/h

650-1200

20-40mm

1250*700*1500mm

720kg



3.Lump cutter .
Functions: It is used in iconjunction with strip cutter,is utilized in cutting long rubber strip into rubber lump of 20-40mm.

Power

Productivity

Output size

      Dimensions

Weight

7.5kw

1000kg/h

20-40mm

750*750*1200mm

420kg


4.Tire steel wire separator
Function:Be utilized to separate rubber and steel wire of bead in order to get whole steel wire.

Power

Blades rotating speed

Adapt tire

Productivity

Dimensions

Weight

15kw

18R/MIN

650-1200

65tires/hour

1500*900*1400mm

1300kg



Our packing way:Export  standard (wooden package ) or according to your requirement .

Our Services :

1. We will design,manufacture,install and test the machines according to  customers' requirement .Relevant personnel  training for customers,ensure that customers fully grasp the use and maintenance of technology.
2 .Our service department  listen to customers' feedback at any time and provide spare parts timely.

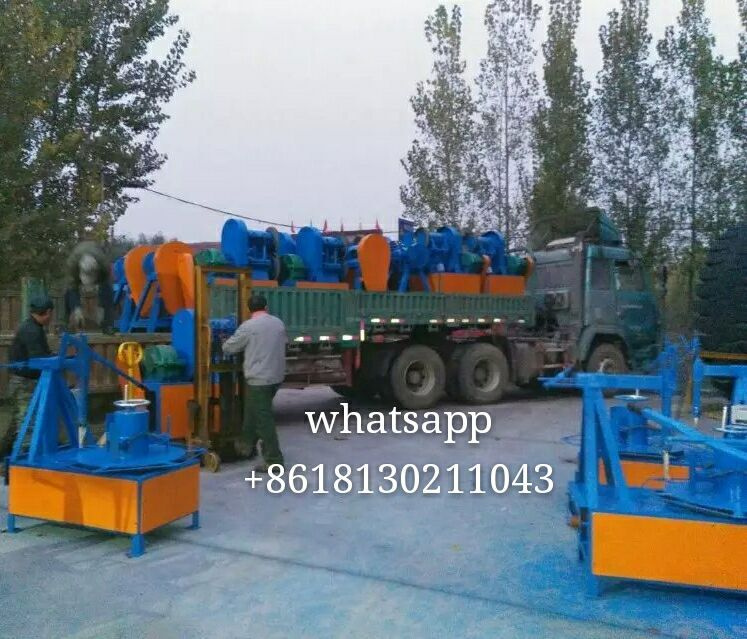

Welcome to visit our factory and we can show you the machine in working condition:

If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.







Prod Model: Tire Cutter
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: General Rubber Machinery
Type Of General Rubber Machinery: Material Processing Machine
Type Of Tire Machinery: Cycle Tire Machine
Weight: <50 Tons
Power: 10~100kw
Using Life: ≥15 Years
Customized: Customized
After-Sales Service Provided: Engineers Available to Service Machinery Overseas
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.

The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.

The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
