Brief introdution
such semi-automatic machine is to recycle different types tire(radial tire,nylon tire) into
rubber powder(30-100mesh)free of steel and fiber.

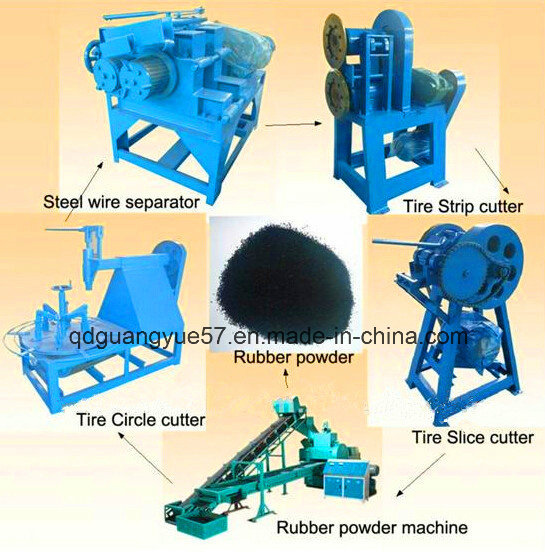

General production process:

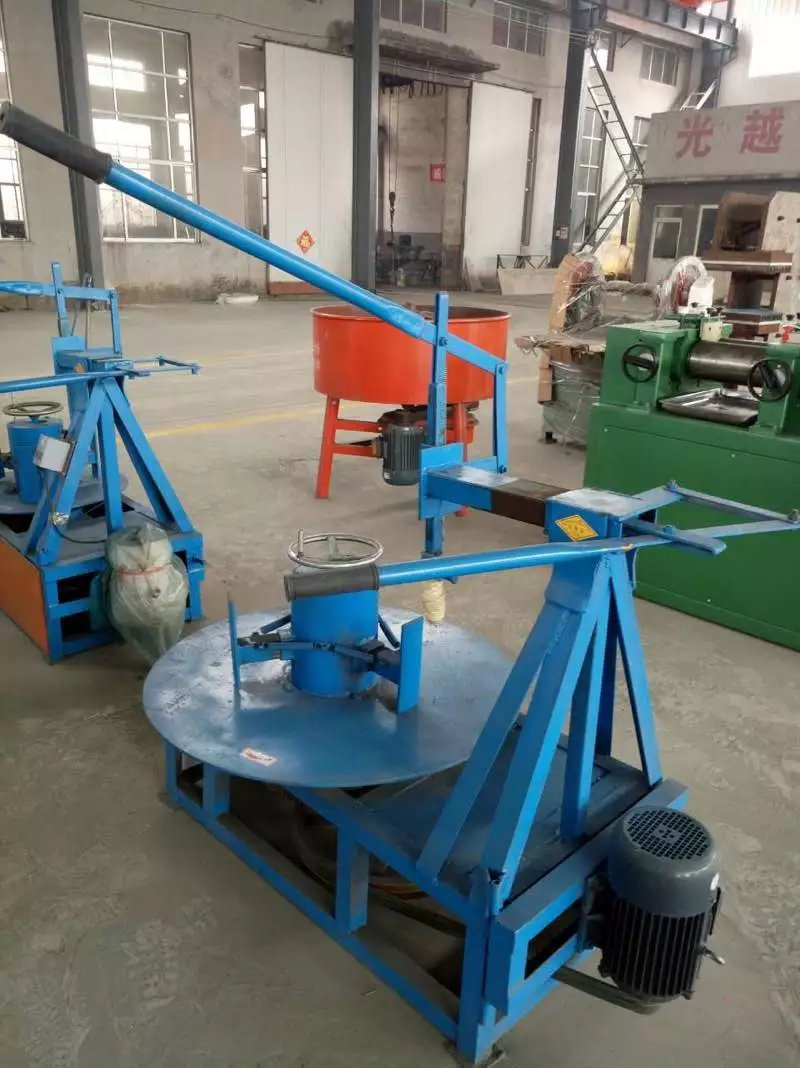

1.ring cutter
Specification:
ring cutter is used for cutting the used tire into three parts,two sidewalls and one tread.
model | motor (kw) | processing range(mm) | weight (kg) | dimension (mm) | production |
QKF850 | 2.2 | 750-1200 | 300 | 1300*900*1480 | 80-100 tires/h |
2.strips cutter
strips cutter is used for cutting the sidewalls and tread into rubber strips.
model | motor (kw) | processing range (mm) | weight (kg) | dimension (mm) | production |
QT380 | 4 | 750-1200 | 900 | 1300*750*1580 | 100-120tyres/hour |

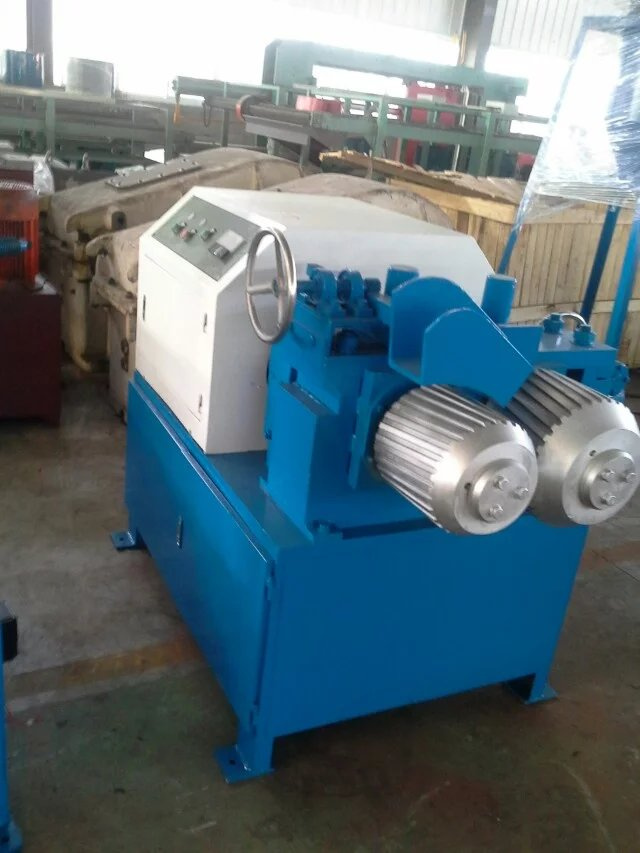

3.steel separator
Specifications:steel separator is to separate the whole steel circle from bead.
model | motor(kw) | Processing range | Weight(kg) | Dimension(mm) | production |
GF240 | 15 | bead tire | 1800 | 1520*1180*122 | 100-120 tires/hour |

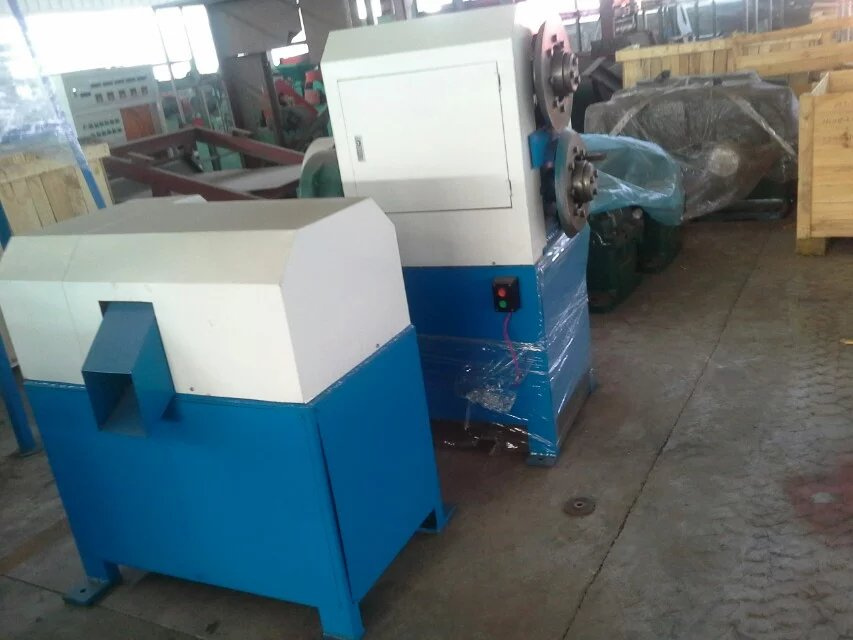

4.blocks cutter
Specifications:
blocks cutter is used for cutting rubber strips into rubber blocks.
model | motor(kw) | processing range(mm) | weight(kg) | dimension(mm) | production |
QK200 | 7.5 | 750-1200 | 450 | 800*810*1070 | 1500kg/hour |

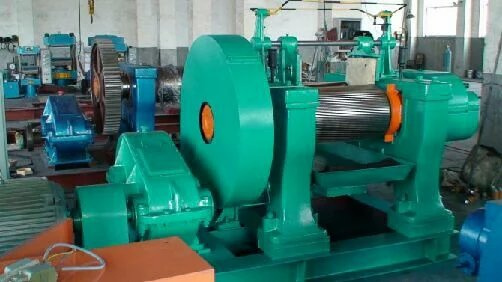

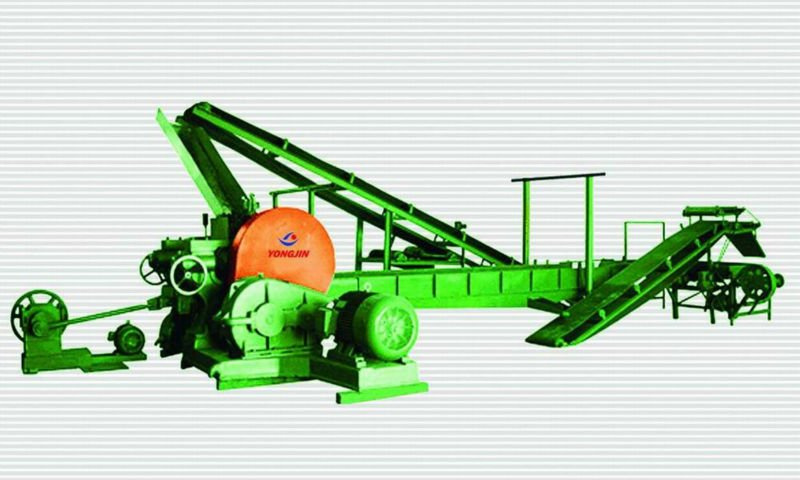

5.XKP series rubber cracker
Specifications:
XKP series rubber cracker is to crush rubber blocks into rubber powder(0.6-3mm) .
Type | diameter of rollers *length(mm) | speed ratio of rollers | the biggest distance of two rollers (mm) |
numbers of revolutions |
motor power(kw) |
dimensions (mm) | weight (kg) |
XKP400 | 400*600 | 1:1.38 | 10 | 13.65 | 45 | 4210*1850*1925 | 7500 |
XKP450 | 450*760 | 1:1.38 | 10 | 16.57 | 55 | 4550*1970*1860 | 11000 |
XKP560 | 560*800 | 1:1.38 | 15 | 15.5 | 75 | 5620*2260*1900 | 19000 |
6.Accessory equipment
Mainly Include a large belt conveyor ,a large vibrating sieve , a small belt conveyor ,a small vibratingsieve.
7.Markets
Largest markets are Europe and the United States, India, South America,etc
8.Company Information:
We are Qingdao Chao Guangyue Rubber Machinery Manufacturing CO.,LTD.Our main products are various types of rubber mixer, rubber crusher, plate vulcanizer, rubber cutter, rubber extruder, rubber refiner and other kinds of rubber machines.
welcome to visit our factory!
FAQ
1.Q:Are you a manufacturer or trading company?
A:We are a manufacturer.
2.Q:Where is your factory?How can I visit ?
A:Our factory locate in qingdao city.You can fly to qingdao liuting airport,then we can pick you
up to our facotry to visit.Welcome you to visit us.
3.Q:How does your factory control the quality of machines and after sales service?
A:Our machines passed CE,ISO,SGS certification,please confirm the quality.All our machines have 2 years guarantee, and we will provide lifetime maintenance.
4. Q: What are your main poluar sale machines?
A: Our rubber and plastic machines are popular in the foriengn market. And main products are rubber vulcanzing machines,waste tyre recyling line ,open mixing mills,kneader machines,
extruder machines,calender machines,etc.
