Rubber Sheet Cuttig Machine/ Tyre Cutter for Rubber Recycling Line

Rubber Sheet Cuttig Machine/ Tyre Cutter for Rubber Recycling Line
Price: US $ 5680/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal

       Rubber Sheet Cuttig Machine/ tyre cutter for rubber recycling line




Factory direct sales,with high quality and competitive price





Usage

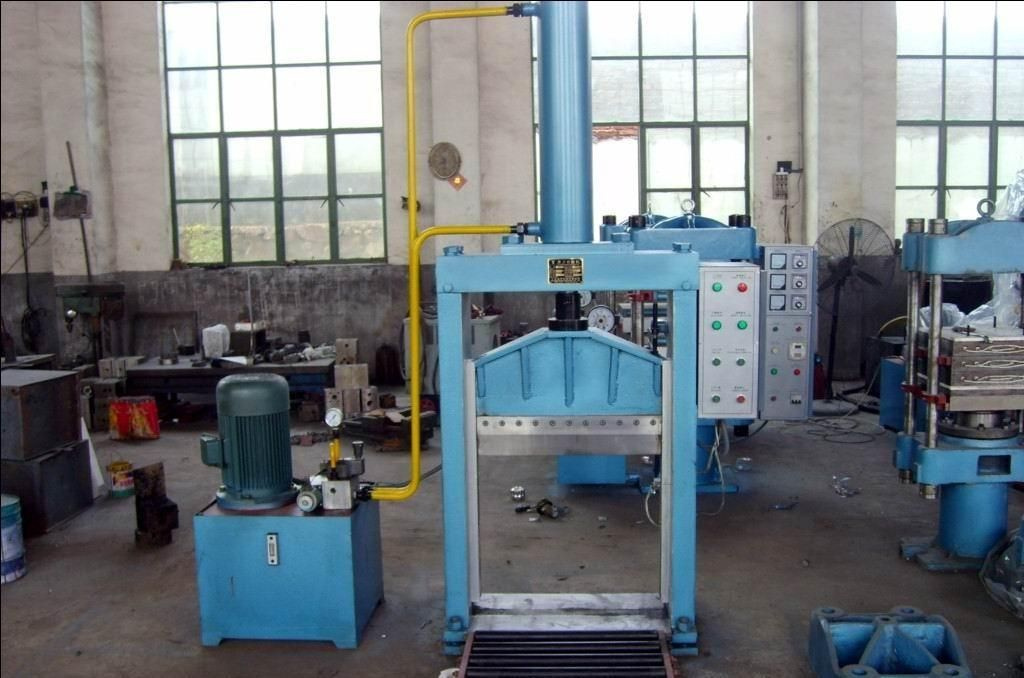

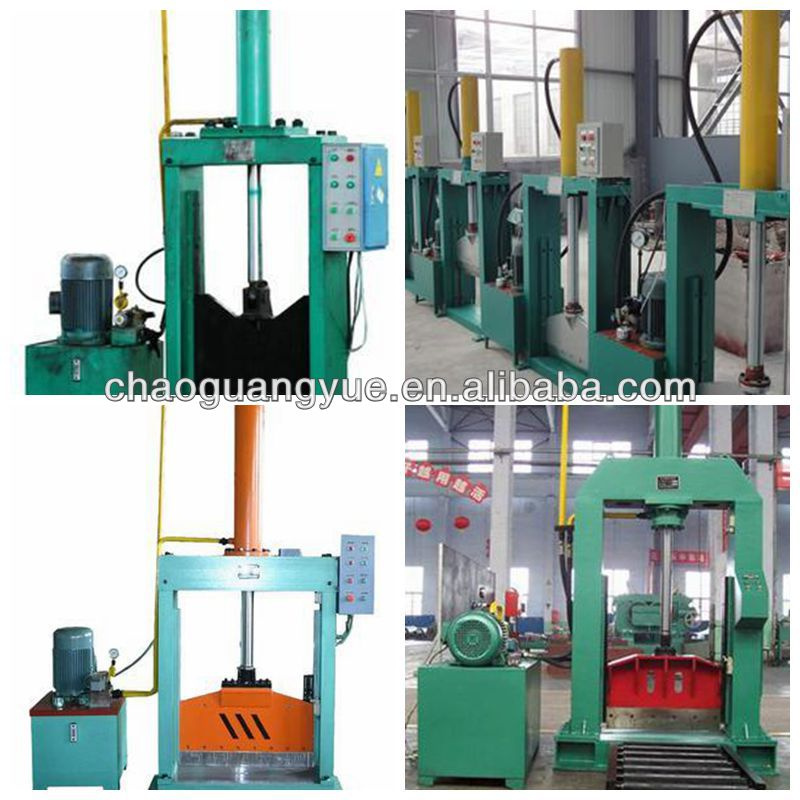

 Single knife rubber cutting machine is suitable for cutting the natural rubber and various other plastics materials.







Features







  1. Cutting control by hydraulic system which can also order and move it to cut automatically.
  2. When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber.
  3. Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife, at the same time it protects the cover of the cylinder.
  4. We can design and manufacture all kinds of non-standard rubber machinery according to the requirements of the customers.







Parameter







Knife width (mm)

660

Knife stroke (mm)

660

Total pressure of oil tank (kn)

about 80

Stroke time of knife (s)

14-16

Power (kw)

5.5

Size(length*width*height)(mm)

2100*1440*2509

Weight (kg)

1600






our company mainly produce the rubber  cutting machine ,such as the rubber ring cutter ,rubber strip cutter ,rubber block cutter,rubber crusher machine  and so on .it is mainly broken the tire to rubber powder ,steel wire ,nylon fiber ,and rubber granule

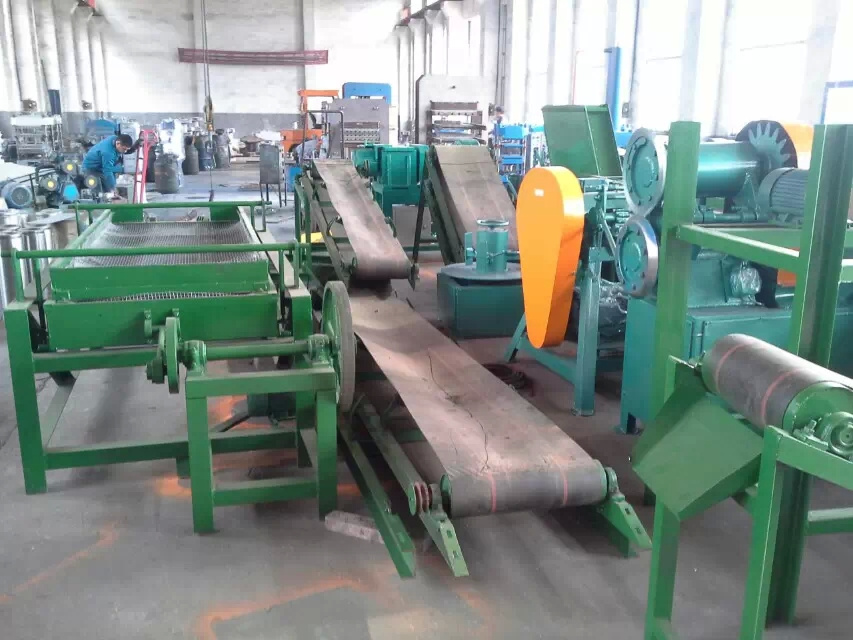

Process flow



waste tire→cutting diameter of hub→cutting strips→cutting blocks→separate steel wire→crush rubber blocks→making powder→magnetic separation→final products(rubber powder)





1. Ring cutter



Function: will whole tire cutting into tire crown, the side of the tire and inner circle



Power

Blades rotating speed

Adapt tire

Productivity

Dimensions

Weight

3kw

15R/MIN

650-1200

30strips

1150*850*1200

0.5t





2. Strips cutter



Function: various tire, glue, glue board piece cut into long strips



Power

Productivity

diameter

Output size

Equipment size

weight

4kw

20strips/h

650-1200

25-55

1230*650*1580

0.8t





3. Rim cutter



Functions: this machine should cut machine tyres, used for supporting the use of the strip cut into 3-5CM glue pieces.



Power

Productivity

Output size

Equipment size

Weight

7.5kw

0.8-1.0t/h

35*35

780*550*1210

0.8t





4. Steel wire separator



Function: tires circle wire centrifuges, mouth will tire of coarse steel mouth circle parts with rubber effective separation



Power

Blades rotating speed

Adapt tire

Productivity

Dimensions

Weight

11kw

18R/MIN

650-1200

1-2strips/min

1.7*1.2*1.3m

1500kg

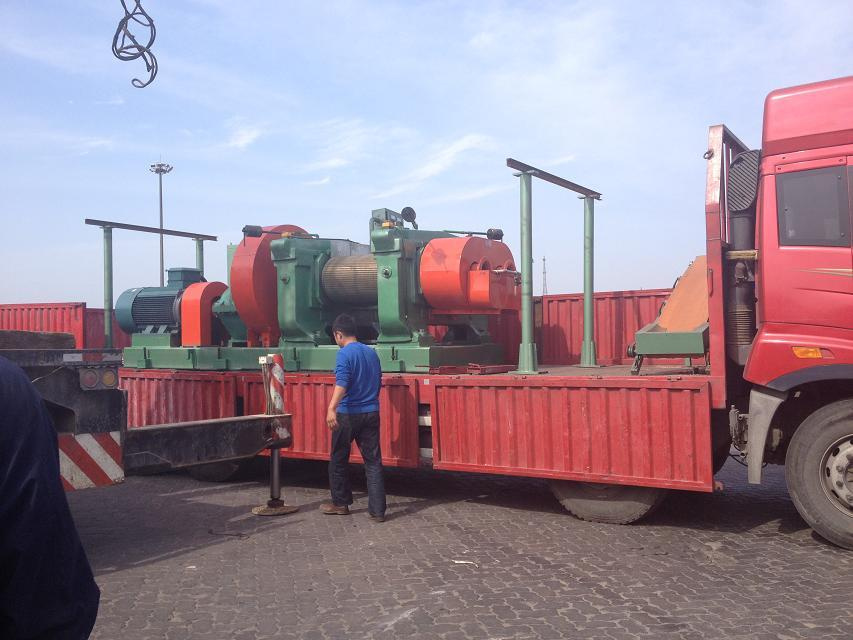

5.Rubber crusher



Type&Specification

XKP-400

XKP-450

XKP-560

Feeding size

3.5CM

3.5CM

3.5CM

Discharging size

10-30 mesh powder

10--30 mesh powder

10--30 mesh powder

Rubber crusher throughput(kg/h)

200-300kg/h

300-400kg/h

400-500kg/h

Motor power(kw)

45

60

75

Outside measurement(m)

4.1×1.8×1.9

4.4×1.9×1.9

5.5×2.2×2.1

Weight(t)

7.5

11

19

Prod Model: CGY
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Control Style: Electric Control
Type Of General Rubber Machinery: Material Processing Machine
Type Of Tire Machinery: Rubber Regeneration Machinery
Certification: CE, ISO
Weight: <50 Tons
Power: 10~100kw
Voltage: 380V
Using Life: ≥15 Years
Customized: Customized
Type: General Rubber Machinery
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.

The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.

The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
