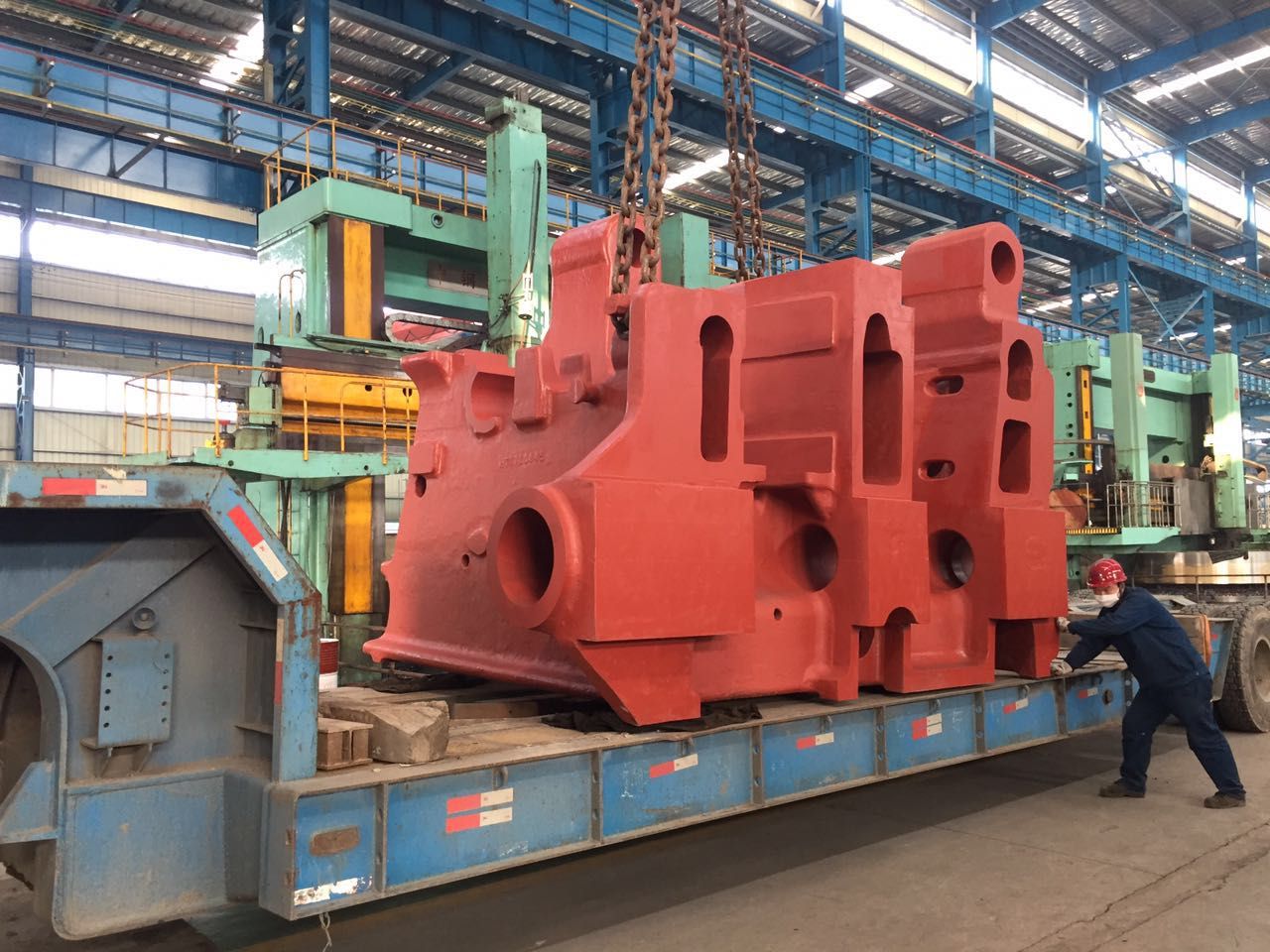

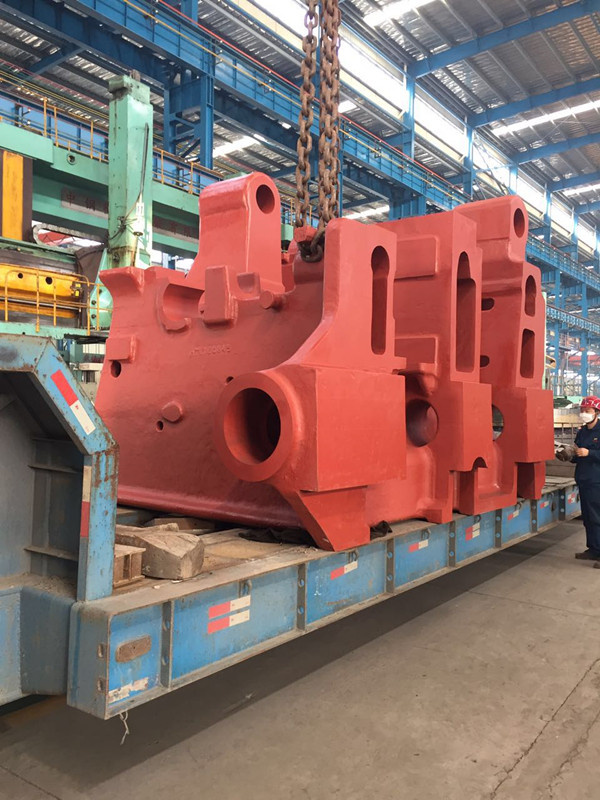

Large Alloy Steel Casting for Heavy-Duty Forging Machine
| Price: |
US $ 3000-3200/Ton |
| Min Order: |
10/Ton |
| Pay Type: |
L/C,T/T |
Material:
Modified ASTM 8620 for A USA customer
The material is modified according to 8620.
Firstly a test sample was made at size 200mm*200mm*200mm
Half for us,half for customer.

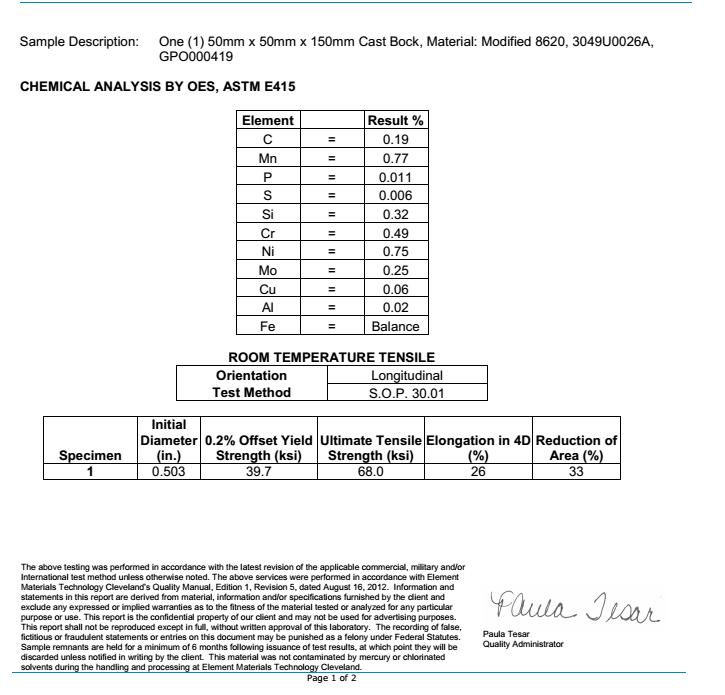

The sample was sent to USA for a third party inspection.
The mechanical property test result can meet the end user's demand.
Weight:65 tons
Application:
The products can be widely used in the area of cement mill,rotary kiln,shipbuilding,
metallurgy,mine,sugar mill,powder plant,rail road,engine bed and so on.
We can provide OEM service for cement mill and rotary kiln casting parts,marine steel casting parts,sugar mill machinery parts with carbon steel or low alloy steel.
The casting parts can be supplied as following treatment:
Heat Treatment: Normalized, normalized and tempered,quench and tempered
Machining: Rough machined,semi-finished machined,finished machined
How to Guarantee the quality?
1.The wooden pattern will be checked carefully by QC team.
2.The casting process will be simulated before pouring.
3.QC will inspect the chemical composition after pouring.
4.QC will do a visual inspection before machining.

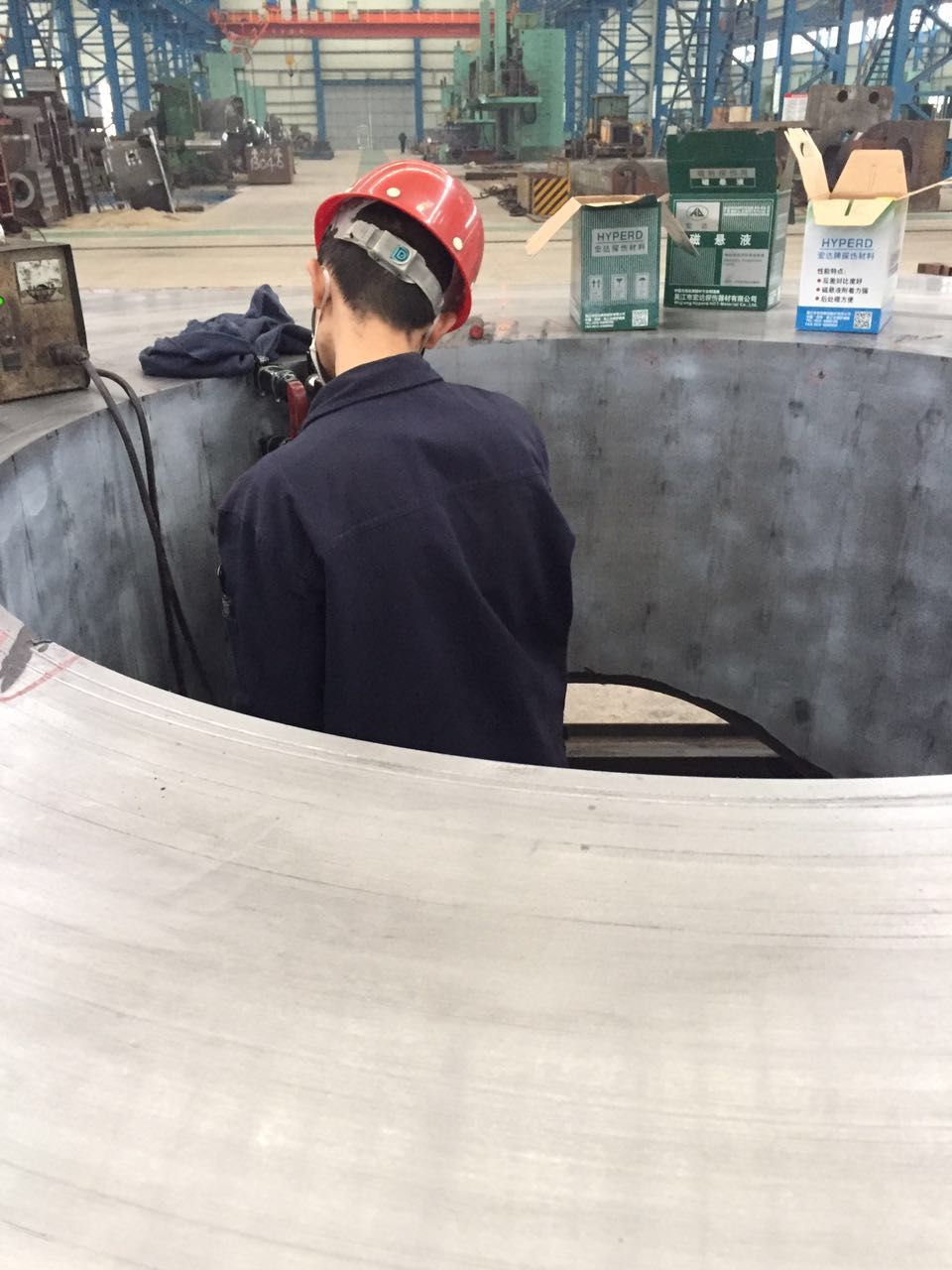

5.First time UT and MT will be done after rough machining.
6.Mechanical Property test will be done when the test sample is cut down after heat treatment7.A final UT and MT will be done after finished machining
8.When the customers visit us for final inspection,they will witness the inspection process again or check the quality with their own test equipment.
What about our service?
7*24h service.
In time response with professional foreign trade team and engineer team.
High quality with reasonable price.
In time delivery.
We are 2.5 hours near to Shanghai and welcome customers to visit our company!
| Weight: |
65 Tons |
| Test Report: |
Chemical Composition,Ut,Mt,Mechanical Property |
| Certificate: |
Ut,Mt,Chemical Composition |
| Delivery Status: |
Rough Machining and Painting |
| Type: |
Chemical Hardening Sand |
| Application: |
9" Heavy-Duty Forging Machine |
Haian Haitai Casting Co., Ltd is a private company which is located in Sunzhuang Town, Haian County, Jiangsu Province. With convenient transportation, it is only 3 kilometers away from S28 highway west exit of Haian and 2.5 hours away from Shanghai and Nanjing airport.
It covers an area of 99, 800 square meters with building area 53, 600 square meters. Haitai has three casting workshops and one processing workshop. The main products are steel castings with qualitative carbon and low alloy steel.
It includes cement machinery: Support roller, tyre, half gear, bearing housing and so on; Marine machinery: Fore/after boss casting, upper/lower rudder carrier, bell mouth, stern stub, rudder horn and so on; Petroleum machinery: Bop shell, head cover, cylinder cover and so on; Rolling mill: Mill housing.
Now the annual production capacity is 50, 000 tons and maximum unit weight can be 150 tons with the sodium silicate sand and CO2 hardening technology. The main equipment includes: One set 8 tons electrical arc furnace (max. Melting steel is 28 tons), two sets of 50 tons medium frequency furnace, two sets of 120 tons refining furnace, two 200T travel cranes and four 150 tons travel cranes, 12 sets of vertical lathe from 2.5m to 8.5m, 8 sets of 6130-6290 boring and milling machine.
The company is equipped with advanced test equipment which mainly includes:
Direct-reading spectrometer imported from German, ultrasonic defect detector, magnetic flaw detector, durometer, universal tensile testing machine, impact tester, metallographic analyzer for UT, MT, chemical composition, metallographic structure, mechanical properties test and so on.
A complete quality management system has been built according to ISO 9001 and we successively get the certificate of LR, DNV. GL, ABS, BV, RINA, NK, CCS and KR.
The company will hold the principle of quality first, customer supreme, honest operation, scientific management and keep continuous improvement and innovation boldly in endeavour of building an advanced modernized green casting enterprise to meet the market demands and wholeheartedly serve for domestic and foreign customers.
