Mill Head Large Steel Casting for Cement Machinery
| Price: |
US $ 1700-2100/Ton |
| Min Order: |
10/Ton |
| Pay Type: |
L/C,T/T |
mill head large steel casting for cement machinery | Part name | mill head large steel casting for cement machinery |
| Weight | 1-150MT |
| Material | carbon steel, carbon manganese, alloy steel, etc. |
| Application | Mining, quarry, metallurgy, construction, cement, etc. |
| Standard | ASTM, JIS, GOST, DIN, BS, WCB, etc. |
| Certification | ISO9001:2008 |
| Inspection | Appearance, dimension, chemical composition, mechanical property, NDT(MT, UT, PT, etc.) |
| Delivery status | Rough machining; finished machining |
| Advantage | Factory directly sale, oem service, timely delivery |

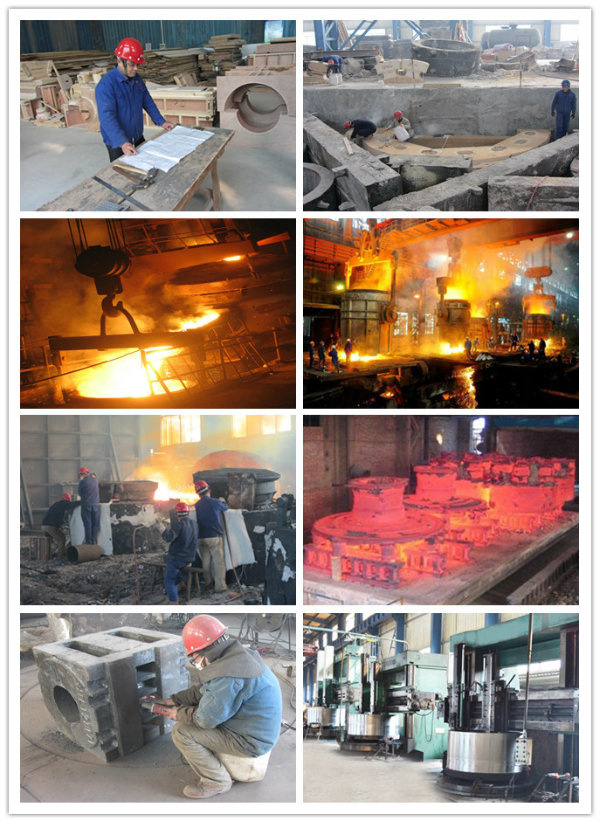

Process:Place a pattern in sand to create a mold;
Incorporate a gating system;
Remove the pattern;Fill the mold cavity with molten metal;
Allow the metal to cool;
Break away the sand mold and remove the casting.
Heat treatment.
Chemical composition test,UT/MT test,mechanical property test and so on.
Surface treatment and other requirement from customer.
Standard&certificate:ASTM,BS,NF,DIN,JIS and so on;
ISO 9001:2008;BV,CCS,DNV,NK,RINA,KR and so on.
Weight:from 3 tons to 150 tons per piece
Application:
The products can be widely used in the area of cement mill,rotary kiln,shipbuilding,
metallurgy,mine,sugar mill,powder plant,rail road,engine bed and so on.
We can provide OEM service for cement mill and rotary kiln casting parts,marine steel casting parts,sugar mill machinery parts with carbon steel or low alloy steel.
The casting parts can be supplied as following treatment:
Heat Treatment: Normalized, normalized and tempered,quench and tempered
Machining: Rough machined,semi-finished machined,finished machined

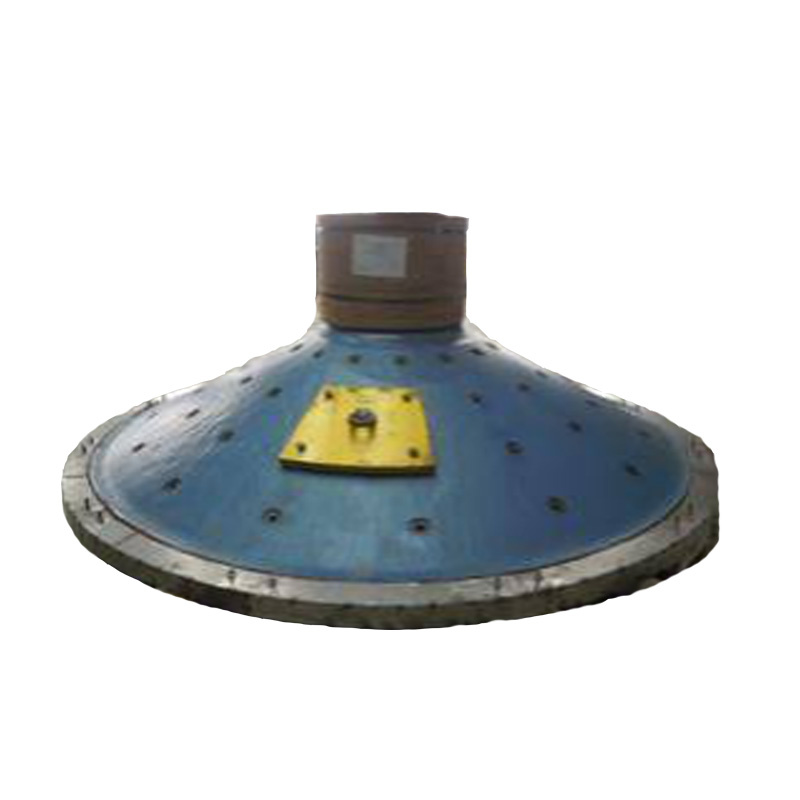

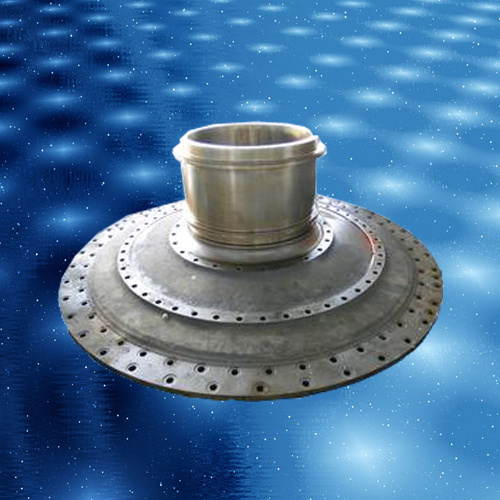

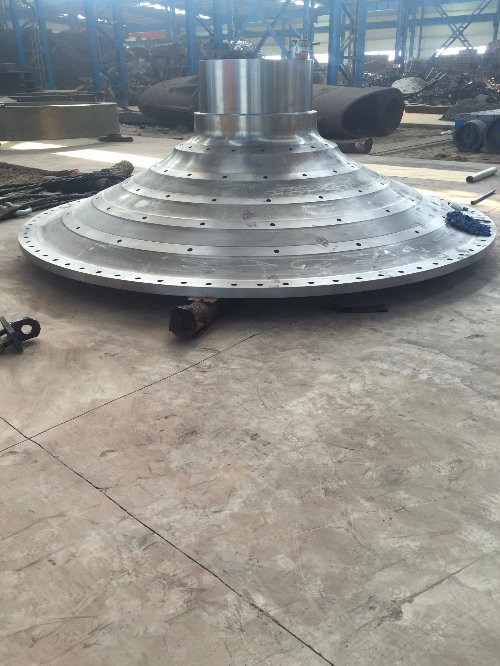

Product Show
Company Show
How to Guarantee the quality?
1.The wooden pattern will be checked carefully by QC team.
2.The casting process will be simulated before pouring.
3.QC will inspect the chemical composition after pouring.
4.QC will do a visual inspection before machining.
5.First time UT and MT will be done after rough machining.
6.Mechanical Property test will be done when the test sample is cut down after heat treatment7.A final UT and MT will be done after finished machining
8.When the customers visit us for final inspection,they will witness the inspection process again or check the quality with their own test equipment.
What about our service?
7*24h service.
In time response with professional foreign trade team and engineer team.
High quality with reasonable price.
In time delivery.
We are 2.5 hours near to Shanghai and welcome customers to visit our
| Od: |
Max.9000mm |
| Test Report: |
Chemical Composition,Ut,Mt,Mechanical Property |
| Certificate: |
En10204/3.1 and 3.2 |
| Delivery Status: |
Rough Machining or Finished Machining |
| Type: |
Chemical Hardening Sand |
| Application: |
Cement Mill |
Haian Haitai Casting Co., Ltd is a private company which is located in Sunzhuang Town, Haian County, Jiangsu Province. With convenient transportation, it is only 3 kilometers away from S28 highway west exit of Haian and 2.5 hours away from Shanghai and Nanjing airport.
It covers an area of 99, 800 square meters with building area 53, 600 square meters. Haitai has three casting workshops and one processing workshop. The main products are steel castings with qualitative carbon and low alloy steel.
It includes cement machinery: Support roller, tyre, half gear, bearing housing and so on; Marine machinery: Fore/after boss casting, upper/lower rudder carrier, bell mouth, stern stub, rudder horn and so on; Petroleum machinery: Bop shell, head cover, cylinder cover and so on; Rolling mill: Mill housing.
Now the annual production capacity is 50, 000 tons and maximum unit weight can be 150 tons with the sodium silicate sand and CO2 hardening technology. The main equipment includes: One set 8 tons electrical arc furnace (max. Melting steel is 28 tons), two sets of 50 tons medium frequency furnace, two sets of 120 tons refining furnace, two 200T travel cranes and four 150 tons travel cranes, 12 sets of vertical lathe from 2.5m to 8.5m, 8 sets of 6130-6290 boring and milling machine.
The company is equipped with advanced test equipment which mainly includes:
Direct-reading spectrometer imported from German, ultrasonic defect detector, magnetic flaw detector, durometer, universal tensile testing machine, impact tester, metallographic analyzer for UT, MT, chemical composition, metallographic structure, mechanical properties test and so on.
A complete quality management system has been built according to ISO 9001 and we successively get the certificate of LR, DNV. GL, ABS, BV, RINA, NK, CCS and KR.
The company will hold the principle of quality first, customer supreme, honest operation, scientific management and keep continuous improvement and innovation boldly in endeavour of building an advanced modernized green casting enterprise to meet the market demands and wholeheartedly serve for domestic and foreign customers.
