Fe One Way Bearing for Gearbox and Industrial Machine
| Price: |
US $ 6.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Fe One Way Bearing for Gearbox and Industrial Machine

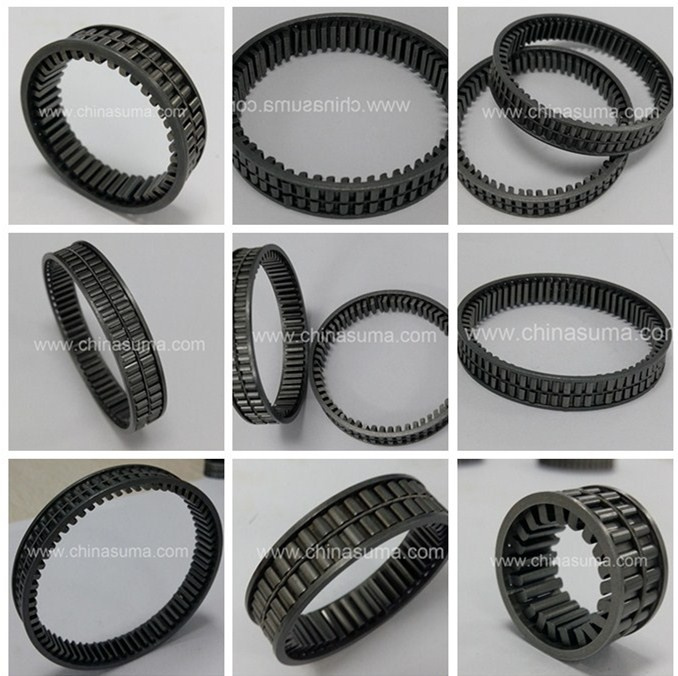

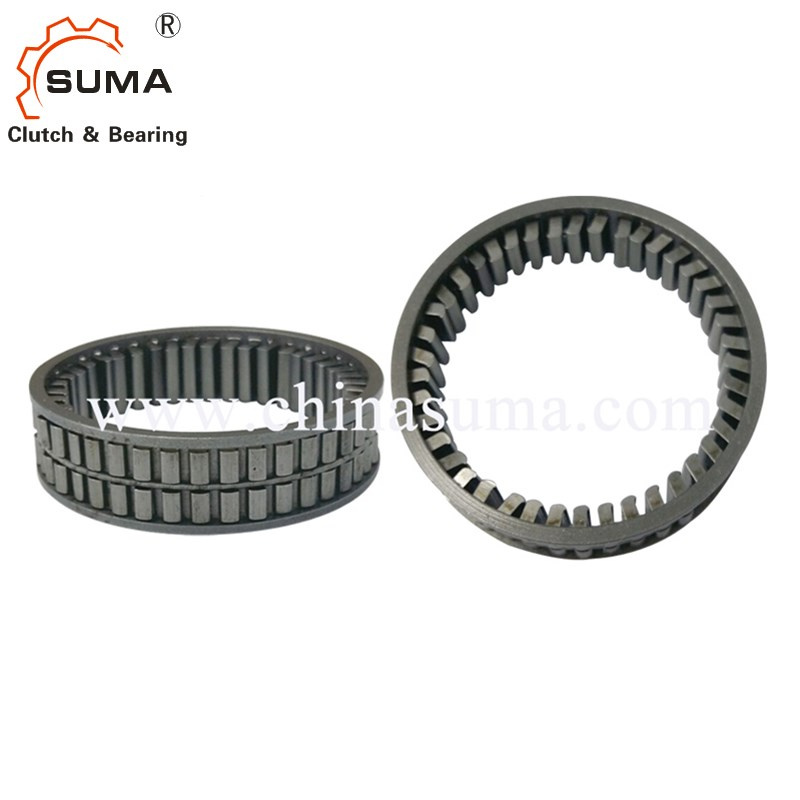

Description of Fe One Way Bearing for Gearbox and Industrial MachineFE series Freewheel-clutches transmit or support torque moment by friction contact in one direction and permit idling in the opposite direction.
USED AS:
1. Indexing elements to change from oscillating to intermittent rotary motion.
2. Backstops to prevent self reversing due to load condition when the machine is not activated.
3. Overrunning clutches to maintain driven unit activated even during slowdown, or in the case of two speed operation (by independent motors) to switch to the higher speed by passing the slower.
LUBRICATION
Lubrication is especially important to obtain maximum life of freewheel clutches.
Good lubrication decreases drag. Please refer to our Lubrication Selection Table for proper
Selection.
Clutches (except the sealed Clutches of series FND, FPD, FK 62...-RS, FK 62...-2RS, FKN...-RS, and FKN...-2RS) are shipped rust protected not lubricated. Parameter of Fe One Way Bearing for Gearbox and Industrial Machine

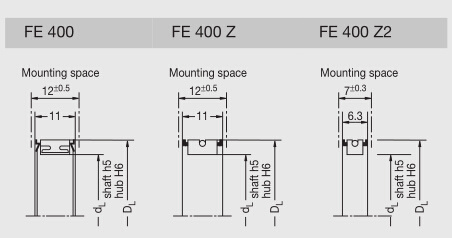

Dimensions
[mm] |
FE 400 | FE 400 Z | FE 400 Z2 | Idling speed Clutch |
| DL | DL | Part Number |
Torque
M
[N. M] |
Part Number |
Torque M
[N. M] |
Part
Number |
Torque
M
[N. M] |
Nmax [RPM] |
| 2 | 10 | | | | | FE 410 Z2 | 0.3 | 10, 000 |
| 4 | 12 | | | FE 412 Z | 3 | FE 412 Z2 | 1.8 | 10, 000 |
| 5 | 13 | | | | | FE 413 Z2 | 2.9 | 9, 000 |
| 6 | 14 | | | FE 414 Z | 7 | FE 414 Z2 | 2.6 | 8, 500 |
| 8 | 16 | | | FE 416 Z | 12 | FE 416 Z2 | 7.6 | 7, 500 |
| 14 | 22 | FE 422 | 48 | FE 422 Z | 44 | FE 422 Z2 | 21 | 5, 300 |
| 15 | 23 | FE 423 | 55 | FE 423 Z | 48 | FE 423 Z2 | 24 | 5, 200 |
| 17 | 25 | FE 425 | 68 | FE 425 Z | 58 | FE 425 Z2 | 30 | 4, 700 |
| 19 | 27 | FE 427 | 80 | FE 427 Z | 66 | FE 427 Z2 | 36 | 4, 400 |
| 20 | 28 | FE 428 | 87 | FE 428 Z | 75 | FE 428 Z2 | 39 | 4, 200 |
| 22 | 30 | FE 430 | 101 | FE 430 Z | 87 | FE 430 Z2 | 46 | 4, 000 |
| 24 | 32 | FE 432 | 116 | FE 432 Z | 97 | FE 432 Z2 | 52 | 3, 700 |
| 25 | 33 | FE 433 | 124 | FE 433 Z | 107 | FE 433 Z2 | 56 | 3, 600 |
| 27 | 35 | FE 435 | 141 | FE 435 Z | 121 | FE 435 Z2 | 64 | 3, 400 |
| 29 | 37 | FE 437 | 158 | FE 437 Z | 137 | FE 437 Z2 | 71 | 3, 200 |
| 30 | 38 | FE 438 | 168 | FE 438 Z | 144 | FE 438 Z2 | 76 | 3, 100 |
| 34 | 42 | FE 442 | 207 | FE 442 Z | 178 | FE 442 Z2 | 93 | 2, 800 |
| 35 | 43 | FE 443 | 217 | FE 443 Z | 187 | FE 443 Z2 | 98 | 2, 700 |
| 40 | 48 | FE 448 | 272 | FE 448 Z | 235 | FE 448 Z2 | 122 | 2, 500 |
| 45 | 53 | FE 453 | 333 | FE 453 Z | 281 | FE 453 Z2 | 146 | 2, 200 |
| 50 | 58 | FE 458 | 400 | FE 458 Z | 345 | FE 458 Z2 | 178 | 2, 000 |
| 51 | 59 | FE 459 | 414 | FE 459 Z | 357 | | | |
| 55 | 63 | FE 463 | 472 | FE 463 Z | 407 | FE 463 Z2 | 202 | 1, 900 |
| 60 | 68 | FE 468 | 550 | FE 468 Z | 474 | FE 468 Z2 | 243 | 1, 750 |
| 62 | 70 | FE 470 | 583 | FE 470 Z | 502 | | | 1, 700 |
| 65 | 73 | FE 473 | 633 | FE 473 Z | 545 | | | 1, 600 |
| 70 | 78 | FE 478 | 722 | FE 478 Z | 622 | | | 1, 500 |
| 80 | 88 | FE 488 | 914 | FE 488 Z | 788 | | | 1, 300 |
MARKSA large quantity of freewheel-clutches with varying design features and dimensions are available, depending on requirements such as: Torque, indexing frequency, idling speed and environment
The supporting equipment around the clutch has to be built accurately and of high quality for the
Clutch to operate properly. This is why we offer support units or complete assemblies of freewheel clutches. Packaging
| Prod Model: |
FE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Fe |
| Seals Type: |
Non-Sealed |
| Precision: |
P6 |
| Inside Diameter: |
2-80mm |
| Outside Diameter: |
10-88mm |
| Torque (N.M): |
24 |
| Idling Speed Max (Rpm): |
2000-10000 |
| OEM: |
Accept |
| Stock: |
Rich |
| Delivery: |
in Stocks |
| The Number Of Rows: |
Single |
| Outer Dimension: |
Small (',28-55mm) |
| Material: |
Bearing Steel |
| Load Direction: |
Radial Bearing |
| Separated: |
Unseparated |
| Rolling Body: |
Sprag |
Changzhou Suma precision machinery Co, Ltd. Is a manufacturer specialized in Producing Various one way bearing, one way clutch, backstop clutch, overrunning clutch, indexing freewheel, spherical plain bearing and cylindrical roller bearing with high technology.
The products are widely used in conveying machine, reducer, hoist, elevator, automobile, home appliances, textile machinery, printing machinery, food machinery and mine machines etc. In addition, special clutch bearings are also provided in accordance upon customers' Requirement for various applications.
With more than 10 years of experience, er focus on developing and manufacturing a variety of one way bearings to meet the needs of our customers' reauirements. With an emphasis on performance and reliability, we provide products that support industry machines, such as forklift, torque covertor, -excavator, printer, textile machines, fans, small-size loader and so on.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
All of our products are engineered by superior production equipment, manufactured with advanced instrument to ensure high precision and reliable Performance.
We welcome you to visit our website, and do not hesitate to contact us.
