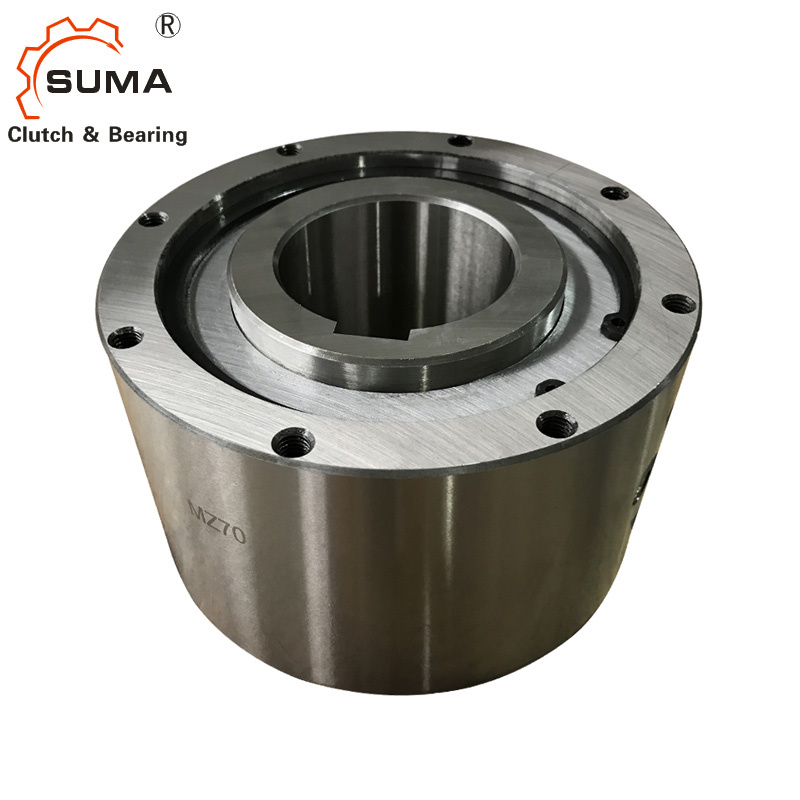

Mz Series One Way Clutch Sprag Clutches Backstop Bearings

Name: Mz Series One Way Clutch Sprag Clutches Backstop Bearings
Brand: tool-buy.com
SKU: 769944255
Availability: InStock
Rating: 4.5 (120 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Changzhou Suma Precision Machinery Co., Ltd.

Showroom Product Company Profile

MZ Series Backstop Clutches One Way Bearings

Data Sheet

Item	MZ Series
Material	GCr15
Inner dia.	15-70 mm
Outer dia.	68-175 mm
Torque Capacity	186-3040 Nm
Drag Torque	0.2-1.27 Nm
Inner race Max. Overrunning	1300-2200 r/min
Outer race Max.Overrunning	250-900 r/min
Weight	1.4-13.2 kg
Delivery Time	15-20 days

Product Description

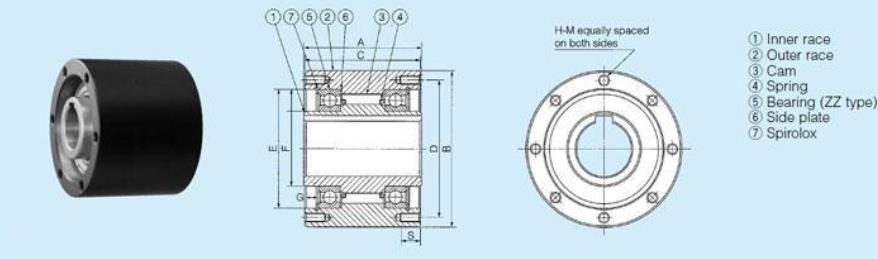

Model	Capacity Torque (Nm)	Torque Drag (Nm)	Overrunning (r/min)Max. Inner Race	Overrunning (r/min)Max. Outer Race	indexing Max. (cycle/min)	Bore Size Dia (H7)	Keyway	A	B	C	PCDD	(M6)E	F	G	H-M No. of Tapped x HolesSize× Pitch	S	Weight (kg)
MZ15	186	0.20	2,200	900	150	15	5*2.3	62	68	60	58	47	25	5.5	6M5P0.8	10	1.4
MZ17	215	0.20	2,000	800	150	17	5*2.3	66	75	64	64	52	28	6.3	6M5P0.8	10	1.8
MZ20	323	0.29	1,900	700	150	20	6*2.8	67	80	65	68	55	30	7.6	6M6P1.0	12	2.0
MZ30-22	735	0.39	1,800	500	150	22	6*2.8	82	100	80	88	75	45	8.9	6M8P1.25	16	3.7
MZ30-25	735	0.39	1,800	500	150	25	8*3.3	82	100	80	88	75	45	8.9	6M8P1.25	16	3.7
MZ30	735	0.39	1,800	500	150	30	10*3.3	82	100	80	88	75	45	8.9	6M8P1.25	16	3.7
MZ35	1,080	0.49	1,700	300	150	35	10*3.3	87	110	85	95	80	50	8.7	6M8P1.25	16	4.8
MZ45-40	1,620	0.69	1,700	300	150	40	12*3.3	92	125	90	110	95	60	8.4	8M8P1.25	16	6.2
MZ45	1,620	0.69	1,700	300	150	45	14*3.8	92	125	90	110	95	60	8.4	8M8P1.25	16	6.2
MZ60-50	2,110	0.98	1,600	250	150	50	14*3.8	102	155	100	140	125	80	9.1	8M8P1.25	16	10.2
MZ60-55	2,110	0.98	1,600	250	150	55	16*4.3	102	155	100	140	125	80	9.1	8M8P1.25	16	10.2
MZ60	2,110	0.98	1,600	250	150	60	18*4.4	102	155	100	140	125	80	9.1	8M8P1.25	16	10.2
MZ70-65	3,040	1.27	1,300	250	150	65	18*4.4	105	175	103	162	145	95	8.6	8M8P1.25	16	13.2
MZ70	3,040	1.27	1,300	250	150	70	20*4.9	105	175	103	162	145	95	8.6	8M8P1.25	16	13.2

Installation and Usage
1. MZ Series Cam Clutch is Shielded by shield bearings on both ends, packed with a special grease, and are read for use. No additional lubricant is required.
2. For attaching pulleys, gears or sprockets to the clutches, insert hubs (with f7 tolerance of ISOR773) along the inner surface of the outer race and screw the bolts (high tension) into the tapped holes on the clutch end.
3. Recommended shaft tolerances are shown in the table on the lower left.
4. External thrust load should be supported by other devices, not by the Cam Clutch.
5. Use only a parallel key to secure the clutch to the shaft. Do not use a tapered Key.
6. When mounting the clutch onto the shaft, apply pressure to the inner race but never to the outer race.
7. Ambient temperature range is 5° to 40°C.
8. Key to be used should be in accordance with ISOR773. (DIN 6885.1)

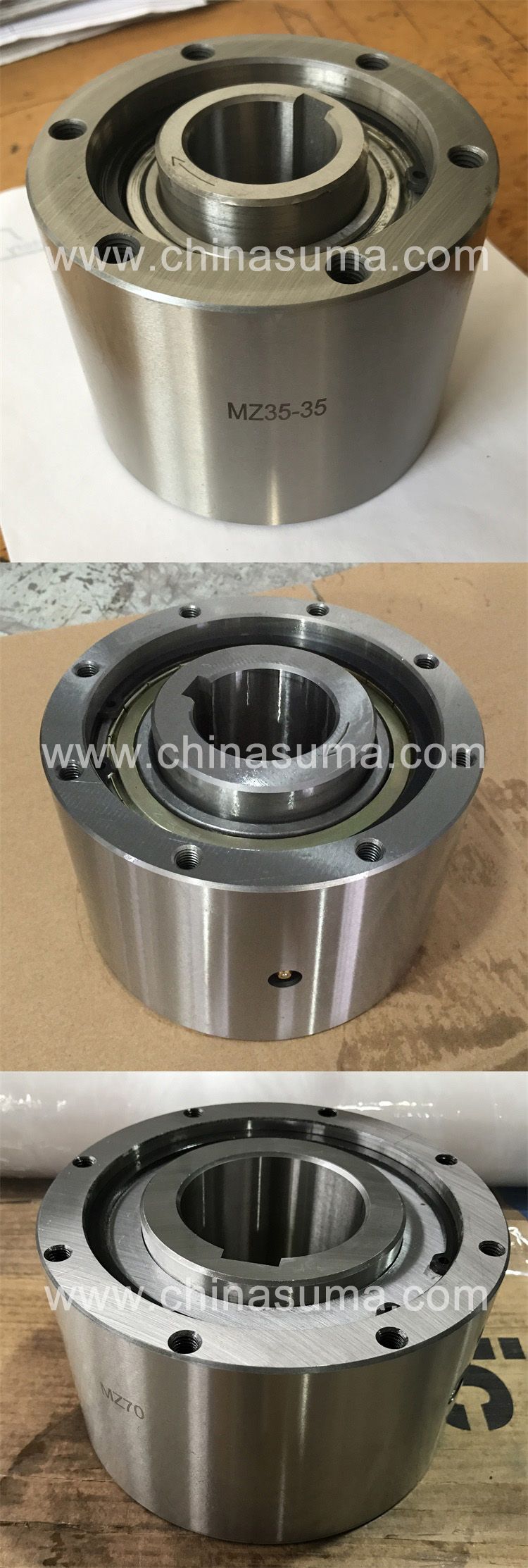

Product display

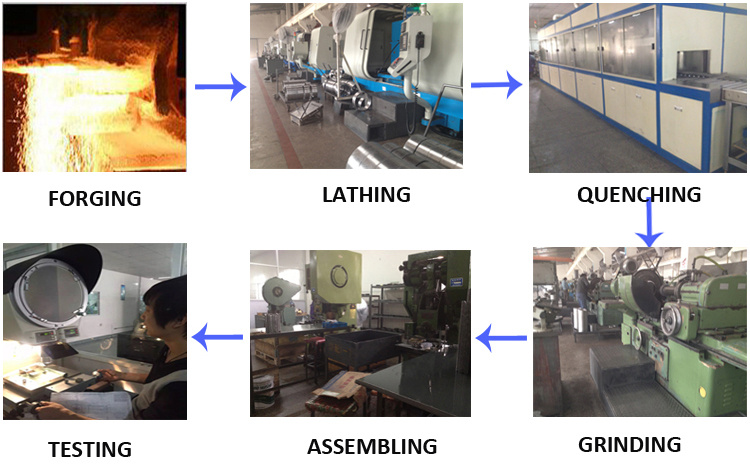

Production Flow

Package

Company Information
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Advantages
1. Advanced producing equipment.
2. Strict requirement for the raw material
3. Complete&perfect process flow
4. Good quality of each batch of the product
5. Different grades of price for different quality

Certificate

Customers

FAQ:
Q: Why do we choose your company?

A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.

Q:What is the delivery time?

A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.

Q: What is your payment term?

A: Our payment term include L/C, T/T, Western Union, Paypal etc.

Q: Can you send bearing samples first?

A: Yes, we can send bearing samples of one way clutch bearing to check quality first.

If you have any needs,pls contact me at any time!

Prod Model:	MZ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Mz
Bore Diameter:	15-70 mm
Outer Diameter:	68-175 mm
Thickness:	62-105 mm
Delivery Time:	1 Day for Sample, 3-5 Days for Big Order
Torque:	186-3040 Nm
Drag Torque:	0.2-1.67 Ncm
Weight:	1.4-13.2 Kg

Changzhou Suma precision machinery Co, Ltd. Is a manufacturer specialized in Producing Various one way bearing, one way clutch, backstop clutch, overrunning clutch, indexing freewheel, spherical plain bearing and cylindrical roller bearing with high technology.

The products are widely used in conveying machine, reducer, hoist, elevator, automobile, home appliances, textile machinery, printing machinery, food machinery and mine machines etc. In addition, special clutch bearings are also provided in accordance upon customers' Requirement for various applications.

With more than 10 years of experience, er focus on developing and manufacturing a variety of one way bearings to meet the needs of our customers' reauirements. With an emphasis on performance and reliability, we provide products that support industry machines, such as forklift, torque covertor, -excavator, printer, textile machines, fans, small-size loader and so on.

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

All of our products are engineered by superior production equipment, manufactured with advanced instrument to ensure high precision and reliable Performance.

We welcome you to visit our website, and do not hesitate to contact us.
