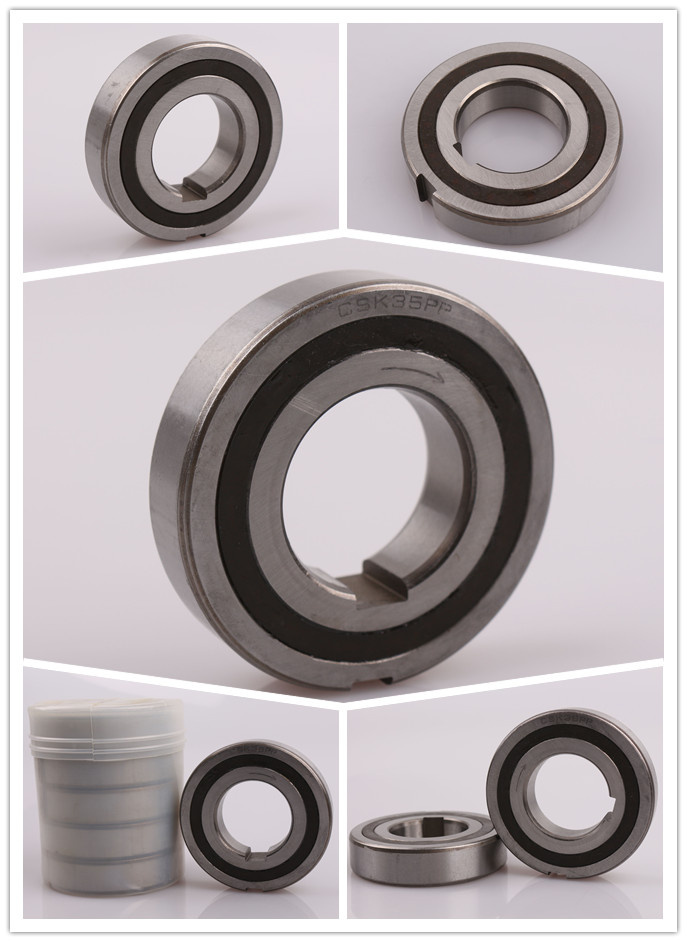

Description of One-way Sprag Overrunning Clutch BearingCSK35PP 35x72x17mm with two Keyways
| Model | CSK35PP |
| Bore size (mm) | 35 |
| Outer size (mm) | 72 |
| Thickness (mm) | 17 |
| Torque (Nm) | 175 |
| Speed (rpm) | 3600 |
Introduction of CSK series one way clutch
CSK series one way freewheels are sprag freewheels with bearing support and ball bearing proper-ties. The freewheels are supplied grease-filled for normal operating conditions.
The freewheels CSK series are used as:
Backstops
Overrunning Clutches
Indexing Freewheels
Nominal torques up to 325 Nm. The torque is transmitted on the inner ring and/or on the outer ring by press fit or keyway connection.

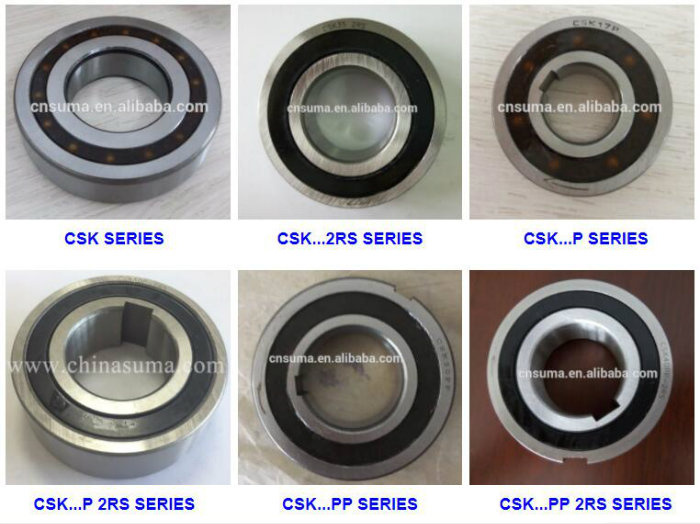

The following series are available:
| Series | Torque transmission on | 2RS-seals | |||
| Outer ring by | Inner ring by | ||||
| Keyway | Press fit | Keyway | Press fit | ||
| CSK | YES | YES | |||
| CSK...2RS | YES | YES | YES | ||
| CSK...P | YES | YES | |||
| CSK...P 2RS | YES | YES | YES | ||
| CSK...PP | YES | YES | |||
| CSK...PP 2RS | YES | YES | YES | ||

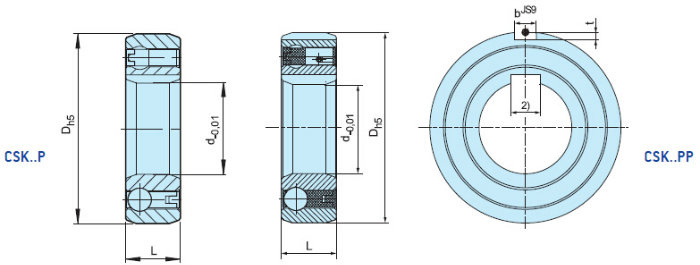

Parameter sheet of CSK...P, CSK...PP and CSK...P 2RS series One Way Bearing
| Type | Size | Bearing series | Bearing loads | Weight | Drag torque | |||||||
| dynamic | static | |||||||||||
| d | TKN1) | nmax | D | L | b | t | C | C0 | TR | |||
| [mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [kN] | [kN] | [kg] | [Ncm] | ||
| CSK..P | 12 | 6201 | 9.3 | 10000 | 32 | 10 | 6.1 | 2.77 | 0.04 | 0.7 | ||
| 15 | 6202 | 17 | 8400 | 35 | 11 | 7.4 | 3.42 | 0.06 | 0.9 | |||
| 17 | 6203 | 30 | 7350 | 40 | 12 | 7.9 | 3.8 | 0.07 | 1.1 | |||
| 20 | 6204 | 50 | 6000 | 47 | 14 | 9.4 | 4.46 | 0.11 | 1.3 | |||
| 25 | 6205 | 85 | 5200 | 52 | 15 | 10.7 | 5.46 | 0.14 | 2 | |||
| 30 | 6206 | 138 | 4200 | 62 | 16 | 11.7 | 6.45 | 0.21 | 4.4 | |||
| 35 | 6207 | 175 | 3600 | 72 | 17 | 12.6 | 7.28 | 0.3 | 5.8 | |||
| 40 | - | 325 | 3000 | 80 | 22 | 15.54 | 12.25 | 0.5 | 7 | |||
| CSK..PP | 15 | 6202 | 17 | 8400 | 35 | 11 | 2 | 0.6 | 7.4 | 3.42 | 0.06 | 0.9 |
| 17 | 6203 | 30 | 7350 | 40 | 12 | 2 | 1 | 7.9 | 3.8 | 0.07 | 1.1 | |
| 20 | 6204 | 50 | 6000 | 47 | 14 | 3 | 1.5 | 9.4 | 4.46 | 0.11 | 1.3 | |
| 25 | 6205 | 85 | 5200 | 52 | 15 | 6 | 2 | 10.7 | 5.46 | 0.14 | 2 | |
| 30 | 6206 | 138 | 4200 | 62 | 16 | 6 | 2 | 11.7 | 6.45 | 0.21 | 4.4 | |
| 35 | 6207 | 175 | 3600 | 72 | 17 | 8 | 2.5 | 12.6 | 7.28 | 0.3 | 5.8 | |
| 40 | - | 325 | 3000 | 80 | 22 | 10 | 3 | 15.54 | 12.25 | 0.5 | 7 | |
| CSK..P-2RS | 12 | - | 9.3 | 10000 | 32 | 14 | 6.1 | 2.77 | 0.05 | 3 | ||
| 15 | - | 17 | 8400 | 35 | 16 | 7.4 | 3.42 | 0.07 | 4 | |||
| 17 | - | 30 | 7350 | 40 | 17 | 7.9 | 3.8 | 0.09 | 5.6 | |||
| 20 | - | 50 | 6000 | 47 | 19 | 9.4 | 4.46 | 0.145 | 6 | |||
| 25 | - | 85 | 5200 | 52 | 20 | 10.7 | 5.46 | 0.175 | 6 | |||
| 30 | - | 138 | 4200 | 62 | 21 | 11.7 | 6.45 | 0.27 | 7.5 | |||
| 35 | - | 175 | 3600 | 72 | 22 | 12.6 | 7.28 | 0.4 | 8.2 | |||
| 40 | - | 325 | 3000 | 80 | 27 | 15.54 | 12.25 | 0.6 | 10 | |||

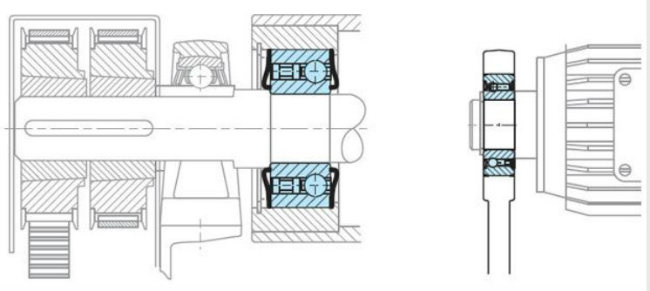

Mounting example of CSK series One Way Bearing
Package

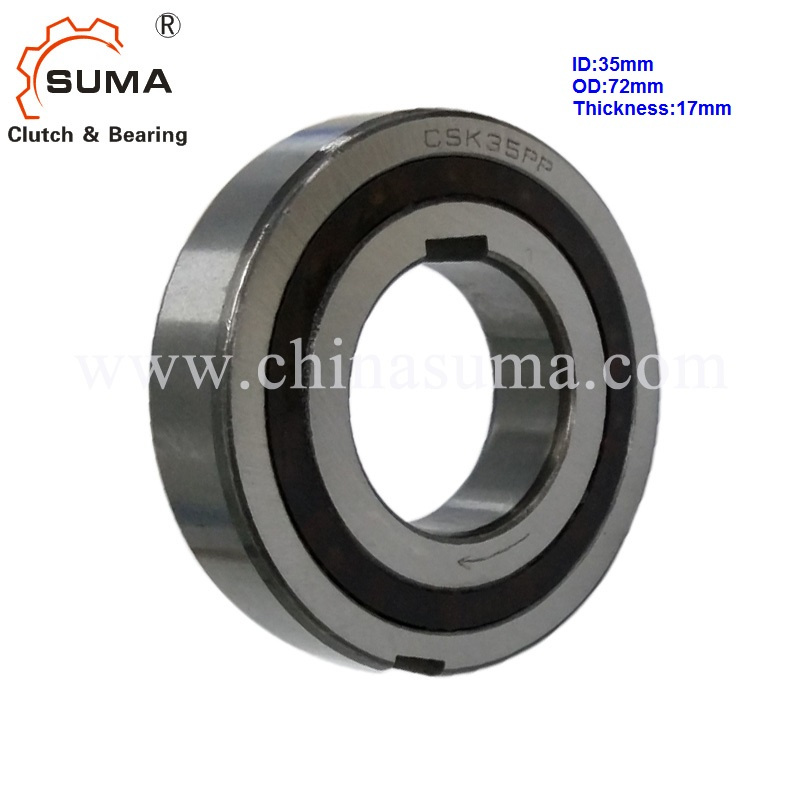

| Prod Model: | CSK35PP |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: | Csk35PP |
| Size(mm): | 35 |
| Torque(Nm): | 175 |
| Weight(Kg): | 0.3 |
| Precisio: | P6 |
| Type: | Sprag Type |
| OEM: | Accept |
| Package: | Single Box or as Your Requirements |
| Port: | Shanghai;Ningbo |
| Delivery: | 10-15days |
| Rolling Body: | Ball Bearings |
| The Number Of Rows: | Single |
| Outer Dimension: | Small (',28-55mm) |
| Material: | Bearing Steel |
| Load Direction: | Radial Bearing |
| Separated: | Unseparated |
