Stx-1202 Automatic Diamond Wire Saw

Stx-1202 Automatic Diamond Wire Saw
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: STX-1202

Product Description

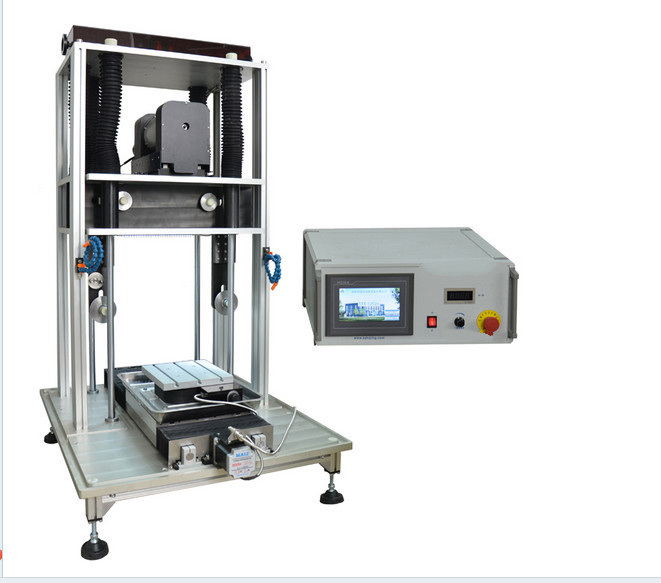

STX-1202  Automatic Diamond Wire Saw

Model:STX-1202  Automatic Diamond Wire Saw
Brief
Introduction:
STX-1202  Automatic Diamond Wire Saw is a CE certified diamond cutting saw, researching and manufacturing support of the national innovation fund. It is used for cutting different hardness of fragile crystal, ceramic, glass, rock sample, meteoritic sample, fire proof material etc. Max cutting dimension is 12 inches.
Main
Feature:
1. Cutting different hardness of crystal, ceramic, glass, fire proof material, rock sample,especially for processing fragile and easy cleavage crystal.
2.
 Sample holder can program control, can adjust to 360°.
3.
 Main motor drives the diamond wire, cutting sample under the working operating platform, can keep sample steadily.
4.
 Design all kinds of frock fixtures for the customer, suitable for different sample size.
5.
 Cutting by the diamond wire, easier to operate, better processing quality.
6.
 Heavy duty Aluminum alloy structure, beautiful and steady.
7.
 Built in pneumatic valves, make tensile force steady and reliable.
8.
 PLC program control, easy to operate.
9.
 Big touch screen, beautiful vision, good touch.
Technical
Parameter:
1. 30-64m domestic and imported 0.25-0.45 diameter mini diamond wire back and forth cutting, wire length adjustable.
2.
 Stepper motor feed automatic cut, cutting speed is adjustable and depends on different materials, can improve the cutting quality, increase acceptable life of mini diamond wire.
3.
 Built in stepper motor drive 360°sample holder, convenient to adjust cutting horizontal direction.
4.
 Cut different hardness of crystal, ceramic, glass, rock material, especially for cutting high valuable fragile crystal, Such as ZnO, BTO, YAG, BBO etc. The success rate can reach as much as 99%.
5.
 Max. cutting dimension:300 x 300mm
6.
 X, Y, Z-axis accuracy:0.01mm
7.
 Y-axis and Z-axis max travel distance:≤300mm
8.
 Φ200 horizontal rotary operating platform angle:0.6Reduplicate position accuracy:1.92
Specification:Size:1072x 892x 1623mm Weight:150kg
Standard
Accessories:

1Diamond wire2pcs
2Tension wheel2pcs
3Leading wheel2pcs
4Water pump1pc
5Wax4pcs
6Resin ceramic block2pcs
Optional
Accessories :
1. Diamond wire
2.
 Other assistant material
Standard
Package:
1. Major part: wooden box.
2.
 Others: carton




RFQ
1, Min. Order Quantity
1 piece is OK.
2. How about your technical team construction?
We have professional technicians team with 10 years' experience.
3, What's our warranty?
12 months
4, Ways of payment
T/T, L/C, Pay pal, Western Union
5, Ways of shipment
EXW, FOB, DHL, FedEx, or upon your requirements
6, Are you a trader or manufacture?
We are manufacturer, owns our factory in Shandong .
7, Can you accept OEM or ODM?
Of course,Logo is also acceptable
8, What is the delivery time?
No special requirements, can be delivered within 15 days. For customized models, delivery time shall be discussed and confirmed according to order




Shandong Ziyu Machinery Co., Ltd, situated at Jiaodong Peninsula in Shandong province which is famous for its outstanding person and excellent geographical location, possessing beautiful sceneries, comfortable weather and convenient water, land and air transportation.

As one non-governmental enterprise with combination of science, business and trade, our company covers 18, 000square meters floor area, owns over 30 qualified technicians, including 5 national grade technologists and possesses strong power to carry out research and development depending upon our own scientific research organization and develop wood machinery, hardware tools and electric tools by ourselves. Meanwhile, performance and design of many products have filled the blank state of similar products in China and many technologies have won national patents and are in highest popularity in the world.

From 2008, every year, we often take part in lots of exhibistions home and abroad, In the exhibition, we can talk to many customes from some countries, and we get at least 8- 10 oders, and the value is USD200000
