Table Saw Hm-Ts254

Table Saw Hm-Ts254
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: HM-TS254
Type: Table Panel Saw
Layout: Horizontal
Controlling Mode: Artificial
Automatic Grade: Semiautomatic
Precision: Precision
Certification: ISO

Product Description

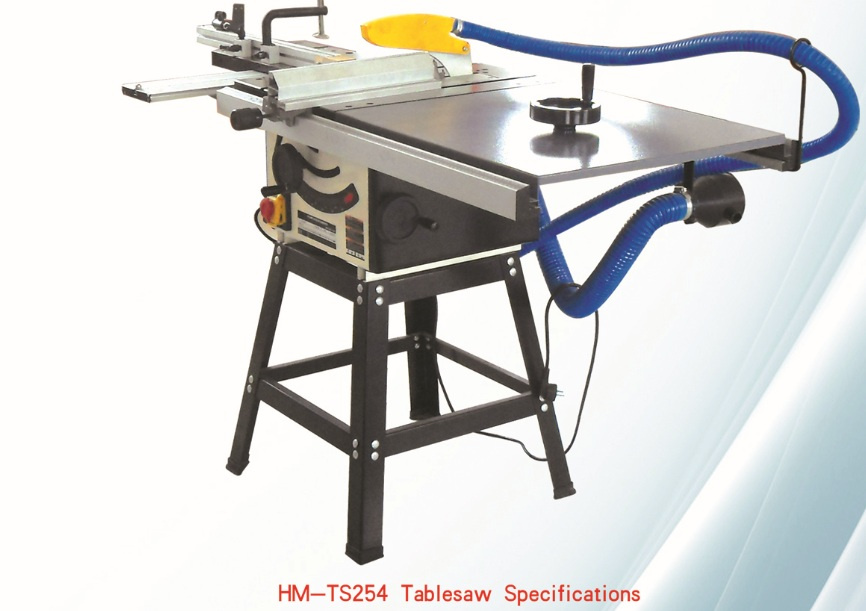

TABLE SAW HM-TS254

Technical data:
* motor specifications: 220V, 50Hz, 1.5KW induction motors
* spindle speed: 3450 revolutions per minute
* table material: cast iron table
* size of worktable: left and right * front and back =1023*686mm
* rail dimensions: 30 inches and 50 inches grey
* right wing: Wooden 30 inch, 12 inch extended wing, 50 inch, 32 inch extended wing
* saw blade specifications: 254/15.875/2.8/40T (outside diameter 254MM, inner diameter 15.875mm, thickness 2.8mm, 40 teeth)
* saw function: left angle 45 degrees, maximum rise height 85mm
* maximum cutting thickness 90 degrees /45 degrees: 85 / 57 mm
* right maximum slitting width: 914mm
* left maximum slitting width: 508mm
* Dado saw blade: 203/15.875/20.6mm (outside diameter, inner diameter, width)
* height of workbench: 914mm
* overall size: 1524*686*876mm
* NET WEIGHT gross weight: 188/216kg
* packing size: host 45950C: 765*780*1095mm
Parallel frame group 45500:1050*440*204mm
Guide rail 45536:1832*118*100mm
Wood extension wing 35648:730*630*90mm










Shandong Ziyu Machinery Co., Ltd, situated at Jiaodong Peninsula in Shandong province which is famous for its outstanding person and excellent geographical location, possessing beautiful sceneries, comfortable weather and convenient water, land and air transportation.

As one non-governmental enterprise with combination of science, business and trade, our company covers 18, 000square meters floor area, owns over 30 qualified technicians, including 5 national grade technologists and possesses strong power to carry out research and development depending upon our own scientific research organization and develop wood machinery, hardware tools and electric tools by ourselves. Meanwhile, performance and design of many products have filled the blank state of similar products in China and many technologies have won national patents and are in highest popularity in the world.

From 2008, every year, we often take part in lots of exhibistions home and abroad, In the exhibition, we can talk to many customes from some countries, and we get at least 8- 10 oders, and the value is USD200000
