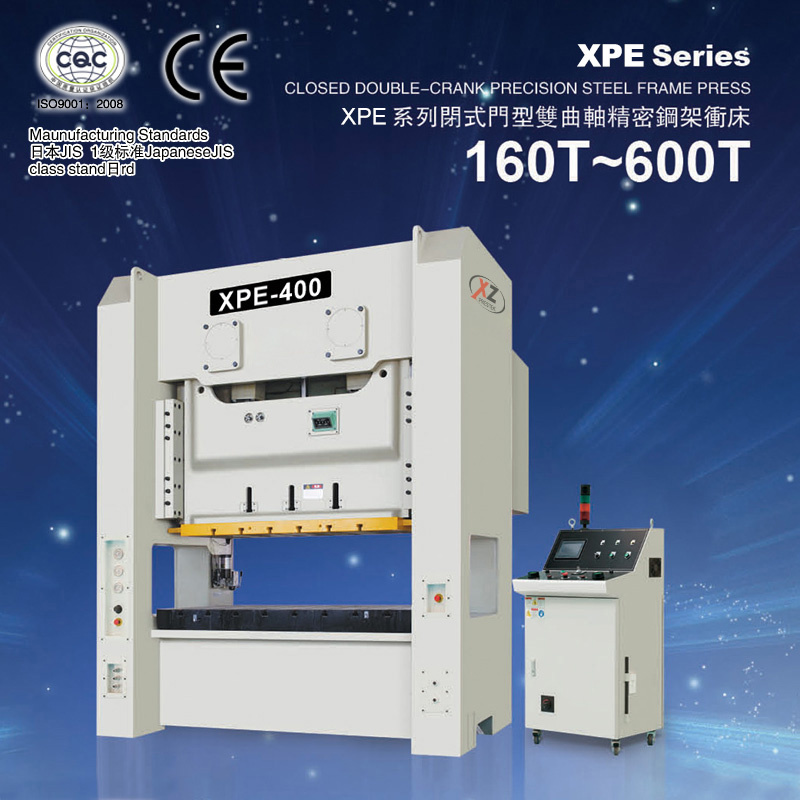

Straight Side Machine Tool (160ton-600ton) /Gantry Type Double Points Press

Prod Model:	XPE(160ton-600ton)
Precision Standard:	GB(Japan 1 Class)
Frequency Inverter:	Taiwan Delta / Japan Yaskawa
Hydraulic Over-Load Protector:	Japan Showa/ Taiwan King Air
Dry Clutch:	Italian Ompi
Main Motors:	Taiwan Teco
Double Solenoid Valve:	Japan's Taco
Oil Lubricator/Filter:	German Rexroth/Japan SMC
Bearings:	Japan NTN/NSK
PLC:	Japan Omron
Welded Steel Structure:	Elimination of Internal Stress Process, CNC Precis
Controlling Mode:	CNC
Power Source:	Mechanical Drive
Precision:	High Precision
Type:	High Precision Power Press
Automatic Grade:	PLC Control ,Human-Machine Interface

Product Description

Manufacturing Precision Standards : Japanese JIS 1 Class

1. Parameters

1.1 160ton-300ton


Name	Unit	XPE-160		XPE-200		XPE-250
Model		S	H	S	H	S	H
Capacity	Ton	160		200		250
Rated tonnage point	mm	6	3	6	3	7	3
Stroke	mm	180	130	250	150	280	170
Stroke per minute	s.p.m	30-55	40-85	20-50	35-70	20-40	30-60
Die height	mm	450	400	500	450	550	450
Slide adjustment	mm	100		120		120
Slide area	mm	1600x650		1850 x750		2300x900
Bolster area	mm	1800 x760		2200x940		2500 x1000
Side opening	mm	700 x450		900x600		900x600
Main motor	KwxP	15x4		18.5x4		22 x 4
Slide adjust device	KwxP	1x4		2x4		2x4
Air pressure	kg/cm2	6		6		6
Presses precision		GB(JIS)1 class		GB(JIS)1class		GB(JIS)1 class

1.2 400ton-600ton


Name	Unit	XPE-300		XPE-400		XPE-500		XPE-600
Model		S	H	S	H	S	H	S	H
Capacity	Ton	300		400		500		600
Rated tonnage point	mm	7	3	7	3	10	6	10	6
Stroke	mm	300	170	300	170	300	180	300	180
Stroke per minute	s.p.m	20-35	30-50	20-30	20-40	18-25	20-30	15-25	20-30
Die height	mm	550	450	550	450	580	480	600	500
Slide adjustment	mm	120		120		120		120
Slide area	mm	2300x900		A:2300x1000		2900x1000		3100x1100
				B:2400x1000
				C:2800x1000
Bolster area	mm	2500x1000		A:2500x1000		3300x1200		3500x1200
				B:2800x1000
				C:3200x1000
Side opening	mm	900x600		900x600		1000x750		1100x750
Main motor	KwxP	30x4		37x4		45x4		55x4
Slide adjust device	KwxP	2x4		2x4		3x4		3x4
Air pressure	kg/cm2	6		6		6		6
Presses precision		GB(JIS)1class		GB(JIS)1 class		GB(JIS)1class		GB(JIS)1 class


 Product Features:
* With high rigidity rack design, they are welded with the use of high-quality steel plates, through relieving of internal stresses, so that stability and reliability of the whole machine in precision are enhanced.
* Machine adopts high-alloy-steel, two-bent-axle, and two-wide work center, to optimize design.
* In order to guarantee relative stationarity of machine operation, it is equip with two balancers.
* Moulding-adjustment precision is as high as 0.1mm, safe, speedy, and reliable.
* Through hard oxidation and grinding, such parts as bent axles, gear sets, and connecting rods possess higher combination property and tolerance.
* Adopt highly sensitive and reliable clutch/brake and internationally advanced duplex magnetic valve, as well as overload protection devices, to guarantee precision and safety for operation and stop of press rams.
* Machine's structural design shall be reasonable, for the convenience of realizing automatic production, reducing cost, and improving efficiency.
* Possess advanced design concepts, low noise, low consumption, and energy saving.

Standard Configuration:
Dry clutch brake
Standard operating system of xieduan
Operation Method Choice/inch stroke /safe journey/continuation of operating mode
Oil pressure overload protection device
Over-run safety device
Duplex magnetic valve
Misfeed detection device
Electric slider adjusting device
Digital moulding-height indicator (unit: 0.1 mm)
Electric butter lubricating device
Accumulative counter (6 digits)
Pre-determined counter (6 digits)
Maintenance counter (6 digits)
Service Life counter (6 digits)
Electronic rotary cam switch (6 connections)
Air-blast device 1/2" primary circuit
Air source connector 1/2" secondary circuit
Error inspection socket
Power socket (only apply to single-phase 110V power)

Optional Configuration:
Wet clutch brake
Die cushion device
Vs variable-speed motor
Touch-screen device
Photo-electric safety device
Knock-out device on Ram
Main motor inversion device
Foot switch
Safety dog and safety latch
T-type two-hand button operating platform
Inspection variable-connection magnetic valve
Anti-vibration mechanical foot
Quick Die Change Device
Upper die clamper
Lower die clamper
Die lifter
Mould-shift arm
Basic bolt and soleplate
Automatic feeder device
Three-in-one NC straightening feeder
NC Servo Roll feeder
Two-in-one feeder and straightening machine
Leveller
