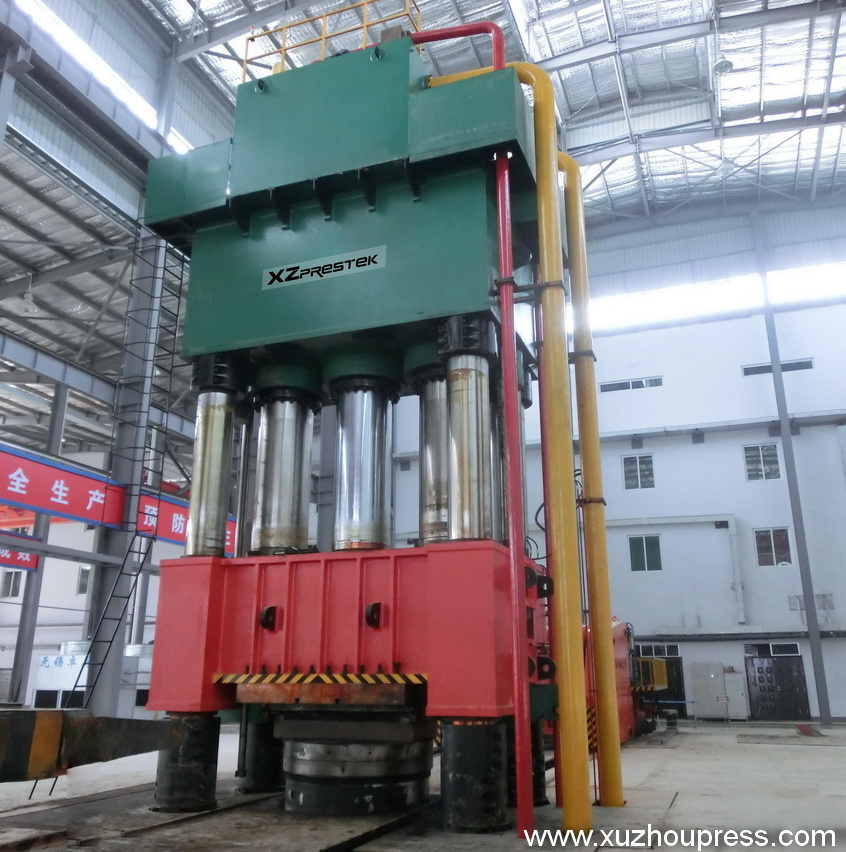

Y13-1250ton Heavy Duty Free Forging Hydraulic Press Machine

Y13-1250ton Heavy Duty Free Forging Hydraulic Press Machine
Price: US $ 400000-500000SET
Min Order: 1SET
Pay Type: L/C,T/T
Prod Model: Y13-1250
Rated Force: 1250ton
Day Light: 2500mm
Slide Stroke: 1300mm
Distance Between Column And Center: 2200X1260mm
Moveable Bolster Moving Distance: 2200mm
 No Of Moving Working Stations: 3
Moveable Bolster: 3600X1300mm
Forging Eccentric Distance: 150*100mm
The First Grade  Pressure: 1250ton
Slide Speed: 46mm/S
Processing Object: Metal
Molding Style: Forging
Molding Technics: Pressure Forging
Application: Metal Forming Parts

Product Description


Y13-1250ton Heavy Duty Free Forging Hydraulic Press Machine

Manufacturing Standard Precsion : ISO / CE

1. Technical Parameters:
* Provide Customized Personalized Service

ItemUnitYD13-1250
Structure Type-- 4-Column
Rated ForceKN12500
Day Lightmm2500
Slide Strokemm1300
Distance between Column and centermm2200*1260
Moveable bolster moving Distancemm2200
 No of Moving Working Stations--3
Moveable BolsterL-Rmm1300
F-Bmm3600
Forging Eccentric Distancemm150*100
Pressure Grades--1
The first Grade  PressureKN12500
The second  Grade  PressureKN--
The third   Grade  PressureKN--
Slide SpeedNone Load Strokemm/s300
Working mm/s46
(The first Grade Pressure)
Working mm/s--
(The second Grade Pressure)
Workingmm/s--
(The third Grade Pressure)
Return Speed mm/s300
Moveable Bolster Moving Speedmm/s200
Load Weight of Moveable Bolstermm/s60-
High Speed  Forging  Frequency--25-40
Overall Height above Ground mm8200
Motor Power KW~ 690
Recommended  Steel ingotT8


2. Technical Description :

Video Link:
https://www.youtube.com/watch?v=nD7gQ9Fw7D4
https://www.youtube.com/watch?v=fgtNFan-00I
https://www.youtube.com/watch?v=mRfkkLGb4nY
https://www.youtube.com/watch?v=JDgR7-KZ_2o
https://www.youtube.com/watch?v=5qBpOTpDj6I


Product Features:
 * The forging press upgrade automatically, to improve the production efficiency greatly.
 * Adopt multistage pressure relief valve, to ensure rapid release pressure, and  raise the speed of the pressure relief, to eliminates the impact pressure under heavy traffic, guarantee fast forging.
 * Provide the interface between press and related operated machine.
  With reliable fire protection measures.


3. Company Production:





















Xuzhou Metalfoming Precision Machinery Co., Ltd is a large-scale professional power press R&D and manufacturing enterprise, covered capacity 40ton~18000ton.

* Inherited more than 60 years of metalforming R&D and Manufacturing experiences, more than 20 patents.

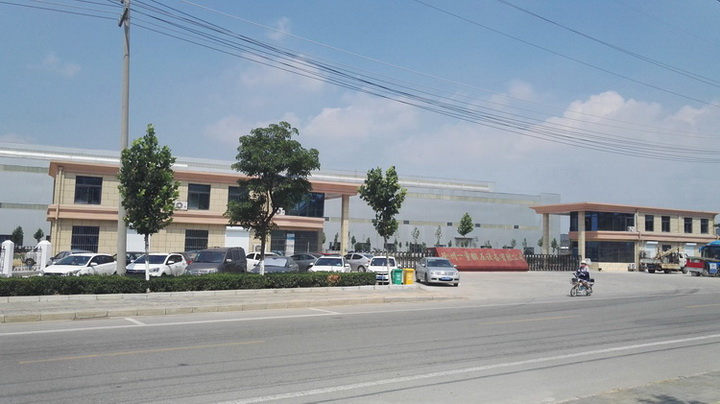

* Factory Area 200, 000.00 square meters.

* Staff of about 400 people

Main Products:

*Mechanical Press

* Coil Feeder

* Hydraulic Press

*Forging Hydraulic Press

* Special Purpose Customized Power Press.

Widely used in varieties of areas of aerospace, automobile manufacturing, shipbuilding, home appliances and others, popular for technologies of drawing, blanking, bending, Extrusion, Forging, SMG Composite molding, and etc.

Technology advantages:

* Inherited 60 years of hydraulic metalforming R&D and Manufacturing experiences, more than 20 patents.

* Take lead in technologies of proportional servo control, position digital control, synchronizing control, screen-touching and industry computer control, adopt three-dimension and module design technology, representing the highest level in the hydraulic press industry in China

Manufacturing Strength:

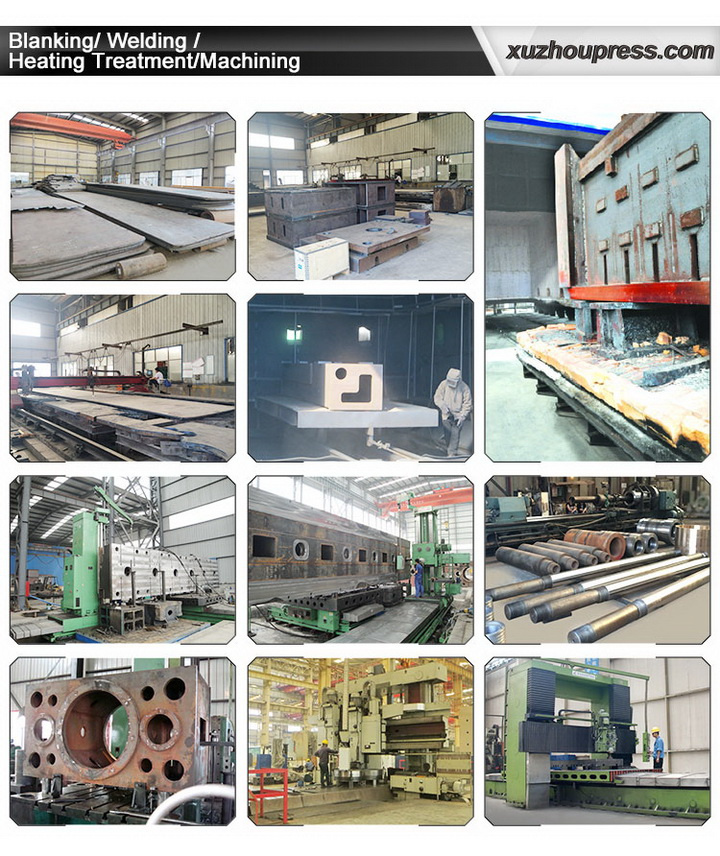

*The company have lots of large floor boring and milling machines, heavy lathes, milling machine planers and other key equipments, for varieties of machining.

*Also established new production base specially for heavy duty hydraulic press manufacturing more than 4000ton.

Marketing:

* As a result of good quality and reputation so that our products renowned at home and abroad, typical customers such as China CRRC, China CSR, China FAW, YTO, SINOPEC, CSIC, SHIFENG GROUP, LIFAN AUTO, BTE wheel, SUNRISE Wheel, FIAT, Bosch, Gree Air-conditioners, and etc.

*The presses already exported to over 20 countries and regions, such as Asia, Australia, America and Africa, and etc.
