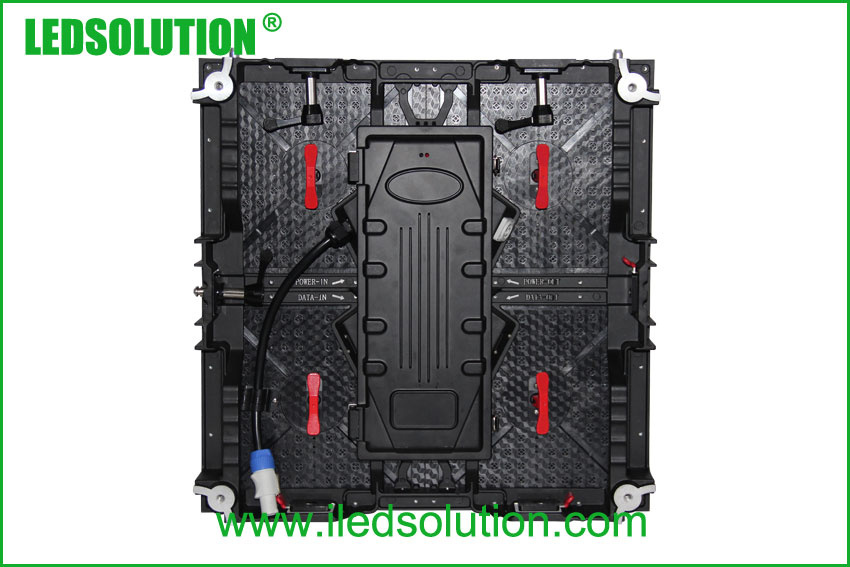

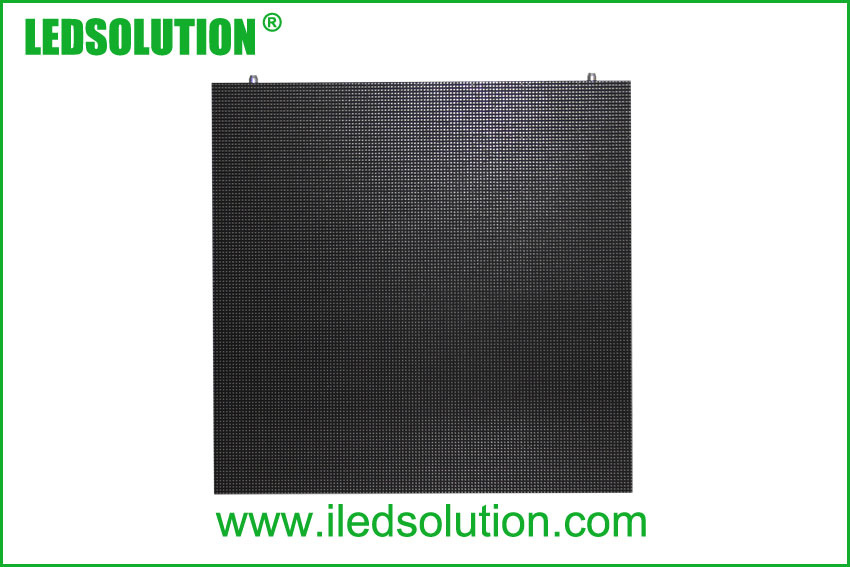

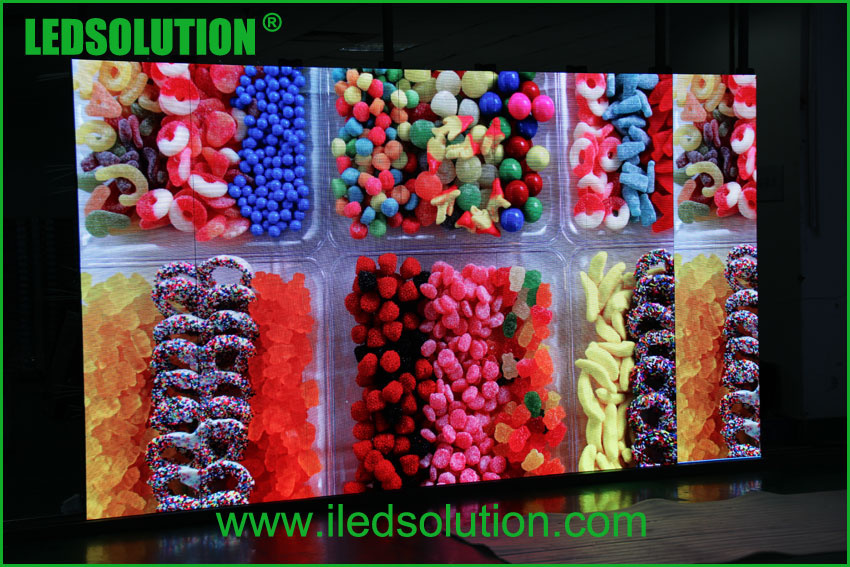

Ultra Light Indoor P3.91 DIe-cast LED Display Screen
LEDSOLUTION's P3.91 indoor die-cast aluminum LED display is a new product. It's extremly thin and light, perfect for rental or fixed installation.
Main Benifits:
1) Ultra light: only 4.2kg/panel. 2) Thickness: 92mm 3) Easy assembly & disassembly by hands without tools. 4) Super smart flatness 5) Seamless tiled display 6) Superb Picture Quality 7) Front service or back service optional 8) Curved cabinet available
Parameter
Unit
Value
Pitch
mm
3.91
Brightness
nits
1,500
Color temperature
deg. K
6,500
Viewing angle - Horizontal (50% brightness)
deg.
140(-70 ~ +70)
Viewing angle - Vertical (50% brightness)
deg.
140(-70 ~ +70)
Panel weight
kg
4.2
Panel width
mm
500
Panel height
mm
500
Panel depth
mm
92
Panel area
sq. m.
0.25
Panel material
Die-cast Aluminum
Panel Mode
Fixed / rental
Service mode
Front service module
Operating temperature range
deg. C
-20 to +60
Humidity operating
RH
10% ~ 60%
Pixel type and configuration
R/G/B
3-in-1 SMD
Resolution per panel
128x128
Dot per panel
16,384
Dot per sq. meter
65,536
LED per sq. meter
65,536
Recommended minimum viewing distance
m
2.98
Recommended best viewing distance
m
3~100
Colors
281 Trillion
Grey scale (linear)
Levels
65,536
Brightness control
Levels
256
Contrast ratio
2,000:1
Processing depth
bit
16
Video frame rate
Hertz
60
Display refresh rate
Hertz
180~3,000
Input voltage (nominal)
VAC
110 to 240
Input power frequency
Hertz
50 to 60
Input power (max)
Watts / panel.
300
Input power (typical)
Watts / panel.
120
Lifetime (50% brightness)
Hours
≥100,000
Red wavelength (dominant)
nm
620~625
Green wavelength (dominant)
nm
520~525
Blue wavelength (dominant)
nm
470~475
Multimedia data format
DVI,MPG,AVI,WMV,RM etc.
Data interconnection
UTP Cat 5/Optical Fiber
Mounting system
Hanging/Fixed
