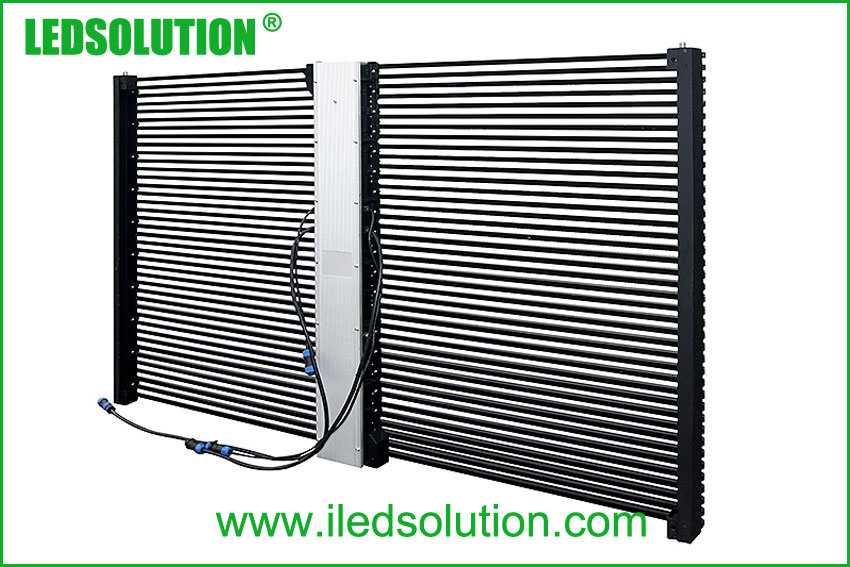

LEDSOLUTION P25 Outdoor Transparent LED Curtain display for fixed installation

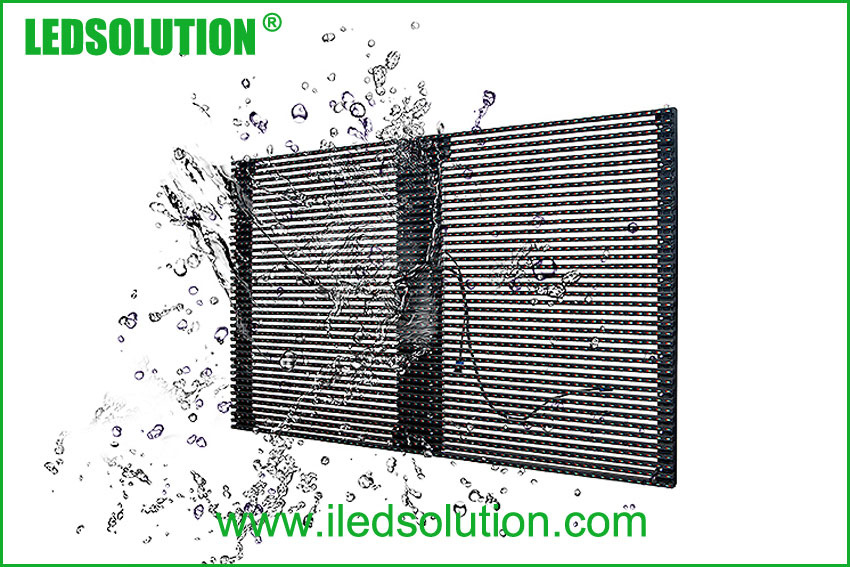

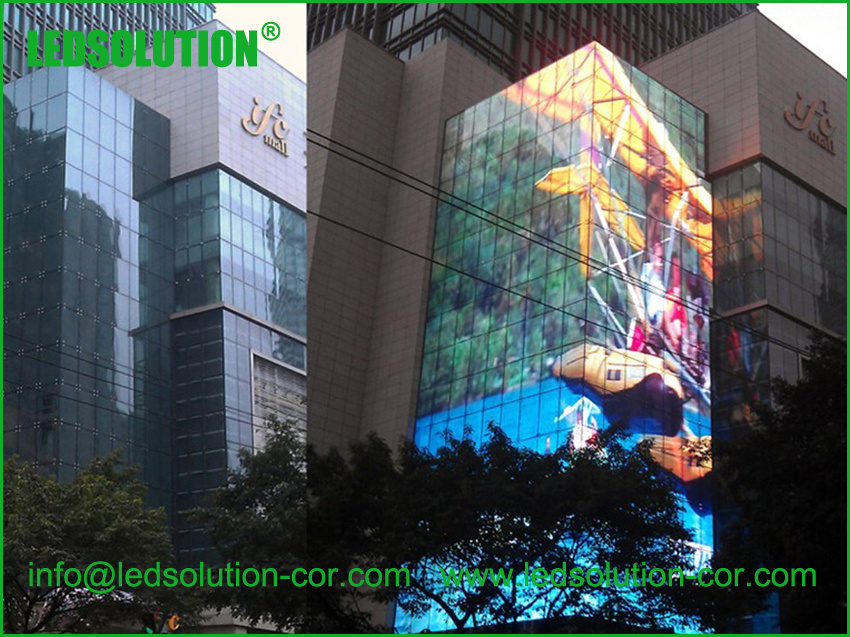

Features of the Curtain LED Display: *Weatherproof to IP65 standards *High resolution images *Easily configured for various size and aspect ratios *Wide viewing angle *Compatible with inputs: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA Main Application: Stage and outdoor fixed installation
P25 LED Curtain parameters:
Parameter
Unit
Value
Pitch
mm
25
Brightness
nits
6000
Color temperature
deg. K
6500
Viewing angle - Horizontal (50% brightness)
deg.
130 (+65/-65)
Viewing angle - Vertical (50% brightness)
deg.
60(+30/-30)
Panel weight
kg
33
Panel width
mm
1600
Panel height
mm
1000
Panel depth
mm
92
Panel area
sq. m.
1.6
Panel material
Epoxy paint coated Aluminum Strip
Ingress protection (front/rear)
IP65
IP65/65
Operating temperature range
deg. C
-30 to +60
Humidity operating
RH
10% ~ 90%

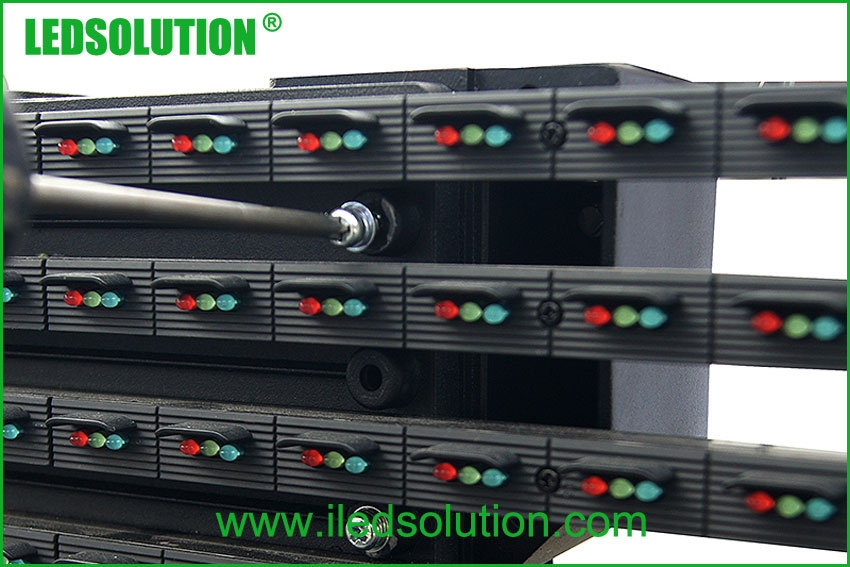

Pixel type and configuration
R/G/B
DIP LED
Resolution per panel
64x40
Dot per panel
2560
Dot per sq. meter
1600
LED per sq. meter
4800
Recommended minimum viewing distance
m
19
Drive Mode
Constant current drive
Colors
281 Trillion
Grey scale (linear)
Levels
65,536 levels per color
Brightness control
Levels
256
Contrast ratio
1,000:1
Processing depth
bit
12
Video frame rate
Hertz
60
Display refresh rate
Hertz
180~3,000
Input voltage (nominal)
VAC
110 to 240
Input power frequency
Hertz
50 to 60
Input power (max)
Watts/ panel
400
Input power (typical)
Watts/ panel
160
Lifetime (50% brightness)
Hours
≥100,000
Red wavelength (dominant)
nm
620~625
Green wavelength (dominant)
nm
525~530
Blue wavelength (dominant)
nm
470~475
Panel input format
DVI,MPG,AVI,WMV,RM etc.
Mounting System
Fixed by M10 scews
