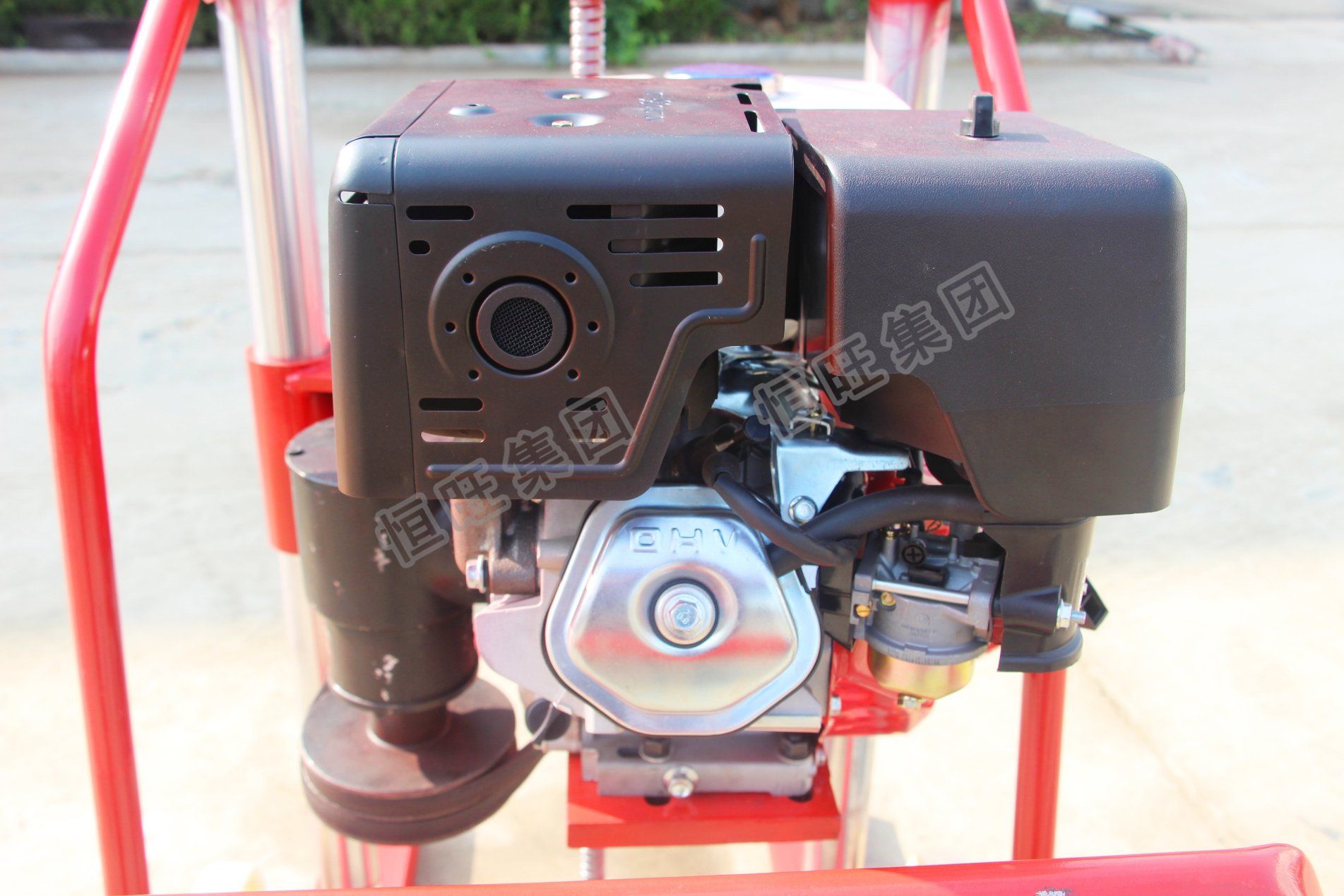

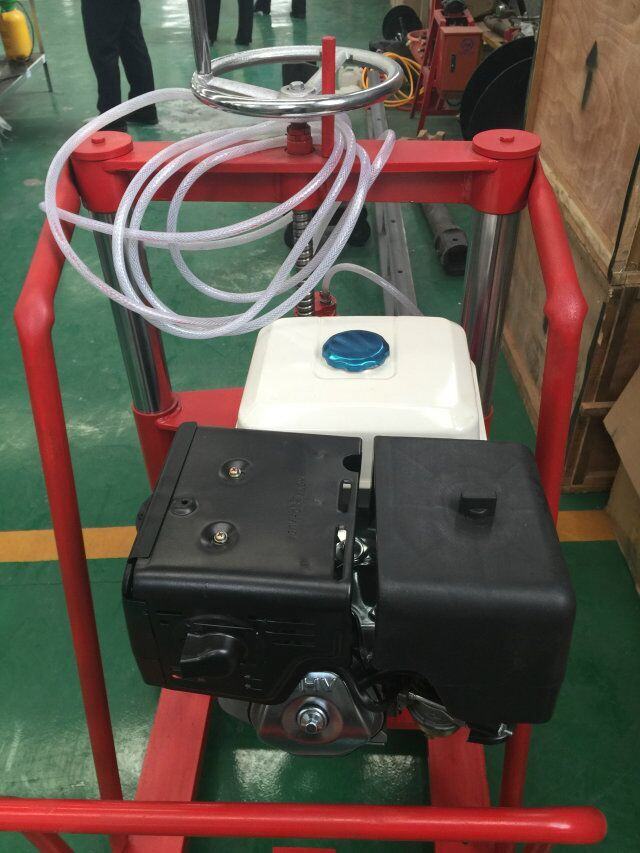

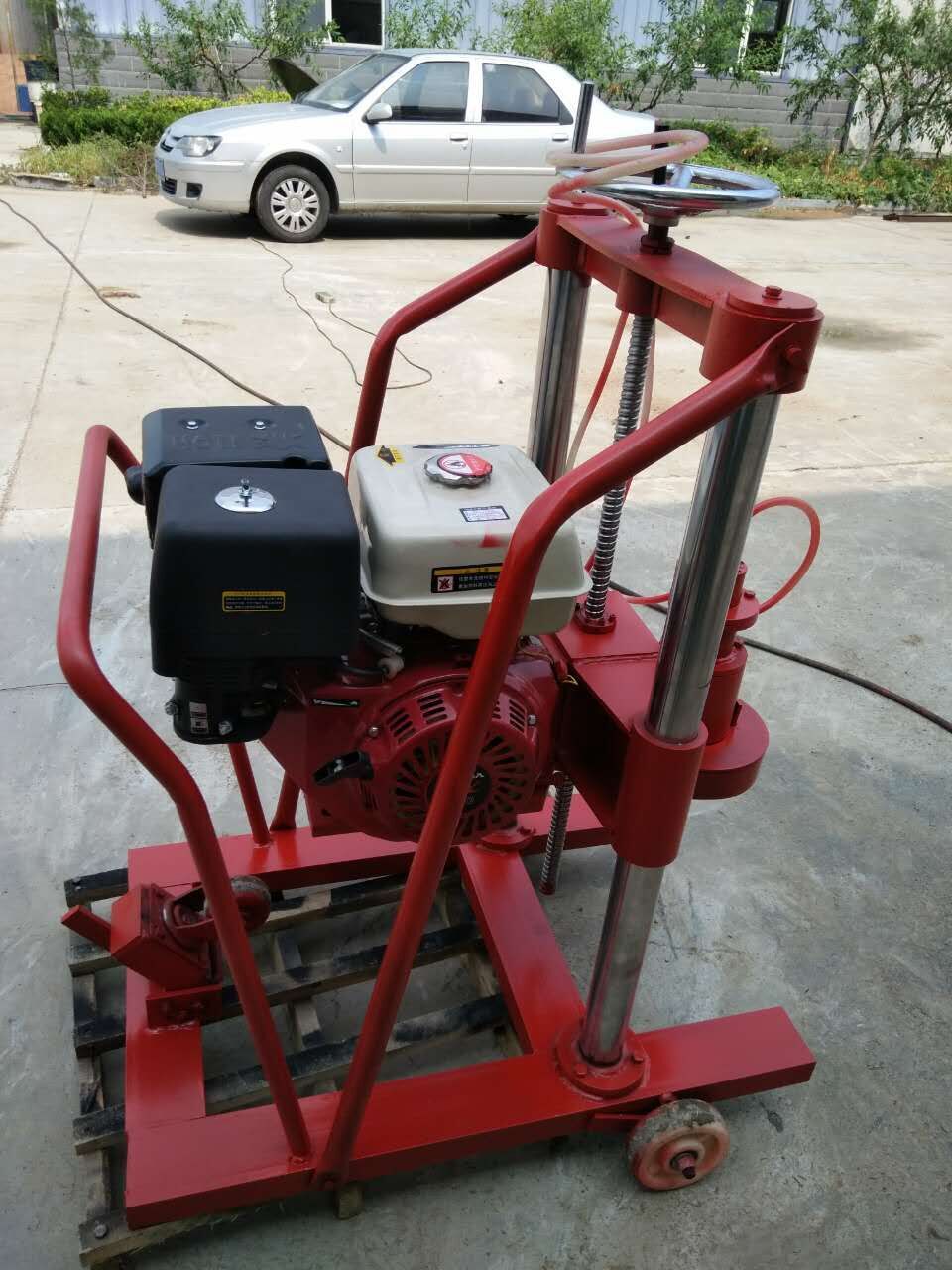

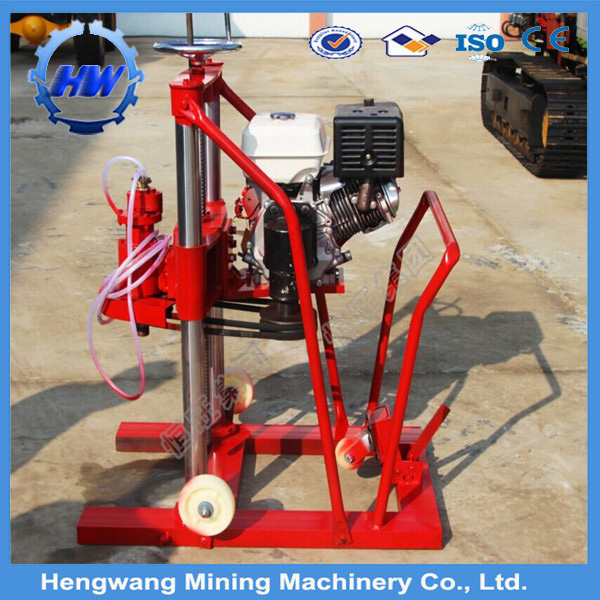

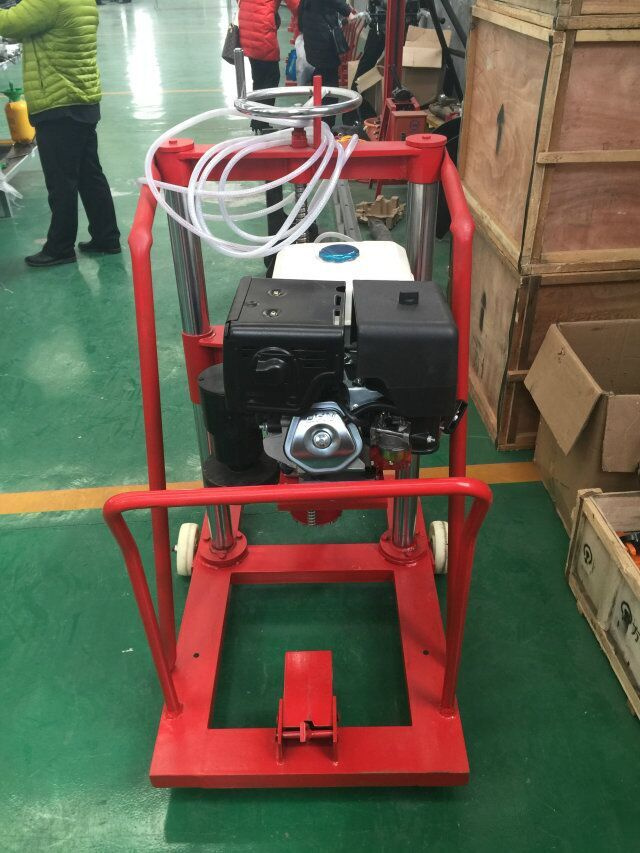

High quality Gasoline Hydraulic Concrete Core Drilling Machine

High quality Gasoline Hydraulic Concrete Core Drilling Machine
Price: US $ 920-1150/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: HW
Item No: Zdy650
Drilling Depth M: 150
Diameter Of Beginning Hole Mm: 65, 85, 115
Diameter Of Final Hole Mm: 65, 75
Type Of Drill Pipe Mm: 42.50
Angle Of Drill O: 0~90
Drilling Azimuth O: 0~360
Feeding Travel Mm: 850
Power Of Motor Kw: 15
Weight Kg: 1200

Product Description

China supply Concrete core boring machine
Product Introduction
The drill rig is a multi-function drill rig developed facing drilling grouting hole for hydro-power station. It also can be used for drillng the hole of support, penetration-proof, blasting and treating dangerous rock and hillside.
It is mainly suitable for drilling hard rock with diamond bit and PDC bit, and DTH drilling as well.
Features
Resonable specification, assure more efficiently drilling;
Fully hydraulic drive, top-drive head rotation, feed and hoist are all done by ration pupm and ration motor which composite independent open hydraulic system, it is simple, advance, easy to use and maintain;
The main hydraulic components are from world famous hydraulic manufacturers, two-step filtering, to assure the reliability of the hydraulic system;
Newly-designed structure, three speeds, and can get different speeds through changing oil motor of top-drive head, to satisfy the needing of different drilling technology;
Light weight, easy to move, re-assembly and maintain. Especially suitable for drilling in tunnel an don the frame.





Technology Parameters

NO.

item

unit

ZDY-650

ZDY-750

ZDY-1250

ZDY-2300

1

Drilling depth

m

150

150

200

300

2

Diameter of beginning hole

mm

65,85,115

65,85,115

85,115

94,115,133

3

Diameter of final hole

mm

65,75

65,75

65,75

94

4

Type of drill pipe

mm

42.50

42.50

50

63

5

Angle of drill

º

0~90

0~90

0~90

0~90

6

Drilling azimuth

º

0~360

0~360

0~360

0~360

7

Feeding travel

mm

850

850

850

850

8

Model of motor



YBK2-160L-4

YBK2-180M-4

YBK2-180L-4

YBK2-225S-4

9

Power of motor

kW

15

18.5

22

37

10

Voltage of motor

V

380/660

380/660

380/660

380/660

13

weight

Kg

1200

1400

1600

2200



Sally

Mobile: 0086 13608916725


Jining Hengwang Mining Machinery Co., Ltd. is located in Jining, Shandong Province, China. Established in 2002, comprehensive enterprise, collection of marketing, scientific research, trade. Registered capital of 10.8 million, Existing staff 200 persons, including 3 engineering experts, senior software engineer 8 persons, network information technicians 28 persons, ecommerce division, more than 80 persons, the international trade commissioner, 18 persons, logistics division 9 persons, all kinds of technical personnel more than 50 persons.

Specializing in the Drilling equipment; Railway equipment; Road machinery; Electrical equipment; Pumps; Hydraulic tools; New energy etc.

Our products sell to Vietnam, Malaysia, South Korea and other southeast Asia, Africa and the Middle East, South America, North America, Europe etc, is popular among the masses of customers. Our Companies adhere business philosophy "to provide convenient service to customers, to create development opportunities for employees" and "continuous improvement, enjoy the" spirit of enterprise. Warmly welcome new and old friends from home and abroad came to our company, to make negotiation.

Our company long term commitment to science connect with market, keep up with Reform Development, take science to be commercialization, marketization and industrialization, work with Coal science and design institute, Metallurgy Design institute, Coal science and technology university and some other famous scientific research, develop and research some mine machines and devices, we not only sell at home but also abroad, Southeast Asia: Vietnam, Malaysia, Korea, Africa and Middle East, our products get great popular from clients. We rely on top quality,

Competitive price and good service to offer metallurgy, coal, hydroelectric, railway, highway, mine etc, we quickly Occupied the Market, Achieved remarkable results.

Insist on "offer excellent service for customers, create development chance for employees" as operation principle and take "keep forging ahead, enjoy great success" as enterprise spirit, we sincerely welcome friends from home and abroad to visit us for business, Let us create great undertaking and brilliant togerther!
