Hw Supply Rotary Hydraulic Drilling Machine Hot Sale
| Price: |
US $ 4500-6500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
HW |
| Part Name: |
Water Well Drilling Rig |
| Model Number: |
Hw-160 |
| Drilling Depth: |
160m |
| Maximum Open Hole Caliber: |
260mm |
| End Hole Caliber: |
75mm |
| Drill Rod Caliber: |
50mm |
| Drilling Angle: |
90~75 |
| Diesle Engine Power: |
18 HP |
| Usage: |
Coal, Water Well |
| Power Type: |
Diesel |
Product Description

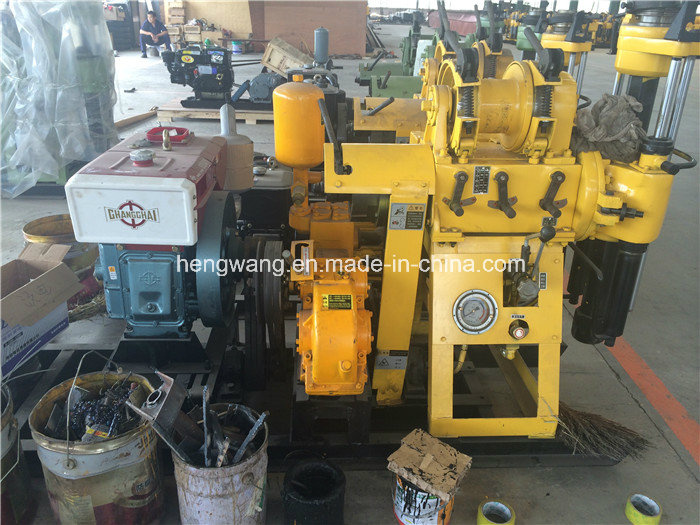

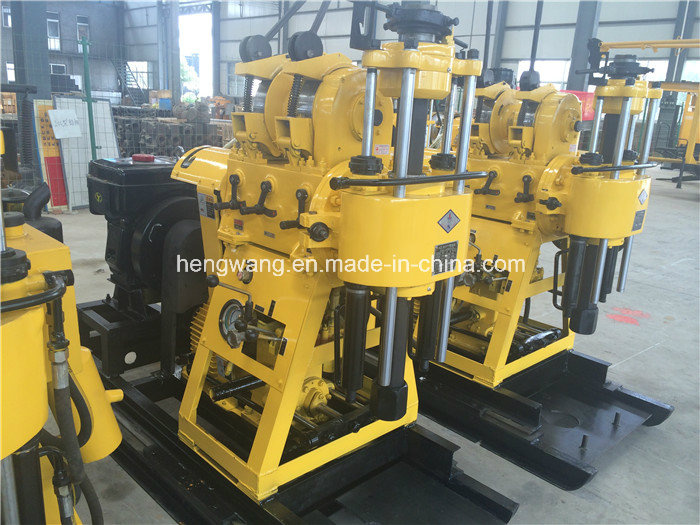

Diesel Driven Deep Truck Mounted Water Well Drilling Rig
HW-160 Water well drilling rig Features
a. five gears, and the highest speed can reach 1045r/min, improving drill efficiency
b. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.
c. the machine is equipped with national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.
d. for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.
e. Vertical spidle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.
HW-160 Water well drilling rig Applications
HW-160 drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, civil wells and earth temperature central air-conditioner,etc
Main parameters
Unity machine parameter |
Drilling depth |
10-160m |
Maximum open hole caliber |
260mm |
End hole caliber |
75mm |
Drill rod caliber |
50mm |
Drilling angle |
90~75 |
Drill weight (No include power) |
510 560kg |
Unity machine dimensions |
2.5×1×1.3 2.5×0.9×1.3m |
Spindle |
spindle speed |
142,285,570r/min |
Spindle stroke |
450mm |
Hoist |
Max.single line hoisting capacity |
960kg |
Single line lifting speed |
0.41,0.82,1.64m/s |
Tightrope caliber |
27m |
Mud pump |
Type |
Horizontal single urn twin-action |
Displacement |
95/77L/min |
Diesle engine |
Model s1110 18HP |
Electric motor |
Y160M-4 11kw 1440r/min |
Maximum pressure |
1.2Mpa |
Work pressure |
0.7Mpa |
Water inlet caliber |
30mm |
Water to exit caliber |
25mm |
Triangle conveyor belt |
B1575mm |
