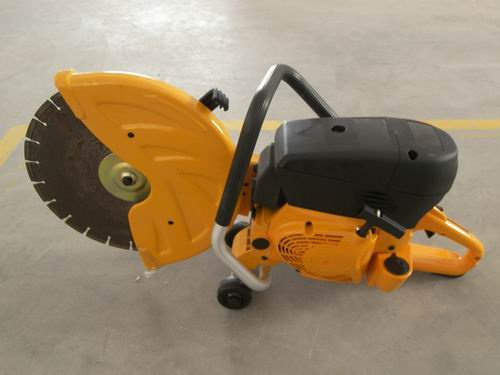

Petrol Cut off saw is widely used in municipal construction, disaster relief, public security broken demolition, road and bridge construction, housing demolition, garden operations, electric power repair and other motor and field operations. Can bring water environmental protection operations. The total weight of 9.8 KG, easy to operate. The machine has been CE and the United States EPA certification. By changing different types of saw blades, cement, asphalt, metal (aluminum, iron, copper, stainless steel, etc.) can be cut. The use of special support, can be converted into hand-push road cutting.
Specification Date:
Model No.
DH65
Power Type
Two-Stroke
Displacement
65CC
Power
3.5KW(4.8HP)
Speed
9500-10200rpm
Blade No-Load Speed
5000-5100rpm
Outer Diameter
14"/350mm
Arbor Size
1"(25.4mm)/7/8"(20mm)
Depth of cutting
5"(123mm)
Packing Size
28-1/2"(725mm)X17"(436)mmX10"(252mm)
Net/Gross Weight
21.56LBS(9.8KG)/26.18LBS(11.9KG)
20' Container
360units
40' Container
720units

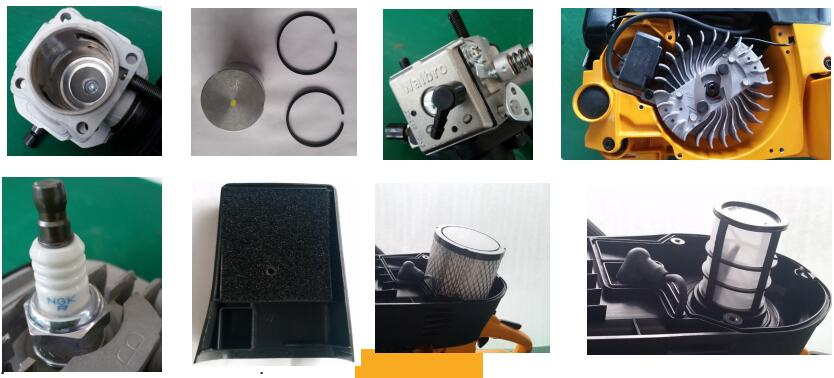

Our steel alloy piston ring is coated with "PCVD" (a latest scientific "State of the Art" technology creates a hard wear resistant, low friction film) while our cylinder is coated with a hard durable ceramic coating. Together they reduce friction and form a clean burning system that generates more power, while ensuring longer life. In addition to these features our "HEMI" head design makes this saw the most powerful in its class.
Well Balanced
Efficient
Ergonomically and user friendly designed
High Efficiency 3 Stage Air Filtration System
High Performance
Precision engineered Carburator and Fuel Filter
Advanced engineering design dampens vibration
Technologically advanced Digital Ignition
Poly-V-Belt generates maximum torque transfer
Reliable and easy start-up decompression system
Accepts 12" and 14" blades with 20mm-1" arbor
Anti slip flange transfers power with maximum torque
Designed for tough applications in: Concrete, Masonry, Asphalt, Stone, Steel and Ductile Iron
Environmentally friendly: gas tank vapors are burned instead of being released into the air
Low emission and excellent fuel economy
Advanced exhuast design reduces noise and emissions
Enlarged, protected trigger area allows operator to wear gloves
Front rollers lessen operator fatigue and aid in cutting
Durable
Easily adjustable blade guard for any angle work
Precision engineered Cold-Forged Steel Shaft
Upright and enlarged fuel port for easy fueling
Convenient and Sturdy Starter System
Lightweight
Sealed Clutch and Shaft Bearings
Innovative design reduces weight: Magnesium alloy frame and cutting arm with an aluminum alloy blade guard
"PCVD" coated piston ring guarantees less friction
Weight 22 Lbs: Eliminates operator fatigue
Ceramic coated cylinder is protected against heat
Standard Equipment
A pair of protection glass, a pair of eye plug, a tool
In Kezhuwang Company history, there are ten major moments that are worth remembering. They have become turning points, or rather, milestones in the development course of the company.
1. On November 11th 1995, the predecessor of Kezhuwang Machinery Company, Zhenxing Construction Machinery Factory was founded in Ningbo City.
2. On December 1st of the same year, 500, 000 RMB was invested to build the new factory that put out concrete vibrators of various models which became one of national best-selling products.
3. In October 1997, the factory began to create and subsequently introduced the high frequency vibration motor and profile cutting machine for use with the concrete vibrator.
4. In March 2002, another 10 million RMB was invested to build an 8000m2 expansion of the existing factory, in order to accommodate increased production.
5. In November 2004, the factory extension construction was completed.
6. In March 2005, Kezhuwang Machinery Company was formally inaugurated. The newly established company provides a fundamental guarantee for long-term, stable development on the way to further company restructuring.
7. In October 2005, the company rolled out the plate compactor, power trowel, and other products totaling around a dozen varieties.
8. In March 2006, our products began to be sold to Russia, Ukraine, Kazakhstan, Poland, Sweden, England, America, Australia, Chile, Brazil, South Africa, Singapore, and Vietnam.
9. In 2008, the company earned import and export rights via registration. From then on, it began to export products.
10. In April 2013, it obtained two exhibition stands in the 13th Import and Export Fair.
11. In April2017, Expand a new import and export company “ Ningbo ACE Machinery Co., Ltd”
