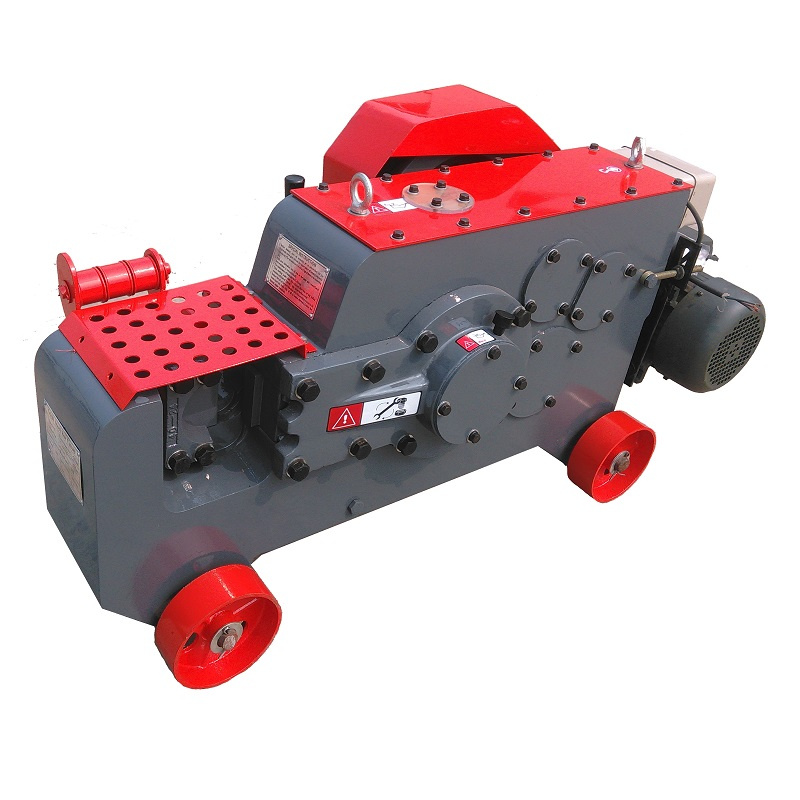

Top Selling !! Professional Steel Bar Cutter Machinery 509KG
Product Use:
This machine is efficient for cutting off steel bar products on building construction ,such as ordinary carbon steel , cold and hot round steel , screw thread steel ,flat steel,angle steel and square steel . ( need to make knife) it's made of high steel knife seat and connecting shaft ,high speed international standard motor and firm reinforcing covering. This machine is small, solid, lubricant better,little power loss,operation easy,high efficiency,convenient for moving .
COMPONENTS: MOTOR TYPE (GQ50): Y112M-2 4kw MOTOR TYPE (GQ40): Y100L-2 3kw GEAR: Cast Steel CRANKSHAFT: C45 steel CONNECTION ROD: C45 steel *The machine parts listed abovehave half year warranty. BLADE: 65Mn Steel *All the main components undergone the required heat treatment (quenching, tempering or high frequency).
PRODUCT DESCRIPTION: The thread type and ADJUSTABLE STOP GAUGE ensure the ACCURACY and STABILITY of cutting operations. The separation of the connecting rod from the gear enable the machine to UNDERTAKE HEAVY-DUTY WORKS. Adopted THIGH and RESISTENT BLADES in order to ensure high efficency with all standards of steel bars without need to change them. The adoption of the LARGE GEAR improve the driving speed as well as the working life. The high cutting speed with the SIMPLIFIED SYSTEM increased performances of 50%more than normal cutters. Worry-saving:The main components last for 10 years, and the wear parts can last for 3 years, so it wil cost you almost nothing for maintenance. Time-Saving: The international advanced structure ensures the fastest cutting speed. Labor-saving:One machine to cut different sizes of steel bar without changing the blade
Technical Date:
Steel bar cutter / steel cutting machine
Model
GQ40 (with clutch)
GQ50 (with clutch)
GQ60 (with clutch)

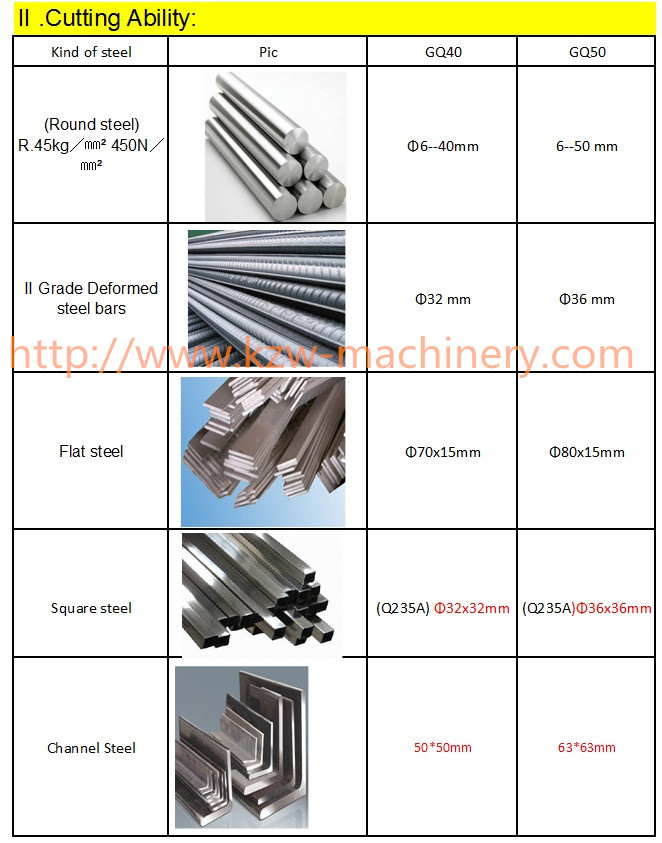

Cutting rebar Dia (Plain Carbon Steel)
6-40mm
6-50mm
6-60mm
IIgrade screw thread rebar Dia:
6-32mm
6-42mm
6-50mm
Flat steel max. diameter:
70×15mm
80×18mm
90x28mm
Cutting square steel max. spec(Q235A)
32×32mm
40×40mm
50×50mm
Angle steel max. spec :
50×50mm
63x63mm
73×73mm
Cutting quantity:
32t/min
28t/min
28t/min
Motor spec: model:
Y100L-2 3KW
Y112M-2 4KW
Y112M-2 5.5KW
Voltage / speed
380V 2800rpm
380V 2800rpm
380V 2800rpm
Dimension:
1190×450×680(mm)
1280×480×720mm
1380×580×820mm
Net weight:
360kgs
510kgs
890kgs
Gross weight:
415kgs
535kgs
920kgs
Packing size:
1270×490×820mm
1470×560×1010mm
1570x700x1110mm
I. Recommendation for piece number of simultaneously cutting off steel bars with diameters smaller than φ22mm
Diameter of steel bar (mm)
4~8
10~13
14~18
19~22
More than 22
Cutting off piece number each time GQ40
6
5
3
2
1
Cutting off piece number each time GQ50
8
5
4
3
2
