Name:
Carbide Saw Blades
Cer:
ISO9001 SGS
Performance:
Excellent Wear Resistance
Usage:
General High Speed Cutting
Material:
100% Raw Material
Business Type:
Manufacturer
Advantage:
Over 20 Years Experience in This Line
Saw Type:
Circular Saw
Application:
Metal Saw
Type:
Portable
Power Source:
Electricity
Brand:
Lihua
Product Description

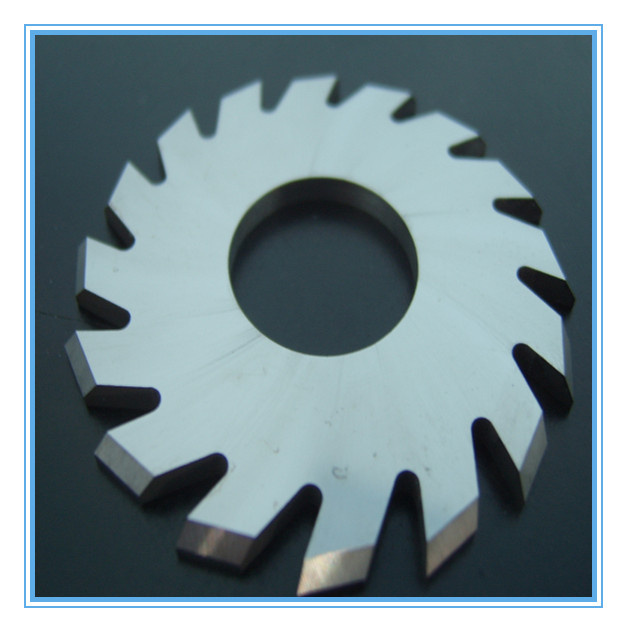

Tungsten Carbide Saw Blades Solid tungsten carbide saw blade series SPT-VC are used to score the surface of PCB, yielding a stabilized burr-free V-like groove(30°45°60°90°etc)Afterwards the board can be broken out from the panel. Advantage: A high hardness, high corrosion resistance, high wear resistance, long service life and improve production efficiency. Precision machining, high sur-face finish, kneenness, high processing V groove surface finish, no burr, greatly improved the quantity of products. Tungsten Carbide Saw Blades widely used in cut wood, metal, aluminum & plastic composites, non-ferrous metals, PVC, PCB, graphite, brass rod, cast iron, granite, marble and grass. We can provide specification of products according to our customers' requirements. Material: 1.TungstenCarbidetip/Saw Blades 2.Fast cutting speed, A, a kind suitable for cutting all kinds of soft and hard wood profiles and MDF, plywood, particle board, etc. B, a kidn suitable for cutting aluminium,etc 3.Highbendingresistancemakescarbidetipdifficulttobebroken. 4.Highcuttingefficiency,meanwhile,ithasalonglifespan. Size:230*2.4*25.4*60 as picture show diameter can be 4''/7''/8''/9''/10''/12''14''/16''
Inch
Diameter
Centralhole
Segmentthickness
Teeth
4"
105
20
1.8
30/40
7"
180
25.4
2.2
40/60/80
8"
200
25.4
2.6
40/60/80
9"
230
25.4
2.8
40/60/80
10"
250
30
3
40/60/80/100/120
12"
300
30
3.2
40/60/80/100/120
14"
350
30
3.4
60/80/100/120
16"
400
30
3.6
60/80/100/120
Impact resistance tungsten carbide circular saw blade blank for making slitting saws
Howtomakethetungstencarbidecutter blades?
A).Tungstencarbidetippedsawblades:Thesawblades'teetharetipped(viawelding)withsmallpiecesofsharptungstencarbideblock. Tungstencarbidetippedsawbladesarewidelyusedtocutwood,plywood,laminatedboard,plastic,grass,aluminumandsomeothermetals. B).Tungstencarbidesawblades:Thewholesawbladeismadeoftungstencarbide.Comparing withHSSsawblades,solidcarbidesawbladeshavehigherhardnessunderhightemperatures and aremoredurable,buttheyalsohavealowertoughness.
Tungsten carbide circular saw blade blank for making slitting sawsGrade
Grade
Density g/cm3
T.R.S MPa
Hardness HRA
Performance & Application recommended
YL10.2
14.50
3400
92.5
Qualified for low speed rough machining,milling,titanium alloy and refractory alloy,espercially for cut-off tool and sick prick.
YG11C
14.40
2260
87.5
Qualified for molding the drills for heavy-duty rock drill:detachable bits used for deep hole drilling,rock drill torlley etc.
YG6X
14.90
1560
91.0
Qualified for machiningof chilled cast iron,alloy cast iron,refractory steel ana alloy steel.Also qualified for the machining of common cast iron.
YS2T
14.45
2800
92.5
Qualified for low speed rough machining,milling,titanium alloy and refractory alloy,espercially for cut-off tool and sick prick.
YG15
14.10
2400
86.5
Used for punch dies,stamping dies and wear resistance parts.
Application oftungsten carbide circular saw blade blank for making slitting saws
Forslottinginthespectaclesframe'sindustry; Forcomputerharddiskheadindustry; Forcutting/scoringthepcbboard; Forartificialcrystalslotting/cutting; Forjewellery(gold,silver,copper)accessoryindustry; Formetal(alloy)precisecutting/slotting; Our Advantages: 1)Business Type:Manufacturer, Factory. ISO9001:2008, SGS. 2)Advancedtechnology,HIPsinteringandprecisiongrindingtoensurethegoods performance; 3)100% Virgin pure Raw materials; 4)Eachproductthroughthestrictinspectionsandconfirmtotherequirementsofthelab parameters; 5)OEM & ODM are welcomed; 6)Small order is acceptable; 7)Flexible payment terms (L/C,T/T, western union, etc); 8)Provide custom made service with customer's drawing; Other size could be offered by your Requirements; 9)We make sure to provide you with the best solutions for your individual case. Whether standard items or non-standard items all available; 10) Fast delivery and high quality; 11) Best after-sale service. OtherTungstenCarbideProductsinLihua: Tungsten Carbide Plates Tungsten Carbide Strips Tungsten Carbide Wood Working Cutting Tungsten Carbide Sleeves Tungsten Carbide Nozzles/Spraying Tungsten Carbide Balls Tungsten Carbide Wire Drawing Dies Tungsten Carbide Rods/Bars/Tubes Tungsten Carbide End Mill Tool Holders Tungsten Carbide CNC Tool Rods Tungsten Carbide Rings Tungsten Carbide Sealing Rings/Rollers Tungsten Carbide CNC Cutting Inserts Tungsten Carbide Special Cutting Tools Tungsten Carbide Mining Tools Tungsten Carbide End Mill/Milling Tools/Drill Bits Tungsten Carbide Customized Parts Etc. Different other various type of the tungsten carbide products and so on. Company Brief Introduction Zhuzhou Lihua Cemented Carbide Co., Ltd was established in1990, Based depend on good production advantage, and company with produce, research and development, sales, technical service together that have many rich production experience of the tungsten carbide products. Also have strong scientific research and development team and technicians, advanced quality inspection division, senior engineer, etc of the tungsten Carbide production. Our company mainly products such as carbide rod& tubing product, carbide strips &plates, carbide bars,carbide saw blade, carbide end mills, carbide drill bits, Carbide welding inserts, carbide CNC inserts, carbide woodworking tools, tungsten carbide powder, some non-standard tungsten carbide products and different other various type of the tungsten carbide products etc. We have independent developmented YS series of tungsten carbide grade that the grade belong the micro hole grain of tungsten carbide, good abrasion resistance, impact resistant capability is strong, affinity resistant capability is strong that also has good heat conduction performance and so on characteristic.
Lihua is committed to the principle of "customer first, fast delivery and good after-sale service ". If you have any questions and any demand of tungsten carbide, please contact us without any hesitation. We promise you not offering only our qualified products, but also designing, prompt delivery, the most competitive prices and all solution. Packing: In common Firstly use inner boxes,then to outer boxes or do as customer requested. Shipping Methods: Shipment methods:By air or sea,DHL,UPS,FEDEX,TNT or as your resquest.
Contact: Foreign Sales Representative: Coco Su Mobile:+86 13973352165 Website: www.en.lihuacarbide.com Factory Add: Tower A, 6th Building, Block C, Auto parts park, Tianyuan zone,Zhuzhou city, Hunan province, China Postcode: 412000
