High Precision Tungsten Carbide Wire Drawing Dies

High Precision Tungsten Carbide Wire Drawing Dies
Price: US $ 5-55/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Product Name: High Precision Tungsten Carbide Wire Drawing Dies
Drawing Die Mould Material: Tungsten Carbide + Steel Case
Sintered Method: Hip Sintered
Runner: Hot Runner\ Cold Runner
Tolerance: as Per Your Requirement
OEM: Acceptable
Application: Commodity
Material: Tungsten Carbide

Product Description

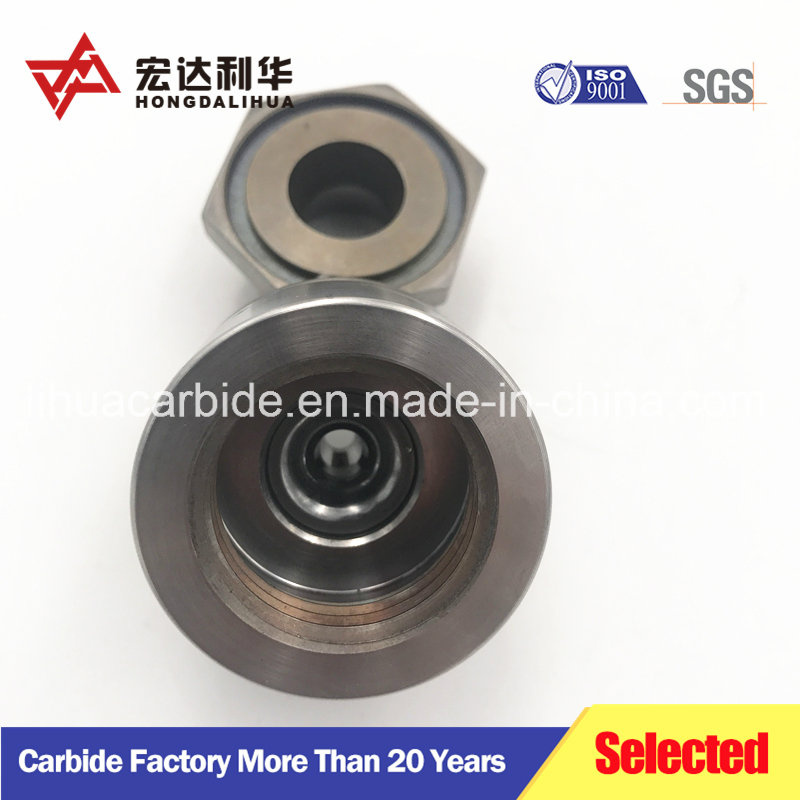

High Precision Tungsten Carbide Wire Drawing Dies

Applications

We Die's wire drawing system is used by wire producers to reduce a cross-section of wire by pulling the wire through a single die or a series of drawing dies. There are many applications for wire drawing, including electrical wiring, construction reinforcement, cables, medical and surgical applications, springs, staples, tire cord,and welding wire.

Welding Wire

Enough welding wire is produced every year to circle the globe several times. Hundreds of thousands of wire drawing dies are consumed during the production of welding wire.

Tire Cord

There are more than 1 billion tires produced every year and each tire contains bands of high tensile-strength steel wire encased in a rubber compound. Millions of wire dies are consumed each year in the production of tire cord wire.

Spring Wire

Millions of heavy duty and light vehicle engine valve, piston, fuel injection, transmission, and clutch springs are produced each year. Hundreds of thousands of wire drawing dies are consumed annually during the production of spring wire.

PC Strand

PC strand is primarily used in pre-stressed concrete buildings, bridges, parking decks, and other structures. High carbon steel rod is drawn through carbide wire dies before being used as concrete reinforcement.

Fasteners

All over the world millions of screws, bolts, nuts, rivets, nails, and staples are produced each year. Carbide wire drawing dies are essential to the production of these fasteners.

Wire Rope / Cable

Wire rope and cable are used in many industries - spanning aerospace and construction to medical and transportation. Wire drawing dies are used to form the control, constraint, and security cables used in these industries.

Specifications

No

Product

Items

Mold Core

Hardness

1

Wire-drawing Die

W103

φ13*10

1400-1600

1600-1800

2

Wire-drawing Die

W104

φ16*13

1400-1600

1600-1800

3

Wire-drawing Die

W105

φ20*17

1400-1600

1600-1800

4

Wire-drawing Die

W106

φ25*18

1400-1600

1600*1800

5

Wire-drawing Die

W107

φ30*22

1400-1600

1600-1800

6

Wire-drawing Die

W108

φ35*25

1400-1600

1600-1800





Items

Mold Core

Mantle

Coating Film

Specification

Tolerance

Compression Corner

Coining

W109

40*27

53(-0.1~-0.2)*34

AlCrN

13.30

0-0.01

14

25%

13.10

W108

35*25

12.80

12.70

12.40

12.10

11.70

11.40

11.10

10.70

10.60

10.10

W107

30*22

9.90

9.60

9.10

8.90

8.10

W106

25*18

7.10

6.10

W105

20*11

5.10

30%

4.90

4.10

W104

15*10

3.80

3.50

3.30

3.20

3.10

3.00

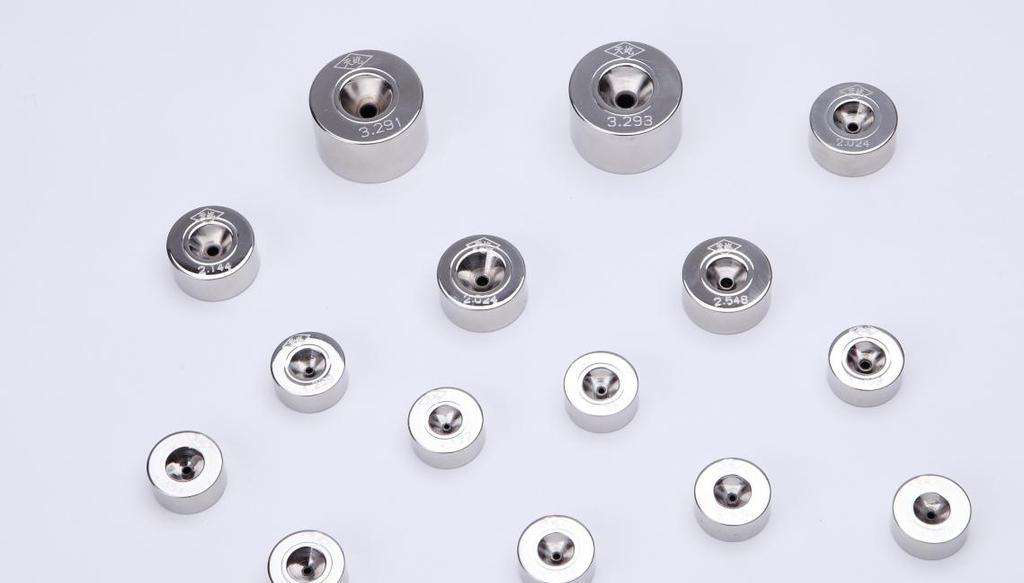

Pictures

PCD Wire Drawing Dies

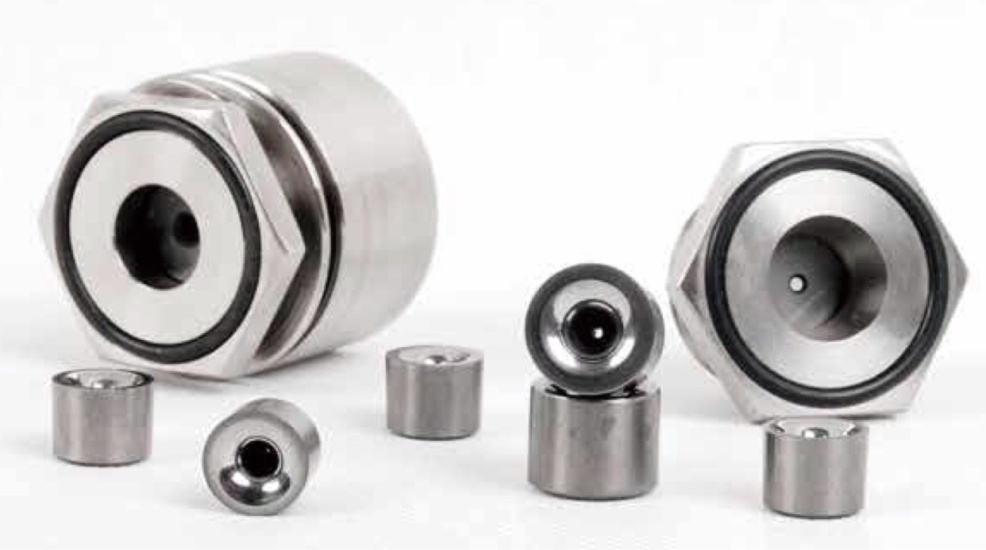

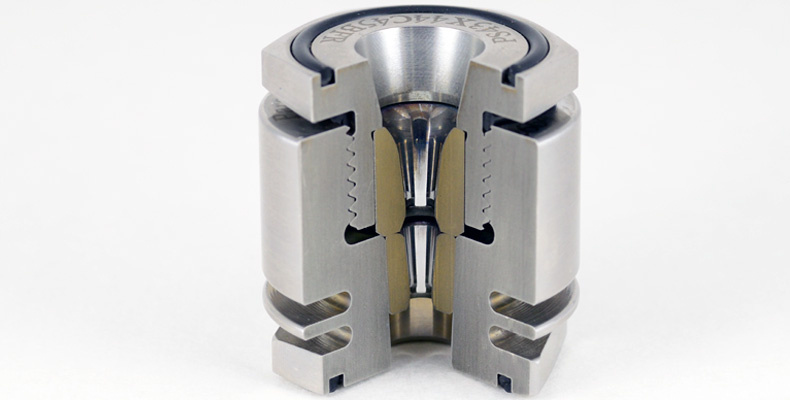

Pressure Holders

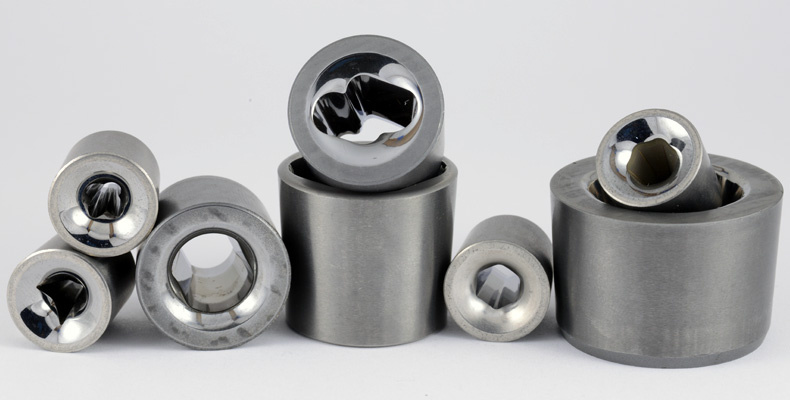

Shape Dies

Other Products


Compay Informations


About Lihua Cemented Carbide

Established in 1990, specialized in production carbide products more than 20 years and located in the hometown of tungsten carbide in China. We can manufacture all kind of tungsten carbide products.

Our products sold to worldwide . We have built a long term business relationship with the customers from Italy, Portugal, Germany, Turkey, USA, Mexico, Russia, India, Australia and so on.

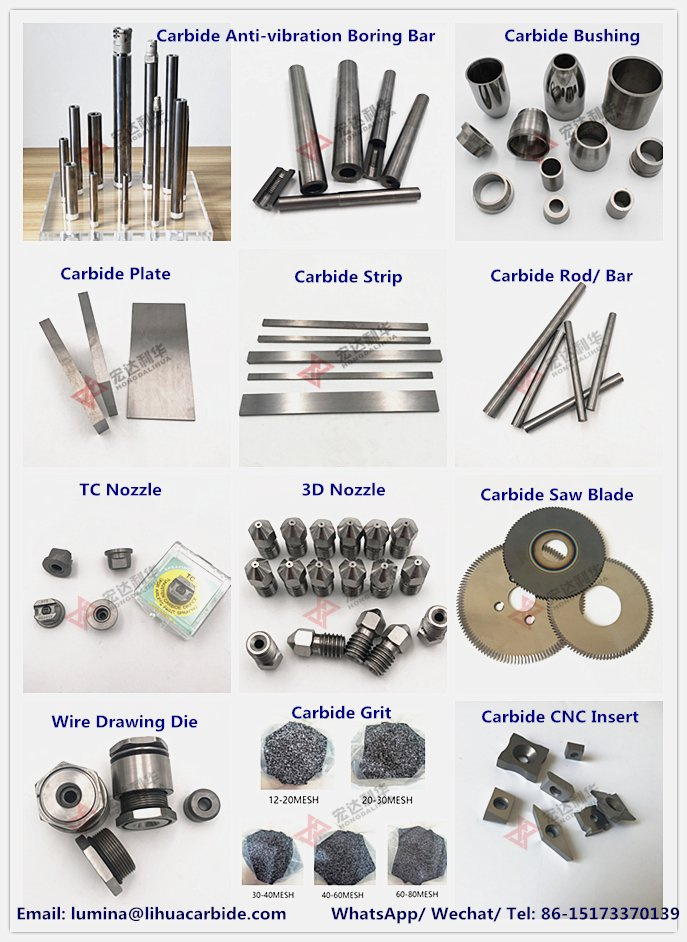

Main Products
