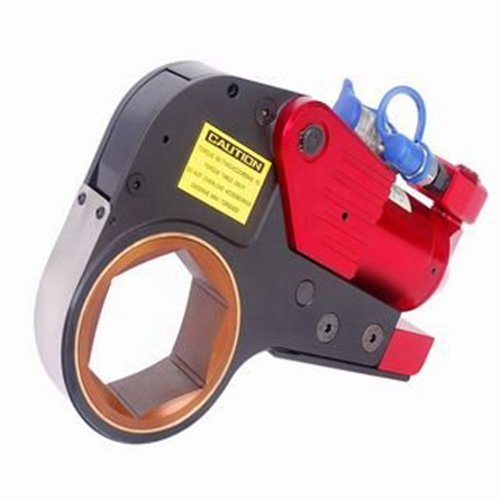

Shanghai Fareast Technology Co.,Limited can supply Pneumatic Torque Wrench, Electric Torque Wrench, Hydraulic Torque Wrench
1.The material of hydraulic tools wrench are Aluminum-Titanium alloy
and super high strength alloy steel for increased strength,intensity and durability of the tool.
High repeatability, a precise design is with accuracy ±3%.
2. The 360°*180° degree hose uni-swivel allows easy fit in confined areas, and eliminates
hose kinking. It is unbeaten for durability, and unequalled accuracy.
3. Square drive wrench: the lock of trigger is pressed slightly, and it may as you
please situate the reaction arm of 360° trimming style on the support.
4. Anti-reverse pawl designed for preventing ratchet return to maintain required torque.
5. OEM offered, customized design

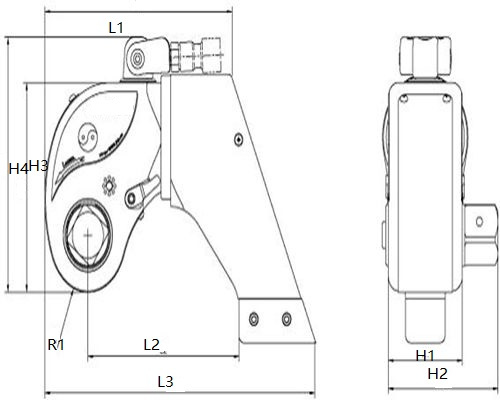

2: Drawing
3) Model Listings
Model
FEJHX02
FEJHX05
FEJHX10
FEJHX20
FEJHX25
FEJHX40
Max torque(Nm)
2266
5188
9855
17202
23072
40639
Min torque(Nm)
227
519
986
1720
2307
4064
Sides Nut Size(mm)
27-50
27-65
50-90
85-115
95-135
100-155
Power head
JX02
JX05
JX10
JX20
JX25
JX40
Cassettes link
HX02-50
HX05-65
HX10-90
HX20-115
HX25-135
HX40-155
L(mm)
205
251.3
302.5
367
400.5
457.5
L1(mm)
147
188
233
283
308
264
H1(mm)
129
163
191
223
246
282
H2(mm)
100
136
166.5
198
224
265
W1(mm)
32
41
53
64
70
84
W2(mm)
50
66
83
99
110
132
R(mm)
41.3
53.8
68.8
85.3
98.8
115.8
Weight(Kg)
2.2
5
9.6
16.9
22.9
38
Shanghai Fareast Technology Co., Limited located in Shanghai City, China, eastablished in 2002, our mainly business is diesel engine, diesel engine generator, locomotive engine, fire pump set and some other business
Our diesel engine power from 14KW to 1800KW, diesel generator power from 8KW to 2000KW
Shanghai Fareast technology Co., Limited has widely cooperated with international and domestic famous diesel engine and spare parts manufacturer, such as Cummins, Deutz, Isuzu, Perkins, Lovol, Shanghai, Wudong, Yangdong, Quanchai, Laidong, ABB so on. Spare parts such as: ABB, Plelstick, Wartsila, EMD, MTU, KKK, Garret, Holset
With the convenience operation, advanced technology, ow noise, low vibration, easy starting, creditable capability advantage. Our products can be widely used in factories, mines, banks, hospital, supermarket, telecommunication, oil filed, construction filed, marine engine and so on. Our high quality engine, generator sets and fire pump sets have been exported to more than 30 countries and regions, some of our clients become our agency in local market.
Our company tenets is: Good quality is the key to survive! Good credit standing is the key to develop!
