1) Shanghai Fareast Technology Co.,Limited can supply all kinds of hydraulic torque tools,hydraulic torque wrench,electric torque wrench,hydraulic wrench,hydraulic tools wrench,pneumatic torque wrench
2) Those hydraulic torque wrench are widely used in mines, power plants,(wind power, hydropower, thermal power, nuclear power), metallurgy, aerospace, shipbuilding,petroleum, chemical, railway, machinery manufacturing and other industries all over the world.

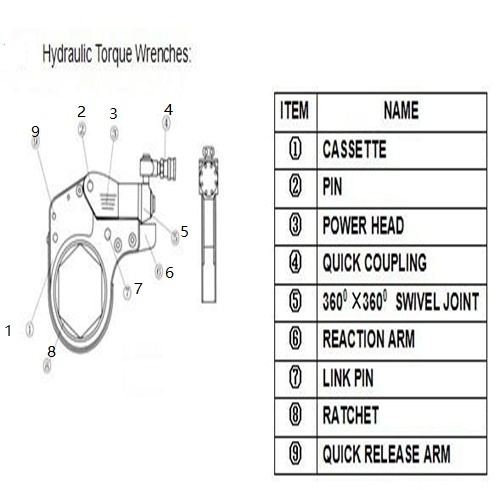

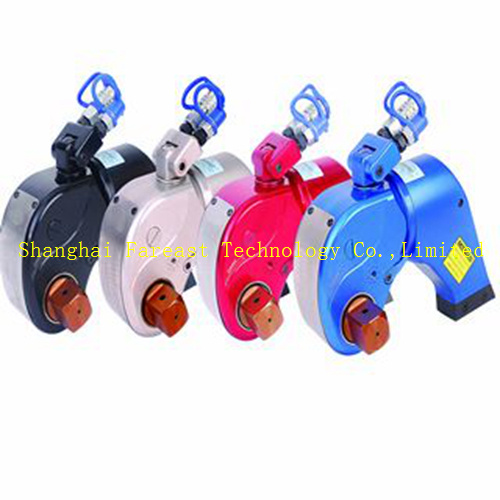

3) hydraulic torque wrench Description 3.1) The material of hydraulic tools wrench are Aluminum-Titanium alloy and super high strength alloy steel for increased strength,intensity and durability of the tool.High repeatability, a precise design is with accuracy ±3%. 3.2) The 360°*180° degree hose uni-swivel allows easy fit in confined areas, and eliminates hose kinking. It is unbeaten for durability, and unequalled accuracy. 3.3) Square drive wrench: the lock of trigger is pressed slightly, and it may as you please situate the reaction arm of 360° trimming style on the support. 3.4) Anti-reverse pawl designed for preventing ratchet return to maintain required torque. 3.5) OEM offered, customized design

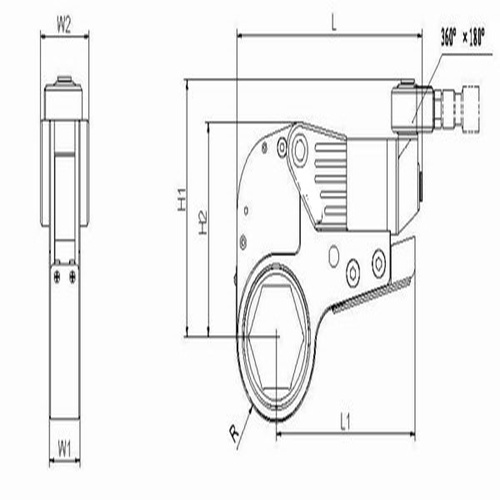

4) Technology drawings
5) Technology date
Model
FEJMH02
FEJMH05
FEJMH08
FEJMH10
FEJMH16
FEJMH20
FEJMH28
FEJMH36
FEJMH50
FEJMH70
Max torque(Nm)
1882
4466
7451
10732
15359
20108
26392
35397
48740
70660
Min torque(Nm)
188
447
745
1073
1536
2011
2639
3540
4874
7066
Drive shaft
3/4"
1"
1-1/2"
1-1/2"
1-1/2"
2-1/2"
2-1/2"
2-1/2"
2-1/2"
2-1/2"
L1(mm)
130
170
202
228
237
273
287
323
351
376
L2(mm)
102
140
160
184
192
223
248
256
271
295
L3(mm)
182
249
286
326
336
391
433
464
494
528
H1(mm)
52
70
81
90
100
110
120
138
153
162
H2(mm)
77
98
125
134
144
164
187
206
217
226
H3(mm)
96
127
149
172
181
206
221
258
279
291
H4(mm)
133
165
184
207
216
241
256
231
315
326
R(mm)
25.8
34.8
39.8
46.8
50.8
56.8
59.8
70.8
76.8
78.8
Weight(Kg)
2
4
7
10.6
12.9
20
25
33.8
43
52
Model
FEJHK02
FEJHK05
FEJHK10
FEJHK20
FEJHK25
FEJHK40
Max torque(Nm)
2266
5188
9855
17202
23072
40639
Min torque(Nm)
227
519
986
1720
2307
4064
Sides Nut Size(mm)
27-50
27-65
50-90
85-115
95-135
100-155
Power head
JX02
JX05
JX10
JX20
JX25
JX40
Cassettes link
HX02-50
HX05-65
HX10-90
HX20-115
HX25-135
HX40-155
L(mm)
205
251.3
302.5
367
400.5
457.5
L1(mm)
147
188
233
283
308
264
H1(mm)
129
163
191
223
246
282
H2(mm)
100
136
166.5
198
224
265
W1(mm)
32
41
53
64
70
84
W2(mm)
50
66
83
99
110
132
R(mm)
41.3
53.8
68.8
85.3
98.8
115.8
Weight(Kg)
2.2
5
9.6
16.9
22.9
38
Model
FEJHK03
FEJHK05
FEJHK10
FEJHK20
FEJHK40
Max torque(Nm)
3428
5597
9812
19998
39157
Min torque(Nm)
343
560
981
2000
3916
Nut range(mm)
27-55
41-80
50-95
65-130
100-155
Power head
JK03
JK05
JK10
JK20
JK40
Cassettes link
HK03-55
HK05-80
HK50-95
HK65-130
HK40-155
L(mm)
208
243
303
407
479
L1(mm)
148
168
216
282
341
H1(mm)
156
175
195
238
285
H2(mm)
109
127
148
191
237
W1(mm)
28
35
46
56
72
W2(mm)
40
50
66
82
105
R(mm)
47
63.5
72.5
100.5
119
Weight(Kg)
2
3
6.8
10.2
25.8
Model
FEJHB05
FEJHB10
FEJHB20
FEJHB40
FEJHB60
FEJHB100
FEJHB120
FEJHB180
Max torque(Nm)
4992
11775
19413
38100
57488
103670
120323
180677
Min torque(Nm)
499
1178
1941
3810
5749
10367
12032
18068
Drive shaft
1"
1-1/2"
2"
2-1/2"
2-1/2"
3-1/4"
3-1/2"
4"
L1(mm)
211
256
274
329
370
430
447
505
L2(mm)
289
355
389
473
542
624
655
758
H1(mm)
204
251
285
332
382
430
453
513
H2(mm)
91
125
141
174
179
227
240
270
H3(mm)
50
69
78
96
101
127
132
150
R(mm)
35
45
52
70
80
94
102
124
Weight(Kg)
7
14
19
37
53
91
122
176
Model
Min torque(N.m)
Max torque(N.m)
Drive S(mm)
D(mm)
L(mm)
K(mm)
M(mm)
Weight(Kg)
Idle speed (rpm)
FEJHEW-08S
100
800
3/4"
65
420
205
145
5
30
FEJHEW-16S
200
1600
1"
74
460
205
195
6.5
12.2
FEJHEW-28S
400
2800
1"
78.5
480
205
215
8.2
6.3
FEJHEW-40S
700
4200
11/2"
88
500
205
235
9.5
5.1
FEJHEW-60S
1000
6000
11/2"
113
529
205
264
14.9
2.6
FEJHEW-80S
1200
8000
11/2"
120
539
205
274
16.8
1.8
FEJHEW-100S
2000
10000
11/2"
128
555
205
290
18.3
1.5
FEJHEW-120S
3000
12000
11/2"
128
555
205
290
18.5
1.5
Model
Min torque(N.m)
Max torque(N.m)
Drive S(mm)
D(mm)
L(mm)
H(mm)
weight(Kg)
Idle speed(rpm)
FEJHEW-08A
100
800
3/4"
65
320
249
6.6
30
FEJHEW-16A
200
1600
1"
74
320
297
8.1
12.2
FEJHEW-28A
400
2800
1"
78.5
320
317
9.8
6.3
FEJHEW-40A
700
4200
11/2"
88
320
337
11.4
5.1
FEJHEW-60A
1000
6000
11/2"
113
320
366
16.5
2.3
FEJHEW-80A
1200
8000
11/2"
120
320
376
18.4
1.8
FEJHEW-100A
2000
10000
11/2"
128
320
395
20
1.5
FEJHEW-120A
3000
12000
11/2"
128
320
395
20.1
1.5
Model
Min torque(N.m)
Max torque(N.m)
Drive S(mm)
D(mm)
L(mm)
K(mm)
M(mm)
Weight(Kg)
Idle speed (rpm)
FEJHPW-09S
142
939
3/4"
75
324
172
131
4.9
28
FEJHPW-15S
200
1550
1"
77
358
172
165
5.9
20
FEJHPW-30S
500
3100
1"
81
393
172
200
7.5
6
FEJHPW-40S
600
4300
11/2"
88
411
172
218
8.9
4.1
FEJHPW-60S
800
6200
11/2"
113
439
172
246
14.8
3.8
FEJHPW-80S
940
8300
11/2"
120
451
172
258
16
1.2
FEJHPW-100S
1600
10100
11/2"
128
463
172
270
18.8
1.4
JHPW-120S
1600
12200
11/2"
128
463
172
270
18.8
1.4
Model
Min torque(N.m)
Max torque(N.m)
Drive S(mm)
D(mm)
L(mm)
H(mm)
K(mm)
Weight(Kg)
Idle speed (rpm)
FEJHPW-09A
139
910
3/4"
65
254
227
172
6.1
28
FEJHPW-15A
210
1500
1"
77
254
261
172
7.1
20
FEJHPW-30A
284
3000
1"
81
254
296
172
8.7
6
FEJHPW-40A
560
4190
11/2"
88
254
314
172
10.1
4.0
FEJHPW-60A
800
6000
11/2"
113
254
342
172
16
3.8
FEJHPW-80A
1100
8100
11/2"
120
254
354
172
17.2
1.2
FEJHPW-100A
1600
10800
11/2"
128
254
366
172
20
1.4
FEJHPW-120A
1600
12000
11/2"
128
254
366
172
20
1.4
6) Contact with us for more wrench type details
