| Price: | US $ 1000-2000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Applications:
Touring performance
Stadium
Theatre
Feature:

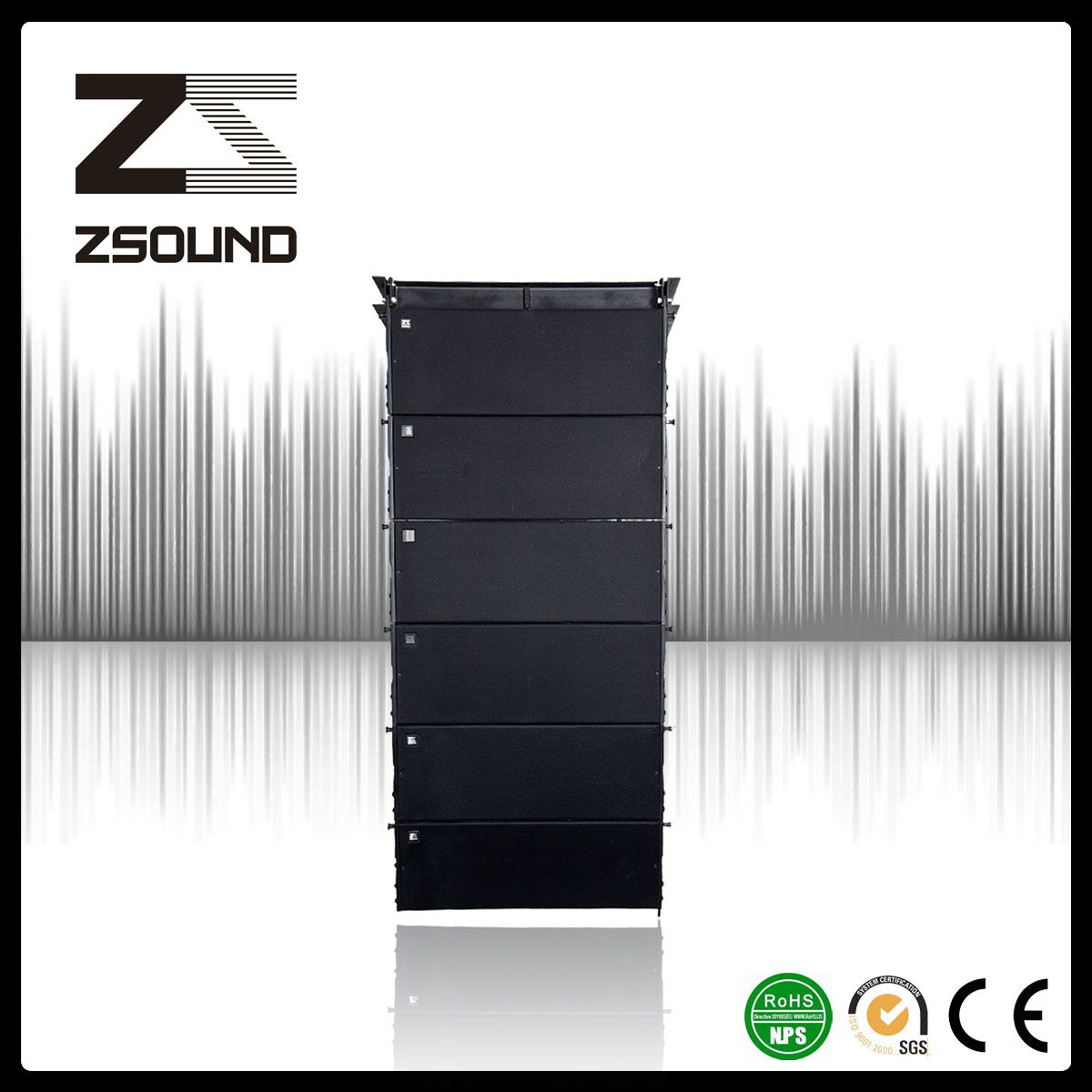

Large-scale,thri-amp,three-way line array system
MF&HF parts is coaxial structure to optimise acoustic image
Neodymium high-sensitivity driver, maximum headroom
| TECHNICAL SPECIFICATION | |
| Frequency Response: | 50Hz-16KHz(±3dB) 40Hz-18KHz(-10dB) |
| Nominal Coverage: | 90°(H)7.5°(V) |
| Sensitivity (@1w/1m): | HF:113dB SPL MF:105 dB SPL LF:100 dB SPL |
| Power Rating (AES): | HF/MF/LF:160W/350W/800W |
| Nominal Impedance: | HF/MF/LF:16/16/12Ohm |
| Maximum SPL: | HF135/141 dB MF:130/136 LF;129/135 dB |
| Drivers: | LF 2*12"(75mm Voice coil)neodymium woofer; |
| PHYSICAL DATA | |
| Dimension (H*W*D): | 367*1000*550mm |
| Weights: | 65kg |
| Connectors: | 2*WP7 connectors |
| Speaker Cables: | 1-2+…LF 3-4+…MF 5-6+…HF |
| Materials: | 18mm,24mm birch multi-plywood |
| Finish: | Black water paint |
| Grille: | Black epoxy mesh grille with acoustically reticulated cloth |
| Rigging: | 0,1 ,2,3,4,5,7.5 degree adjustable |
LA212 system advantage
1) All of speaker driver is used import and neodymuim drivers which is deal with and tested by 200 degree high temperature treatment.
2) The plywood, All the plywood was import from Russia. Just go ahead used in outdoor.
3) Our hander cup is the same as LA, D&B. All of our spare parts are used penn elco
4) the pin, our pin was use stainless steel , and must be pass 7:1 safe factor weight test. As you are a professiona people, you must know how important about the pin. If te pin is not good. It is danger when you rigging the line array speaker in the air."
5) Our design, the length about our speaker is 1000mm and 65KG. This is few factory can do that small size with maximum heatroom, We also use mort than ten years to choosie the best speaker drive for our line array speaker system. And our MF&HF parts is coaxial structure to optimise acoustic image. We can repair it when the speaker was in problem.
6) LA212 is recommanded to match LA215S (double 15" flying sub), S118H, S218H(,SS2 single and double 18" horn loaded subs) powerful subwoofers.

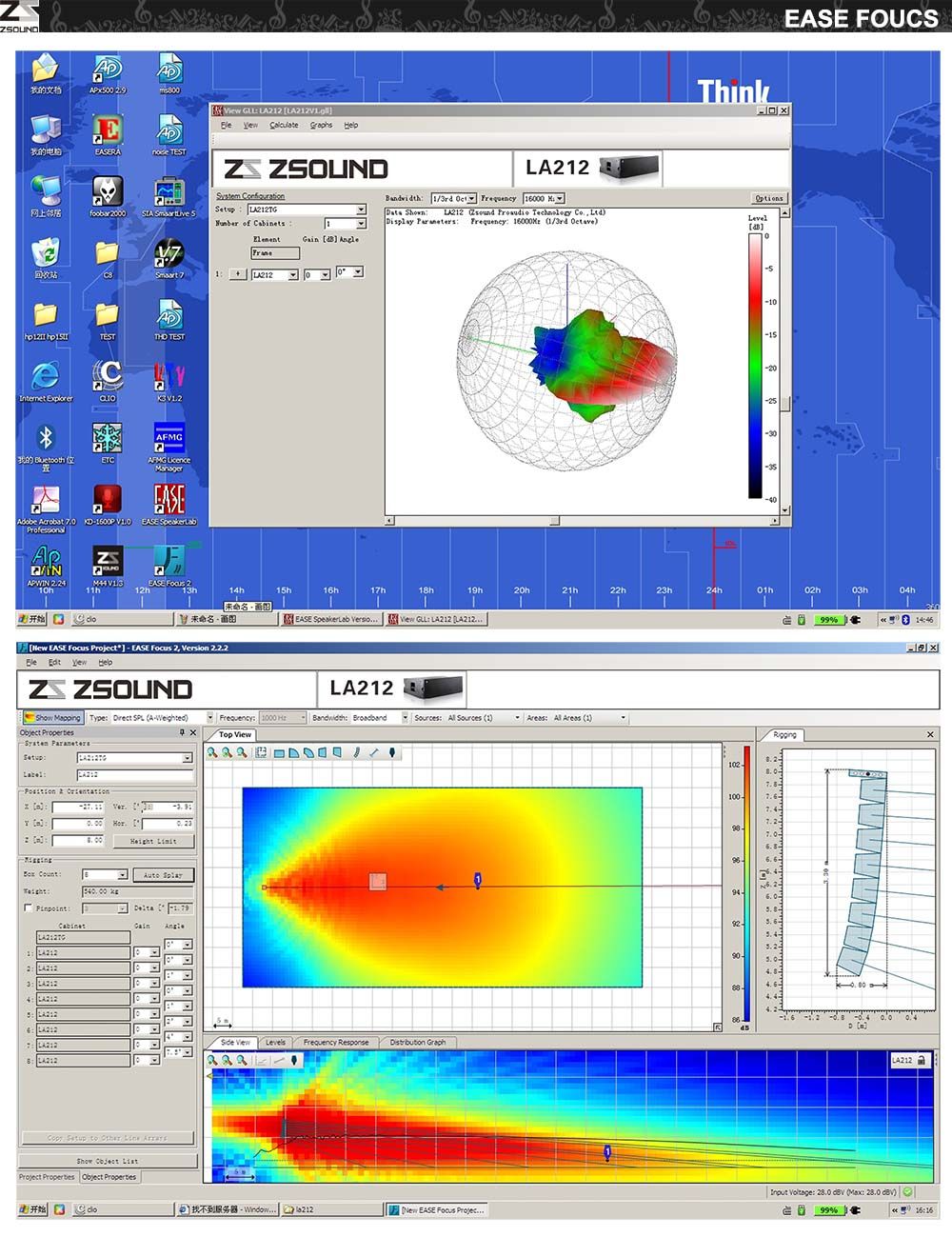

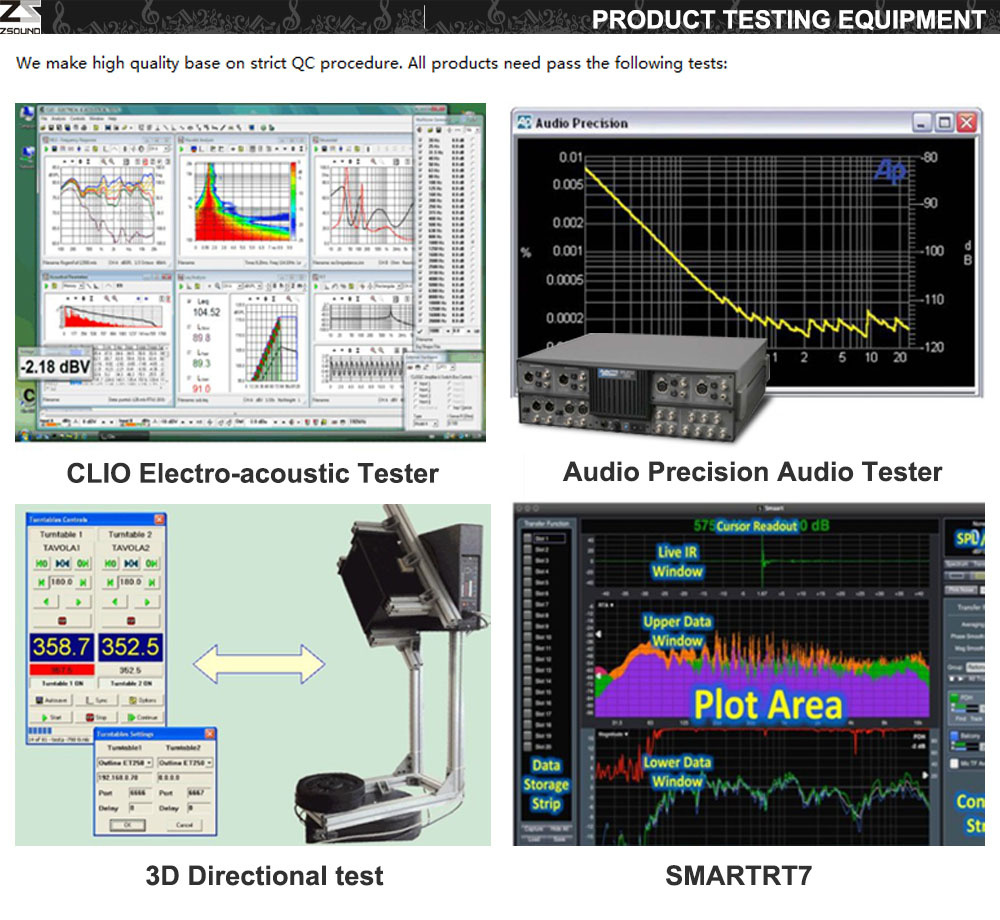

7) All the technoloy data is real. We use SMAART7, 3D directionality test, and CLIO electroacoustic measuring system, audio precision test,And all the data is open. We also have our own EASEFOCUS data and GLL picture
| Prod Model: | LA212 |
|---|---|
| Frequency Response: | 50Hz~16kHz(+-3dB)40Hz~18kHz(-10dB) |
| Nominal Coverage: | 90°(H)7.5°(V) Adjustable |
| Sensitivity: | Hf:113dB Spllf:100dB Spl |
| Power Rating: | Hf/Mf/Lf/:160W/350W/800W |
| Nominal Impedance: | Hf/Mf/Lf/:16/16/12ohm |
| Maximum Spl: | Hf:135/141dB Mf:130dB/136 Lf:129/135dB |
| Lf: | 2*12"(75mm Voice Coil) Woofer |
| Mf: | 1*10"(65mm Voice Coil) MID Range |
| Hf: | 2*3" Compression Driver |
| Finish: | Black Water Paint |
| Noise: | <95dB |
| Hi-Fi: | Hi-Fi |
| Operation Mode: | Wire / Remote Control |
| Speaker System: | Optional Combination |
| Speaker Material: | Wood |
| Application: | Commercial |
| Certification: | SGS |
| THD: | <0.03% |
| Monitor: | N/a |
