| Price: | US $ 1-900/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 4/Piece |
| Pay Type: | T/T,Western Union,Money Gram |
LA110 line array is a mini two way system, which provides 60Hz-18KHz frequency response, with flat frequency and phase response. One 75mm neodymium compression driver matches one 10" neodymium low-frequency driver to generate ultrahigh headroom, effectively decrease the weight of the enclosure, and obviously improve the ratio of SPL and Volume.The compact LA110 can achieve max 137dB SPL output.
.Applications:
Theater and multi-function hall
Church
Feature:
Full-range small system
Smooth frequency and phase response
Extremly high SPL and Volume ratio
LA110 system advantage
1) Small enclosure, light, only 25kg/pcs, with high SPL and Volume ratio; maximum headroom
2) Transmit 50Meter long distance, smooth voice on 12K frequency;
2) Neodymium high-sensitivity driver which is deal with and tested by 200 degree high temperature treatment.
3) Small bi-amp system, 16ohm nominal impedance, save amplifier
4) the plywood was import from Russia, Just go ahead use outdoor
5) Our hander cup is the same as LA, D&B. All of our spare parts are used penn elco
6) Share of China Market ≥6000pcs, While international market ≥3000pcs

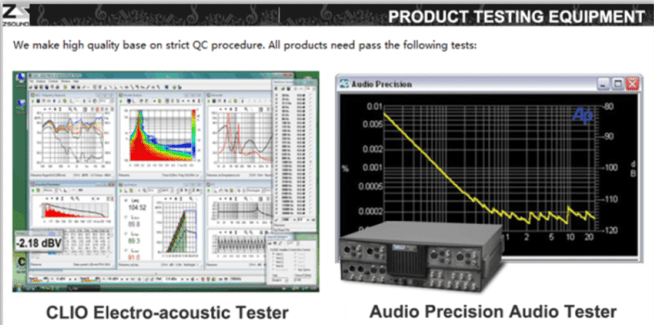

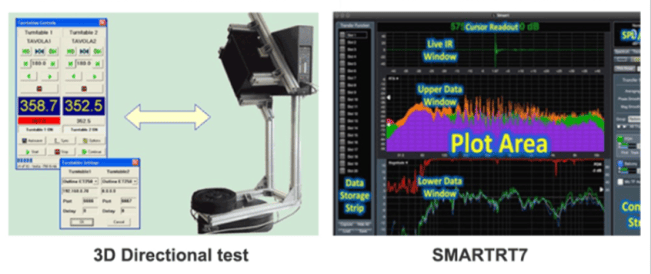

7)We use SMAART7, 3D directionality test, and CLIO electroacoustic measuring system, audio precision test,And all the data is open. We also have our own EASEFOCUS data and GLL picture for our LA110 system
| TECHNICAL SPECIFICATION | |
| Frequency Response: | 60Hz-18KHz(±3dB) 50Hz-20KHz(-10dB) |
| Nominal Coverage: | 90°(H) 10°(V) |
| Sensitivity (@1w/1m): | HF:112dB(2Kz-16Kz) LF:103dB(500Hz-2KHz) |
| Power Rating (AES): | HF/LF:80W/350W |
| Nominal Impedance: | HF/LF:16/16Ohm |
| Maximum SPL: | HF:131/137dB LF:128/134dB |
| Drivers: | LF 1*10" neodymium woofer ; HF 1*3" neodymium compression driver |
| PHYSICAL DATA | |
| Dimension (H*W*D): | 308*580*390mm |
| Weights: | 25kg |
| Connectors: | 2*WP4 connectors |
| Speaker Cables: | 1-2+LF,3-4+HF |
| Materials: | 15mm 18mm birch multi-plywood |
| Finish: | B55Black water paint |
| Grille: | Black epoxy mesh grille with acoustically reticulated cloth |
| Rigging: | 0,1 ,2,3,4,5,7.5 ,10degree adjustable |
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001
4) Monthly Production Capacity: 2000pcs
5) Fast delivery: Get your order when you need it.
6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
7) Convenient Transportation: 1 hour to Baiyun Airport
8) 24 hours on line service.
| Prod Model: | LA110 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Response: | 60Hz-18kHz(+-3dB) 50Hz-20kHz(-10dB) |
| Nominal Coverage: | 90 Degree(H) 10 Degree(V) Adjustable |
| Sensitivity: | Hf:112dB(2kz-16kz) Lf:103dB(500Hz-2kHz) |
| Power Rating: | Hf/Lf:80W/350W |
| Nominal Impedance: | Hf/Lf:16/16ohm |
| Maximum Spl: | Hf:131/137dB Lf:128/134dB |
| Drivers: | Lf:1X10" Woofer Hf:1X3" Compression Driver |
| Connectors: | 2xwp4 Connectors |
| Speaker Cables: | 1-2+..Lf,3-4+..Hf |
| Rigging: | 0,1,2,3,4,5,7.5,10 Degree Adjustable |
| Noise: | <95dB |
| Hi-Fi: | Hi-Fi |
| Operation Mode: | Wire / Remote Control |
| Speaker System: | Optional Combination |
| Speaker Material: | Wood |
| Application: | Commercial |
| Certification: | RoHS |
| THD: | <0.03% |
| Monitor: | N/a |
