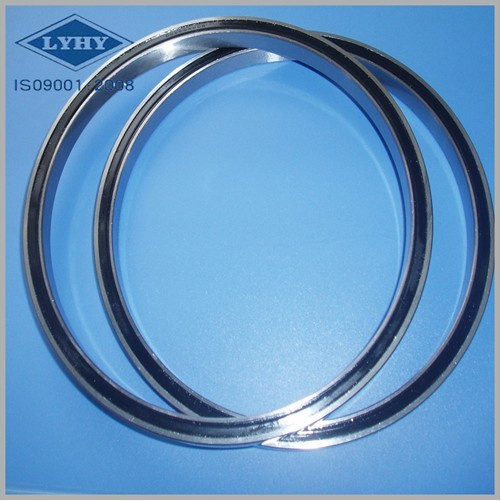

Thin Section Bearings/ Slim Ball Bearings for Stone Processing Machinery

Name: Thin Section Bearings/ Slim Ball Bearings for Stone Processing Machinery
Brand: tool-buy.com
SKU: 727580425
Availability: InStock
Rating: 4.9 (59 reviews)

Price:	US $ 390-500/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	20/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Luoyang Huayang Special Heavy-Duty and Large Bearing Manufacturing Co., Ltd.

Showroom Product Company Profile

1. Introduction to Kaydon thin section bearing
LYHY bearings are a professional manufacturer of substitution of imported brand thin section bearings, which includes seven open series and five sealed series, inner hole diameter of these slim ball bearings range from 1 to 40 inches, cross-sectional dimension is from 0.1875X0.1875 to 1.000X1.000. These ball bearings have an extremely small, predominantly square cross-section, within each series, the cross-section remains constant even for larger shaft diameters and housing bores. Except the standard models, we can also design and manufacture as per customers' requirements. With rich experience and a large collection of products, we have confidence we are able to meet customers' requirements.
2. Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing

3. Features
Thin section bearings have high precision, and very quiet and have high load carrying capacity, features of thin section bearings can be summarized as following
Excellent running accuracy
Spaces save
Low friction
High precision
Long life
Low noise and vibration

4. Application

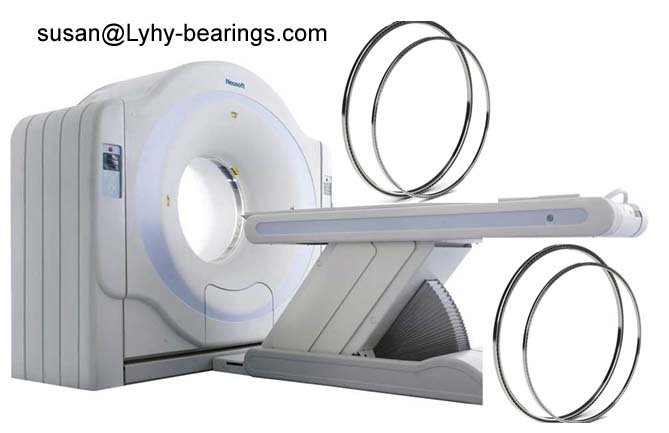

Thin section ball bearings were developed for applications where space limitations are of the utmost importance. These kind of bearings are widely used for aviation, astronomical instruments, glass manufacturing machinery, medical instrument, optical and scanning instrument, satellite communication devices, textile machinery, large welding equipment, robot, semiconductor manufacturing equipment etc. Print machinery
S=MsoNormal style='line-height: 15.0pt; Mso-line-height-rule: Exactly'>

Model	Dimension					BasiK Kap.		Weight
	d	D	Width	L1	L2	Cor	Cr	Weight
	inch			L1	L2	Pounds
KA020CP0	2.000	2.500	0.250	2.186	2.134	3020	1420	0.048
KA025CP0	2.500	3.000	0.250	2.686	2.814	3690	1600	0.059
KA030CP0	3.000	3.500	0.250	3.186	3.314	4400	1820	0.068
KA035CP0	3.500	4.000	0.250	3.686	3.814	5070	2000	0.082
KA040CP0	4.000	4.500	0.250	4.186	4.314	5730	2130	0.090
KA042CP0	4.250	4.750	0.250	4.436	4.564	6090	2220	0.095
KA045CP0	4.500	5.000	0.250	4.686	4.814	6400	2310	0.100
KA047CP0	4.750	5.250	0.250	4.936	5.064	6760	2400	0.104
KA050CP0	5.000	5.500	0.250	5.816	5.314	7070	2490	0.109
KA055CP0	5.500	6.000	0.250	5.686	5.814	7780	2620	0.118
KA060CP0	6.000	6.500	0.250	6.186	6.314	8450	2800	0.130
KA065CP0	6.500	7.000	0.250	6.686	6.814	9110	2930	0.140
KA070CP0	7.000	7.500	0.250	7.186	7.314	9780	3070	0.150
KA075CP0	7.500	8.000	0.250	7.686	7.814	10450	3200	0.160
KA080CP0	8.000	8.500	0.250	8.186	8.314	11110	3330	0.172
KA090CP0	9.000	9.500	0.250	9.186	9.314	12490	3600	0.200
KA100CP0	10.000	10.500	0.250	10.186	10.314	13820	3870	0.227
KA110CP0	11.000	11.500	0.250	11.186	11.314	15160	4130	0.236
KA120CP0	12.000	12.500	0.250	12.186	12.314	16540	4360	0.254
KB020CP0	2.000	2.625	0.3125	2.231	2.393	4130	2000	0.073
KB025CP0	2.500	3.125	0.3125	2.731	2.893	5070	2310	0.091
KB030CP0	3.000	3.625	0.3125	3.231	3.393	5960	2580	0.109
KB035CP0	3.500	4.125	0.3125	3.731	3.893	6850	2800	0.125
KB040CP0	4.000	4.625	0.3125	4.23 1	4.393	7780	3070	0.140
KB042CP0	4.250	4.875	0.3125	4.481	4.643	8130	3160	0.147
KB045CP0	4.500	5.125	0.3125	4.731	4.893	8670	3290	0.160
KB047CP0	4.750	5.375	0.3125	4.981	5.143	9020	3380	0.163
KB050CP0	5.000	5.625	0.3125	5.231	5.393	9560	3510	0.172
KB055CP0	5.500	6.125	0.3125	5.731	5.893	10490	3730	0.186
KB060CP0	6.000	6.625	0.3125	6.231	6.393	11380	3960	0.205
KB065CP0	6.500	7.125	0.3125	6.731	6.893	12270	4130	0.216
KB070CP0	7.000	7.625	0.3125	7.231	7.393	13200	4360	0.232
KB075CP0	7.500	8.125	0.3125	7.731	7.893	14090	4530	0.250
KB080CP0	8.000	8.625	0.3125	9.231	9.393	14980	4760	0.262
KB090CP0	9.000	9.625	0.3125	9.231	9.393	16800	5110	0.300
KB100CP0	10.000	10.625	0.3125	10.231	10.393	18620	5470	0.331
KB110CP0	11.000	11.625	0.3125	11.231	11.393	20400	5820	0.360
KB120CP0	12.000	12.625	0.3125	12.231	12.393	22230	6180	0.390
KB140CP0	14.000	14.625	0.3125	14.231	14.393	25860	6800	0.476
KB160CP0	16.000	16.625	0.3125	16.231	16.393	29430	7420	0.544
KB180CP0	18.000	18.625	0.3125	18.231	18.393	33070	8050	0.612
KB200CP0	20.000	20.625	0.3125	20.231	20.393	36670	8620	0.680
KC040CP0	4.000	4.750	0.375	4.277	4.473	9330	3910	0.204
KC042CP0	4.250	5.000	0.375	4.527	4.723	9780	4090	0.213
KC045CP0	4.500	5.250	0.375	4.777	4.973	10400	4220	0.225
KC047CP0	4.750	5.000	0.375	5.027	5.223	10930	4360	0.235
KC050CP0	5.000	5.750	0.375	5.277	5.473	11510	4490	0.263
KC055CP0	5.500	6.250	0.375	5.777	5.973	12580	4800	0.268
KC060CP0	6.000	6.750	0.375	6.277	6.473	13650	5070	0.295
KC065CP0	6.500	7.250	0.375	6.777	6.973	14710	5330	0.312
KC070CP0	7.000	7.750	0.375	7.277	7.473	15780	5560	0.340
KC075CP0	7.500	8.250	0.375	7.777	7.973	16850	5820	0.360
KC080CP0	8.000	8.750	0.375	8.277	8.473	17910	6050	0.387
KC090CP0	9.000	9.750	0.375	9.277	9.473	20050	6530	0.450
KC100CP0	10.000	10.750	0.375	10.277	10.473	22180	6980	0.481
KC110CP0	11.000	11.750	0.375	11.277	11.473	24310	7420	0.526
KC120CP0	12.000	12.750	0.375	12.277	12.473	26450	7870	0.567
KC140CP0	14.000	14.750	0.375	14.277	14.473	30720	8670	0.689
KC160CP0	16.000	16.750	0.375	16.277	16.473	35030	9470	0.785
KC180CP0	18.000	18.750	0.375	18.277	18.473	39290	10220	0.880
KC200CP0	20.000	20.750	0.375	20.277	20.473	43560	10980	0.980
KD040CP0	4.000	5.000	0.500	4.370	4.630	13690	6270	0.366
KD042CP0	4.250	5.250	0.500	4.620	4.880	14180	6400	0.386
KD045CP0	4.500	5.500	0.500	4.870	5.130	15200	6710	0.405
KD047CP0	4.750	5.750	0.500	5.120	5.380	15690	6850	0.426
KD050CP0	5.000	6.000	0.500	5.370	5.630	16710	7160	0.454
KD055CP0	5.500	6.500	0.500	5.870	6.130	18230	7560	0.485
KD060CP0	6.000	7.000	0.500	6.370	6.630	19780	8000	0.526
KD065CP0	6.500	7.500	0.500	6.870	7.130	21290	8400	0.566
KD070CP0	7.000	8.000	0.500	7.370	7.630	22800	8800	0.606
KD075CP0	7.500	8.500	0.500	7.870	8.130	24310	9160	0.650
KD080CP0	8.000	9.000	0.500	8.370	8.630	25830	9560	0.694
KD090CP0	9.000	10.000	0.500	9.370	9.630	28890	10310	0.780
KD100CP0	10.000	11.000	0.500	10.370	10.630	31920	10980	0.853
KD110CP0	11.000	12.000	0.500	11 . 370	11.630	34980	11690	0.934
KD120CP0	12.000	13.000	0.500	12.370	12.630	38010	12360	1.020
KD140CP0	14.000	15.000	0.500	14.370	14.630	44090	13650	1.240
KD160CP0	16.000	17.000	0.500	16.370	16.630	50180	14890	1.410
KD180CP0	18.000	19.000	0.500	18.370	18.630	56230	16050	1.580
KD200CP0	20.000	21.000	0.500	20.370	20.630	62320	17200	1.750
KF040CP0	4.000	5.500	0.750	4.555	4.945	23830	12130	0.875
KF042CP0	4.250	5.750	0.750	4.805	5.195	25070	12580	0.930
KF045CP0	4.500	6.000	0.750	5.055	5.445	26360	12980	0.975
KF047CP0	4.750	6.250	0.750	5.305	5.695	27600	13380	1.04
KF050CP0	5.000	6.500	0.750	5.555	5.945	28850	13780	1.090
KF055CP0	5.500	7.000	0.750	6.055	6.445	31340	14580	1.180
KF060CP0	6.000	7.500	0.750	6.555	6.945	33870	15340	1.240
KF065CP0	6.500	8.000	0.750	7.055	7.445	36360	16090	1.350
KF070CP0	7.000	8.500	0.750	7.555	7.945	38890	16850	1.450
KF075CP0	7.500	9.000	0.750	8.055	8.445	41380	17560	1.560
KF080CP0	8.000	9.500	0.750	8.555	8.945	43920	18230	1.660
KF090CP0	9.000	10.500	0.750	9.555	9.945	48900	19600	1.810
KF100CP0	10.000	11.500	0.750	10.555	10.945	53920	20940	2.020
KF110CP0	11.000	12.500	0.750	11.555	11.945	58940	22230	2.180
KF120CP0	12.000	13.500	0.750	12.555	12.945	63960	23470	2.380
KF140CP0	14.000	15.500	0.750	14.555	14.945	74010	25830	2.720
KF160CP0	16.000	17.500	0.750	16.555	16.945	84010	28140	3.220
KF180CP0	18.000	19.500	0.750	18.555	18.945	94060	30320	3.580
KF200CP0	20.000	21.500	0.750	20.555	20.945	104100	32450	4.040
KG040CP0	4.000	6.000	1.000	4.742	5.258	36490	20000	1.65
KG042CP0	4.250	6.250	1.000	4.992	5.508	36490	20000	1.750
KG045CP0	4.500	6.500	1.000	5.242	5.758	38940	20900	1.81
KG047CP0	4.750	6.750	1.000	5.492	6.008	41340	21740	1.91
KG050CP0	5.000	7.000	1.000	5.742	6.258	43780	22580	2.020
KG055CP0	5.500	7.500	1.000	6.242	6.758	46230	23430	2.170
KG060CP0	6.000	8.000	1.000	6.724	7.258	51070	25030	2.310
KG065CP0	6.500	8.500	1.000	7.242	7.758	53520	25830	2.470
KG070CP0	7.000	9.000	1.000	7.742	8.258	58360	27380	2.670
KG075CP0	7.500	9.500	1.000	8.242	8.758	60810	28140	2.830
KG080CP0	8.000	10.000	1.000	8.742	9.258	65650	29600	3.000
KG090CP0	9.000	11.000	1.000	9.742	10.258	72990	31780	3.300
KG100CP0	10.000	12.000	1.000	10.742	11.258	80280	33870	3.650
KG110CP0	11.000	13.000	1.000	11.742	12.258	87570	35870	3.960
KG120CP0	12.000	14.000	1.000	12.472	13.258	94860	37830	4.320
KG140CP0	14.000	16.000	1.000	14.742	15.258	109440	41600	4.960
KG160CP0	16.000	18.000	1.000	16.742	17.258	124060	45250	5.650
KG180CP0	18.000	20.000	1.000	18.742	19.258	138640	48720	6.280
KG200CP0	20.000	22.000	1.000	20.742	21.258	153220	52100	7.530

Prod Model:	KF120CP0
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Company History:	Since 1993
Brand:	Lyhy
Customer Design:	Available
External Diameter:	342.9mm
Internal Diameter:	304.8mm
Height:	19.05mm
Precision:	Abec1
Application:	Natural Stone Processing Machinery
Testing:	in House

Who we are?
We (Luoyang huayang special heavy-duty and large bearing manufacturing Co., Ltd) are a professional bearing manufacturer in the world. Established in 2000, has been specializing in bearings' design, production, sales, marketing and service. For 11 years experiences, our bearings have flied to USA, Europe, Middle East, Asia and Africa.

Our technical team:
We have 250 employees, with 10 experienced engineers and 30 professional technicists. All our bearings are designed by CAD-programs, made according to customers' special demands. Our technical team can also verify safety & reliability depending on the load case and the strength of raceway as well as gear and bolt connections.

Manufacturing:
Equipped with advanced manufacturing equipments and test instruments, all bearings are of uniform marking and packing with superior quality, reasonable price and perfect services. Our bearings cover 10 main kinds with thousands of types, including slewing bearings, split bearings, rolling mill bearings, deep groove ball bearings, spherical ball bearings, cylindrical roller bearings, spherical roller bearings, needle bearings, taper roller bearings, thrust ball bearings, thrust roller bearings, self-aligning bearings, thin-section bearings, YRT bearings, spherical plain bearing, etc.

Quality:
We have been certificated by ISO9001: 2008, and we are also aligned to international quality standards from application consulting and engineering to productions, examinations, documentations and dispatch.
We will prepare additional test reports if customers need.

Position advantage:
Depending on strong heavy-duty industrial base of Luoyang, this is one of the hometowns of Chinese bearing. We can also design and develop special bearings as per customers' demands, we aim at providing customers with best products and prompt & perfect services.
