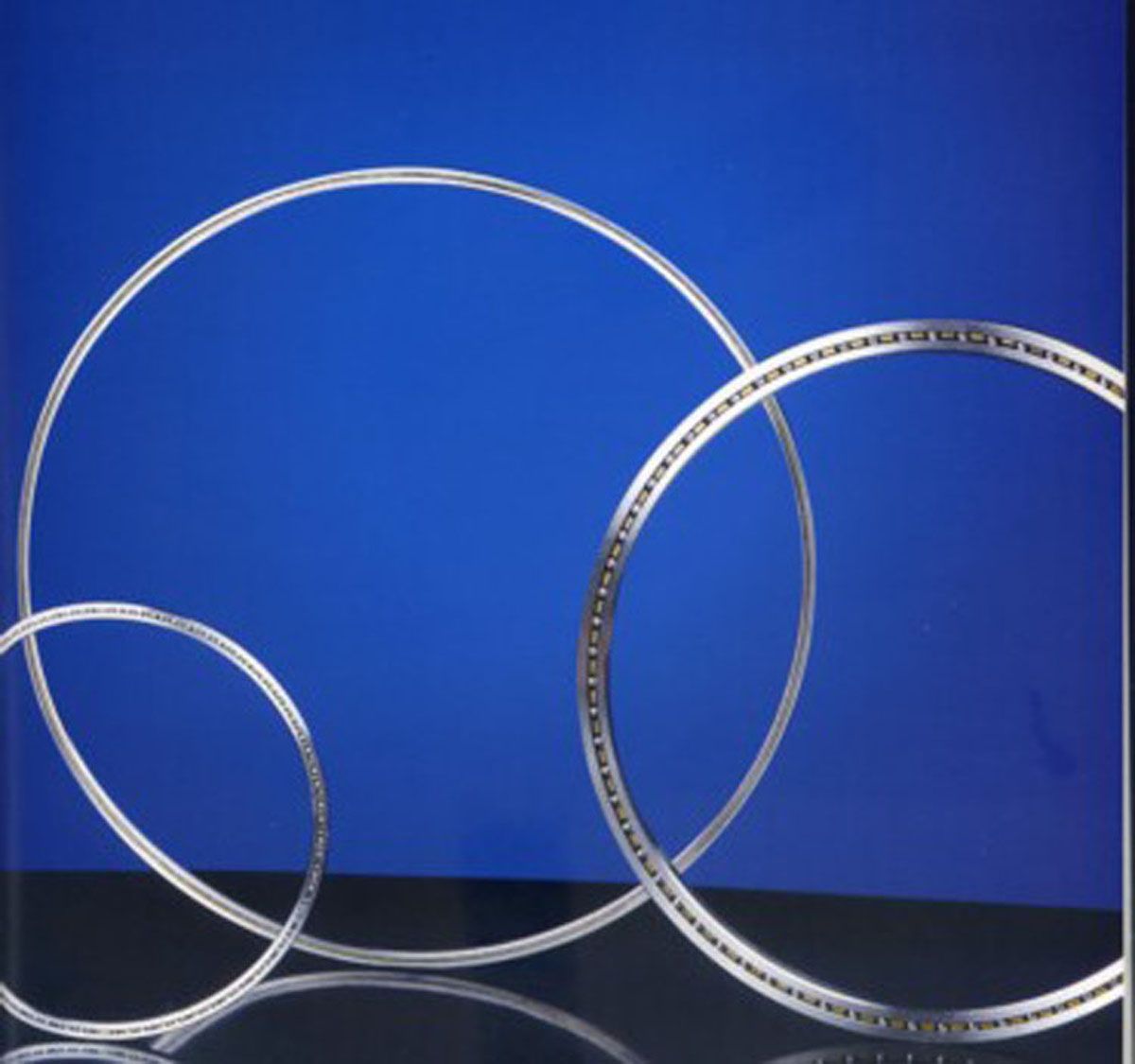

Thin Section Bearings for Glass Processing Machinery

Technical parameter for KG200XP0 thin section bearing, thin section ball bearing
1. Type: Four point contact ball thin section bearing, open type
2. Bore diameter: 20inch
3. Outside diameter: 22inch
4. Height: 1inch
5. Material: Chrome steel
6. Precision: P0. P6. P5.
7. Cage/retainer: Brass
8. Payment terms: TT, LC, DA


1. Introduction to Kaydon thin section bearings
LYHY bearings are a professional manufacturer of substitution of imported brand thin section bearings, which includes seven open series and five sealed series, inner hole diameter of these slim ball bearings range from 1 to 40 inches, cross-sectional dimension is from 0.1875X0.1875 to 1.000X1.000. These ball bearings have an extremely small, predominantly square cross-section, within each series, the cross-section remains constant even for larger shaft diameters and housing bores. Except the standard models, we can also design and manufacture as per customers' requirements. With rich experience and a large collection of products, we have confidence we are able to meet customers' requirements.
2. Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing



3. Features
Thin section bearings have high precision, and very quiet and have high load carrying capacity, features of thin section bearings can be summarized as following
Excellent running accuracy
Spaces save
Low friction
High precision
Long life
Low noise and vibration

4. Application
Thin section ball bearings were developed for applications where space limitations are of the utmost importance. These kind of bearings are widely used for aviation, astronomical instruments, glass manufacturing machinery, medical instrument, optical and scanning instrument, satellite communication devices, textile machinery, large welding equipment, robot, semiconductor manufacturing equipment etc. Print machinery

5. Packing: Wooden box


Open type four point contact ball bearings:
KA020XP0, KA025XP0, KA030XP0, KA035XP0, KA040XP0, KA042XP0, KA045XP0, KA047XP0, KA050XP0, KA055XP0, KA060XP0, KA065XP0, KA070XP0, KA075XP0, KA080XP0, KA090XP0, KA100XP0, KA110XP0, KA120XP0,

KB020XP0, KB025XP0, KB030XP0, KB035XP0, KB040XP0, KB042XP0, KB045XP0, KB047XP0, KB050XP0, KB055XP0, KB060XP0, KB065XP0, KB070XP0, KB075XP0, KB080XP0, KB090XP0, KB100XP0, KB110XP0, KB120XP0, KB140XP0, KB160XP0, KB180XP0, KB200XP0,

KC040XP0, KC042XP0, KC045XP0, KC047XP0, KC050XP0, KC055XP0, KC060XP0, KC065XP0, KC070XP0, KC075XP0, KC080XP0, KC090XP0, KC100XP0, KC110XP0, KC120XP0, KC140XP0, KC160XP0, KC180XP0, KC200XP0,

KD040XP0, KD042XP0, KD045XP0, KD047XP0, KD050XP0, KD055XP0, KD060XP0, KD065XP0, KD070XP0, KD075XP0, KD080XP0, KD090XP0, KD100XP0, KD110XP0, KD120XP0, KD140XP0, KD160XP0, KD180XP0, KD200XP0,

KF040XP0, KF042XP0, KF045XP0, KF047XP0, KF050XP0, KF055XP0, KF060XP0, KF065XP0, KF070XP0, KF075XP0, KF080XP0, KF090XP0, KF100XP0, KF110XP0, KF120XP0, KF140XP0, KF160XP0, KF180XP0, KF200XP0,

KG040XP0, KG042XP0, KG045XP0, KG047XP0, KG050XP0, KG055XP0, KG060XP0, KG065XP0, KG070XP0, KG075XP0, KG080XP0, KG090XP0, KG100XP0, KG110XP0, KG120XP0, KG140XP0, KG160XP0, KG180XP0, KG200XP0,

Model	Dimension
	d	D	Width	L1	L2
	inch
KA020XP0	2.00	2.50	0.25	2.19	2.31
KA025XP0	2.50	3.00	0.25	2.69	2.81
KA030XP0	3.00	3.50	0.25	3.19	3.31
KA035XP0	3.50	4.00	0.25	3.69	3.81
KA040XP0	4.00	4.50	0.25	4.19	4.31
KA042XP0	4.25	4.75	0.25	4.44	4.56
KA045XP0	4.50	5.00	0.25	4.69	4.81
KA047XP0	4.75	5.25	0.25	4.94	5.06
KA050XP0	5.00	5.50	0.25	5.19	5.31
KA055XP0	5.50	6.00	0.25	5.69	5.81
KA060XP0	6.00	6.5	0.25	6.19	6.31
KA065XP0	6.50	7.00	0.25	6.69	6.81
KA070XP0	7.00	7.50	0.25	7.19	7.31
KA075XP0	7.50	9.00	0.25	7.69	7.81
KA080XP0	8.00	8.50	0.25	8.19	8.31
KA090XP0	9.00	9.50	0.25	9.19	9.31
KA100XP0	10.00	10.50	0.25	10.19	10.31
KA110XP0	11.00	11.50	0.25	11.19	11.31
KA120XP0	12.00	12.50	0.25	12.19	12.31
KB020XP0	2.00	2.63	0.31	2.23	2.39
KB025XP0	2.50	3.13	0.31	2.73	2.89
KB030XP0	3.00	3.63	0.31	3.23	3.39
KB035XP0	3.50	4.13	0.31	3.73	3.89
KB040XP0	4.00	4.63	0.31	4.23	4.39
KB042XP0	4.25	4.88	0.31	4.48	4.64
KB045XP0	4.50	5.13	0.31	4.73	4.89
KB047XP0	4.75	5.38	0.31	4.98	5.14
KB050XP0	5.00	5.63	0.31	5.23	5.39
KB055XP0	5.50	6.13	0.31	5.73	5.89
KB060XP0	6.00	6.63	0.31	6.23	6.39
KB065XP0	6.50	7.13	0.31	6.73	6.89
KB070XP0	7.00	7.63	0.31	7.231	7.39
KB075XP0	7.50	8.13	0.31	7.73	7.89
KB080XP0	8.00	8.63	0.31	8.23	8.39
KB090XP0	9.00	9.63	0.31	9.23	9.39
KB100XP0	10.00	10.63	0.31	10.23	10.39
KB110XP0	11.00	11.63	0.31	11.23	11.39
KB120XP0	12.00	12.63	0.31	12.23	12.39
KB140XP0	14.00	14.63	0.31	14.23	14.39
KB160XP0	16.00	16.63	0.31	16.23	16.39
KB180XP0	18.00	18.63	0.31	18.23	18.39
KB200XP0	20.00	20.63	0.31	20.23	20.39
KC040XP0	4.00	4.75	0.38	4.28	4.47
KC042XP0	4.25	5.00	0.38	4.53	4.72
KC045XP0	4.50	5.25	0.38	4.78	4.97
KC047XP0	4.75	5.00	0.38	5.03	5.22
KC050XP0	5.00	5.75	0.38	5.28	5.47
KC055XP0	5.50	6.25	0.38	5.78	5.97
KC060XP0	6.00	6.75	0.38	6.28	6.47
KC065XP0	6.50	7.25	0.38	6.78	6.97
KC070XP0	7.00	7.75	0.38	7.28	7.47
KC075XP0	7.50	8.25	0.38	7.78	7.97
KC080XP0	8.00	8.75	0.38	8.28	8.47
KC090XP0	9.00	9.75	0.38	9.28	9.47
KC100XP0	10.00	10.75	0.38	10.28	10.47
KC110XP0	11.00	11.75	0.38	11.28	11.47
KC120XP0	12.00	12.75	0.38	12.28	12.47
KC140XP0	14.00	14.75	0.38	14.28	14.47
KC160XP0	16.00	16.75	0.38	16.28	16.47
KC180XP0	18.00	18.75	0.38	18.28	18.47
KC200XP0	20.00	20.75	0.38	20.28	20.47
KD040XP0	4.00	5.00	0.50	4.37	4.63
KD042XP0	4.25	5.25	0.50	4.62	4.88
KD045XP0	4.50	5.50	0.50	4.87	5.13
KD047XP0	4.75	5.75	0.50	5.12	5.38
KD050XP0	5.00	6.00	0.50	5.37	5.63
KD055XP0	5.50	6.50	0.50	5.87	6.13
KD060XP0	6.00	7.00	0.50	6.37	6.63
KD065XP0	6.50	7.50	0.50	6.87	7.13
KD070XP0	7.00	8.00	0.50	7.37	7.63
KD075XP0	7.50	8.50	0.50	7.87	8.13
KD080XP0	8.00	9.00	0.50	8.37	8.63
KD090XP0	9.00	10.00	0.50	9.37	9.63
KD100XP0	10.00	11.00	0.50	10.37	10.63
KD110XP0	11.00	12.00	0.50	11.37	11.63
KD120XP0	12.00	13.00	0.50	12.37	1 2.63
KD140XP0	14.00	15.00	0.50	14.37	14.63
KD160XP0	16.00	17.00	0.50	16.37	16.63
KD180XP0	18.00	19.00	0.50	18.37	18.63
KD200XP0	20.00	21.00	0.50	20.37	20.63
KF040XP0	4.00	5.50	0.75	4.56	4.95
KF042XP0	4.25	5.75	0.75	4.81	5.20
KF045XP0	4.50	6.00	0.75	5.06	5.45
KF047XP0	4.75	6.25	0.75	5.31	5.70
KF050XP0	5.00	6.50	0.75	5.56	5.95
KF055XP0	5.50	7.00	0.75	6.06	6.45
KF060XP0	6.00	7.50	0.75	6.56	6.95
KF065XP0	6.50	8.00	0.75	7.06	7.45
KF070XP0	7.00	8.50	0.75	7.56	7.95
KF075XP0	7.50	9.00	0.75	8.06	8.45
KF080XP0	8.00	9.50	0.75	8.56	8.95
KF090XP0	9.00	10.50	0.75	9.56	9.95
KF100XP0	10.00	11.50	0.75	10.56	10.95
KF110XP0	11.00	12.50	0.75	11.56	11.95
KF120XP0	12.00	13.50	0.75	12.56	12.95
KF140XP0	14.00	15.50	0.75	14.56	14.95
KF160XP0	16.00	17.50	0.75	16.555	16.95
KF180XP0	18.00	19.50	0.75	18.56	18.95
KF200XP0	20.00	21.50	0.75	20.56	20.95
KG040XP0	4.00	6.00	1.00	4.74	5.26
KG042XP0	4.25	6.25	1.00	4.99	5.51
KG045XP0	4.50	6.50	1.00	5.24	5.76
KG047XP0	4.75	6.75	1.00	5.49	6.01
KG050XP0	5.00	7.00	1.00	5.74	6.26
KG055XP0	5.50	7.50	1.00	6.24	6.76
KG060XP0	6.00	8.00	1.00	6.74	7.26
KG065XP0	6.50	8.50	1.00	7.24	7.76
KG070XP0	7.00	9.00	1.00	7.74	8.26
KG075XP0	7.50	9.50	1.00	8.24	8.76
KG080XP0	8.00	10.00	1.00	8.74	9.26
KG090XP0	9.00	11.00	1.00	9.74	10.26
KG100XP0	10.00	12.00	1.00	10.74	11.26
KG110XP0	11.00	13.00	1.00	11.74	12.26
KG120XP0	12.00	14.00	1.00	12.74	13.26
KG140XP0	14.00	16.00	1.00	14.74	15.26
KG160XP0	16.00	18.00	1.00	16.74	17.26
KG180XP0	18.00	20.00	1.00	18.74	19.26
KG200XP0	20.00	22.00	1.00	20.74	21.26
