| Price: | US $ 1000-2000/Piece |
|---|---|
| Min Order: | 4/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

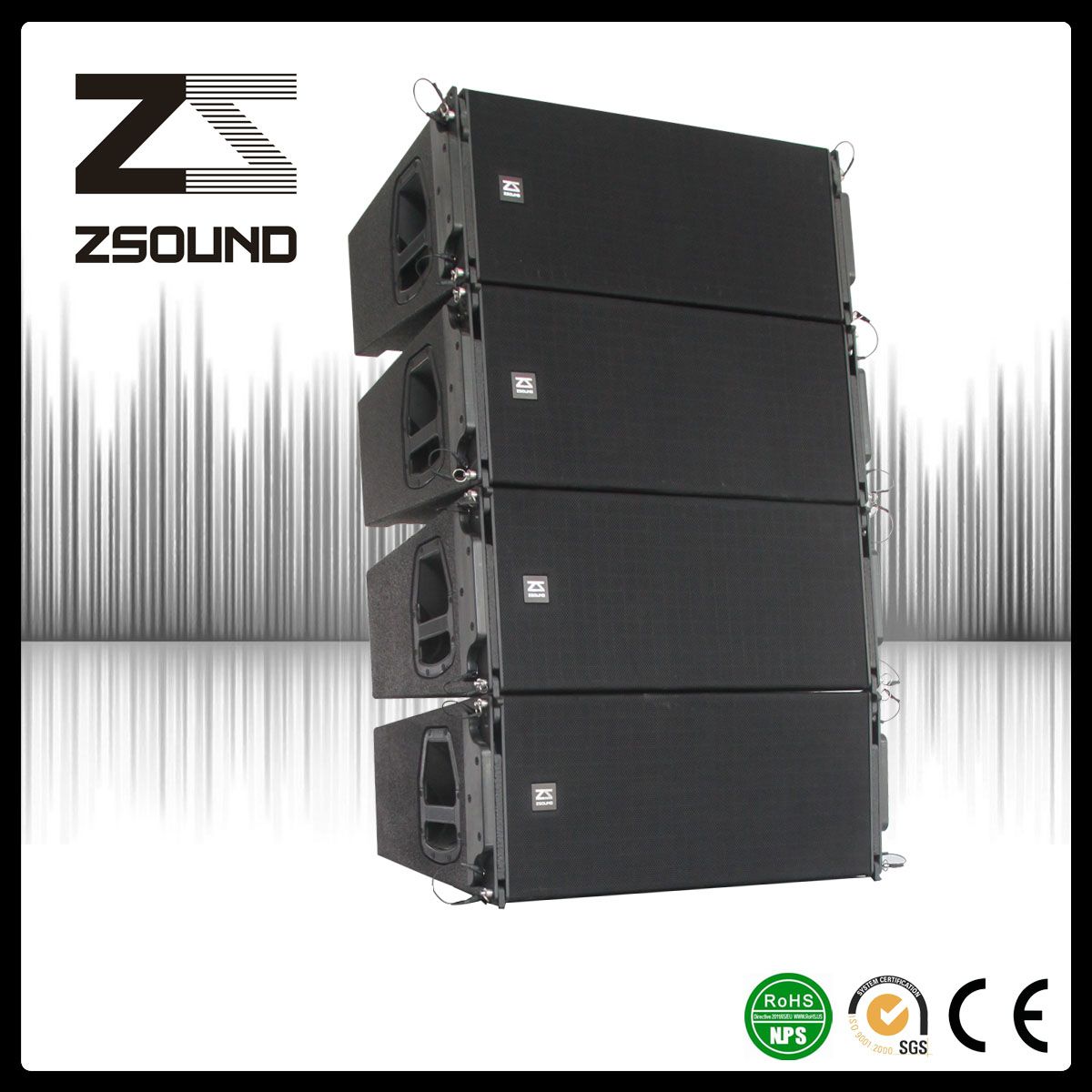

VCM system advantage:
1) Shock resistance and abrasion resistance than other line array speaker, becase finish polyurea coatings paint
2) The waveguide and horm of VCM integrated design, Better for the high & mid curve consistency
3) Neodymium high-sensitivity driver tested by 200 degree high temperature treatment.
4) 3 way system, 16ohm nominal impedance, save amplifier and budget.
5) Plywood was import from Russia, Just go ahead use outdoor
6) hander cup is the same as LA, D&B. All of our spare parts are used penn elco
7) Three points design for hanging, Save manpower and time and presettable angles with hoist
8) Test by SMAART7, 3D directionality test, and CLIO electroacoustic measuring system, audio precision ,And all the data is open.

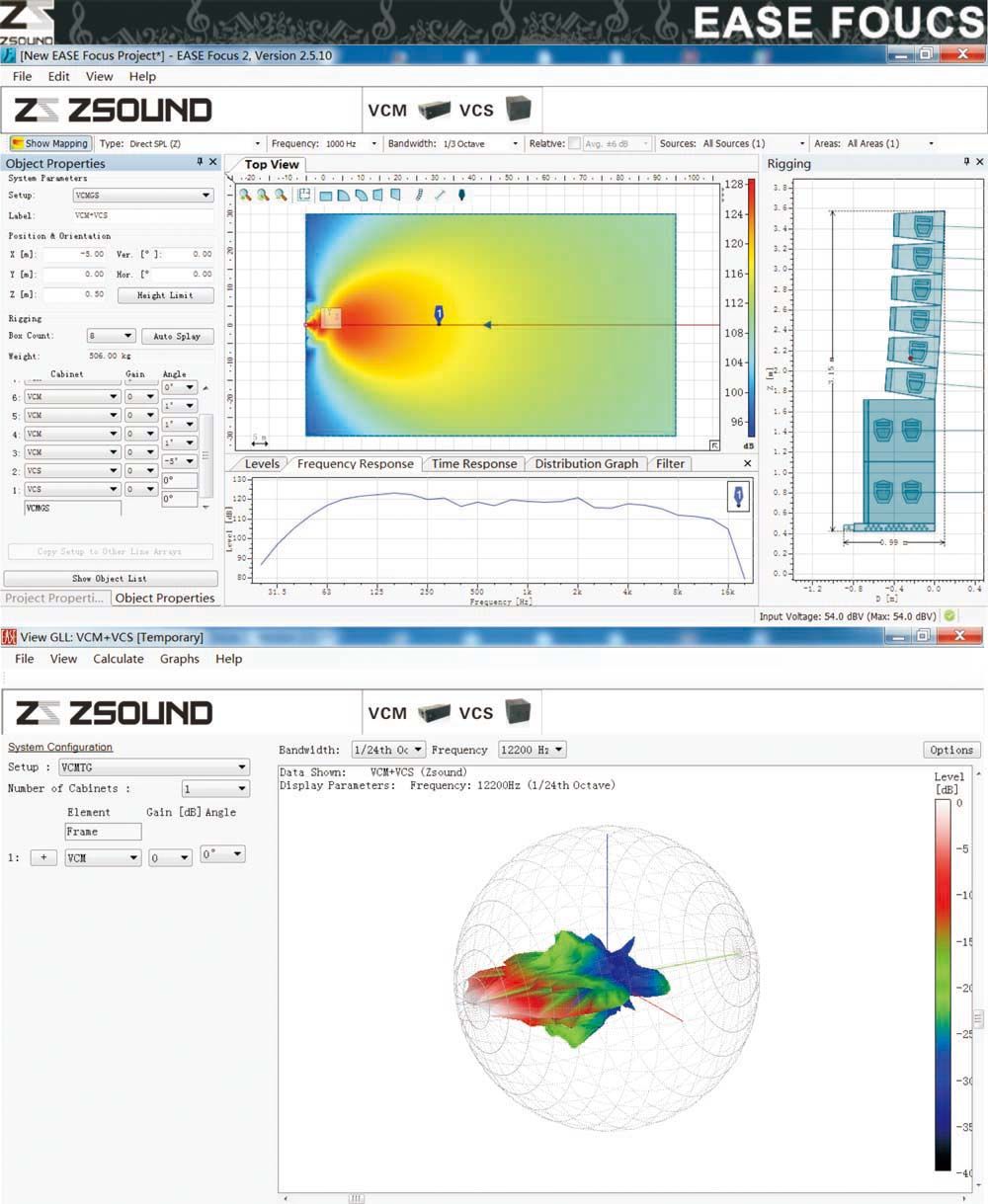

9)We also have our own EASEFOCUS data and GLL picture for our VCM system
Feature:
MF and HF coaxial structure
HIFI class, low frequency elasticty, soft and slim high frequency
Presettable angles
Applications:

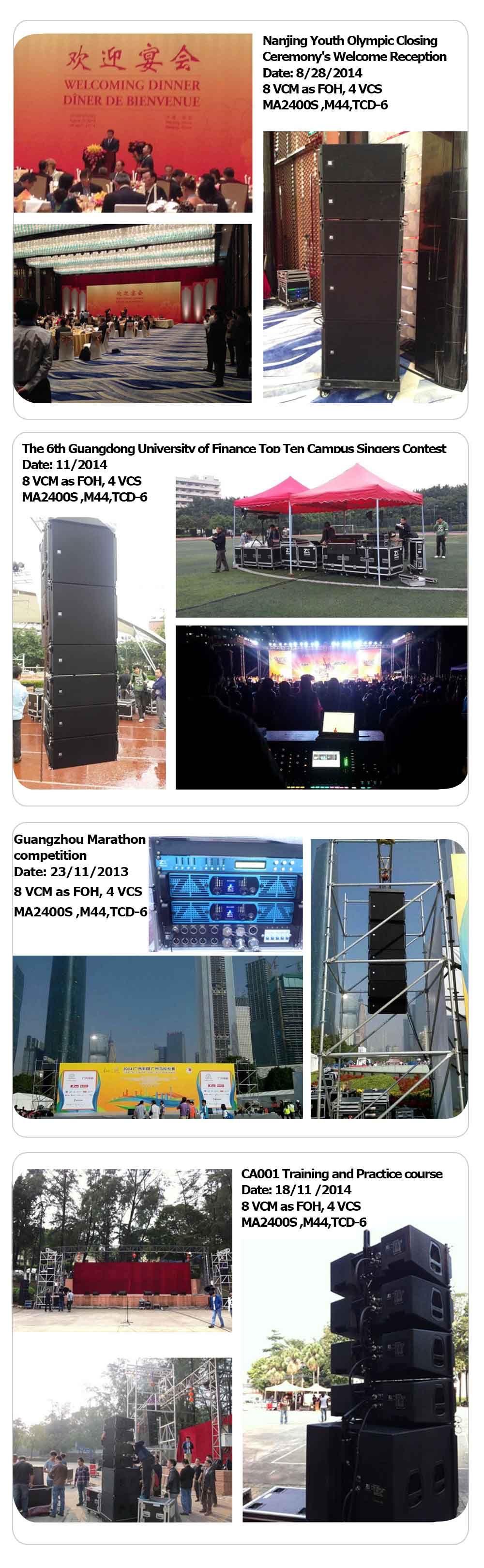

Middle and large touring performance
Stadium
| TECHNICAL SPECIFICATION | |
| Frequency Response: | 50Hz-16KHz(±3dB) 40Hz-18KHz(-10dB) |
| Nominal Coverage: | 90°(H) 10°(V) |
| Sensitivity (@1w/1m): | HF:112dB; MF:106dB; LF:103dB |
| Power Rating (AES): | HF/MF/LF:120W/130W/350W |
| Nominal Impedance: | HF/MF/LF:16/16/16Ohm |
| Maximum SPL: | HF:132/138dB;MF:127/133dB; LF:125/131dB |
| Drivers: | LF 2*10" neodymium woofer (75mm voice coil) |
| PHYSICAL DATA | |
| Dimension (H*W*D): | 300*700*465mm |
| Weights: | 39kg |
| Connectors: | 2*NL8 or WP7 connectors |
| Speaker Cables: | 1-2+LF,3-4+MF; 5-6+...HF |
| Materials: | 15mm 18mm birch multi-plywood |
| Finish: | Black water paint |
| Grille: | Black epoxy mesh grille with acoustically reticulated cloth |
| Rigging: | 0,1 ,2,3,4,5,7.5 ,10degree adjustable |
| Prod Model: | VCM |
|---|---|
| Frequency Response: | 50Hz-16kHz(±3dB) 40Hz-18kHz(-10dB) |
| Nominal Cverage: | 90°(H) 10°(V) Adjustable |
| Sensitivity: | Hf: 112dB Spl Mf: 106dB Spl Lf: 96dB Spl |
| Power Rating: | Hf/Mf/Lf: 120W/130W/800W |
| Nominal Impedance: | Hf/Mf/Lf: 16/16/16 Ohm |
| Maximum Spl: | Hf: 132/138dB Mf: 127/133dB Lf: 125/131dB |
| Lf: | 2X10" Woofer (75mm Voice Coil) |
| Mf: | 1X8" MID Bass (38mm Voice Coil) |
| Hf: | 2X1.75" Neodymium Driver (44mm Voice Coil) |
| Finish: | Black Polyurea Coating |
| Noise: | <95dB |
| Hi-Fi: | Hi-Fi |
| Operation Mode: | Wire / Remote Control |
| Speaker System: | Optional Combination |
| Speaker Material: | Wood |
| Application: | Commercial |
| Certification: | SGS |
| THD: | <0.03% |
| Monitor: | N/a |
