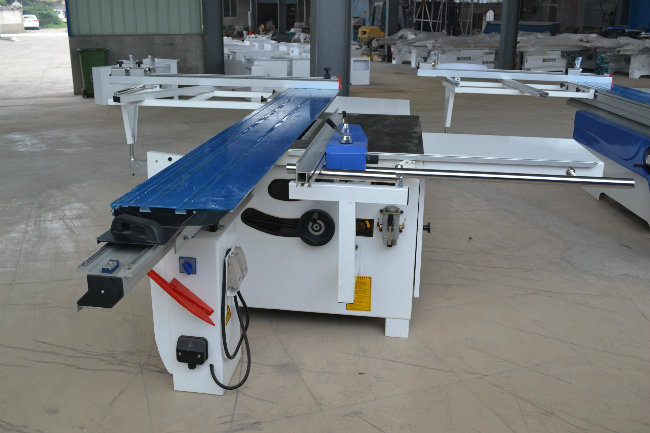

Woodworking Sliding Table Panel Saw
This sliding table saw is a high quality machine produced according to international advanced technique.High quality parts guarantee the machine's precision and long life .

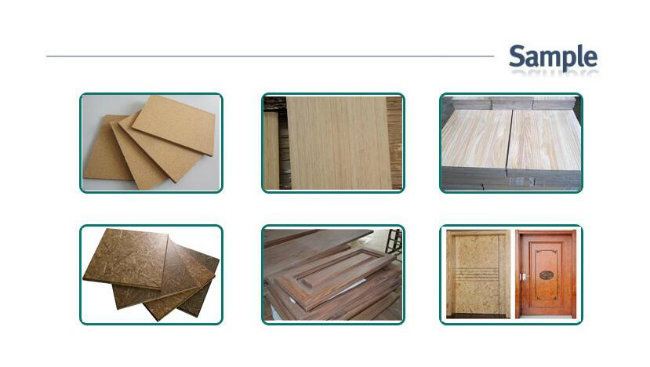

1) Apply to processing all kinds of density boards,shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
2) Movable table guide track is plating chromium steel bars structure, exact and durable.
3) Made of high-strength extruded aluminum alloy, movable table is high in strength and won not bent.
4) With oxidation treatment movable table surface is beautiful and hardwearing.
5) Main and scoring saw blades, moving is electrical control system and digital indicator.
Parameters| Model | MJ-45YA |
| Dimension sliding table | 3200*375mm |
| Cutting thickness | 75mm |
| Max. ripping width | 1250mm |
| Saw blade diameter | 300mm |
| Height of cut with saw blade at 45o | 51.5mm |
| Speed of main saw spindle | 5000rpm |
| Main spindle diameter | 30mm |
| Tilting saw blade | 0-45o |
| Main motor | 5.5kw |
| Scoring saw blade diameter | 120mm |
| Speed of scoring saw blade | 8500rpm |
| Scoring spindle diameter | 20mm |
| Scoring motor | 0.75kw |
| Net weight | 780kg |
| Packing dimension | 3350*3500*870mm |
Details

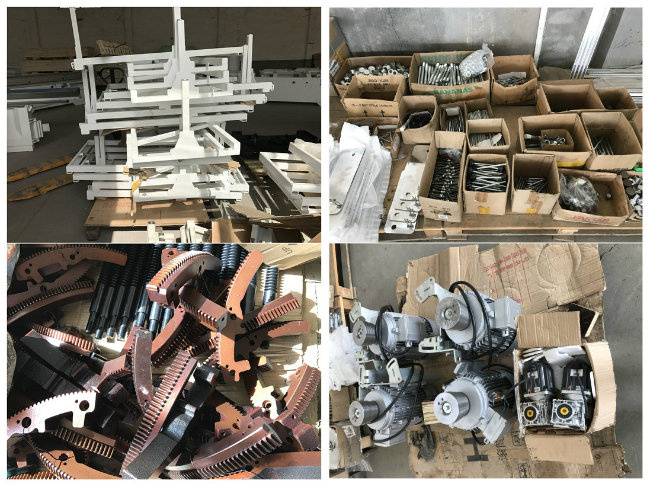

Parts

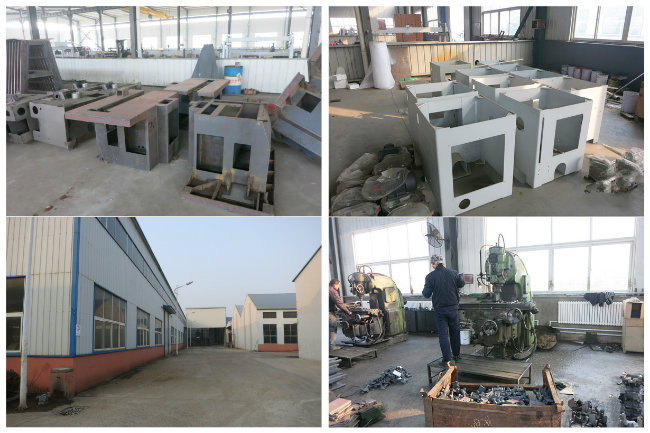

Glance of our workshop

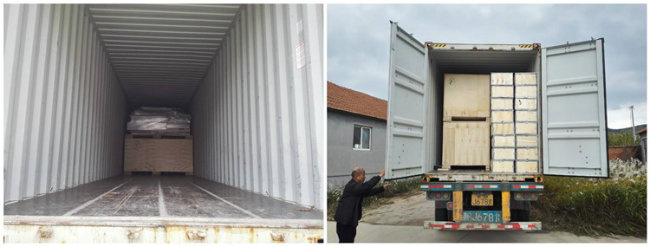

Packaging and shipping:We choose the professional wooden packing company do the packing and do fastening,all machine packed with water-proof plastic as outer-protective.Ensure the machine well during the long transportation.
Packaging:sliding table saw coverd with plywood case.
Shipping:30 days after receiving the deposit.
Why choose us:Qingdao High-Class Service Import & Export Co., Ltd. is located in the beautiful coastal Qingdao city, which is also famous for woodworking machinery. We are professional in providing Chinese leading woodworking machinery products, whole-factory solutions and excellent services.
Now, we are engaged in offering woodworking machinery, metalworking machinery, packing machinery,WPC machinery and corresponding spares parts and raw materials. Our company has own professional technical team to make sure the perfect import and export service system run well.
With years of experience, we have established long and strong business relationships with more than
10 professional distributors all over the world. We are the sole buying agent of customers from Russia, the Middle East, South Africa and Brazil. We always welcome partners to join us and develop the business together.
Under the guideline of "High Class Service", we would like to continue providing the best service for
customers who need machinery. In accordance with the principle of mutual benefit, we are going to have a pleasant corporation.
FAQList some questions below we think you may want to know, if you have more doubts, we are right here to help you.1, What size of sliding table panel saw is right for me?
---Standard length of the saw is 3200mm, 3000mm, 2800mm.
---Standard width of the saw is 405mm, 395mm, 360mm.
Considering your own usage, you can know which size saw you need. Or we will recommend to you.
2, After knowing the size, then which model is right for me?
---There are two main matters you need to consider, then we can know which model for you.
---If tilting, you prefer electric tilting or manual tilting?
You prefer electric adjustment or manual electric?
---Do you need CE Certification?
3, After knowing the right model saw, then what's your price?
---Price depends on the components is imported or Made-In-China, usually we recommend imported world famous components, because once they are broken, you can buy in your side easily.
4, What's your warranty?
---In 12 months.
5, What's youe lead time?
---In 30 working days.
6, What's your delivery term?
---FOB Qingdao China usually, also can be CIF/DDU/DDP to your side if you need.
7, What's your payment term?
---30% T/T deposit, balance T/T payable before delivery after inspection.
8, What's the HS code of sliding table panel saw?
---In China it is 8465910000.
2. Tracing the working condition by email per month.
3. 24 hours technical support by email, call, video.
4. English CD and manual for machine using and maintainance.
5. Whole machine one year warranty.
6. Whole life warranty.
7. Engineers available to serve and train overseas, but your side should pay all the expense.
Qingdao High-Class Service Import & Export Co., Ltd was founded in March 2011, At present we already have three factories and our self-contained products have three models, including edge banding machine, panel saw, sanding machine, membrane machine. Our products are stable and have a price advantage, It can bring you the highest efficiency in the shortest possible time. Besides, Our current annual production capacity is also large, annual production of 500 edge machine, cutting board saw 1000, 200 membrane machine, sanding machine 500.
Due to our high quality products and professional services, we have accumulated seven international agency services. And take into account the particleboard production line, plywood production lines and packaging production lines, etc.
We have our own trade services company, currently has online service department, network development department and purchasing department.
We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers. We hope to be the top supplier and provide the best machines and service to customers who are in the woodworking industry. Sincerely hope to cooperate with you and creat a better future!
