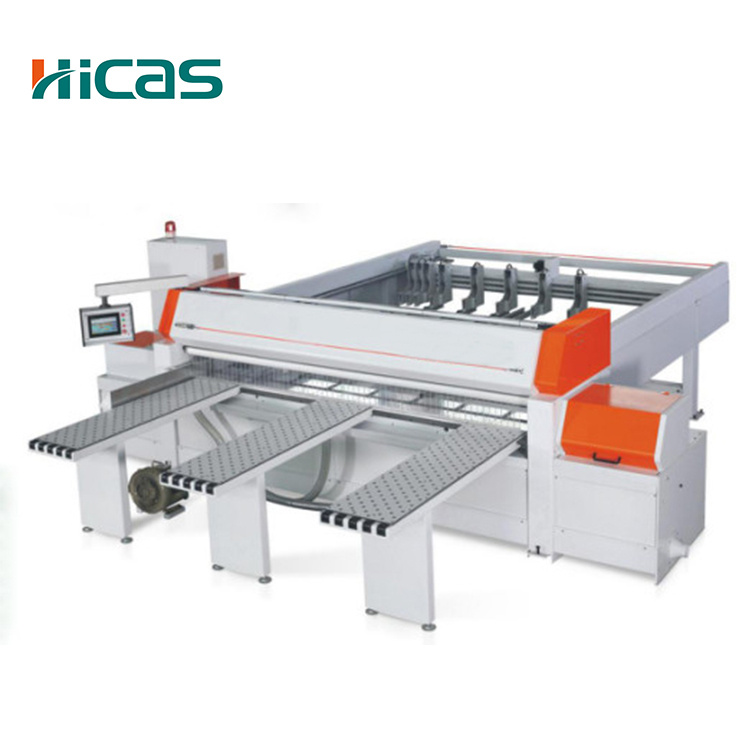

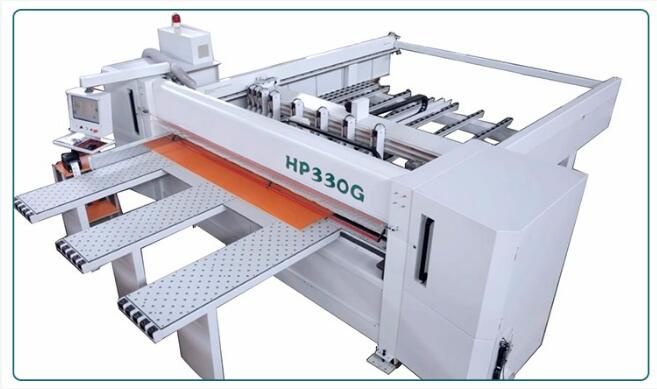

Precision Woodworking Machine Wood Cutting Beam Panel Saw

Precision Woodworking Machine Wood Cutting Beam Panel Saw
Price: US $ 30000-33000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T

Precision Woodworking Machine Wood Cutting Beam Panel Saw

PRODUCT DISCRIPTION

Max. Cutting length3280mm
Mechanical arm's running distance3280mm
Max. Height of blade130mm (intelligent control)
Diameter of main saw400*4.4*60mm
Diameter of scoring saw160*4.4-5.4*45mm
Saw socket forward speed5-80m/min
Saw socket backward speed100m/min
Mechanical arm's speed0-120m/min
Motor power of main saw shaft18KW
Motor power of scoring saw shaft2.2KW
Side pressing systemDouble side pressing wheels
No. Of mechanical arm8 pcs

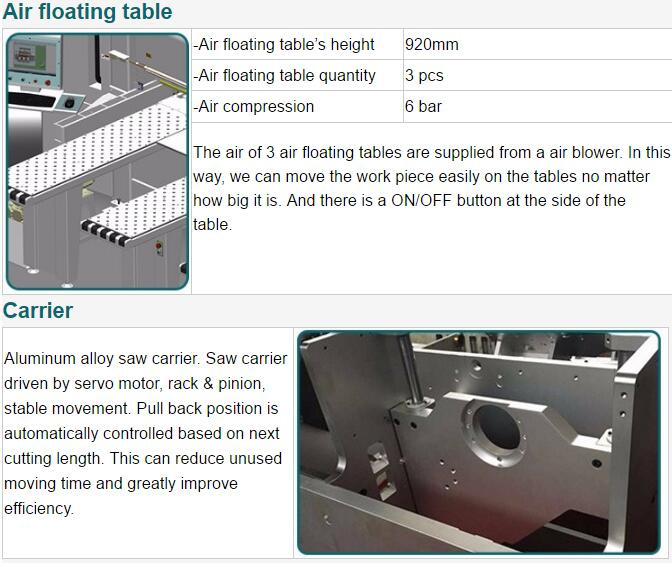

Air bearing table3 pcs
Air compression6 bar
Air capacity150L/min
Min. Speed of dust collection26m/sec
Negative pressure (at least)1200 Pa
Input air capacity for dust collection4400 m3/h
Diameter of dust collecting holes (2 sets)

200mm*1
150mm*1
PRODUCT SHOW

DETAIL IMAGED




--------------      Video of  beam panel saw        --------------http://cloud.video.taobao.com/play/u/1819403902/p/1/e/1/t/1/53304525.swf

WHY CHOOSE US

1.Company proflie
Qingdao High-Class Service Import & Export Co., Ltd. is located in the beautiful coastal Qingdao city, which is also famous for woodworking machinery. We are professional in providing Chinese leading woodworking machinery products, whole-factory solutions and excellent services. Now, we are engaged in offering woodworking machinery,
metal working machinery, packing machinery,
WPC machinery and corresponding spares parts and raw materials. Our company has own professional technical team to make sure the perfect import and export service system run well. With years of
experience, we have established long and strong business relationships with more than10 professional distributors all over the world. We are the sole buying agent of customers from Russia, the Middle East, South Africa and Brazil. We always welcome partners to join us and develop the business together. Under the guideline of "High Class Service", we would like to continue providing the best service for customers who need machinery. In accordance with the principle of mutual benefit, we are going to have a pleasant corporation.

2.Our after-sale service

1. We respect your feed back after receiving the goods.
2. Tracing the working condition by email per month.
3. 24 hours technical support by email, call, video.
4. English CD and manual for machine using and maintainance.
5. Whole machine one year warranty.
6. Whole life warranty.
7. Engineers available to serve and train overseas, but your side should pay all the expense.
3.FAQ

List some questions below we think you may want to know, if you have more doubts, we are right here to help you.

1,Why does sanding machine application?

----Sanding machina application:solid wood panels,wood floor,wood board,plywood,chipboard,laminat,the surface of groove,joinery board,multilayer board,integrated timber,wooden doors,wooden windows,arts and crafts,and glass steel.

2,What size of sanding machine is right for me?

---Max working width of sanding machine:400mm,630mm, 1000mm, 1300mm,1600mm.

---Min working length of sanding machine: 500mm.

---Thickness:3 to 110mm

Considering your own usage, you can know which size sanding machine you need. Or pls kindly let me know your workpiece size,we will recommend to you.

3,After knowing the size, then which model is right for me?

---You could choose right model sanding machine in our alibaba store,or pls kindly let me know your workpiece's size, then we could recommend you right model with best price.

4, After knowing the right model, then what's price?

---Different model with different price.You could reference price top,finally price depends on our discuss result.

5, What's your warranty?

---In 12 months.

6, What's youe lead time?

---In 15 to 30 working days.

7, What's your delivery term?

---FOB Qingdao China usually, also can be CIF/DDU/DDP to your side if you need.

8, What's your payment term?

---30% T/T deposit, balance T/T payable before delivery after inspection.

9, What's the HS code of sanding machine?

---In China it is 8467291000

Prod Model: HC330
Product Name: Beam Panel Saw
Keyword: Panel Saw
Max. Cutting Length: 3280mm
Max. Height Of Blade: 130mm (Intelligent Control)
Diameter Of Main Saw: 400*4.4*60mm
Diameter Of Scoring Saw: 160*4.4-5.4*45mm
Saw Socket Forward Speed: 5-80m/Min
Saw Socket Backward Speed: 100m/Min
Air Capacity: 150L/Min
Air Compression: 6 Bar
Type: Table Panel Saw
Layout: Horizontal

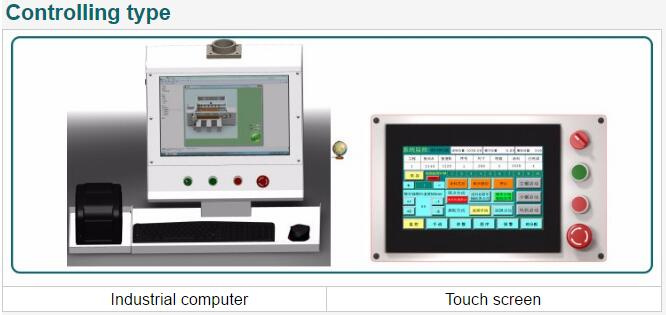

Controlling Mode: CNC
Automatic Grade: Automatic
Precision: Precision
Certification: ISO
Qingdao High-Class Service Import & Export Co., Ltd was founded in March 2011, At present we already have three factories and our self-contained products have three models, including edge banding machine, panel saw, sanding machine, membrane machine. Our products are stable and have a price advantage, It can bring you the highest efficiency in the shortest possible time. Besides, Our current annual production capacity is also large, annual production of 500 edge machine, cutting board saw 1000, 200 membrane machine, sanding machine 500.

Due to our high quality products and professional services, we have accumulated seven international agency services. And take into account the particleboard production line, plywood production lines and packaging production lines, etc.

We have our own trade services company, currently has online service department, network development department and purchasing department.

We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers. We hope to be the top supplier and provide the best machines and service to customers who are in the woodworking industry. Sincerely hope to cooperate with you and creat a better future!
