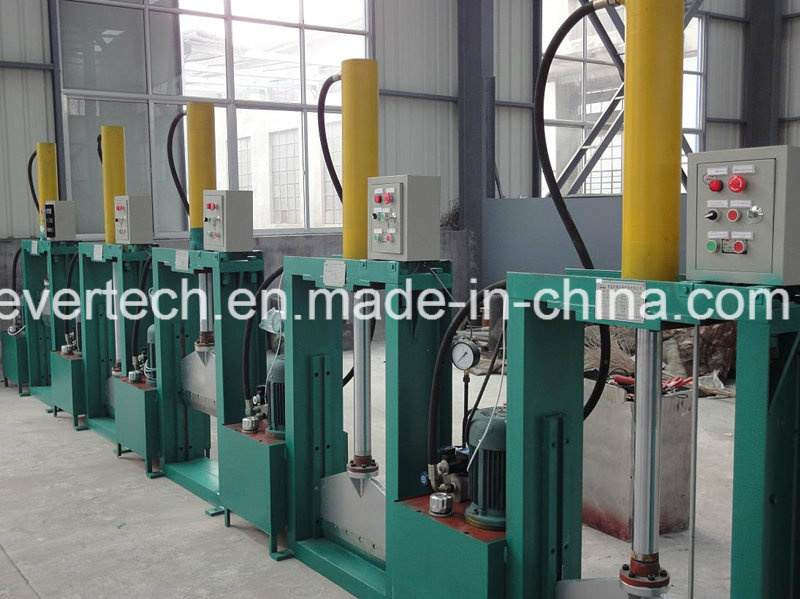

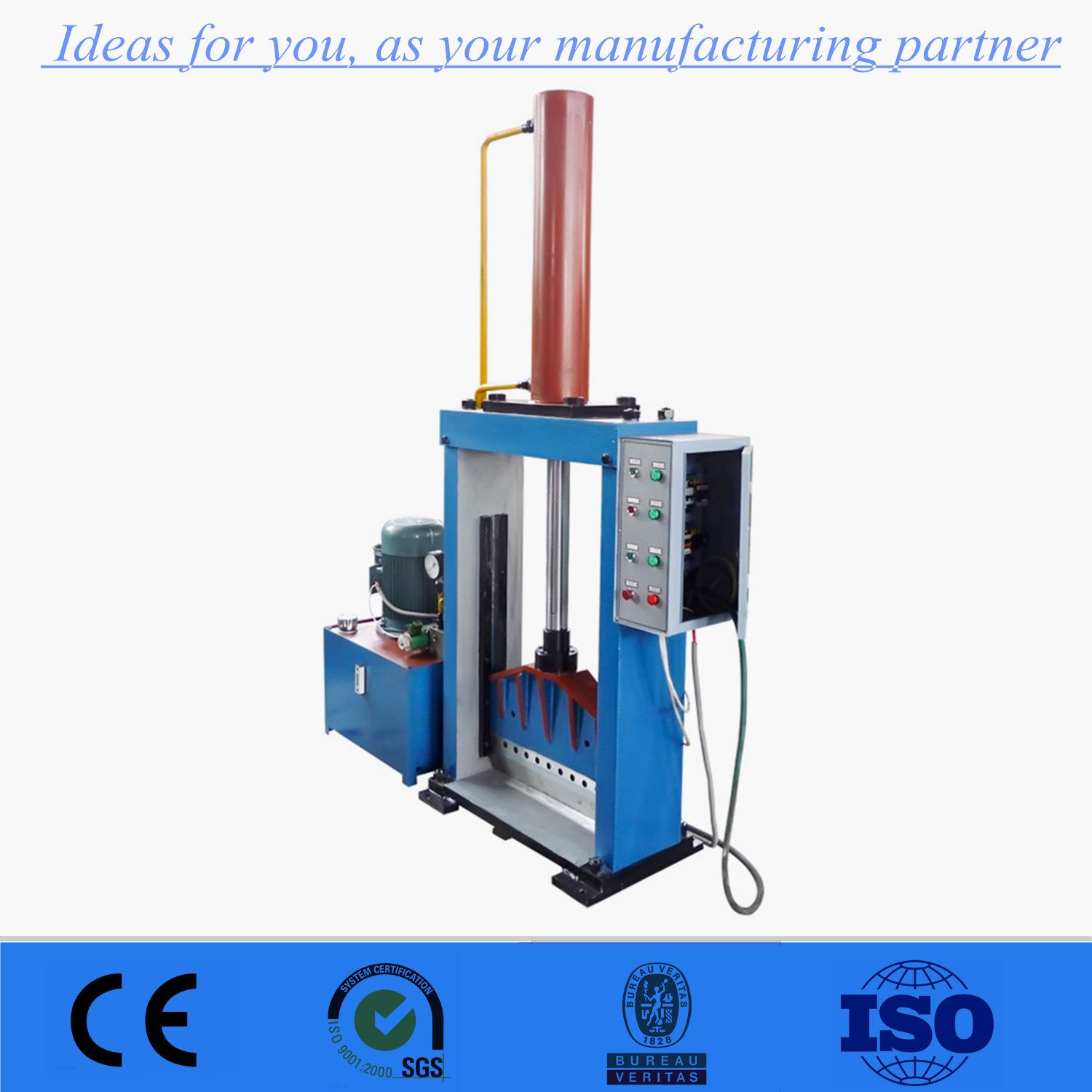

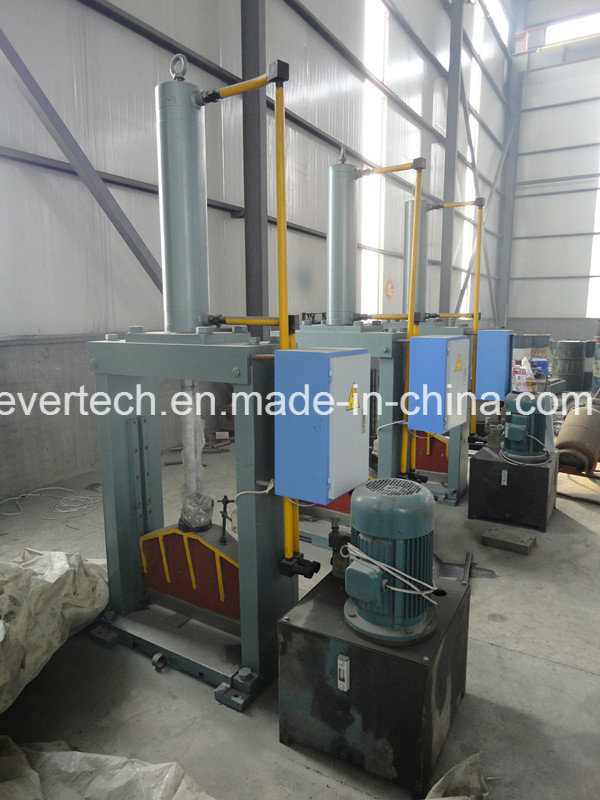

Rubber Cutting Machine/Single Blade Hydraulic Rubber Bale Cutter
Usage:
This rubber bale cutter is mainly used to cut the natural rubber,synthetic rubber and other plastic materials,especially it is suitable to be installed near the rubber mixer to cut small pieces of rubber.
Features of rubber bale cutter:
1.This rubber bale cutter mainly consists of cutting knife,frame,cylinder,base,auxiliary table,sydraulic system and electric system.
2.The nylon plate is installed on the base under the cutting knife for protecting the edge of the cutting knife.
3.When cutting the raw rubber,put the raw rubber under the cutting knife,the press the start button,the knife can cut the rubber.
5.Two limited switches are installed on the frame to control the reversal valve to change the movement direction of the knife,at the same time,it protects the cover of the cylinder.
Technical Information:
| Type | XQL-8 | XQL-16 |
| Width (mm) | 660 | 1000 |
| Stroke (mm) | 680 | 680 |
| Diameter of the piston (mm) | 150 | 150 |
| Time Taken by the Stroke (second) | 16~25 | 10~16 |
| Power (KW) | 5.5 | 5.5 |
| Overall Dimension (LxWxH) | 1900×720×2580 | 2240×720×2580 |
| Weight (kg) | 1500 | 2000 |
Our Service
♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
♦ In the process of production, we will take photos and send to customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your workers to operate the machine.
| Prod Model: | XQL-8 |
|---|---|
| Simple Structure: | Easy Operation |
| Voltage: | 220V,240V,380V,400V,415V,440V |
| Certification: | Ce/SGS/ISO |
| Color: | Customized |
| Delivery Time: | Shipped in 20days After Payment |
| Width (mm): | 660 |
| Stroke (mm): | 680 |
| Power (Kw): | 5.5 |
| Time Taken By The Stroke (Second): | 16~25 |
| Diameter Of The Piston (mm): | 150 |
