| Price: | US $ 1000-1500/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

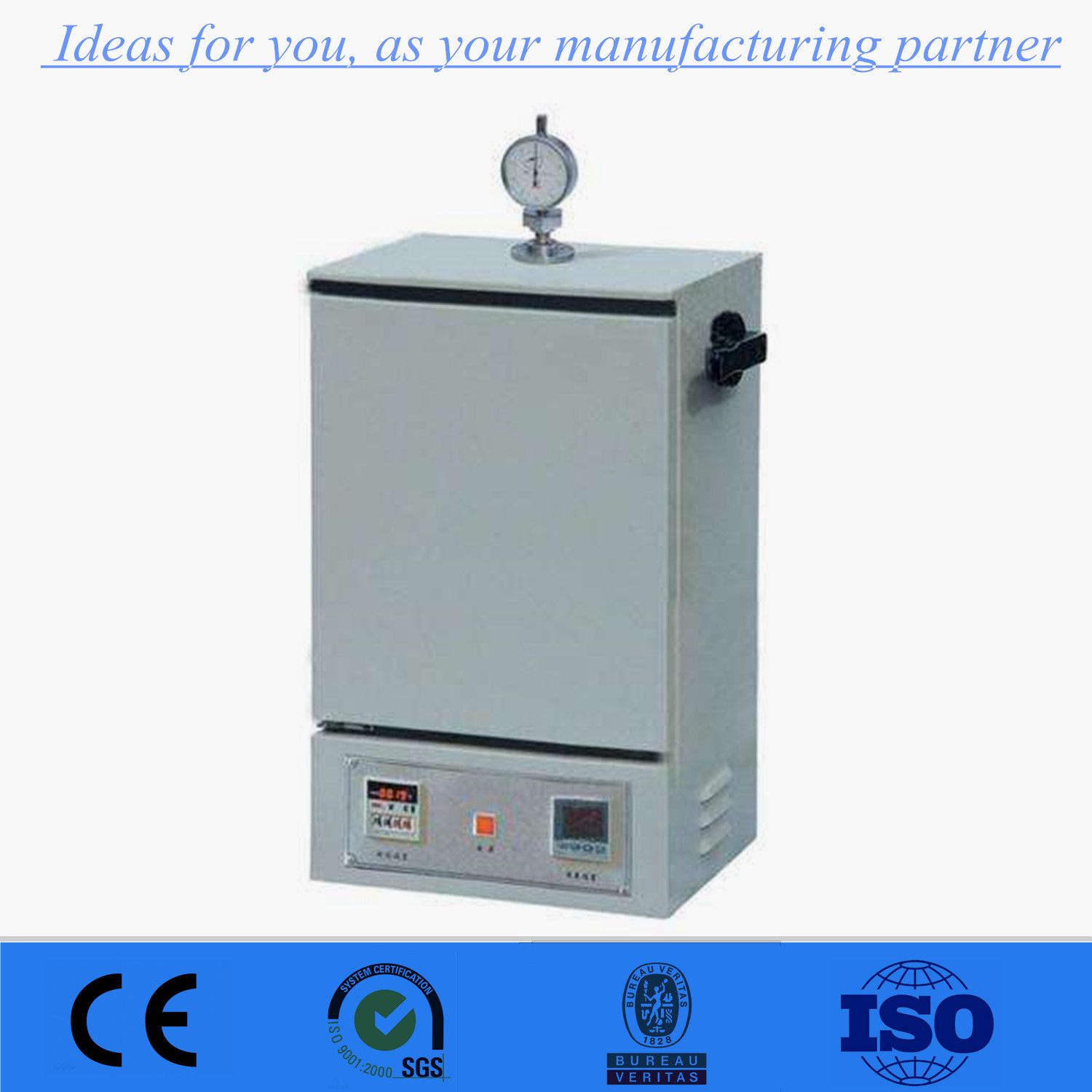

Rubber and Plastic Plasticity Tester, Williams Plastometer
1. Equipment summary:
Rubber and plastic plasticity tester is produced according to standards for testing of plastic values
for raw rubber, plastic rubber mixing, rubber compound and rubber. preheating and a certain size of sample
placed between two parallel plates under specified temperature and constant load compression, and then
measure high of samples under applied load
2. Main functions:
Parallel Plate Plastometer for the determination of raw rubber, rubber mixing and blending
elements of William's plastic glue. The machine with the general plasticity of the main structural difference
between machine reference ANSI / ASTM standards and foreign advanced prototype, temperature digital
display; can be arbitrarily set in the 0-100 ºC, machine installation of three-minute alarm can greatly improve
the timing accuracy.
3. Main features:
3.1 Pressure parts and re-work platform mounted on the thermostat box Pressurized heavy hammer lifting
mechanism control, pressing the wrench, you can manipulate the cam, so that pressurized heavy hammer up
and down slide in the axial direction. Dial indicator fixed on the top bracket on the tank to measure the
specimen deformation due to pressure heavy hammer displacement values.
3.2 temperature controller
Thermostat from the electric heater, platinum thermal resistance, l / temperature switches, digital temperature
display regulator component.
3.3 timing alarm
Import time using integrated circuits, and thus has a compact structure, high reliability, low power
consumption and so on. Taking into account the provisions of full testing time 3 minutes later, automatically
stop the clock, brought heavy hammer, the timer automatically re-zero, may at any time a re-operation.
4. Corresponding standard :
According with GB / T 12828
values> and other standards.
5. Applicable industry:
Weiss Rubber Plasticity Testing Machine apply to rubber, tires, reclaimed rubber factory
6. Technical parameters:
Model | Rubber and Plastic Plasticity Tester, Williams Plastometer |
Temperature | RT 50 Centigrade ~ 300 Centigrade |
Measuring range | 0.01~25 mm |
Accuracy | ±0.01 mm |
load | 49 N ± 0.05 N |
Temperature accuracy | ±1 Centigrade |
Counter | LCD display 0~9,999 |
Volume | (inside W*D*H):35cm *35cm *35 cm |
Weight | 53 kg |
Power | 220V, 5A |

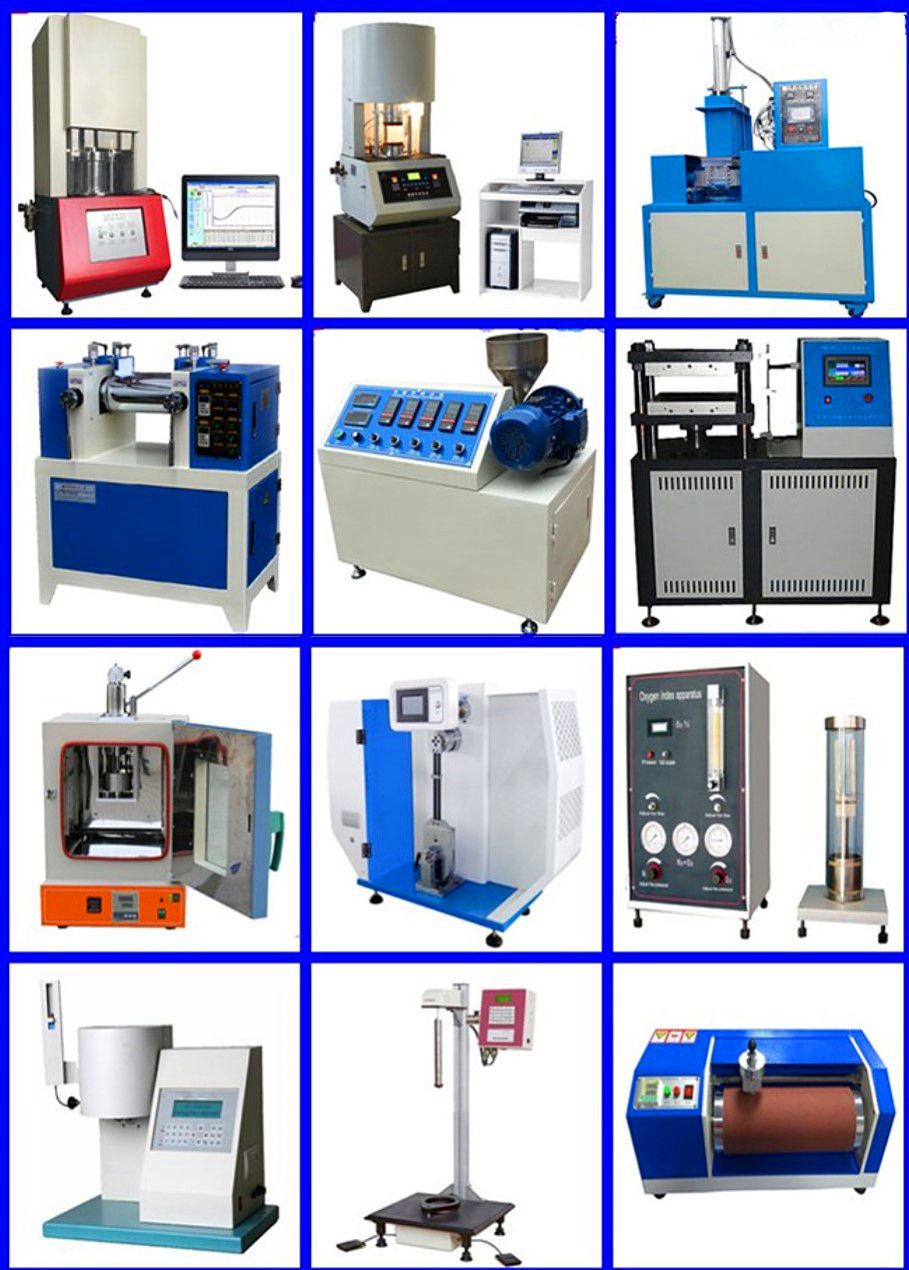

We can produce all rubber test machines:
Packaging & Shipping
Company Information
1. How to choose the most suitable fitness equipment steel tensile testing machine?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do
and the required specification.
2. What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working
days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your
request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange
hotel and pick up you from airport.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK, Italy,
Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam, Iran, Brazil...and so
on.
6. How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts
change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing
machines abroad by sea or by air without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging
- balance payment - packing - delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
| Prod Model: | ZL-3005 |
|---|---|
| Certificate: | Ce |
| Standard: | ISO 7273 |
| Temperature Rage: | Room Temperature to 100c |
| Export Country: | Russia, Turkey, Malaysia, ROM |
| Pressure: | 49n±0.05n |
| Temperature Accuracy: | ±1c |
| Warranty: | 24 Months |
| Type: | Material Testing Machine |
| Weight: | 0-100Kg |
| Power Source: | AC220V |
