| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Description: | |||||||

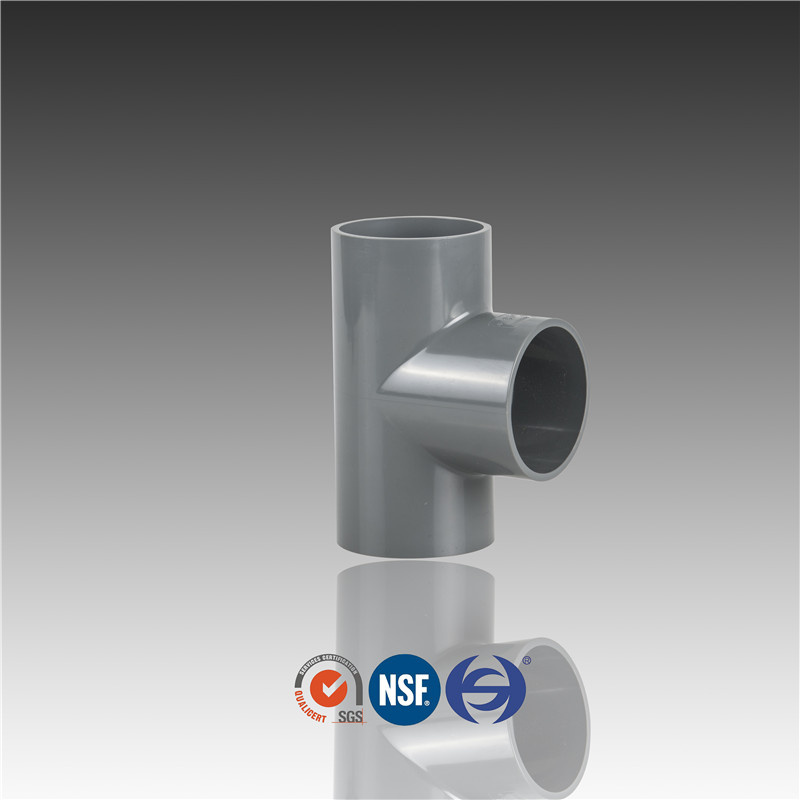

| Items Name | PVC Reducing Tee PN10 | ||||||
| Material | Polyvinyl chloride | ||||||
| Size | 20~400 mm | ||||||
| Color | Grey Colour Or as you request | ||||||
| connection | Socket | ||||||
| Pressure | ( Dn <160 ) ≥PN12,5 ( under 1000 hours )
| ||||||
| ( Dn ≥160 ) ≥PN10 ( under 1000 hours ) | |||||||
| Standard | DIN8063 | ||||||
| Certification | CE,ISO14001,SGS,ISO9001 | ||||||
Advantages
1).Light weight
2).Resistant to chemical fertilizers and herbicides
3).Non toxic and odorless
4).Simple and reliable installation
5).Easier construction,lower cost(33% less).
6).Up to 50 years' durabillity
7).Smooth interior structure,low friction losses
8).Easy maintenance.

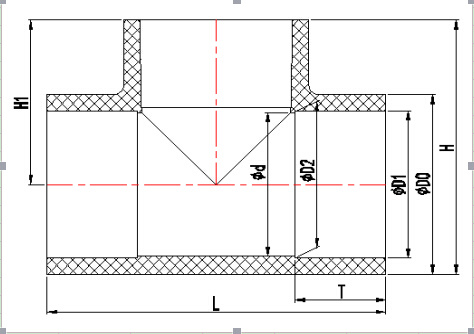

| PVC Tee PN10,DIN8063 | ||||||||
| Size(De) | Dimension(mm) | |||||||
| D0 | D1 | D2 | d | T | H1 | H | L | |
| 20 | 24.80 | 20.24 | 19.96 | 19.00 | 17.00 | 28.50 | 40.90 | 57.00 |
| 25 | 30.10 | 25.24 | 24.95 | 24.00 | 19.50 | 33.50 | 48.55 | 67.00 |
| 32 | 37.50 | 32.25 | 31.95 | 31.00 | 23.00 | 40.50 | 59.25 | 81.00 |
| 40 | 46.48 | 40.28 | 39.95 | 39.00 | 27.00 | 48.50 | 71.74 | 95.60 |
| 50 | 57.30 | 50.33 | 49.94 | 49.00 | 32.00 | 58.50 | 87.15 | 117.50 |
| 63 | 70.50 | 63.34 | 62.93 | 62.00 | 38.50 | 71.50 | 106.75 | 142.70 |
| 75 | 84.00 | 75.35 | 74.93 | 73.50 | 44.50 | 83.25 | 125.25 | 166.50 |
| 90 | 100.60 | 90.38 | 89.93 | 88.50 | 52.00 | 98.25 | 148.55 | 203.00 |
| 110 | 120.80 | 110.42 | 109.92 | 108.00 | 62.00 | 118.00 | 178.40 | 237.00 |
| 125 | 136.80 | 125.52 | 124.93 | 123.00 | 69.50 | 118.50 | 186.90 | 267.00 |
| 140 | 153.50 | 140.58 | 139.88 | 138.00 | 77.00 | 149.00 | 225.75 | 298.00 |
| 160 | 175.00 | 160.62 | 159.87 | 158.00 | 87.00 | 169.00 | 256.50 | 338.50 |
| 180 | 202.60 | 180.81 | 179.91 | 178.50 | 97.00 | 190.00 | 291.30 | 379.00 |
| 200 | 219.00 | 200.90 | 199.85 | 197.00 | 107.00 | 211.00 | 320.50 | 420.00 |
| 225 | 246.00 | 226.02 | 224.83 | 221.00 | 119.50 | 235.50 | 358.50 | 474.00 |
| 250 | 272.00 | 251.15 | 249.41 | 247.00 | 132.00 | 261.00 | 397.00 | 522.00 |
| 280 | 314.80 | 281.46 | 280.16 | 278.00 | 147.00 | 276.00 | 433.40 | 552.00 |
| 315 | 344.50 | 316.55 | 315.05 | 312.00 | 165.00 | 326.50 | 498.75 | 653.00 |
| 355 | 385.80 | 356.63 | 355.03 | 326.00 | 183.50 | 368.25 | 561.15 | 736.50 |
| 400 | 433.70 | 401.60 | 400.00 | 398.50 | 208.00 | 413.00 | 629.85 | 826.00 |
| Packing List | ||||||||
| Description | Size | Pcs/ctn | Weight (g/pcs) | Length (cm) | Width (cm) | Height (cm) | ||
| Tee | De20 | 480 | 17.60 | 43.5 | 31 | 30 | ||
| De25 | 300 | 30.80 | 43.5 | 31 | 30 | |||
| De32 | 150 | 48.40 | 43.5 | 31 | 30 | |||
| De40 | 180 | 83.60 | 53 | 38 | 35.5 | |||
| De50 | 108 | 140.80 | 53 | 38 | 38 | |||
| De63 | 50 | 242.00 | 53 | 38 | 31.5 | |||
| De75 | 32 | 382.80 | 53 | 38 | 35.5 | |||
| De90 | 28 | 699.60 | 57 | 40 | 43 | |||
| De110 | 18 | 968.00 | 57 | 40 | 49.5 | |||
| De125 | 16 | 1399.20 | 59 | 42 | 55 | |||
| De140 | 10 | 1848.00 | 49 | 39.5 | 61 | |||
| De160 | 4 | 2794.00 | 53 | 38 | 35.5 | |||
| De180 | 4 | 4752.00 | 57 | 42 | 43 | |||
| De200 | 4 | 5786.00 | 66 | 45.5 | 43.5 | |||
| De225 | 2 | 7062.00 | 57 | 40 | 49.5 | |||
| De250 | 2 | 9603.00 | 59 | 42 | 55 | |||
| De280 | 1 | 16742.00 | 47.5 | 33 | 61 | |||
| De315 | 1 | 18249.00 | 51 | 36 | 67 | |||
| De355 | 1 | 23727.00 | 58 | 41 | 76 | |||
| De400 | 1 | 31174.00 | 64 | 45.5 | 84.5 | |||
| Prod Model: | 8000420100 |
|---|---|
| Colour: | Grey |
| Type: | Equal |
| Connection: | Welding |
| Material: | PVC |
| Shape: | Equal Tee |
| Lateral: | 90??Tee |
| Head Code: | Round |
| Standard: | GB |
| Certification: | BV |
| Wall Thickness: | ISO |
| Finish: | Smooth |
| Technics: | Injection Moulding |
| Pressure Rating: | Pn10 |
