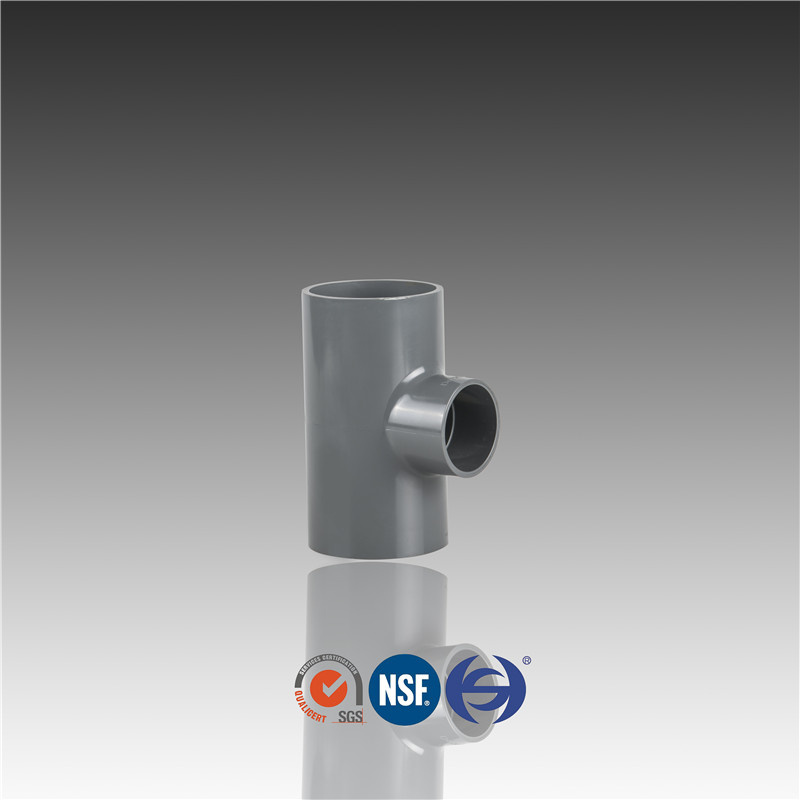

DIN Standard PVC Fittings Connector Reducer Tee

Name: DIN Standard PVC Fittings Connector Reducer Tee
Brand: tool-buy.com
SKU: 796353775
Availability: InStock
Rating: 4.9 (26 reviews)

Price:	US $ 1-1000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

HUASHENG PIPELINE TECHNOLOGY CO., LTD.

Showroom Product Company Profile

Company Profile
Jiangsu Huasheng Plastic Co., Ltd is one of the biggest PVC manufactuer in water supply area which has powerful abilities both in opening model and R&D.

Description:
Items Name	PVC Reducing Tee PN10
Material	Polyvinyl chloride
Size	20~400 mm
Color	Grey Colour Or as you request
connection	Socket
Pressure	( Dn <160 ) ≥PN12,5 ( under 1000 hours )
	( Dn ≥160 ) ≥PN10 ( under 1000 hours )
Standard	DIN8063
Certification	CE,ISO14001,SGS,ISO9001

Advantages

1).Light weight

2).Resistant to chemical fertilizers and herbicides

3).Non toxic and odorless

4).Simple and reliable installation

5).Easier construction,lower cost(33% less).

6).Up to 50 years' durabillity

7).Smooth interior structure,low friction losses

8).Easy maintenance.

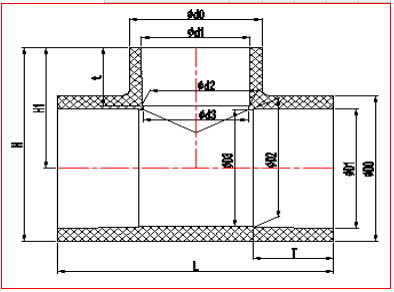

Reducing Tee PN10
Size(De)	Dimension(mm)
Size(De)	D0	D1	D2	D3	d0	d1	d2	`d3	t	T	H1	H	L
25*20	30.02	25.24	24.95	24.00	24.18	20.24	19.96	19.00	17.00	19.50	31.00	46.01	62.10
32*20	37.44	32.25	31.95	31.00	24.74	20.24	19.96	19.00	17.00	23.00	34.50	53.22	69.20
32*25	37.44	32.25	31.95	31.00	30.10	25.24	24.95	24.00	19.50	23.00	37.00	55.72	73.80
40*20	46.30	40.28	39.95	39.00	25.40	20.24	19.96	19.00	17.00	27.00	38.50	61.65	77.30
40*25	46.30	40.28	39.95	39.00	30.05	25.24	24.95	24.00	19.50	27.00	41.00	64.15	80.40
40*32	46.30	40.28	39.95	39.00	37.44	32.25	31.95	29.00	23.00	27.00	44.50	67.65	89.00
50*20	57.20	50.33	49.94	49.00	25.00	20.24	19.96	19.00	17.00	32.00	43.50	72.10	86.00
50*25	57.72	50.33	49.94	49.00	30.05	25.24	24.95	24.00	19.50	32.00	46.00	74.86	92.00
50*32	57.80	50.33	49.94	49.00	37.50	32.25	31.95	31.00	23.00	32.00	49.50	78.40	98.70
50*40	57.10	50.33	49.94	49.00	47.02	40.28	39.95	39.00	27.00	32.00	53.50	82.05	108.40
63*20	70.00	63.34	62.93	62.00	24.90	20.24	19.96	19.00	17.00	38.50	50.00	85.00	100.00
63*25	70.10	63.34	62.93	62.00	30.20	25.24	24.95	24.00	19.50	38.50	52.50	87.55	105.00
63*32	70.80	63.34	62.93	62.00	37.50	32.25	31.95	31.00	23.00	38.50	56.00	91.40	112.00
63*40	70.30	63.34	62.93	62.00	45.80	40.28	39.95	39.00	27.00	38.50	60.00	95.15	119.85
63*50	70.80	63.34	62.93	62.00	56.50	50.33	49.94	49.00	32.00	38.50	65.00	100.40	130.60
75*32	84.30	75.35	74.93	73.50	38.20	32.25	31.95	31.00	23.00	44.50	61.75	103.90	125.75
75*40	84.10	75.35	74.93	73.50	46.60	40.28	39.95	39.00	27.00	44.50	65.75	107.80	135.70
75*50	84.00	75.35	74.93	73.50	57.00	50.33	49.94	49.00	32.00	44.50	70.75	112.75	153.50
75*63	83.80	75.35	74.93	73.50	70.70	63.34	62.93	62.00	38.50	44.50	77.25	119.15	156.60
90*50	100.70	90.38	89.93	88.50	56.70	50.33	49.94	49.00	32.00	52.00	78.25	128.60	158.00
90*63	100.70	90.38	89.93	88.50	69.70	63.34	62.93	62.00	38.50	52.00	84.75	135.10	170.30
90*75	100.70	90.38	89.93	88.50	84.10	75.35	74.93	73.50	44.50	52.00	90.75	141.10	183.00
110*50	123.00	110.42	109.92	108.00	56.30	50.33	49.94	49.00	32.00	62.00	88.00	149.50	177.00
110*63	122.70	110.42	109.92	108.00	74.00	63.34	62.93	62.00	38.50	62.00	94.50	155.85	190.10
110*75	121.32	110.42	109.92	108.00	84.30	75.35	74.95	73.50	44.50	62.00	101.50	162.16	201.50
110*90	121.50	110.42	109.92	108.00	100.60	90.38	89.93	88.50	52.00	62.00	109.00	169.75	220.40
125*75	136.50	125.52	124.93	123.00	84.30	75.35	74.95	73.50	44.50	69.50	109.00	177.25	219.50
125*90	137.80	125.52	124.93	123.00	99.20	90.38	89.93	88.50	52.00	69.50	116.50	185.40	232.30
125*110	136.00	125.52	124.93	123.00	120.60	110.42	109.92	108.00	62.00	69.50	125.75	193.75	250.70
140*110	151.50	140.58	139.88	138.00	108.70	110.42	109.92	108.00	62.00	77.00	134.00	209.75	268.00
160*90	175.30	160.62	159.87	158.00	101.60	90.38	89.93	88.50	52.00	87.00	134.00	221.65	268.00
160*110	175.40	160.62	159.87	158.00	122.30	110.42	109.92	108.00	62.00	87.00	144.00	231.70	288.00
160*125	175.30	160.62	159.87	158.00	137.00	125.30	124.93	123.00	69.50	87.00	151.50	239.15	300.00
160*140	175.10	160.62	159.87	158.00	153.00	140.30	139.88	138.00	77.00	87.00	159.00	246.55	318.50
180*160	202.60	180.81	179.91	178.50	180.00	160.35	159.87	158.00	87.00	97.00	180.00	281.30	379.00
200*75	220.90	180.81	199.85	197.00	82.75	75.35	74.93	73.50	44.50	107.00	148.50	258.95	291.50
200*90	220.90	200.90	199.85	197.00	99.20	90.38	89.93	88.50	52.00	107.00	156.00	266.45	307.00
200*110	219.20	200.90	199.85	197.00	122.80	110.42	109.92	108.00	62.00	107.00	166.00	275.60	328.00
200*160	219.80	200.90	199.85	197.00	175.40	160.62	159.87	158.00	87.00	107.00	191.00	300.90	377.00
225*160	246.00	226.02	224.83	221.00	175.00	160.62	159.87	158.00	87.00	119.50	203.00	326.00	407.00
250*110	272.00	251.15	249.41	247.00	120.50	110.42	109.92	108.00	62.00	132.00	191.00	327.00	377.00
250*160	270.00	251.15	249.41	247.00	173.00	160.62	159.87	158.00	87.00	132.00	216.00	351.00	427.00
250*200	274.10	251.15	249.41	247.00	220.00	200.90	199.85	197.00	107.00	132.00	236.00	373.05	474.00
280*250	314.80	281.46	280.16	278.00	280.00	251.15	199.85	247.00	132.00	147.00	276.00	433.40	580.00
315*110	344.50	316.55	315.05	312.00	125.75	110.42	109.92	108.00	62.00	165.00	223.50	395.75	448.00
315*160	344.50	316.55	315.05	312.00	178.60	160.62	159.87	158.00	87.00	165.00	248.50	420.75	498.00
315*200	344.50	316.55	315.05	312.00	220.90	200.90	199.85	197.00	107.00	165.00	268.50	440.75	538.00
315*250	344.50	316.55	315.05	312.00	273.40	251.15	225.83	247.00	132.00	165.00	293.50	465.75	588.00
355*200	386.50	356.63	355.03	326.00	219.90	200.90	199.85	197.00	107.00	183.50	285.50	478.75	590.50
355*225	386.50	356.80	355.00	326.00	259.40	226.20	224.90	216.90	184.00	118.70	298.50	491.60	615.00
355*250	386.50	356.63	355.03	326.00	273.40	251.15	249.41	247.00	132.00	183.50	311.50	504.75	638.50
355*315	386.50	356.63	355.03	326.00	344.50	316.55	315.05	312.00	165.00	183.50	350.60	543.85	694.50
400*200	432.70	401.60	400.00	398.50	220.90	200.90	199.85	197.00	107.00	208.00	318.60	534.95	623.00
400*250	432.40	401.60	400.00	398.50	273.50	251.15	249.41	247.00	132.00	208.00	342.80	559.00	672.00
400*315	432.70	401.60	400.00	398.50	344.50	316.55	315.05	312.00	165.00	208.00	370.00	586.35	752.00

Packing List
Description	Size	Pcs/ctn	Weight (g/pcs)	Length (cm)	Width (cm)	Height (cm)
Reducing tee	De25*20	360	26.40	43.5	31	30
	De32*20	210	39.60	43.5	31	30
	De32*25	180	44.00	43.5	31	30
	De40*20	300	57.20	53	38	38
	De40*25	290	61.60	53	38	38
	De40*32	240	74.80	53	38	38
	De50*20	190	88.00	53	38	38
	De50*25	170	101.20	53	38	38
	De50*32	150	110.00	53	38	38
	De50*40	120	132.00	53	38	38
	De63*20	105	127.60	53	38	38
	De63*25	105	145.20	53	38	38
	De63*32	90	162.80	53	38	38
	De63*40	90	167.20	53	38	38
	De63*50	102	206.80	57	42	43
	De75*32	60	250.80	53	38	35.5
	De75*40	75	286.00	47	47	43.5
	De75*50	42	321.20	53	38	31.5
	De75*63	36	352.00	53	38	35.5
	De90*50	30	457.60	53	38	35.5
	De90*63	28	514.80	53	38	38
	De90*75	28	554.40	53	38	38
	De110*50	22	699.60	53	38	38
	De110*63	18	731.50	57	32	41
	De110*75	24	781.00	57	42	43
	De110*90	18	880.00	57	40	46
	De125*75	18	896.50	57	40	46
	De125*90	16	1127.50	57	40	49.5
Reducing tee	De125*110	18	1127.50	59	42	55
	De140*110	12	1303.50	48.5	44.6	54
	De160*90	12	1771.00	59	42	55
	De160*110	4	1969.00	48.5	36	32
	De160*125	4	2075.33	48.5	36	32
	De160*140	4	2170.67	53	38	35.5
	De180*160	4	4466.00	57	40	43
	De200*75	4	2541.00	55	45	32
	De200*90	4	2662.00	55	45	32
	De200*110	4	3344.00	56	45	35
	De200*160	4	4092.00	61.5	45	39.5
	De225*160	2	5280.00	49	35	43
	De250*110	2	5302.00	56	34	40
	De250*160	2	5852.00	57	40	43
	De250*200	2	7722.00	57	40	49.5
	De280*250	1	17776.00	57	40	46
	De315*110	1	10257.50	41	36	46.5
	De315*160	1	11852.50	43.5	36	51.5
	De315*200	1	13090.00	57	40	46
	De315*250	1	14756.50	48	36	60.5
	De355*200	1	16324.00	49	41	62
	De355*250	1	18419.50	51.5	41	66
	De355*315	1	21857.00	55	41	72.5
	De400*200	1	20432.50	55	46	65
	De400*250	1	22275.00	56	45	70
	De400*315	1	26713.50	60	45	77

Prod Model:	8000380100
Type:	Reducing
Connection:	Welding
Material:	PVC
Shape:	Reducing Tee
Lateral:	90??Tee
Head Code:	Round
Standard:	GB
Certification:	BV
Wall Thickness:	GB/T10002
Finish:	Smooth
Technics:	Moulding
Pressure Rating:	Pn10

Jiangsu Huasheng Plastic Co., Ltd was founded in 1988, which specialized in moulding, Precision Injection, UPVC, CPVC pipe, fittings and Valves in DIN, ISO, ASTM standard on water supply and industry with NSF, CE, ISO, SGS etc certificates

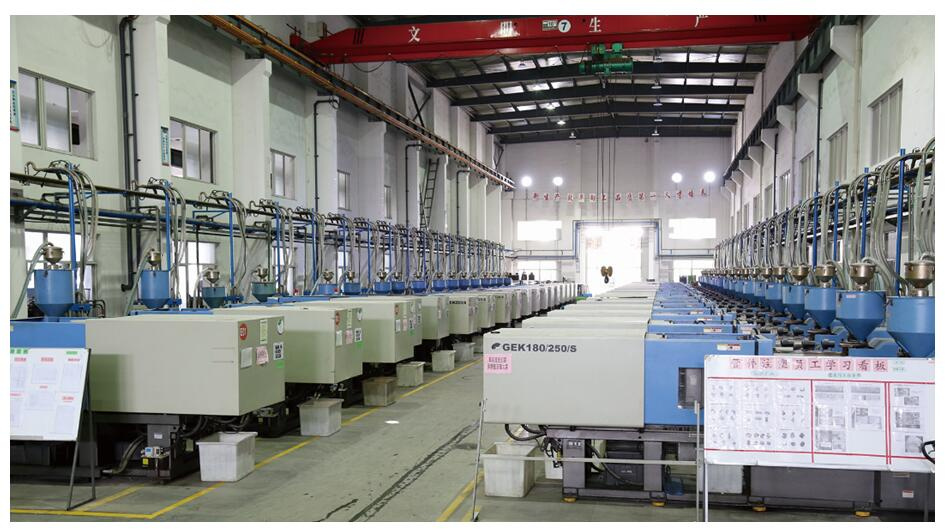

Currently, the annual production has reached a sales turnover of USD 30, 000, 000, covering 250, 000 square meters of two factories, over 170 injection machines, 20 pipe extruding lines, 80 mechanical processing equipments and more than 500 laborers.

The annual production capacity has exceeded over 60, 000 tons and storage has been over 10, 000, 000 USD. Huasheng has already exported products to U. S. A, Japan, Korea, Dubai, Pakistan, India, Philippines, Turkey, Southeast Asia area, etc.

Jiangsu Huasheng Plastic Co., Ltd has been the expert in plastic industry for over 28 years, Huasheng is one of the biggest PVC manufacturers in water supply field who has powerful abilities both in opening model and R&D.

Now Huasheng is engaging in opening global markets. The team is powerful, possitive and professional.

We firmly believe one day, we will make our dream come ture.
