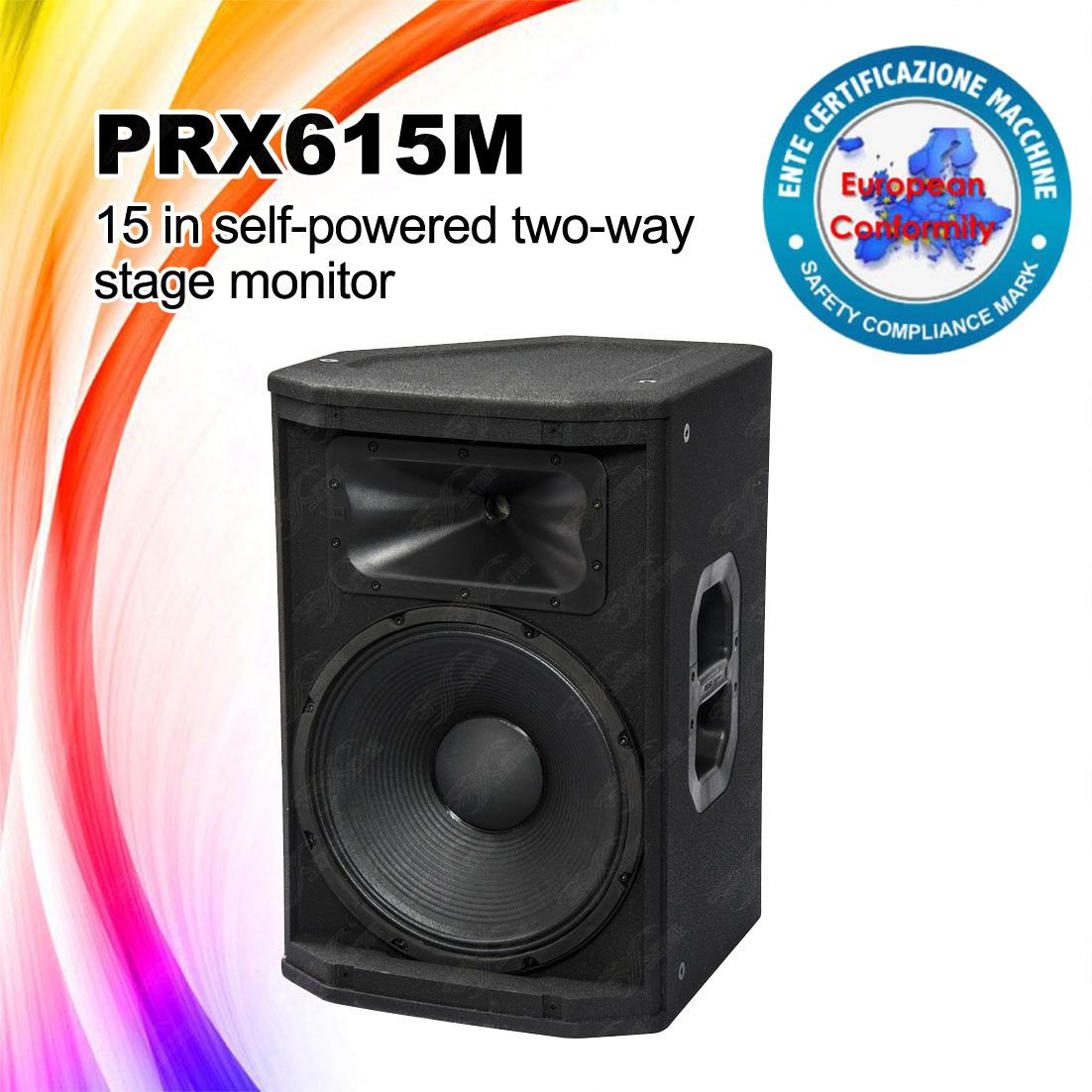

PRX615M 15" Pro Audio active speaker Powered Speaker15 in.Two-Way Self-Powered Sound Reinforcement System
Powered speaker
Active speaker
Audio speaker
Pa speaker
Professional speaker
Pa system
Sound system
Dj speaker
Dj equipment Features: Maximum SPL Output 135 dB peak380 mm (15 in) top quality ferrite magnet aluminum frame woofer44 mm (1.7 in) ferrite magnet compression driver650 Watt Class-D digital amplifierDSP input section with limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQProfessional XLR line and ¼ in Mic/Instrument inputs, with loop-throughIntegrated 36 mm dual-angle pole mount socketAmerica imported environmental polyurea coated plywood constructionLarge glass-filled nylon handlebar with a fine tuned ergonomic rubber grip for maximum comfort8 M10 Suspension points and 1 pullback point Application: The two-way 15 in is the most recognizable form of portable PA loudspeaker and offers the perfect balance between size and performance. The PRX615M truly is an exception; it is small, light weight, versatile and powerful. The performance and asymmetrical design make this a perfect choice for musicians, entertainers and DJs when portability is key, or, when hung by the suspension points, an exceptional light-duty installation speaker. All PRX600 Series speakers were designed to excel in the real world of sound reinforcement where challenging audio environments, high ambient noise levels and loud volumes are the norm. For applications requiring full bandwidth sound reproduction, using only a pair of speakers, the PRX615M delivers the optimum balance. For live music, recorded music playback and speech, the user has the option of tailoring the EQ, 'flat' for speech intelligibility, and 'boost' for enhanced bass and crisp highs in recorded music playback. A microphone can be directly connected to the speaker input for quick on-the-fly PA applications. Coupled with a PRX600 sub-woofer the system becomes an incredibly efficient, loud, full-range sound system. The PRX615M is comprised of a 380 mm (15 in) high quality ferrite magnet aluminum frame woofer, a 44 mm (1.7 in) ferrite magnet compression driver mounted to a 90° by 50° horn, all driven by 650 watt Class-D power amplifier. The amplifier input panel offers XLR or ¼ in jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level, via the level control knob. All PRX600 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, lightweight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by America imported environmental polyurea finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from lightweight, glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each. | Specification of PRX615M 15 inch self powered speaker |
| Model | PRX615M |
| System Type | Self powered 15", two-way, bass-reflex |
| Maximum SPL Output | 135 dB (Full Range) peak; 134 dB (Monitor) peak |
| Frequency Range (-10 dB) | Full Range: 45Hz-19 kHz
Monitor (vertical orientation): 55Hz-19 kHz
Monitor (monitor orientation):48Hz-20 kHz |
| Frequency Response (±3 dB) | Full Range: 54Hz-18 kHz
Monitor (vertical orientation):75Hz-18.5 kHz
Monitor (monitor orientation):60Hz-18kHz |
| Input Connectors | Balanced XLR / 1/4" combo jack
with XLR loop through |
| Input Impedance | 20K ohms (balanced), 10K ohms (unbalanced) |
| Signal indicators | Limit: Red LED indicates limiter active condition
Green LED indicates signal present |
| EQ | Presets for use in Main and Monitor position |
| Crossover Frequency | 1.8 kHz |
| Amplifier | class D |
| Power Rating | 650W |
| LF Driver | 1 x 15 inch top quality ferrite magnet woofer;
550Watts,8ohm |
| HF Driver | 44mm dia diaphragm tweeter |
| Coverage Pattern | 90° x 50° nominal |
| Directivity Index (DI) | 10.0 dB |
| Directivity Factor (Q): | 10 |
| Enclosure | 18 mm plywood |
| Suspension/ Mounting | Dual 36 mm pole socket
8 x M10 Suspension Points
1 x M10 Pull-Back Point |
| Transport | Integrated handle with backing cup |
| Finish | Polyurea Finish |
| Grille | Powder coated, black, 16-gauge perforated
steel with acoustically transparent foam |
| Dimensions | 660 mm x 429 mm x 414 mm |
| Net Weight | 35KG |
| Packing size (carton) | 53*55*75cm |
| Gross Weight (carton) | 41KG |

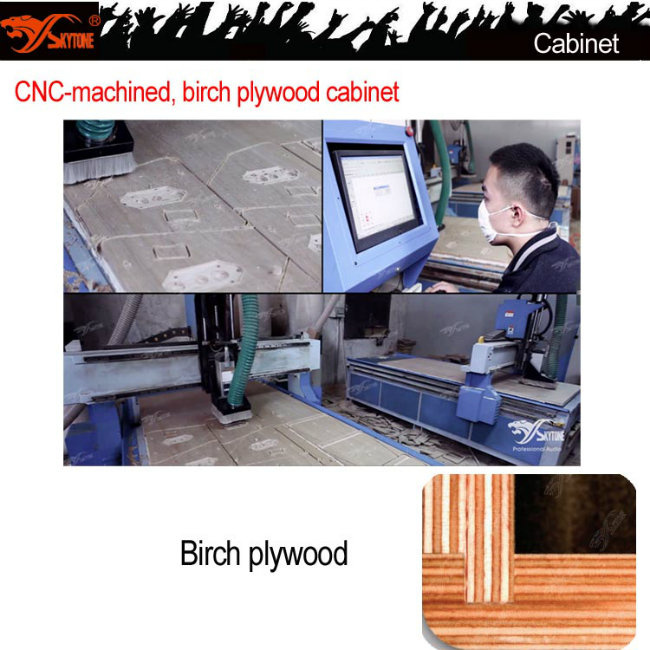

Overview:The 2-way 15" is the most recognizable form of portable PA loudspeakers and offers the perfect balance between size and performance.The PRX615M truly is an exception;It's small, light weight, versatile and powerful.For our speaker, cabinet are made by birch plywood, cnc-machined.
For the paint, used ployurea paint, which is Anticorrosive, waterproof, scratch-resistant, environmental without bad smell.
Applications:1. Live performance stage monitoring
2. Speech reinforcement
3. Reinforcement of vocal and acoustic music
4. High-performance satellite speaker for use with subwoofersCustomers feedback:

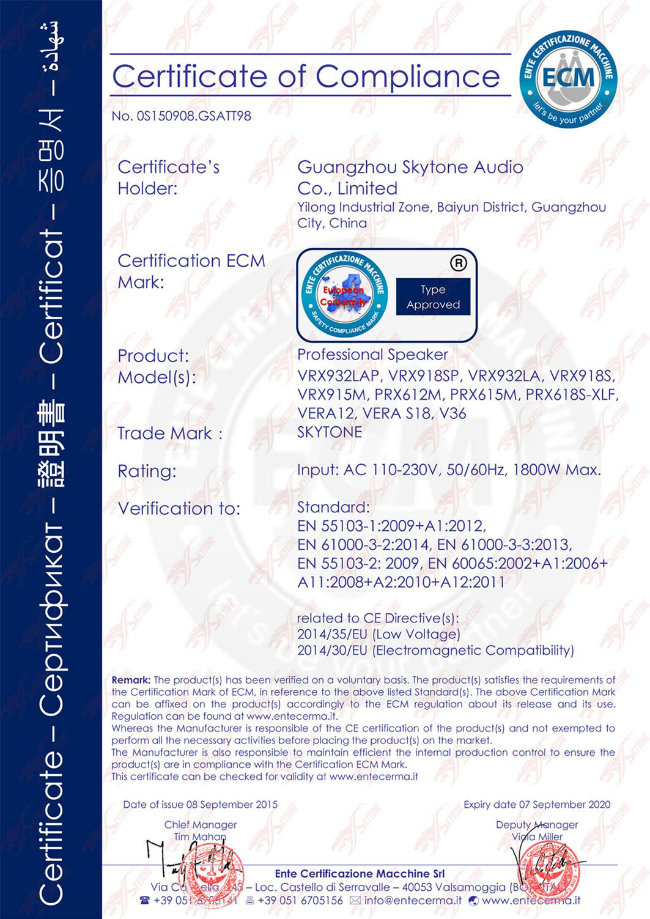

This speaker has passed European standard CE certificate:
Our advantages & service:1.Reply your enquiry in 24 working hours.
2.Experienced staff answer all your questions in fluent English.
3.Special discount and protection of sales area provided to our distributor.
4.Specialized in speakers over 11 years in China.
5.A team of designers and engineers are capable to create new items according to personal request.
6.Customized design is avalibale.
7.Welcome OEM and ODM.NOTICE:
Skytone Audio will display speakers and amplifiers at Dubai PROlight+sound exhibition.
Date: 17-19 October, 2017.
Address: Dubai International Convention and Exhibition Centre,
P.O. Box 9292, Dubai, United Arab Emirates
Booth No.: Hall 4, B34.
Note: We have UAE general agent in Sharjah.
Guangzhou Skytone Audio Co., Limited, was founded in 2004. Our office is located in the beautiful, bustling Guangzhou City, in Yilong Industrial Zone, Baiyun District, near Baiyun Lake, with 1000 square meters company.
And our factory is located in Panyu district, Guangzhou city with more than 2000 square meters.
Skytone is White hair in PRO Audio business. We are specialized in professional loudspeakers, karaoke speakers, amplifiers and other audio peripheral such as microphone, mixer, equalizer, compressor, ect.
Quality is Skytone's culture. Our company gains a good reputation with good management mechanism, advanced technology, strong force of R&D, excellent quality and perfect after-sales services. There are many departments in our company including R&D, engineering, production, marketing, after-sales services and personnel.
To meet market developments and customers' needs, our company will continue to improve the product structure, operational management, as well as comprehensive quality of the staff. With brand-new products, vigorous power and stable paces, we will work hand-in-hand with customers home and abroad to create brilliant future!
Making your world sound better!
