2265 Dual Voice Coil Speaker 15"
Dual voice coil speaker
Neodymium speaker
Speaker woofer

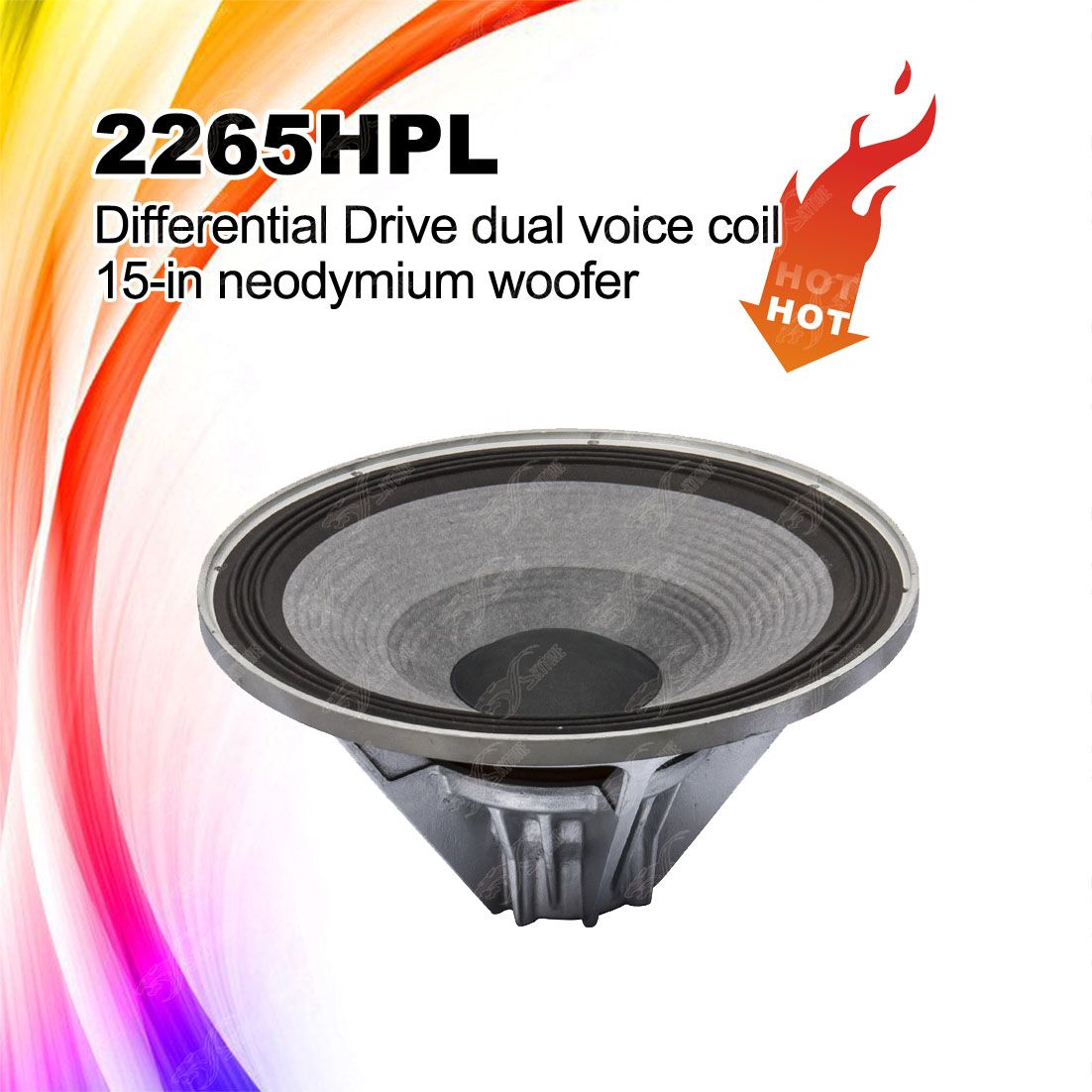

15" neodymium speaker, differential drive, dual voice coil
15" neo components

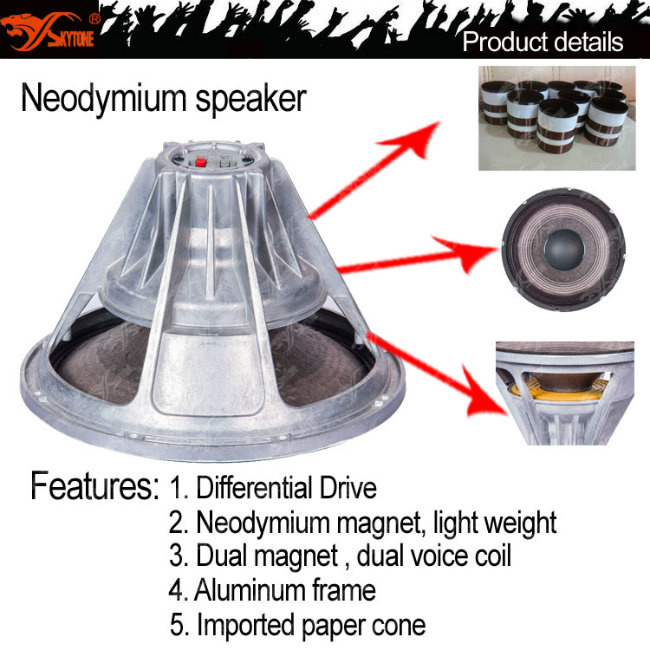

15" wooferOverview:2265HPL Differential Drive 15" woofer is a capable, durable, touring-quality PA speaker. Compared with traditional driver designs, employs a pair of inline voice coils in separate magnetic gaps instead of a single voice coil-gap configuration. Available space is more effectively utilized, and heat is removed from the motor structure more efficiently. Specifically, the voice coils are wound reversely and are immersed in magnetic fields of opposite polarity. This ensures reduced magnetic leakage flux and focuses more magnetic energy in the gaps where it is needed. Features

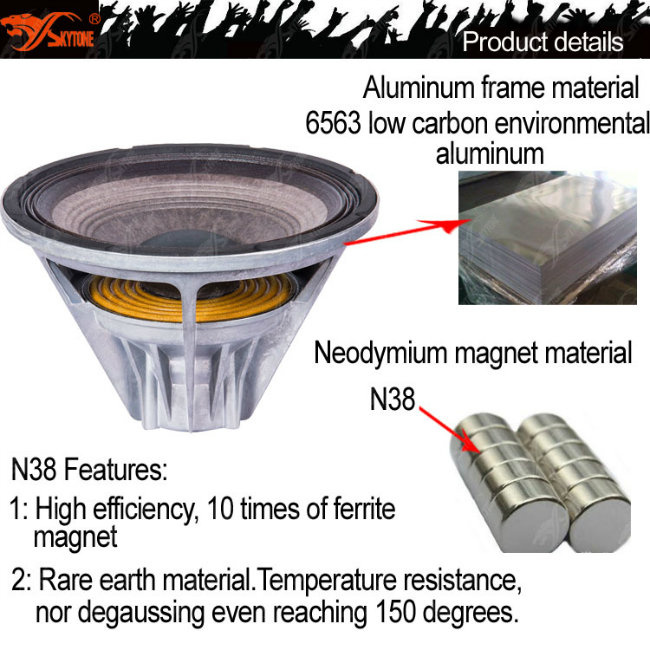

A. Neodymium magnet,
B. Aluminum frame
C. Dual voice coil
D. Differental Drive
E. Imported paper cone
F. Light weight
Highlights
Tour-class woofer with patented motor design
Better heat dissipation increases power handling, reduces power compression
Reduced inductance extends upper response
Lightweight, compact neodymium magnet system
Push-pull operation lowers distortion
Magnetically shielded for use anywhere
SRX715 pro speaker/speaker box
SRX725 dual 15" professional speaker/ pro audio| 2265HPL Product Specifications |
| Nominal Diameter | 15" |
| Power Handling (RMS) | 800 Watts |
| Power Handling (max) | 1400 Watts |
| Impedance | 8 ohms |
| Sensitivity | 97 dB 1W/1m |
| Voice Coil Diameter | 3" |
| Thiele-Small Parameters |
| Resonant Frequency (Fs) | 37 Hz |
| DC Resistance (Re) | 5.1 ohms |
| Voice Coil Inductance (Le) | 1.7 mH |
| Mechanical Q (Qms) | 3.3 |
| Electromagnetic Q (Qes) | 0.36 |
| Total Q (Qts) | 0.32 |
| Compliance Equivalent Volume (Vas) | 6.22 ft.³ |
| Maximum Linear Excursion (Xmax) | 8 mm |
| Materials of Construction |
| Cone Material | Paper |
| Magnet Material | Neodymium |
| Mounting Information | |
| Overall Outside Diameter | 15.125" |
| Baffle Cutout Diameter | 11.375" |
| Depth | 8" |
| # Mounting Holes | 8 |
| Optimum Cabinet Size |
| Sealed Volume | 1.18 ft.³ |
| Sealed F3 | 91Hz |
| Vented Volume | 2.44 ft.³ |
| Vented F3 | 56 Hz |

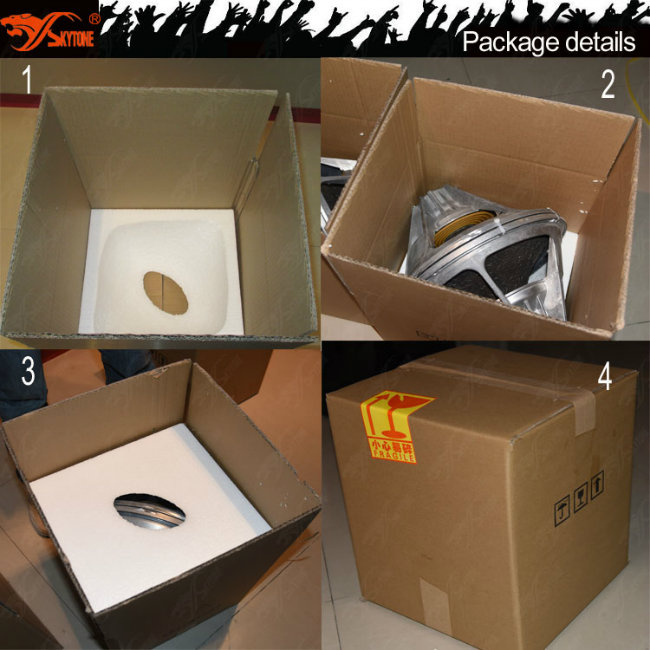

Package:

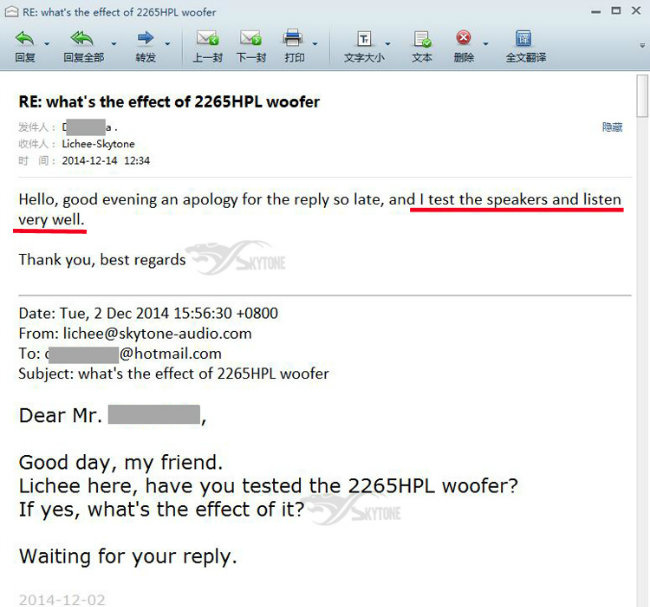

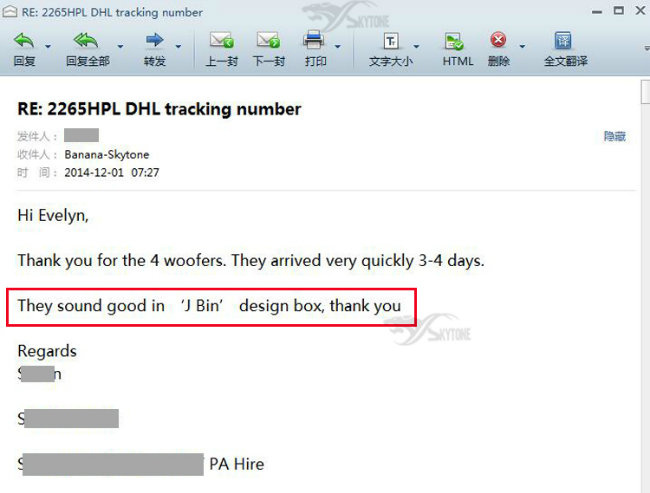

Here are good comment from our clients about our 2265 15" Dual Voice Coil speaker:
