| Price: | Negotiableset |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T |
Function
1 7 inches touching screen;
2 Resolution rate: 0.01mm;
3 100 program units;
4 Over 10000different cutting position;
5 Display the operating pattern;
6 It can memorize,store and dynamic follow-up;
7 Max paper-pushing speed: 5-15m/min;
8 Self-diagnostic function of troubles.
===========================================================================
Configuration
1 Adopting Japanese hydraulic components;
2 Electric components from France,Japan and Korea;
3 Taiwan ball lead screw and linear double guide-rail;
4 PLC control system for electric configuration;
5 Its key parts adopt imported bearing of low maintenance;
6 IR ray protective device is more convenient for cutting with optical knife-line alignment;
7 Button operated by two hands;
8 Single circulation cutting device etc.

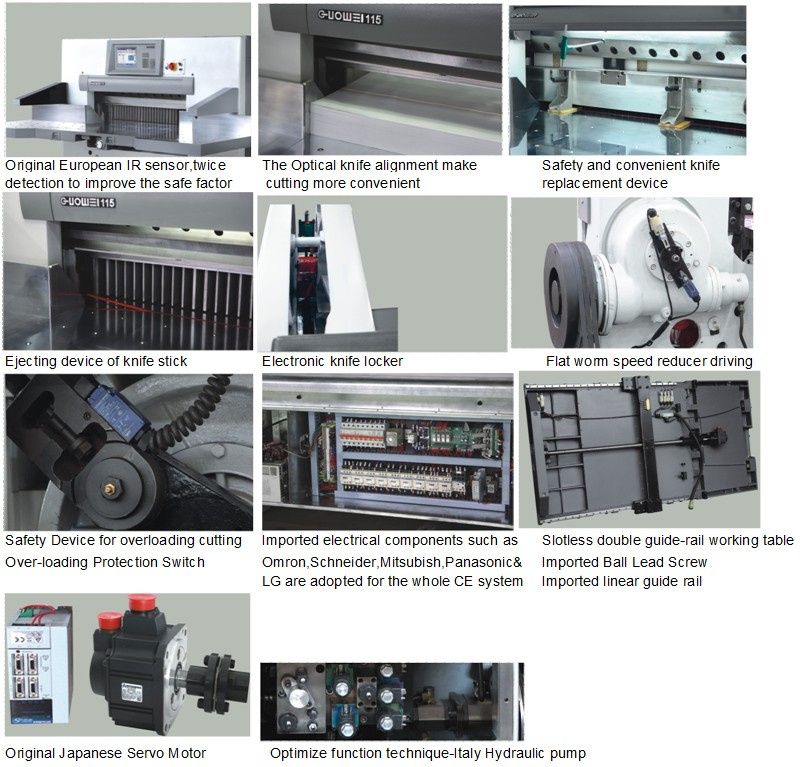

Configuration of Paper Cutting Machine/Paper Cutter/Guillotine

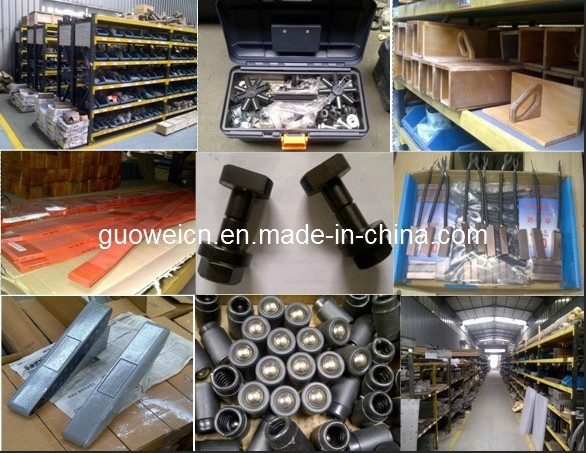

Spare Parts Warehouse

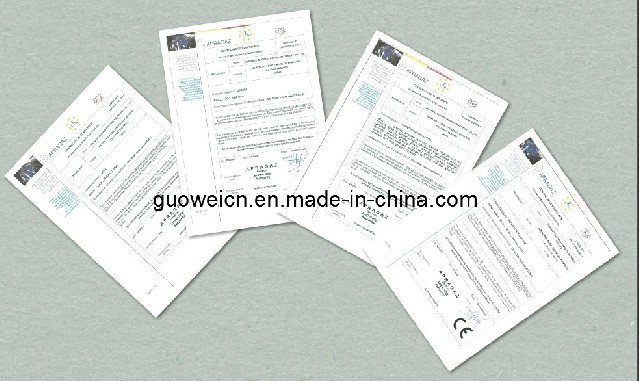

CE Certificate
Our Advantages
Our commitment
| Model | Unit | 137 | 155 | 166 | 186 | 220 |
| Max.Cutting Width | cm | 137 | 155 | 166 | 186 | 220 |
| inch | 54 | 61 | 65.4 | 73.2 | 86.6 | |
| Max.Cutting Height (without false clamp) | cm | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 |
| inch | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | |
| Min.Cutting Size (without false clamp) | cm | 3 | 3 | 3 | 3 | 3 |
| inch | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | |
| Front Table length | cm | 74 | 75 | 75 | 75 | 75 |
| inch | 29.1 | 29.5 | 29.5 | 29.5 | 29.5 | |
| Max.Cutting Speed | times/min | 45 | 42 | 42 | 40 | 33 |
| Max.Clamp Pressure | N | 45000 | 55000 | 60000 | 65000 | 70000 |
| Power of Main Motor | Kw | 4 | 5.5 | 5.5 | 7.5 | 7.5 |
| Paper Feeding Motor | Kw | 1 | 1 | 1 | 1 | 1.1 |
| Air Pump | Kw | 0.75×2 | 0.75×2 | 0.75×2 | 0.75×2 | 0.75×2 |
| Net Weight | Kg | 4500 | 5200 | 5500 | 6800 | 10200 |
| Packing Size(L×W×H) | cm | 280×160×215 | 296×165×215 | 315×160×215 | 340×182×230 | 390x190x270 |
| Configuration | |
| Model | K |
| Imported ball lead screw | YES |
| Imported double guide-rail slotless working table | YES |
| Chrome-plated main and assistance working table with air ball | YES |
| IR photoelectric protection and hands operating protection | YES |
| Ejecting device for cutting stick | YES |
| Inside electronic knife locker | CAN |
| Safe and convenient knife replacement system | YES |
| Overloading protection device for cutting | YES |
| Flat worm speed reducer transmission | YES |
| Optical knife alignment | YES |
| PLC conrtol system | YES |
| Imported hydraulic system | YES |
| Imported electric components | YES |
| Enlarged side working table | CAN |
| Soft pressure | CAN |
| Optimize function | NO |
| YES: Standard configuration | |
| CAN: Optional configuration | |
| NO: Without this configuration | |
| Prod Model: | 220K |
|---|---|
| Resolution Rate: | 0.01 |
| Max Paper-Pushing Speed: | 5-15m/Min |
| Max Cutting Width: | 86.6" |
| Table Height: | 35.5" |
| Cutting Speed: | 33r/Min |
| Power Of Main Motor: | 7.5kw |
| Max Paper Pressure: | 70000n |
| Machine Weight: | 10200kg |
| Max Cutting Height: | 6.5" |
| Overall Dimension: | 110.2"*74.8"*106" |
| Classification: | Single-blade Cutter |
| Driven Type: | Hydraulic |
| Blade Material: | Stainless Steel |
| Computerized: | Computerized |
