| Price: | Negotiableset |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T |
| Model / Specifications | 115 |
| Cutting width(cm) | 115 |
| Max.cutting height without assistance pressing plate(cm) | 16 |
| Max.cutting depth(cm) | 115 |
| Min cutting depth without assistance pressing plate(cm) | 2.5 |
| Extended length of working table(cm) | 73 |
| Height of working table(cm) | 88-92 |
| Machine width including side working table(cm) | 266 |
| Total length of working table(cm) | 226 |
| Cutting speed(r/min) | 45 |
| Max. Paper pressure(n) | 40000 |
| Power of main motor(kw) | 4 |
| Motor for paper feeding(kw) | 0.75 |
| Air pump(kw) | 0.75 |
| Machine weight(kg) | 4000 |
| Overall dimension((Length x width x height)cm) | 255x160x215 |
1.The displaying panel use 15 inch, you can adjust the color by yourself.
2.They have the high quality colors(25600), their storage can reach 100 groups,every group have 100 cut, Its storage time can reach 300,000 hours.
3.There are 8 multi-language operating interface, such as Chinese,English,Spanish...
4.It has colorful touching screen so as to ensure the high stability.
5.The Apparatus Controlled Ssystem:
| No. | Name | Brand Model | Origin |
| 1 | Computer display screen | WEINVIEW 15 inches color touch screen | Taiwan |
| 2 | Ball-lead screw | ABBA Ball-lead screw | Taiwan |
| 3 | Linear guide | ABBA High-precision linear guide | aiwan |
| 4 | Control center | Panasonic PLC | Japan |
| 5 | Servo drive | Panasonic servo drive | Japan |
| 6 | Servo motor | Panasonic servo motor | Japan |
| 7 | IR Grating | import | Italy |
| 8 | Overload protection switch | Schneider | France |
| 9 | Relays | IDEC | Japan |
| 10 | Contactor | Schneider | France |
| 11 | Air switch | LS | Korean |
| 12 | Start button | Moeller | Germany |
| 13 | Locating switch | Schneider | France |
| 14 | Hydraulic Pump | Marzocchi/Brevini | Italy |
| 15 | Hydraulic solenoid valve | Hyde Fuchs | American |
| 16 | Worm Reducer | CEM | Tianjin(American) |
| 17 | Proximity Switch | FOTEK | Taiwan |
| 18 | Bearing | NSK | Japan |
| 19 | Knife | IKS | Shanghai |
| 20 | Safety Relays | LEUZE | Germany |

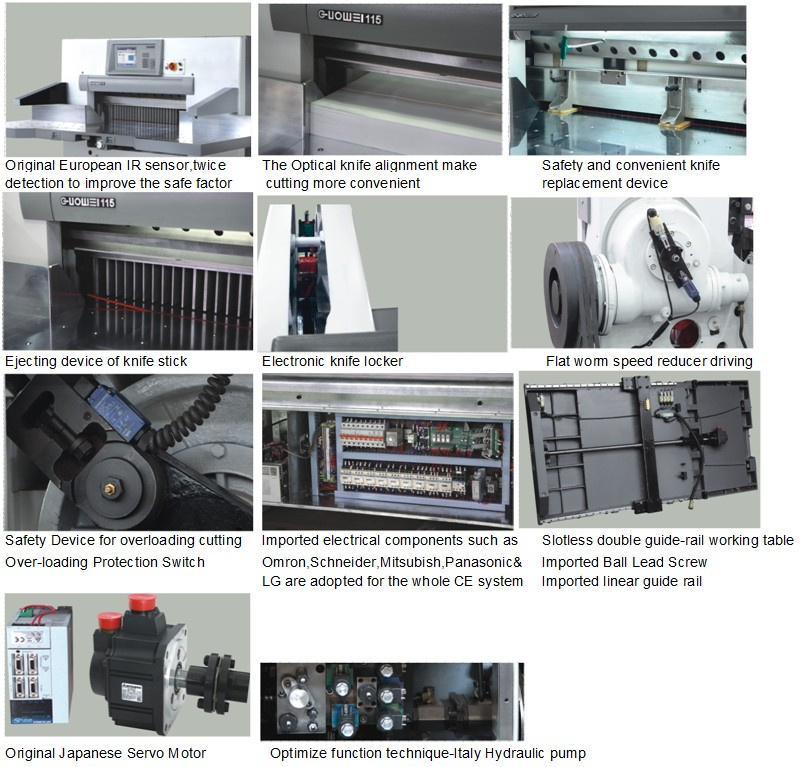

1.Imported ball lead screw.
2. IR photoelectric protection and hands operating protection
3. Ejecting device for cutting stick
4. Inside electronic knife locker
5. Safety and convenience knife replacement system
6. Overloading protection device for cutting
7.Flat worm speed reducer transmission.
8.PLC control system
8.The Accessory With Machine:

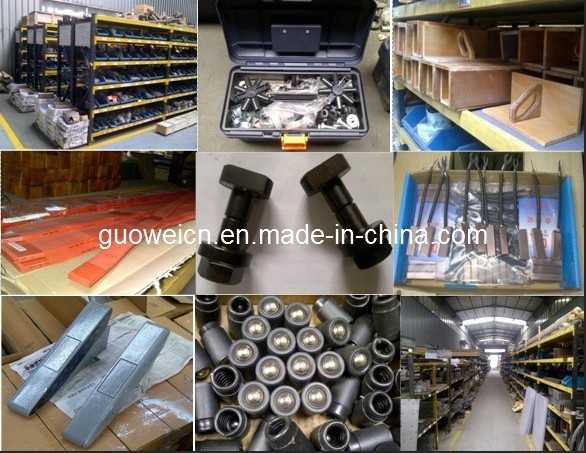

1. Tool box: 1 set
2. Manual book
3. Guarantee sheet(details in contract)
9.The Payment Terms:
30% TT in advance, balance before shipment.
10.The Delievry Time:
About 25 days after receipt of the deposit.

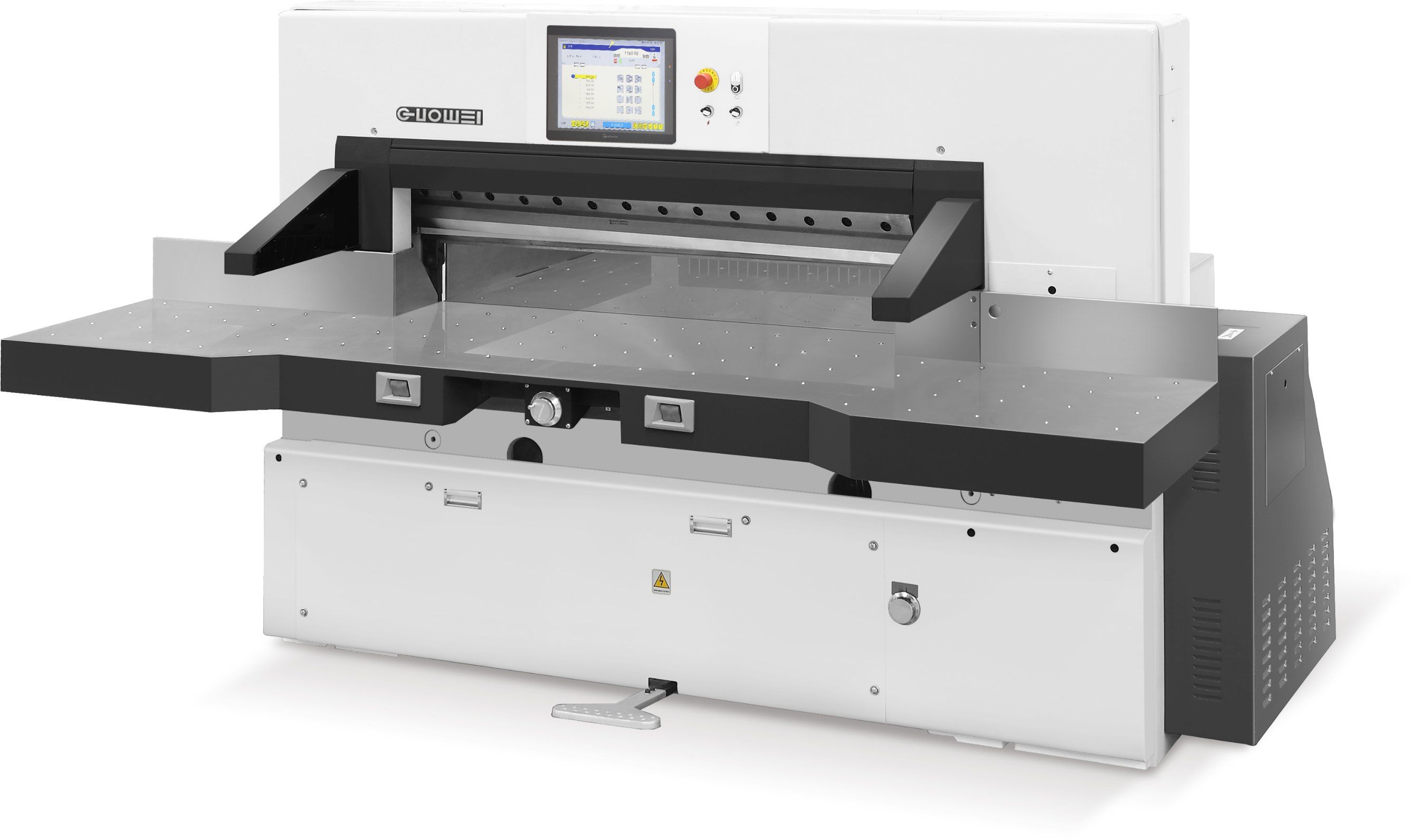

| Prod Model: | 115F |
|---|---|
| Cutting Width: | 1150mm |
| Resolution Rate: | 0.01mm |
| Size Of Touch Screen Computer: | 15 Inch |
| Max Cutting Depth: | 1150mm |
| Max.Cutting Height: | 165mm |
| Net Weight: | 4000kg |
| Packing Size(L*W*H): | 2550*1600*2150 |
| Classification: | Single-blade Cutter |
| Driven Type: | Hydraulic |
| Blade Material: | Stainless Steel |
| Computerized: | Computerized |
