Functions
1. Japanese AC digit servo control system;
2. 15 inches colorful touching screen ;
3. Resolution rate:0,01mm;
4. Self-diagnostic function of troubles;
5. Display the operating pattern;
6. 100 program units;
7. More than 10000 different cutting position;
8. Dynamic display of cutting and running situation;
9. Max paper-pushing speed of 8-25m/min;
===========================================================
Configuration
1. Adopt strongrt computer operating system;
2. The storage time of memory can be up to over 300000 hours;
3. Italian hydraulic components, electric components from France, Germany, Japan and Korea;
4. Ball lead from Taiwan with linear guide-rail and safety device for overloading cutting;
5. Safety lockers of press bar;
6. PLC controller can monitor all the electrical and mechanical section;
7. Adopt imported bearing of low maintenance.

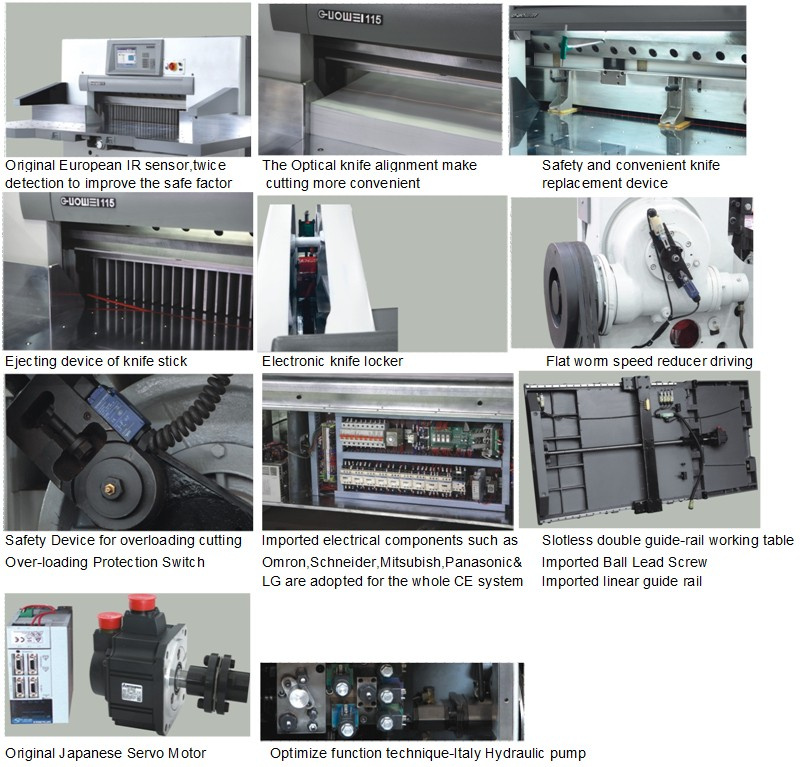

Configuration of Paper Cutting Machine/Paper Cutter/Guillotine

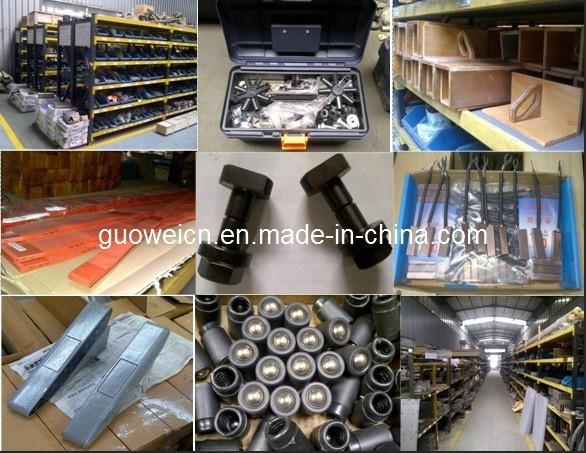

Spare Parts Warehouse
CE Certificate
Our Advantages
Our commitment
| Model | Unit | 137 | 155 | 166 | 186 | 220 |
| Max.Cutting Width | cm | 137 | 155 | 166 | 186 | 220 |
| inch | 54 | 61 | 65.4 | 73.2 | 86.6 | |
| Max.Cutting Height (without false clamp) | cm | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 |
| inch | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | |
| Min.Cutting Size (without false clamp) | cm | 3 | 3 | 3 | 3 | 3 |
| inch | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | |
| Front Table length | cm | 74 | 75 | 75 | 75 | 75 |
| inch | 29.1 | 29.5 | 29.5 | 29.5 | 29.5 | |
| Max.Cutting Speed | times/min | 45 | 42 | 42 | 40 | 33 |
| Max.Clamp Pressure | N | 45000 | 55000 | 60000 | 65000 | 70000 |
| Power of Main Motor | Kw | 4 | 5.5 | 5.5 | 7.5 | 7.5 |
| Paper Feeding Motor | Kw | 1 | 1 | 1 | 1 | 1.1 |
| Air Pump | Kw | 0.75×2 | 0.75×2 | 0.75×2 | 0.75×2 | 0.75×2 |
| Net Weight | Kg | 4500 | 5200 | 5500 | 6800 | 10200 |
| Packing Size(L×W×H) | cm | 280×160×215 | 296×165×215 | 315×160×215 | 340×182×230 | 390x190x270 |
| Prod Model: | 137F |
|---|---|
| Resolution Rate: | 0.01 |
| Max Paper-Pushing Speed: | 8-25m/Min |
| Max Cutting Width: | 54" |
| Table Height: | 35.5" |
| Cutting Speed: | 45r/Min |
| Power Of Main Motor: | 4kw |
| Max Paper Pressure: | 45000n |
| Machine Weight: | 4500kg |
| Max Cutting Height: | 6.5" |
| Overall Dimension: | 111"*63"*85" |
| Classification: | Single-blade Cutter |
| Driven Type: | Hydraulic |
| Blade Material: | Stainless Steel |
| Computerized: | Computerized |
