| Price: | US $ 2700-3000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Saw Bit Diameter | 305mm(12'') |
| Max Working Thickness | 85mm |
| Sawing Width | 360mm |
| Spindle Speed | 3000r/min |
| Spindle Diameter | 24.4 |
| Feeding Speed | 12-22m/min |
| Feeding Motor Power | 0.75kw |
| Main Motor Power | 7.5kw |
| Total Power | 9kw |
| Operating Platform Size | 1300*715mm |
| Overall Dimensions | 1500*950*1600mm |
Feature:
1.The device equipped with protection-back retaining device ensure the safety of operating personnel,it is strictly forbid to tune up or dismantle protection-back device.
2.The cover cap of the saw equipped with sensors,when opening the cover cap,the equipment will automatically shut down.
3.The device must start the saw blade first to start transport.
4.The electric box set the automatic protection system,when the oil pump runs out off oil,it will automatically shut down to protect the rail and chain plates.
5.The machine installed infrared alignment device,in order to find the exact location to improve the efficiency of wood processing.

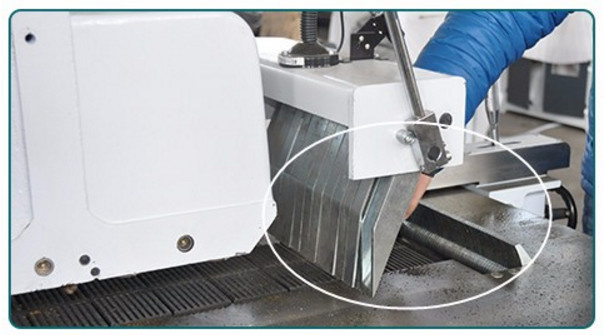

 | Anti-kickback device on working platform,avoided working pieces's kickback and ensure safety cutting. |

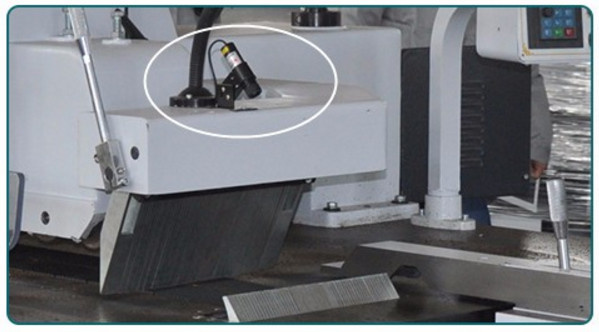

| With the infrared alignment device make the cutting with very precision. |  |

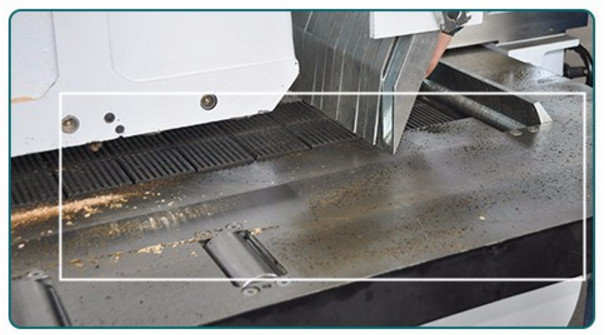

 | Automatic feeding conveyor chain blocks made by special materials with tooth surface for better friction and resistance, stock feeding more smooth. |
1.Packing details: Stretch film with wooden case or as your request.
2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.
3.Timely delivery and transportation
WHY CHOOSE US
1.Company proflie
Qingdao High-Class Service Import & Export Co., Ltd. is located in the beautiful coastal Qingdao city, which is also famous for woodworking machinery. We are professional in providing Chinese leading woodworking machinery products, whole-factory solutions and excellent services. Now, we are engaged in offering woodworking machinery,
metal working machinery, packing machinery,
WPC machinery and corresponding spares parts and raw materials. Our company has own professional technical team to make sure the perfect import and export service system run well. With years of experience, we have established long and strong business relationships with more than10 professional distributors all over the world. We are the sole buying agent of customers from Russia, the Middle East, South Africa and Brazil. We always welcome partners to join us and develop the business together. Under the guideline of "High Class Service", we would like to continue providing the best service for customers who need machinery. In accordance with the principle of mutual benefit, we are going to have a pleasant corporation.
2.Our after-sale service
1. We respect your feed back after receiving the goods.
2. Tracing the working condition by email per month.
3. 24 hours technical support by email, call, video.
4. English CD and manual for machine using and maintainance.
5. Whole machine one year warranty.
6. Whole life warranty.
7. Engineers available to serve and train overseas, but your side should pay all the expense.
3.FAQ
1. Can we visit your factory?
We do welcome our new and regular friends come here to have a visit. Besides, we would send you our relative information to promote a face-to-face meeting if you'd like to.
2. What's your warranty of your products?
Our machines have best quality and its warranty is 1 year.
3. How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.
4. What's your payment term?
30% advance payment and the balance payment should be paid before delivery but after inspection.
| Prod Model: | HC-ZMJ153 |
|---|---|

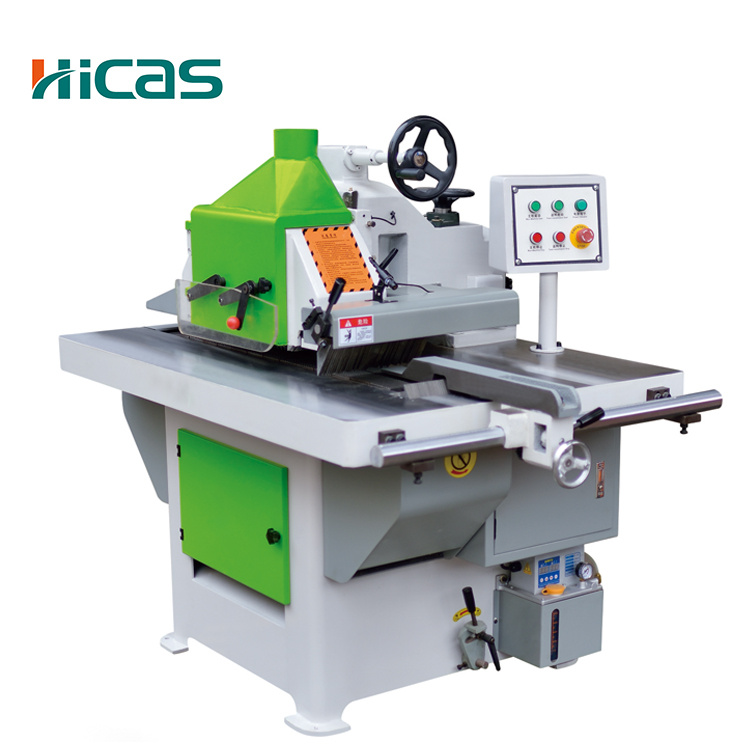

| Product Name: | Single Blade Rip Saw |
| Keyword: | Single Blade Rip Saw |
| Brand Name: | Hicas |
| Model: | Hc-Zmj153 |
| Application: | Woodworking |
| Service: | Working Video |
| Voltage: | 220V/380V |
| Power: | 9kw |
| Type: | Rip Saw |
| Layout: | Vertical |
| Automatic Grade: | Automatic |
| Precision: | Precision |
| Certification: | ISO |
| Controlling Mode: | Automatic |
