Home Toolbuy Products New! Mifare Card Hotel Door Lock (BW803BG-S) with Software

New! Mifare Card Hotel Door Lock (BW803BG-S) with Software

New! Mifare Card Hotel Door Lock (BW803BG-S) with Software
Price: US $ 60-70/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: T/T,D/P,Western Union,Paypal

Lock type: S
Shell Material: Zinc alloy
Color: Bright gold
Card type: Mifare1 card
Door Thickness: 38~55mm
Quiescent Current: <20 uA
Power Supply: 4 alkaline batteries
HS code: 83014000
Certificate: CE, ISO

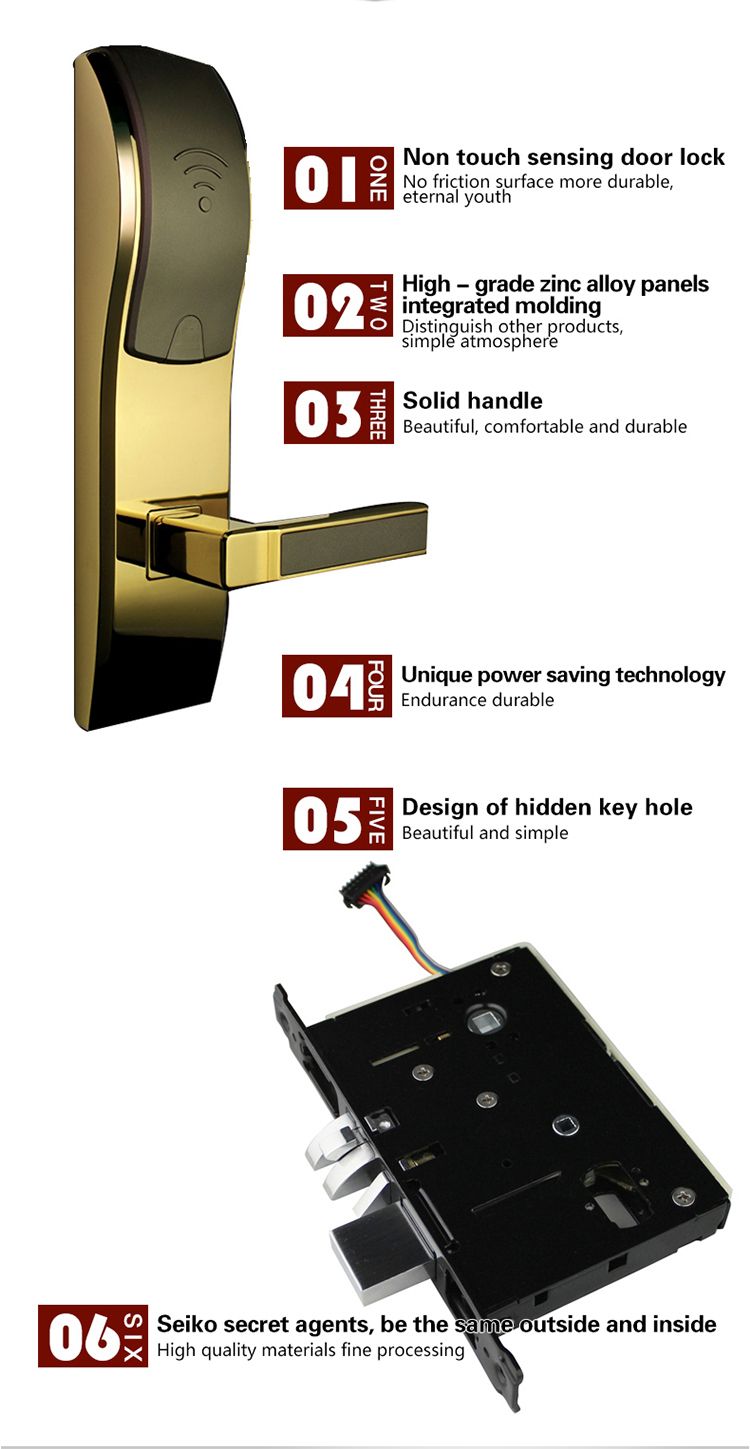

1. Elegant style
2. M1 inductive card to open the door
3. Material: Zinc alloy
4. Streamline appearance, excellent hand feel

About the lock
The bolt structure is in line with international standard, anti-insert and anti-pry and of high safety and reliability.
Equipped with imported micro-motor transmission device which is of good reliability and low power consumption.
Nano-plating on the surface to prevent the color to fade
Real-time calendar is set inside the lock, so the guest card will expire automatically if it is out of date and staff card can be used in optional time according to the calendar time
4 AA alkaline batteries supply the power, installed in the back of the lock which is easy for replacement.

About the card
BW803 series door lock adopts Mifare1 card of Phillips Company as its keycard and has various functions.
Each card has unique serial number of 32 bits and cannot be copied.
The card has 16 independent encrypted sectors. Each sector is divided into 4 pieces; Each piece's storage capacity is 16 bytes. Taking one piece as a storing and saving unit, each sector has an independent set of passwords and access control ability.
Detailed unlocking records---E2PROM inside the lock has the capacity to record 200 times locking and unlocking operations; The recording equipment extracts the data, and save the data in management software, for the convenience of checking and printing
Anti-collision mechanism and support multi-cards operation on one lock.

Various functions:
1. Time Limited Function--As long as the guest is expected to check out, the guest card will be inoperative automatically.
2. The Record Function--the lock records the latest 200 times unlocking information.
3. The Function of Avoiding Disturbing--after the door is locked from the inside, any card except emergency card cannot open the lock.
4. The Function of Alarm--once the batteries voltage is not enough, the door isnt totally closed and other abnormal situations, the lock will keep to warm the user by buzzer.
5. "Always-open" Function --- can be set into normally always-open condition with the meeting card.
6. The Function of Multi-room card --- we can use one guest card to open several different rooms' locks if necessary.
7. The Access Function--when necessary, we can set four kinds of locks which are room-access, floor-access, building-access, and general access.

Other Information:
1. Calendar inside the lock can automatically adjust the leap year and is very exact.
2. Red, yellow and green indicator lights and the buzzer are combined as varied sound and light signals which are used to indicate the locks conditions and the cards information.

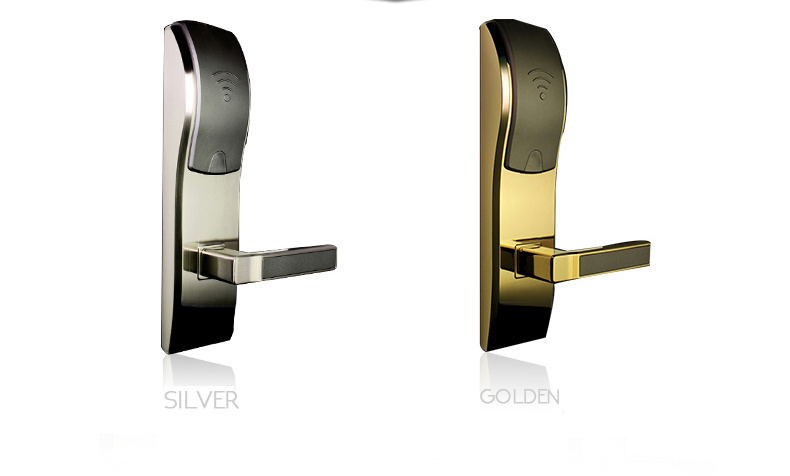

3. Various kinds of surface treatment for your choice:
Copper wiredrawing,
Stainless steel wiredrawing,
4. Having mechanical emergency apparatus-- mechanical key
5. The modes of the handlebar are divided into left hand and right hand
6. The longest unlocking time is 6 seconds.
7. It needs 4 AA alkaline batteries and the batteries are convenient to change.
Technical itemParameter Description
shell materialsStainless steel/pure copper/ zinc alloy
Weighabout 3.7 kegs
Side pressure strength1000kgs
Life timeover 10 years
Inductive Distanceover 20mm
Effective unlocking durationwithin 6 seconds
power supplyDC6V, 4 * #5 alkaline batteries
quiescent current20μ A
working temperature-40~85
Relative humidityless than 95%, no corrosive gas and dust
Service durability100, 000 times
data saving lengthover 100 years
Applicable door thickness38~55 mm

Prod Model: BW803BG-S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lock Type: S
Shell Material: Zinc Alloy
Card Type: Mifare1 Card
Door Thickness: 38~55mm
Quiescent Current: <20 Ua
Power Supply: 4 Alkaline Batteries
Certificate: CE, ISO
Mortise: ANSI Type
Type: Mifare Card
Material: Alloy
Usage: Commercial
Certification: CE, ISO, FCC, SGS
Color: Bright Gold
Changzhou Bonwin Technology Co., Ltd

Bonwin Technology Co., Ltd, founded in 2003, is located in the south of Yangtze River which is a picturesque place gathering many human talents. Since establishment, Bonwin has been focusing on the development and application of Hotel Room Intelligent Management System, intelligent locks and management software and concentrating on creating high-quality products. For almost 10 years, Bonwin has become the one of the leading manufacturers of hotel management system & intelligent locks in eastern China.

Our main products are:

1. Intelligent door locks: MIFARE card lock, EM card lock, IC card lock, Wireless Networking lock

2. Intelligent Cabinet locks: EM card cabinet lock, TM card cabinet lock

3. Hotel intelligent management system:

4. Electronic Safe box

5. Access Control System

6. Network lock system

7. Energy-saving Switch

Our goods are suitable for hotels, residential areas and business buildings

"Customer satisfaction" is our objective. We have established ISO9001 quality control system since 2007. Bonwin always insists on the policy "constantly striving for excellence". "The better the process is controlled, the better the outcome is" is our quality management principle.

Technology and innovation is the engine of Bonwin rapid development. As a high-tech enterprise of Jiangsu province, Bonwin has won more than 20 patents at this field, such as the national patent of invention, patent of utility model, etc., as well as a lot of honors, such as High-tech enterprise of Jiangsu province, ISO9001 quality certificate, security certificate of the Ministry of Public Security, CE certificate, FCC certificate, etc.

"Accurate, timely, careful, in place" is our consistent service standard. Perfect after-sales service is the fundamental guarantee to improve customer satisfaction. For 3 years in succession, clients' satisfactions have remained above 95%.

Bonwin people continue to forge ahead. The selling network has widely covered the whole country of China, and the products also sells good in more than 40 countries and regions from Europe, Asia, the America, Africa, and Oceania. Bonwin locks have serviced more than 7000 star-rated hotels and more than 10000 high-graded sauna/swimming centers.

Bonwin has built a good relationship with some international chain hotels, such as RAMADA, DAYS INN, GLORIA, Howard Johnson, etc. And is a long-term partner of more than 300 five-star hotels in China, for example: Jiangsu Jinling Hotel, Beijing Capital Tourism Jianguo Hotel, Zhejiang World Trade Jun LAN Hotel, , Shanxi Tourism Group, Jiangsu Blue Fast Boat hotel, etc.

In this fast-changing market competition, Bonwin keeps on challenge himself and make positive innovation. His eternal goal and pursuing is to form excellent teams, create national boutiques, and offer sincere services, marching to be a world famous brand!
