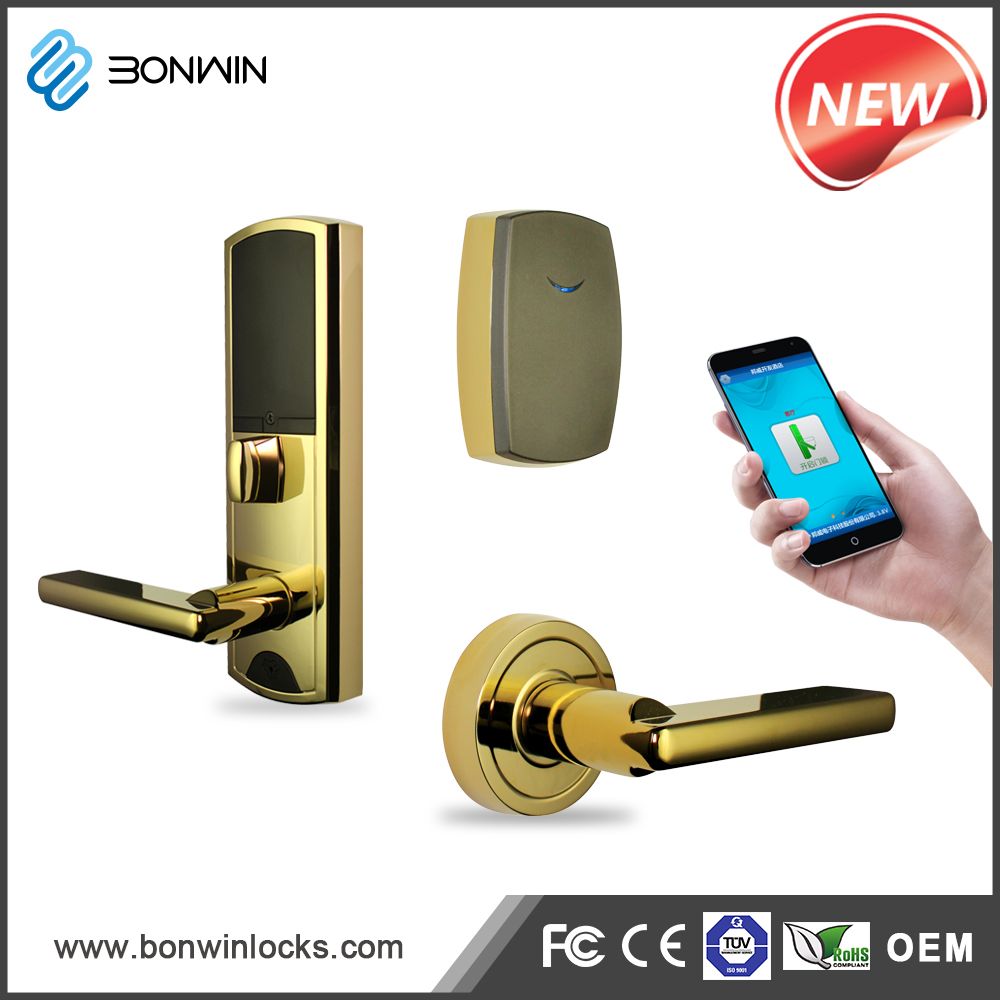

Wireless Hotel Door Lock with 500m Sub-GHz Long Distance Control

Wireless Hotel Door Lock with 500m Sub-GHz Long Distance Control
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
BW883 series locks






Technical parameters and environment requirements:

ParametersParameters feature and range
VoltagePower supply4pcs AA alkaline batteries, 4.5~6.5V
Low voltage alarm4.8
CurrentQuiescent state80uA
Dynamic state150mA
Working environment-20ºC~55ºC; <90%RH
CPU 8 bits low power consumption MCU

Storage>10 yearsEvent RecordOff-line>1600pcs; Online: All Records
Blacklist100pcs
Time limited red list148pcs
Normal red list364pcs
IC identificationFrequency13.56MHz
Factory card typesPhilips M1-S50/S70; Fudan Micro Card; CPU Card
Identification distance2~3cm
FunctionSupport IC card configuring networking parameter,
setting password, room information, Authorizing to
report the loss of cards, opening or
 closing door locks

Sub-GHz
frequency470~525MHz
Information channelAbout 220 communication channels can be chose
Receiving sensitivity-95dBm
Transmit Power+2.5dBm
Power handing peak10 dBm
RSSI Range-95 dBm to -10 dBm
Output Impedance50Ω
communication distanceOpen Environment>500m
audible and visual indication buzzer , Red Blue indicator light
Incident

alarm monitoringMain lock tongue,  mechanical key, Drawer switch
detection (avoid disturbance)
 Low Battery DetectionBattery voltage monitoring
Door location StateChange of door location
Door Lock SwitchReporting incident records by IC card

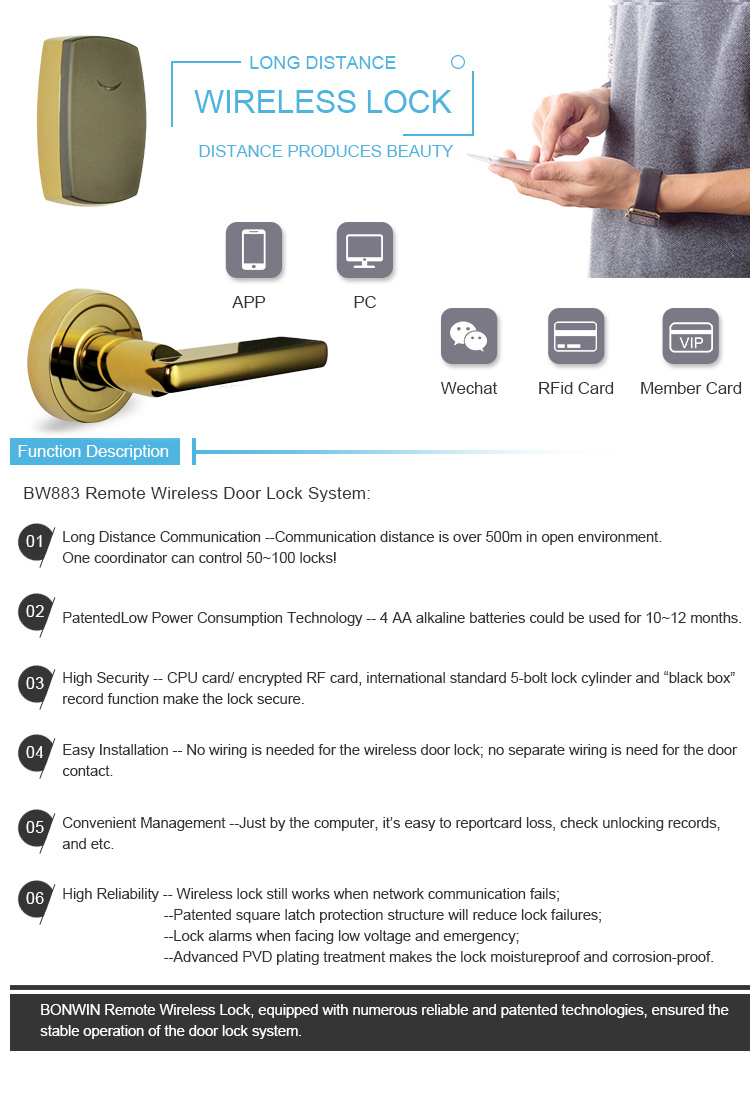

Remote ControlOpen or close door lock by remote control, authorize
or revoke IC card by remote control
performanceBattery Life7200~8640 hours
 mechanical enduranceDrawer cannot be open in the case of anti tongue
 in the open state

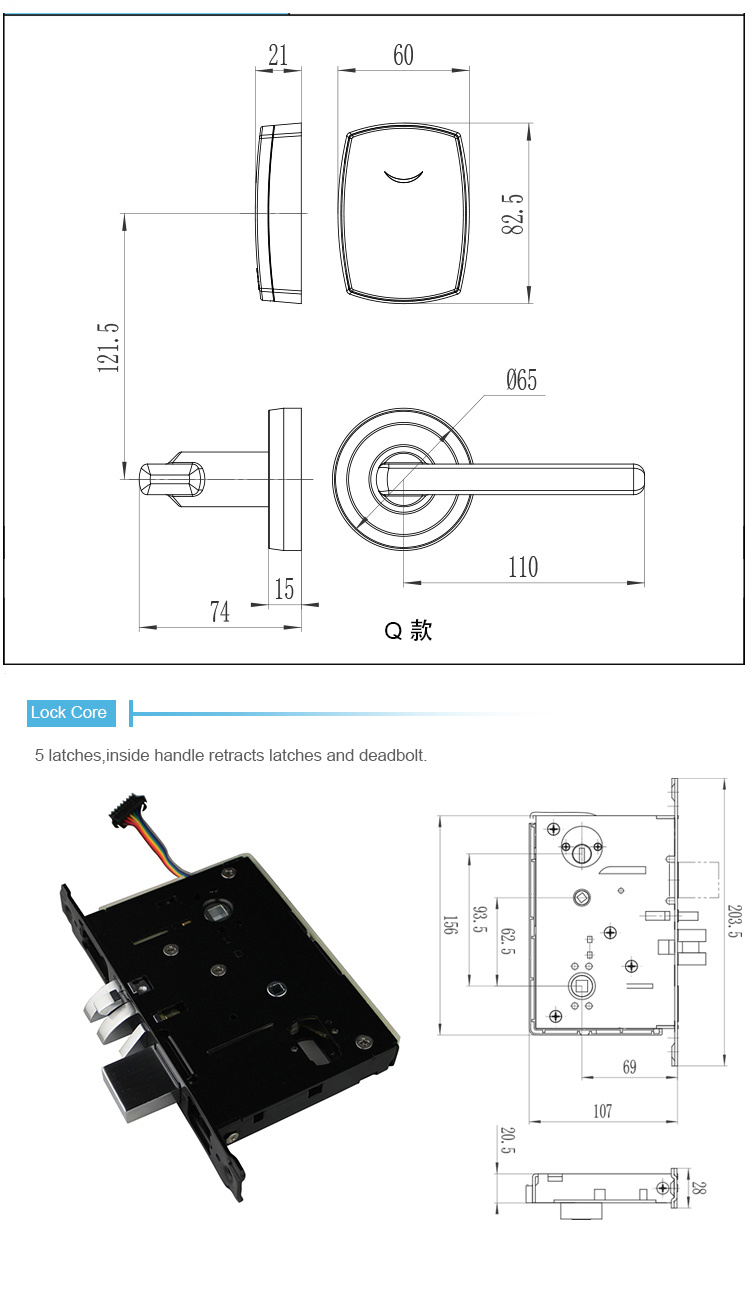

Applicative door thickness38~55mm;
Drawer lock protectionDrawer cannot be open in the case of anti tongue
in the open state
secret key
Double secret keys authentication including systematic
 secret key and card secret key






Prod Model: BW883BG-Q
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lock Style: T6
Certification: Ce, FCC
Suitable Door Thickness: 38~55mm
Service Durability: More Than 300000 Times
Used For: Hotel, Office, Homes
Sub-GHz Frequency: 470~525MHz
Sub-GHz Channels: 220channels Can Be Chosen
One Controller Can Control: 50-100 PCS Locks
Power Supply: 4PCS AA Alkaline Batteries
Use Life: More Than 15 Years
Type: Electronic
Style: Modern
Shape: Mortise Door Lock
Part: Lock
Usage: Apartment/Hotel/Office
Material: Stainless Steel
Door Thickness Fits: 38-55mm
Changzhou Bonwin Technology Co., Ltd

Bonwin Technology Co., Ltd, founded in 2003, is located in the south of Yangtze River which is a picturesque place gathering many human talents. Since establishment, Bonwin has been focusing on the development and application of Hotel Room Intelligent Management System, intelligent locks and management software and concentrating on creating high-quality products. For almost 10 years, Bonwin has become the one of the leading manufacturers of hotel management system & intelligent locks in eastern China.

Our main products are:

1. Intelligent door locks: MIFARE card lock, EM card lock, IC card lock, Wireless Networking lock

2. Intelligent Cabinet locks: EM card cabinet lock, TM card cabinet lock

3. Hotel intelligent management system:

4. Electronic Safe box

5. Access Control System

6. Network lock system

7. Energy-saving Switch

Our goods are suitable for hotels, residential areas and business buildings

"Customer satisfaction" is our objective. We have established ISO9001 quality control system since 2007. Bonwin always insists on the policy "constantly striving for excellence". "The better the process is controlled, the better the outcome is" is our quality management principle.

Technology and innovation is the engine of Bonwin rapid development. As a high-tech enterprise of Jiangsu province, Bonwin has won more than 20 patents at this field, such as the national patent of invention, patent of utility model, etc., as well as a lot of honors, such as High-tech enterprise of Jiangsu province, ISO9001 quality certificate, security certificate of the Ministry of Public Security, CE certificate, FCC certificate, etc.

"Accurate, timely, careful, in place" is our consistent service standard. Perfect after-sales service is the fundamental guarantee to improve customer satisfaction. For 3 years in succession, clients' satisfactions have remained above 95%.

Bonwin people continue to forge ahead. The selling network has widely covered the whole country of China, and the products also sells good in more than 40 countries and regions from Europe, Asia, the America, Africa, and Oceania. Bonwin locks have serviced more than 7000 star-rated hotels and more than 10000 high-graded sauna/swimming centers.

Bonwin has built a good relationship with some international chain hotels, such as RAMADA, DAYS INN, GLORIA, Howard Johnson, etc. And is a long-term partner of more than 300 five-star hotels in China, for example: Jiangsu Jinling Hotel, Beijing Capital Tourism Jianguo Hotel, Zhejiang World Trade Jun LAN Hotel, , Shanxi Tourism Group, Jiangsu Blue Fast Boat hotel, etc.

In this fast-changing market competition, Bonwin keeps on challenge himself and make positive innovation. His eternal goal and pursuing is to form excellent teams, create national boutiques, and offer sincere services, marching to be a world famous brand!
